2005 VOLVO XC90 Owners Manual

2005 VOLVO XC90

12-volt socket in the cargo compartment
l If the ignition is switched off and a device drawing more than 0.1A is c\
onnected to a socket, a battery
warning will be displayed in the text window.
l The covers should be kept on when the auxiliary sockets are not in use. \
l Maximum current from the sockets is 15A.
Ashtrays/cigarette lighter
The auxiliary sockets can also be used for cigarette lighters.
Ashtrays and lighters are available as accessories. Please contact your \
Volvo retailer.
pg. 44 Instruments and controls
Electrically operated windows
The electrically operated windows are controlled by buttons in the arm r\
ests.
l The ignition switch must be ON* (ignition key in position I, II or the \
engine running) for the
electrically operated windows to function.
l To lower: Press down the front edge of the button to the first detent (\
"stop").
l To raise: Lightly pull up the front edge of the button to the first dete\
nt ("stop").
* The electrically operated windows will also function after the ignitio\
n has been switched off as long as
neither of the front doors has been opened.
Auto up/down function (front doors only):
Either front door window can be opened or closed automatically.
Auto down: Press the front part of the button as far down as possible and release i\
t immediately. To
stop the window at any time, pull the button up.
Auto up: Pull the front part of the button up as far as possible and release it i\
mmediately. To stop the
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (10 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90
window at any time, press the button down.

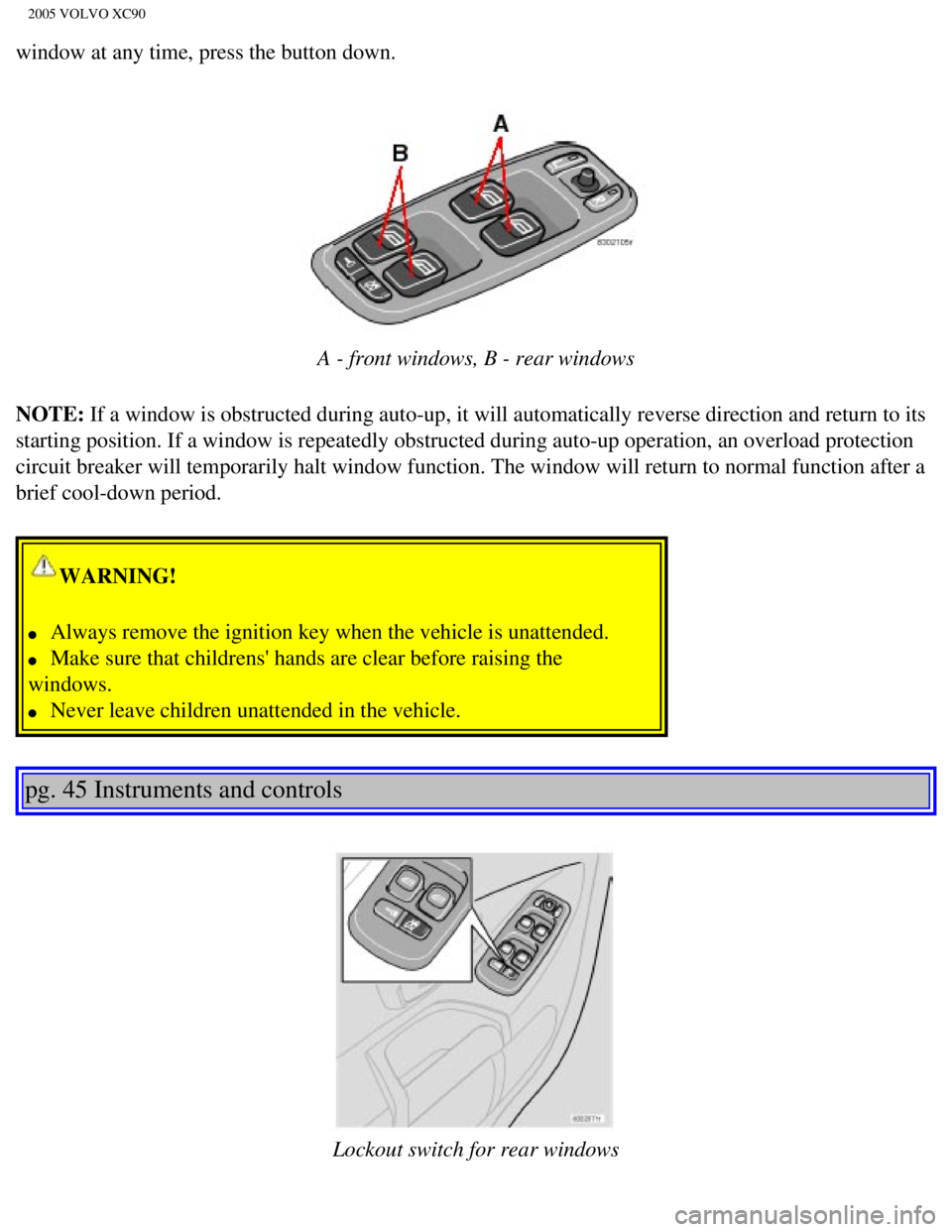

A - front windows, B - rear windows
NOTE: If a window is obstructed during auto-up, it will automatically reverse \
direction and return to its
starting position. If a window is repeatedly obstructed during auto-up o\
peration, an overload protection
circuit breaker will temporarily halt window function. The window will r\
eturn to normal function after a
brief cool-down period.
WARNING!
l Always remove the ignition key when the vehicle is unattended.
l Make sure that childrens' hands are clear before raising the
windows.
l Never leave children unattended in the vehicle.
pg. 45 Instruments and controls

Lockout switch for rear windows
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (11 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90
Lockout switch for rear windows
The electrically operated rear door windows can be disabled by a switch \
located on the driver's door (see
illustration).
If the light in the switch is OFF: The rear door windows can be raised or lowered with the buttons on
the rear door armrests or with the buttons on the driver's door armrest.\

If the light in the switch is ON: The rear door windows can only be raised or lowered with the buttons
on the driver's door armrest.
Electrically operated window in the front passenger's seat
The control for the electrically operated window in the front passenger'\
s seat operates that window only.
Electrically operated windows in the rear doors.
The rear door windows can be operated with the control on each door and \
the switch on the driver's
door. If the light in the switch for blocking electrically operated wind\
ows in the rear doors (located in
the driver's door control panel) is on, the rear door windows can only \
be operated from the driver's door.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (12 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90
pg. 46 Instruments and controls
Rearview mirror/power folding sideview mirrors
Rearview mirror
A Normal position
B Night position, reduces glare from following headlights
Autodim function (option)
The autodim function reacts to headlights from following traffic and aut\
omatically reduces glare.
NOTE: The autodim function is automatically switched off when the gear selecto\
r is placed in the
Reverse position.
Electrically operated sideview mirrors
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (13 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90
The mirror control switches are located on the driver's door armrest.
Driver's side: Press the L button (a light in the switch will go on) to activate the \
adjustment control. Use
this control to adjust the driver's door mirror.
Passenger's side: Press the R switch (a light in the switch will go on) to activate the \
adjustment control.
Use this control to adjust the passenger's door mirror.
CAUTION:
Use the mirror heating function (see
page 53) to remove ice or snow from the mirrors. An ice scraper
could damage the surface of the mirror.
After you have adjusted the mirror(s), press the L or R switch again (\
the LED will go out) to deactivate
the adjustment control.
WARNING!
The mirrors should always be adjusted prior to driving. Objects seen in \
the passenger's side wide-
angle sideview mirror are closer than they appear to be.
Mirror memory function (with the central locking system) - option
If you lock the vehicle and later unlock it with the same remote control and open the driver's door, the
sideview mirrors (and the driver's seat) will automatically move to th\
e position they were in when you
left the vehicle. This feature will work in the same way with all of the\
remote control transmitters (up to
3) that you use with your vehicle. This feature will not function if yo\
u lock your vehicle with the key.
pg. 47 Instruments and controls
Power moonroof (option)
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (14 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90
Power moonroof
To operate the moonroof, turn the ignition key to position I or II, or s\
tart the engine. The moonroof can
be operated in two ways:
A. Tilt position
B. Sliding moonroof
A. Tilt position
Open: With the moonroof closed, push up the rear edge of the switch (positio\
n 5 in the illustration
below).
Close: Pull down and hold the rear edge of the switch (position 6 in the illu\
stration below) until the
moonroof has closed completely.
B. Sliding moonroof
Manual open: Pull the switch rearward to position 3 and hold it until the moonroof h\
as opened to the
position of your choice.
Auto open: Pull the switch as far back as possible (position 4) and release it t\
o automatically slide open
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (15 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90
the moonroof to the "comfort"* position. Pull the switch rearward again \
to open the moonroof
completely.
Manual close: Push the switch to position 2 and hold it until the moonroof has closed\
completely or to
the position of your choice.
Auto close: Push the switch forward as far as possible (position 1) and release i\
t to automatically close
the moonroof. CAUTION
l Remove ice and snow before opening the
moonroof.
l Do not operate the moonroof if it is frozen closed.
l Never place heavy objects on the moonroof.

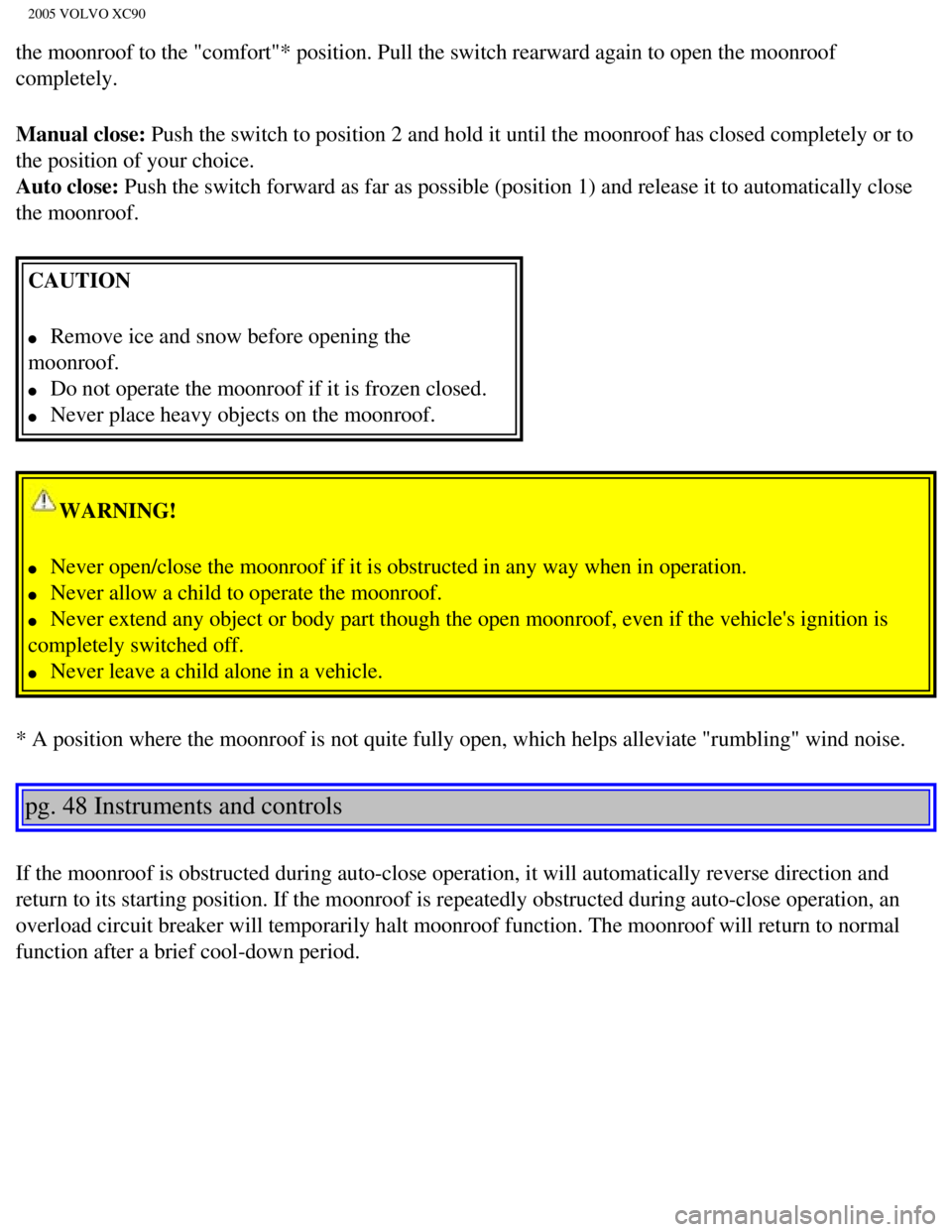

WARNING!
l Never open/close the moonroof if it is obstructed in any way when in ope\
ration.
l Never allow a child to operate the moonroof.
l Never extend any object or body part though the open moonroof, even if t\
he vehicle's ignition is
completely switched off.
l Never leave a child alone in a vehicle.
* A position where the moonroof is not quite fully open, which helps all\
eviate "rumbling" wind noise.
pg. 48 Instruments and controls
If the moonroof is obstructed during auto-close operation, it will autom\
atically reverse direction and
return to its starting position. If the moonroof is repeatedly obstructe\
d during auto-close operation, an
overload circuit breaker will temporarily halt moonroof function. The mo\
onroof will return to normal
function after a brief cool-down period.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (16 of 17)12/30/20\
06 4:42:28 PM

2005 VOLVO XC90

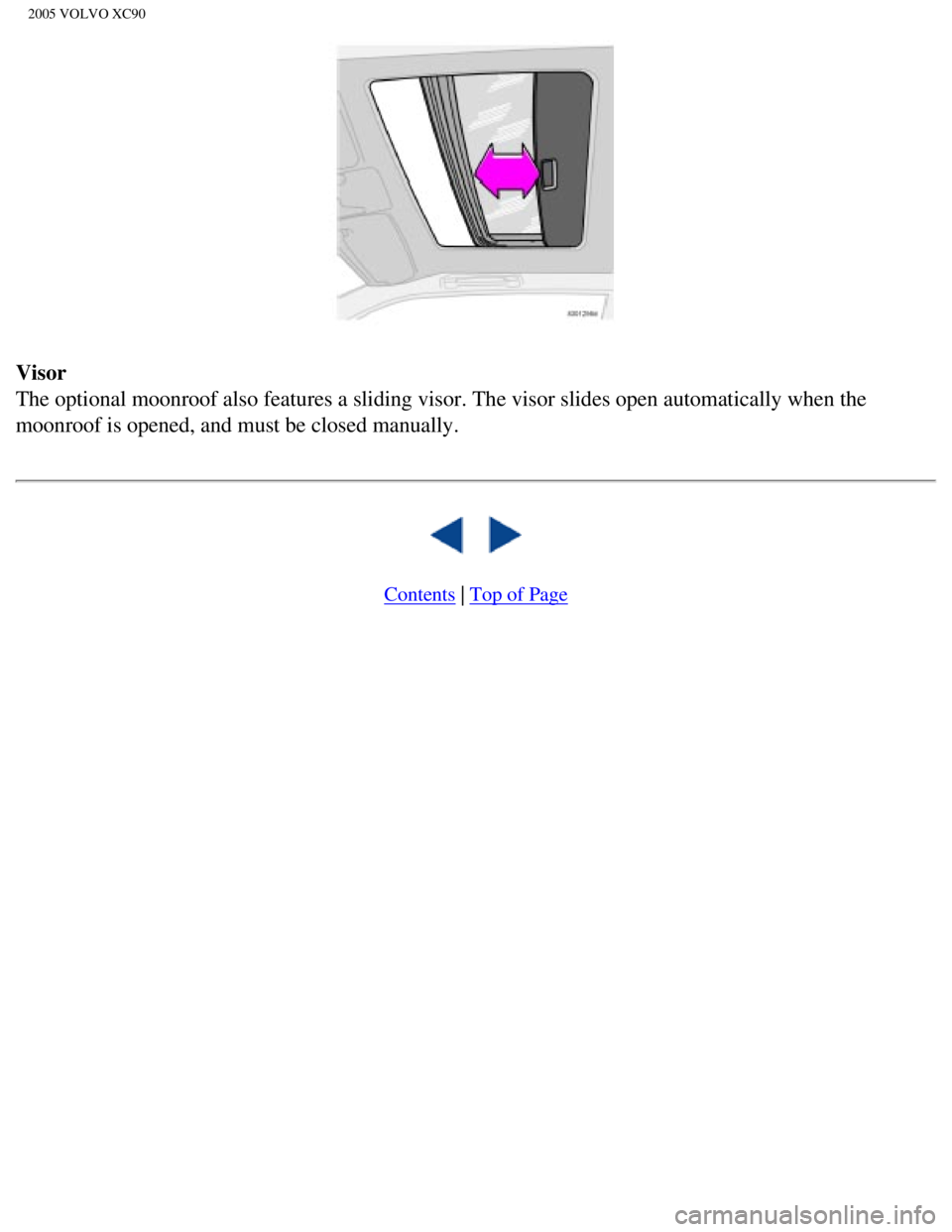

Visor
The optional moonroof also features a sliding visor. The visor slides op\
en automatically when the
moonroof is opened, and must be closed manually.
