Tailgate wiper blade
1. Pull the wiper blade out, away from the tailgate window.
2. Pull the wiper blade outward, toward the tailgate.
3. Press the new wiper blade into place. Check that it is properly secur\
ed.




Contents | Top of Page
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09a.htm (14 of 14)12/30/20\
06 4:42:39 PM

2005 VOLVO XC90
pg. 146 Maintenance
Battery Maintenance
The battery in your vehicle is located under the floor of the cargo comp\
artment.
Driving habits and conditions, climate, the number of starts, etc. all a\
ffect the service life and function of
the battery. In order for your battery to perform satisfactorily, keep t\
he following in mind:
l Check the fluid level in each cell in the battery every 24 months or eve\
ry 15,000* miles (24,000 km),
whichever is sooner. The fluid should be at the level shown in the illus\
tration above (A)**.
l Use a screw driver to open the caps and a flashlight to inspect the leve\
l.
l If necessary, add distilled water. The level should never be above the i\
ndicator (A**).
l The fluid level should be checked if the battery has been recharged.
l After inspection, be sure the cap over each battery cell is securely in \
place.
l Check that the battery cables are correctly connected and properly tight\
ened. Route ventilation hose
through opening in floor (see
page 147)
l Never disconnect the battery when the engine is running, for example whe\
n changing the battery.
l The battery should be disconnected from the vehicle when a battery charg\
er is used directly on the
battery.
l However, if the battery is being charged via the connecting points in th\
e engine compartment (see
page 104), the battery must be connected.
* More frequently in warm climates.
** The level indicator inside the battery could be designed in various w\
ays. See illustration.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (1 of 25)12/30/200\
6 4:42:40 PM

2005 VOLVO XC90
pg. 147 Maintenance
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (2 of 25)12/30/200\
6 4:42:40 PM

2005 VOLVO XC90

Replacing the battery
1. Switch off the ignition.
2. Wait at least 5 minutes after switching off the ignition before disconne\
cting the battery so that
all information in the vehicle's electrical system can be stored in the \
control modules.
3. Remove the retaining bracket and unscrew the cover over the battery. \
Wait at least 5 minutes after
switching off the ignition before disconnecting the battery so that all \
information in the vehicle's
electrical system can be stored in the control modules.
4. Disconnect the negative (ground) cable first.

5. Disconnect the positive cable and pull the ventilation hose (see nex\
t page) from the battery.
6. Lift out the old battery and put a new battery into place.
7. Connect the positive cable first.
8. Connect the negative (ground) cable.
9. Be sure that the ventilation hose (see below) is securely connected\
to the battery and that the other end
of the hose is properly routed through the ventilation opening in the fl\
oor of the battery compartment.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (3 of 25)12/30/200\
6 4:42:40 PM

2005 VOLVO XC90
10. Reinstall the cover and retaining bracket and screw it securely in p\
lace.

Ventilation hose
WARNING!
- Never expose the battery to open flame or electric spark.
- Do not smoke near the battery.
- Battery fluid contains sulfuric acid. Do not allow battery fluid to co\
ntact eyes, skin, fabrics or
painted surfaces. If contact occurs, flush the affected area immediately\
with water. Obtain medical
help immediately if eyes are affected.
pg. 148 Maintenance
Battery Maintenance (contd)
WARNING!

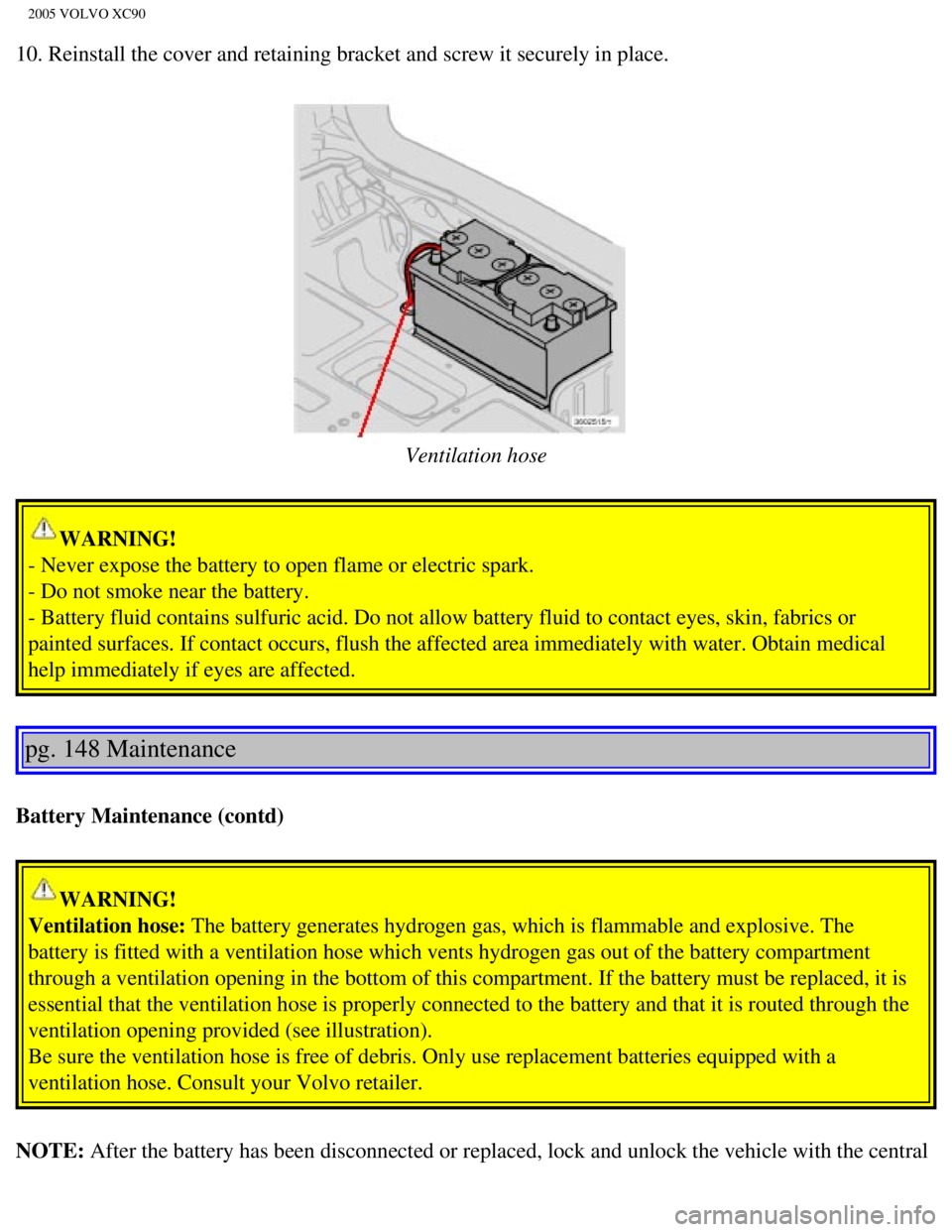

Ventilation hose: The battery generates hydrogen gas, which is flammable and explosive. T\
he
battery is fitted with a ventilation hose which vents hydrogen gas out o\
f the battery compartment
through a ventilation opening in the bottom of this compartment. If the \
battery must be replaced, it is
essential that the ventilation hose is properly connected to the battery\
and that it is routed through the
ventilation opening provided (see illustration).
Be sure the ventilation hose is free of debris. Only use replacement bat\
teries equipped with a
ventilation hose. Consult your Volvo retailer.
NOTE: After the battery has been disconnected or replaced, lock and unlock the\
vehicle with the central
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (4 of 25)12/30/200\
6 4:42:40 PM

2005 VOLVO XC90
locking system's remote control to reactivate such features as the power\
windows, moonroof, courtesy
lighting, etc.
WARNING!
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead \
compounds, chemicals known
to the state of California to cause cancer and reproductive harm. Wash h\
ands after handling.
pg. 149 Maintenance
Bulbs
The following bulbs are used in the vehicle:
Bulb Type Socket
1. High beam H7 65W-
1. Low beam H11 55W-
2. Bi-Xenon headlight (option) D2R 35W
3. Front fog lights H1 55W
4. Front parking lights, front/rear side marker lights, license plate li\
ght, rear
footwell lighting W5W
W2,1x9,5d
5. Front turn signals H21W BAY9s
5. Rear fog light P21/4W BAY9s
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (5 of 25)12/30/200\
6 4:42:40 PM

2005 VOLVO XC90
6. Side turn signals WY5W W2,1x9,5d
7. Brake lights, backup lights P21W BAY15d
8. Rear turn signals PY21W BA15s
9. Rear parking lights P21/4W BAZ15s
10. Vanity mirror lighting 1.2W SV5.5
11. Front footwell lighting, cargo area lighting C5W SV8.5
WARNING!
Bi-Xenon headlights (option) - due to the high voltage used by these h\
eadlights, these bulbs should
only be replaced by an authorized Volvo service technician.
pg. 150 Maintenance

Retaining pins
Replacing high/low beams/turn signal/parking light bulbs
The entire lamp housing must be lifted out when replacing these bulbs.
To lift out the lamp housing:
1. Switch off the ignition.
2. Open the hood.
3. Pull up the retaining pins (see the illustration above).
4. Lift out the lamp housing.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_09b.htm (6 of 25)12/30/200\
6 4:42:40 PM

2005 VOLVO XC90
CAUTION
- Do not touch the glass on the halogen bulbs with your fingers. Grease,\
oil, or any other impurities
can be carbonized onto the bulb and cause damage to the reflector.
- Be sure to use bulbs of the correct type and voltage.
Location of the bulbs in the headlight housing
1. Low beam headlight/Bi-Xenon headlight (option)
2. High beam headlight
3. Turn signal
4. Parking light
5. Side marker light
pg. 151 Maintenance
