2005 TOYOTA AVENSIS Rear door trim

760WD±01
B67161
Clip
B67162
Clip
B67163
Double±sided Tape
76±30
± EXTERIOR/INTERIOR TRIMREAR SPOILER (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REAR SPOILER (WAGON MODELS)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal.
1. REMOVE BACK DOOR TRIM PANEL ASSY UPPER
(a) Remove the 4 clips and door trim panel.
(b) Remove the 4 hole plugs.
2. REMOVE REAR SPOILER
(a) Disconnect the stop lamp connector.
(b) Remove the 6 nuts and clip.
(c) Using a heat light, heat the spoiler.
Heating temprature: 40 ± 60C (104 ± 140F)
NOTICE:
Do not heat the spoiler excessively.
(d) Lightly lift the spoiler at the right end or the left end.
(e) Cut the tape.
(1) Tie both piano wire ends to a wooden block or simi-
lar object.
(2) Cut the tape by pulling the piano wire.
NOTICE:

If reusing the rear spoiler, take care not to damage it.

Be careful not to damage the back door.
(f) Remove the spoiler.
3. INSTALL REAR SPOILER
(a) Clean the surface on the back door where the spoiler is
to be attached.
(1) Using a heat light, heat the back door contact sur-
face.
Heating temprature: 40 ± 60C (104 ± 140F)
NOTICE:
Do not heat the back door excessively.

B67164
Double±sided Tape
± EXTERIOR/INTERIOR TRIMREAR SPOILER (WAGON MODELS)
76±31
AVENSIS REPAIR MANUAL (RM1018E)
(2) Remove the tape from the back door.
(3) Wipe off the stains with cleaner.
(b) When reusing the spoiler:
Clean the spoiler.
(1) Using a heat light, heat the spoiler.
Heating temprature: 20 ± 30
C (68 ± 86
F)
NOTICE:
Do not heat the spoiler excessively.
(2) Remove the tape from the spoiler.
(3) Wipe off the stains with cleaner.
(c) Install the spoiler.
(1) Using a heat light, heat the door and spoiler.
Heating temperature:
Door40 ± 60
C (104 ± 140
F)
Spoiler20 ± 30
C (68 ± 86
F)
NOTICE:
Do not heat the door and spoiler excessively.
(2) Apply new double±sided tape to the spoiler, as
shown in the illustration.
(3) Remove the peeling paper from the spoiler.
NOTICE:
Be careful that dirt or foreign objects do not stick to the
adhesive part when removing the peeling paper.
(4) Install the spoiler with the 6 nuts.
Torque: 9.8 N
m (99 kgf
cm, 87 in.
lbf)
NOTICE:
Do not apply excessive force onto the spoiler. Instead, ap-
ply steady pressure with your thumbs.
(5) Connect the stop lamp connector.
(6) Install the 4 hole plugs.

760W7±01
B67608
Tape
Tape
76±24
±
EXTERIOR/INTERIOR TRIM REAR DOOR BELT MOULDING ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

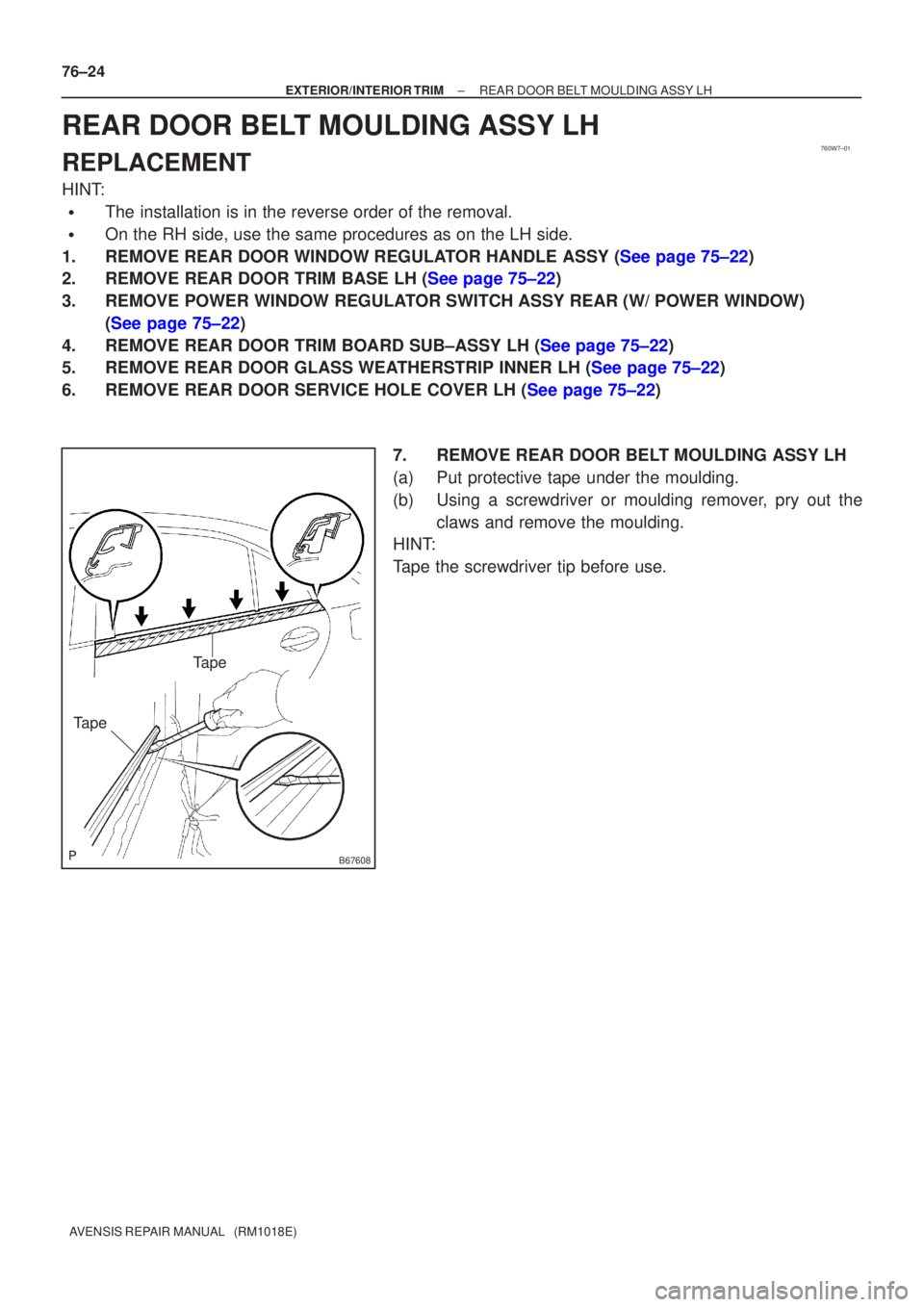

REAR DOOR BELT MOULDING ASSY LH
REPLACEMENT
HINT:

The installation is in the reverse order of the removal.

On the RH side, use the same procedures as on the LH side.
1.REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSY (See page 75±22)
2.REMOVE REAR DOOR TRIM BASE LH (See page 75±22)
3. REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR (W/ POWER WINDOW) (See page 75±22)
4.REMOVE REAR DOOR TRIM BOARD SUB±ASSY LH (See page 75±22)
5.REMOVE REAR DOOR GLASS WEATHERSTRIP INNER LH (See page 75±22)
6.REMOVE REAR DOOR SERVICE HOLE COVER LH (See page 75±22)
7. REMOVE REAR DOOR BELT MOULDING ASSY LH
(a) Put protective tape under the moulding.
(b) Using a screwdriver or moulding remover, pry out theclaws and remove the moulding.
HINT:
Tape the screwdriver tip before use.

760W6±01
B67151
Tape
Tape
±
EXTERIOR/INTERIOR TRIM FRONT DOOR BELT MOULDING ASSY LH
76±23
AVENSIS REPAIR MANUAL (RM1018E)
FRONT DOOR BELT MOULDING ASSY LH
REPLACEMENT
HINT:

The installation is in the reverse order of the removal.

On the RH side, use the same procedures as on the LH side.
1.REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER WINDOW) (See page 75±8)
2.REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See page 75±8)
3.REMOVE FRONT DOOR TRIM BASE LH (See page 75±8)
4.REMOVE FUEL LID OPENER SWITCH (See page 75±8)
5. REMOVE POWER WINDOW REGULATOR SWITCH ASSY (W/ POWER WINDOW) (See page 75±8)
6.REMOVE FRONT DOOR TRIM BOARD SUB±ASSY LH (See page 75±8)
7.REMOVE FRONT DOOR INSIDE HANDLE SUB±ASSY LH (See page 75±8)
8.REMOVE FRONT DOOR GLASS WEATHERSTRIP INNER LH (See page 75±8)
9. REMOVE FRONT DOOR BELT MOULDING ASSY LH
(a) Put protective tape under the moulding.
(b) Using a screwdriver or moulding remover, pry out theclaws and remove the moulding.
HINT:
Tape the screwdriver tip before use.

760X0±01
B66532
Clip
Claw
B66531
Clip
Claw
B66533
Clip
Claw
76±54
± EXTERIOR/INTERIOR TRIMROOF HEADLINING ASSY (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1. REMOVE FRONT DOOR SCUFF PLATE RH
(a) Using a screwdriver, disengage the 5 clips and 2 claws,
and remove the scuff plate.
HINT:
Tape the screwdriver tip before use.
2. REMOVE FRONT DOOR SCUFF PLATE LH
HINT:
Use the same procedures described for the RH side.
3. REMOVE REAR DOOR SCUFF PLATE RH
(a) Using a screwdriver, disengage the 3 clips and 2 claws,
and remove the scuff plate.
HINT:
Tape the screwdriver tip before use.
4. REMOVE REAR DOOR SCUFF PLATE LH
HINT:
Use the same procedures described for the RH side.
5. REMOVE COWL SIDE TRIM BOARD RH
(a) Using a screwdriver, disengage the clip and 2 claws, and
remove the trim board.
HINT:
Tape the screwdriver tip before use.
6. REMOVE COWL SIDE TRIM BOARD LH
HINT:
Use the same procedures described for the RH side.

B66534
B66535
Clip
B66527
Clip
±
EXTERIOR/INTERIOR TRIM ROOF HEADLINING ASSY(WAGON MODELS)
76±55
AVENSIS REPAIR MANUAL (RM1018E)
7.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
8.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
9.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
10.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
11.REMOVE CENTER PILLAR GARNISH LOWER RH
(a)Remove the floor anchor cover.
(b)Remove the bolt and outer belt on the floor anchor side.
(c)Using a screwdriver, disengage the 2 clips and removethe pillar garnish.
HINT:
Tape the screwdriver tip before use.
12.REMOVE CENTER PILLAR GARNISH LOWER LH
HINT:
Use the same procedures described for the RH side. 13.REMOVE CENTER PILLAR GARNISH UPPER RH
(a)Using a screwdriver, disengage the clip and 2 screws, andremove the pillar garnish.
HINT:
Tape the screwdriver tip before use.
14.REMOVE CENTER PILLAR GARNISH UPPER LH
HINT:
Use the same procedures described for the RH side.
15.REMOVE REAR SEAT ASSY (See page 72±21)
16. REMOVE REAR SIDE SEAT BACK ASSY RH
(a) Remove the bolt and seatback
17. REMOVE REAR SIDE SEAT BACK ASSY LH
(a) Remove the bolt and seatback
18. REMOVE TONNEAU COVER ASSY
19. REMOVE BACK DOOR WEATHERSTRIP

670SG±02
67±24
±
AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3
AVENSIS REPAIR MANUAL (RM1018E)
ANTENNA CORD SUB±ASSY NO.3
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
10 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
12 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
13 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
15. REMOVE REAR SEATBACK ASSY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
17 . REMOVE P ACKAGE TR AY TRIM P ANEL ASSY ( See page 76±45 )
18 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±45 )
19 . REMOVE DECK TRIM SIDE P ANEL ASSY RH ( See page 76±45)
20 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±45)
21 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
22. REMOVE FLOOR CARPET ASSY FRONT

670SC±03
67±16
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOV E FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15 . REMOVE REAR SE AT CUSHION ASSEMB LY ( See page 72±32 )
16 . REMOVE REAR SE ATBACK ASSY ( See page 40/60 FOLDING 72±27 , UNITED FIXED 72±32 )
17 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±36)
18. REMOVE FLOOR CARPET ASSY FRONT
