ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE)
14±95
AVENSIS REPAIR MANUAL (RM1018E)

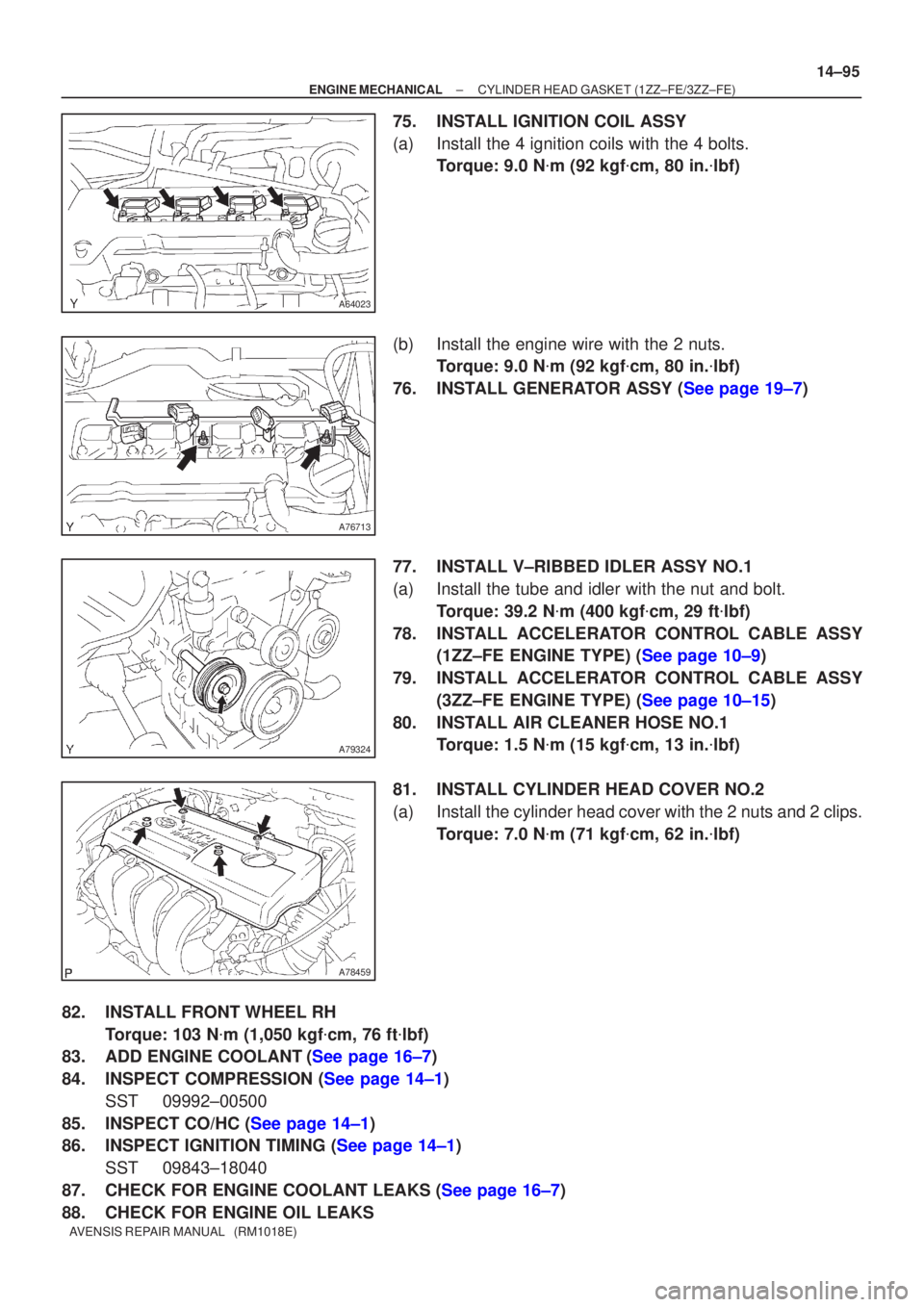

75. INSTALL IGNITION COIL ASSY
(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
(b) Install the engine wire with the 2 nuts. Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
76.INSTALL GENERATOR ASSY (See page 19±7)
77. INSTALL V±RIBBED IDLER ASSY NO.1
(a) Install the tube and idler with the nut and bolt. Torque: 39.2 N
m (400 kgf
cm, 29 ft
lbf)
78. INSTALL ACCELERATOR CONTROL CABLE ASSY (1ZZ±FE ENGINE TYPE) (See page 10±9)
79. INSTALL ACCELERATOR CONTROL CABLE ASSY (3ZZ±FE ENGINE TYPE) (See page 10±15)
80. INSTALL AIR CLEANER HOSE NO.1 Torque: 1.5 N
m (15 kgf
cm, 13 in.
lbf)
81. INSTALL CYLINDER HEAD COVER NO.2
(a) Install the cylinder head cover with the 2 nuts and 2 clips. Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
82. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
83.ADD ENGINE COOLANT(See page 16±7)
84.INSPECT COMPRESSION (See page 14±1)
SST 09992±00500
85.INSPECT CO/HC (See page 14±1)
86.INSPECT IGNITION TIMING (See page 14±1) SST 09843±18040
87.CHECK FOR ENGINE COOLANT LEAKS (See page 16±7)
88. CHECK FOR ENGINE OIL LEAKS

A77323
Leaded Gasoline type:
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
54 (551, 40)

Gasket

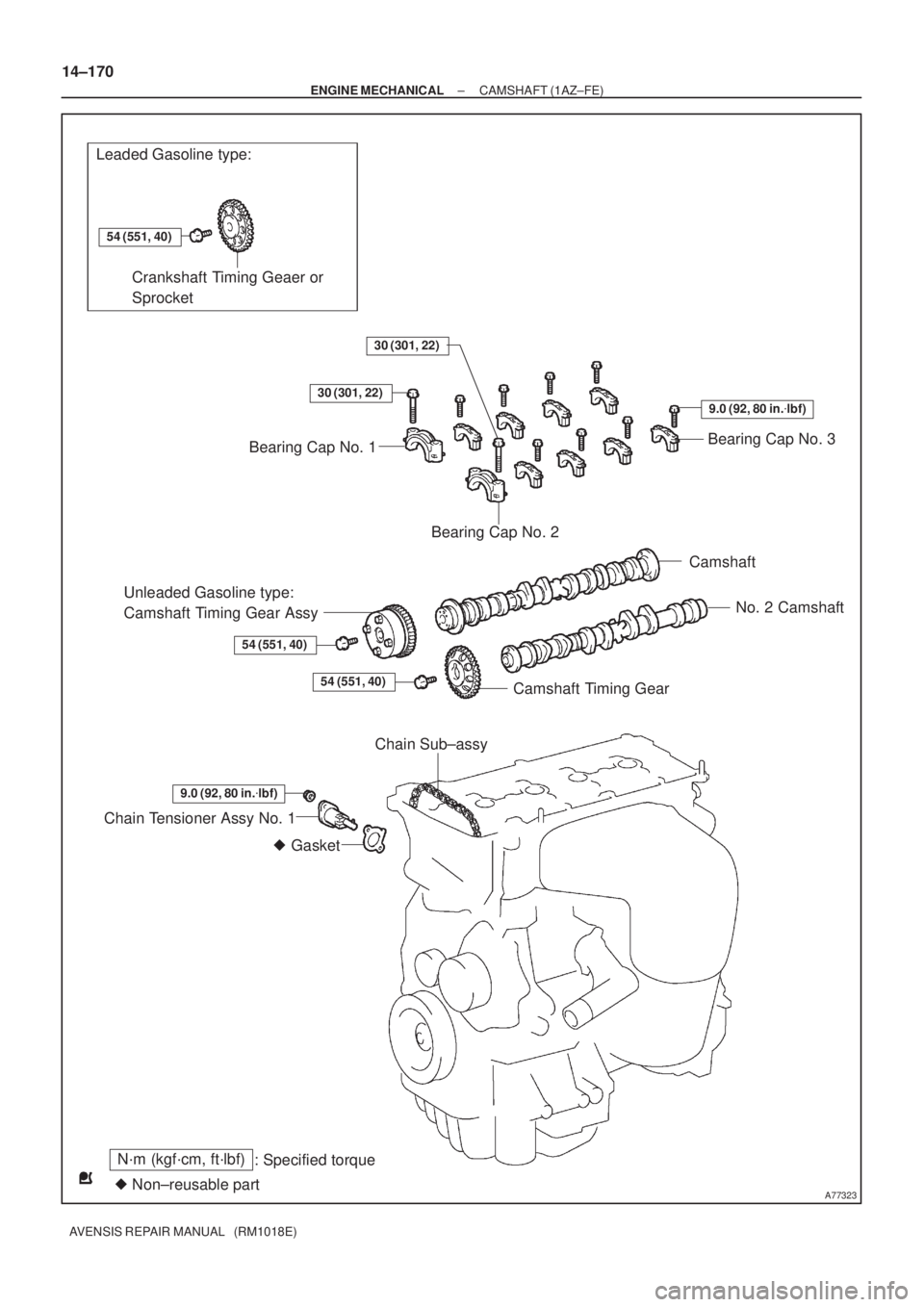

Crankshaft Timing Geaer or
Sprocket
Bearing Cap No. 3
Bearing Cap No. 2
Camshaft
No. 2 Camshaft
Camshaft Timing Gear
Unleaded Gasoline type:
Camshaft Timing Gear Assy
54 (551, 40)
Chain Tensioner Assy No. 1
30 (301, 22)
Bearing Cap No. 1
30 (301, 22)
9.0 (92, 80 in.
lbf)
54 (551, 40)
9.0 (92, 80 in.
lbf)
Chain Sub±assy 14±170
± ENGINE MECHANICALCAMSHAFT (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77303
A77308
A77306
A77307
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±161
AVENSIS REPAIR MANUAL (RM1018E)
16. SEPARATE COOLER REFRIGERANT SUCTION HOSE
NO.1 (LHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
(a) Remove the 2 nuts and separate the suction hose.
17. SEPARATE VANE PUMP OIL RESERVOIR ASSY
NOTICE:
Do not disconnect the 2 hoses.
18. REMOVE OIL RESERVOIR BRACKET NO.1
(a) Remove the 2 bolts and the oil reservoir bracket No. 1.
19. SEPARATE ENGINE WIRE
(a) Remove the bolt and separate the clamp and the engine
wire.
20. REMOVE ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING)
(a) Remove the bolt and the engine service cover bracket RH.
21. REMOVE COOLER BRACKET (LHD(W/ AIR
CONDITIONER) STEERING POSITION TYPE)
(a) Remove the bolt and the cooler hose bracket.

A77302
14±162
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
22.REMOVE ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
(a)Remove the bolt and the engine service cover bracket RH.
23.REMOVE CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
24.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±139)
25.REMOVE ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
26.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR (See page 14±139)
27.REMOVE CRANKSHAFT PULLEY (See page 14±139)
SST09213±54015 (91651±60855), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05021)
28.REMOVE CHAIN TENSIONER ASSY NO.1 (See page 14±139)
29.REMOVE CRANKSHAFT POSITION SENSOR (See page 18±17)
30.REMOVE OIL PAN SUB±ASSY (See page 14±139) SST09032±00100
31.REMOVE V±RIBBED BELT TENSIONER ASSY (See page 14±139)
32.REMOVE TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
33.REMOVE CRANKSHAFT POSITION SENSOR PLATE NO.1
34.REMOVE CHAIN TENSIONER SLIPPER
35.REMOVE CHAIN VIBRATION DAMPER NO.1
36.REMOVE TIMING CHAIN GUIDE (See page 14±139)
37.REMOVE CHAIN SUB±ASSY
38.REMOVE BATTERY 39.REMOVE AIR CLEANER ASSEMBLY WITH HOSE
(a)Disconnect the 2 connectors.
(b)Disconnect the air cleaner hose from the throttle body.
(c)Raise a clamp up, and slide it toward the air cleaner cap,then remove the air cleaner cap from its case.
(d)Remove the air cleaner element.
(e)Remove the 4 bolts and the air cleaner case.
40.DISCONNECT RADIATOR HOSE INLET
41.DISCONNECT UNION TO CONNECTOR TUBE HOSE
42.DISCONNECT HEATER INLET WATER HOSE (W/ AIR CONDITIONING)
43.SEPARATE FUEL TUBE SUB±ASSY (See page 11±26)
44. SEPARATE ENGINE WIRE

±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)
14±167
AVENSIS REPAIR MANUAL (RM1018E)
69.INSTALL CHAIN VIBRATION DAMPER NO.1
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
70.INSTALL CHAIN SUB±ASSY (See page 14±139)
71.INSTALL TIMING CHAIN GUIDE
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
72.INSTALL CHAIN TENSIONER SLIPPER Torque: 19 N
m (195 kgf
cm,15 ft
lbf)
73.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±171)
74.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
75.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)
76.INSTALL OIL PAN SUB±ASSY (See page 14±139)
77.INSTALL CRANKSHAFT POSITION SENSOR (See page 18±17)
78.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST09213±54015 (91651±60855), 09330±00021
79.INSTALL CHAIN TENSIONER ASSY NO.1 (See page 14±139)
80.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N
m (530 kgf
cm,38 ft
lbf)
81.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
82.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
83.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
84.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
85.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
86.INSTALL ENGINE WIRE
87.INSTALL OIL RESERVOIR BRACKET NO.1 Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
88.IN STALL COOL ER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
89.INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
90.INSTALL IGNITION COIL ASSY
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
91.INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N
m (71 kgf
cm,62 in.
lbf)
92.INSTALL VANE PUMP ASSY
Torque: 37 N
m (377 kgf
cm,27 ft
lbf)
93.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
94.INSTALL GENERATOR ASSY (See page 19±20)
95.INSTALL FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
96.ADD COOLANT (See page 16±19)
97. ADD ENGINE OIL
98.CHECK FOR ENGINE COOLANT LEAKS (See page 16±13)
99. CHECK FOR ENGINE OIL LEAKS
100. CHECK FOR FUEL LEAKS
101. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)

A77319

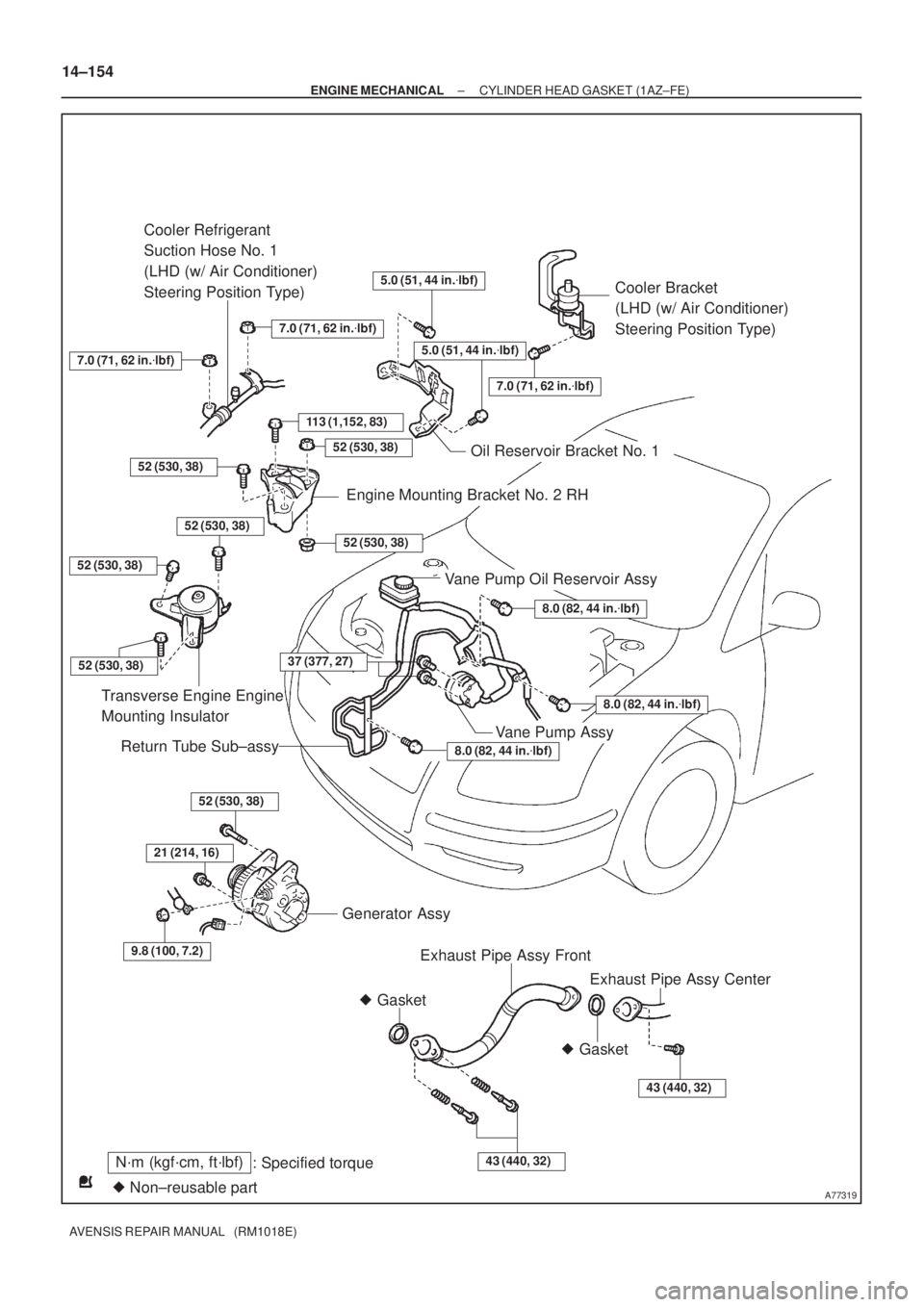

N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
Cooler Bracket
(LHD (w/ Air Conditioner)
Steering Position Type)
113 (1,152, 83)
Cooler Refrigerant
Suction Hose No. 1
(LHD (w/ Air Conditioner)
Steering Position Type)
8.0 (82, 44 in.
lbf)
8.0 (82, 44 in.
lbf)
52 (530, 38)
Transverse Engine Engine
Mounting Insulator
Vane Pump Oil Reservoir Assy
Return Tube Sub±assy
52 (530, 38)
21 (214, 16)
9.8 (100, 7.2)
Generator Assy
Exhaust Pipe Assy Front
43 (440, 32)
43 (440, 32)
7.0 (71, 62 in.
lbf)
7.0 (71, 62 in.
lbf)
Oil Reservoir Bracket No. 1
52 (530, 38)
52 (530, 38)
Engine Mounting Bracket No. 2 RH
7.0 (71, 62 in.
lbf)
5.0 (51, 44 in.
lbf)
5.0 (51, 44 in.
lbf)
52 (530, 38)
Exhaust Pipe Assy Center
52 (530, 38)
52 (530, 38)
Vane Pump Assy

Gasket
8.0 (82, 44 in.
lbf)
37 (377, 27)
14±154
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77326
Intake Manifold

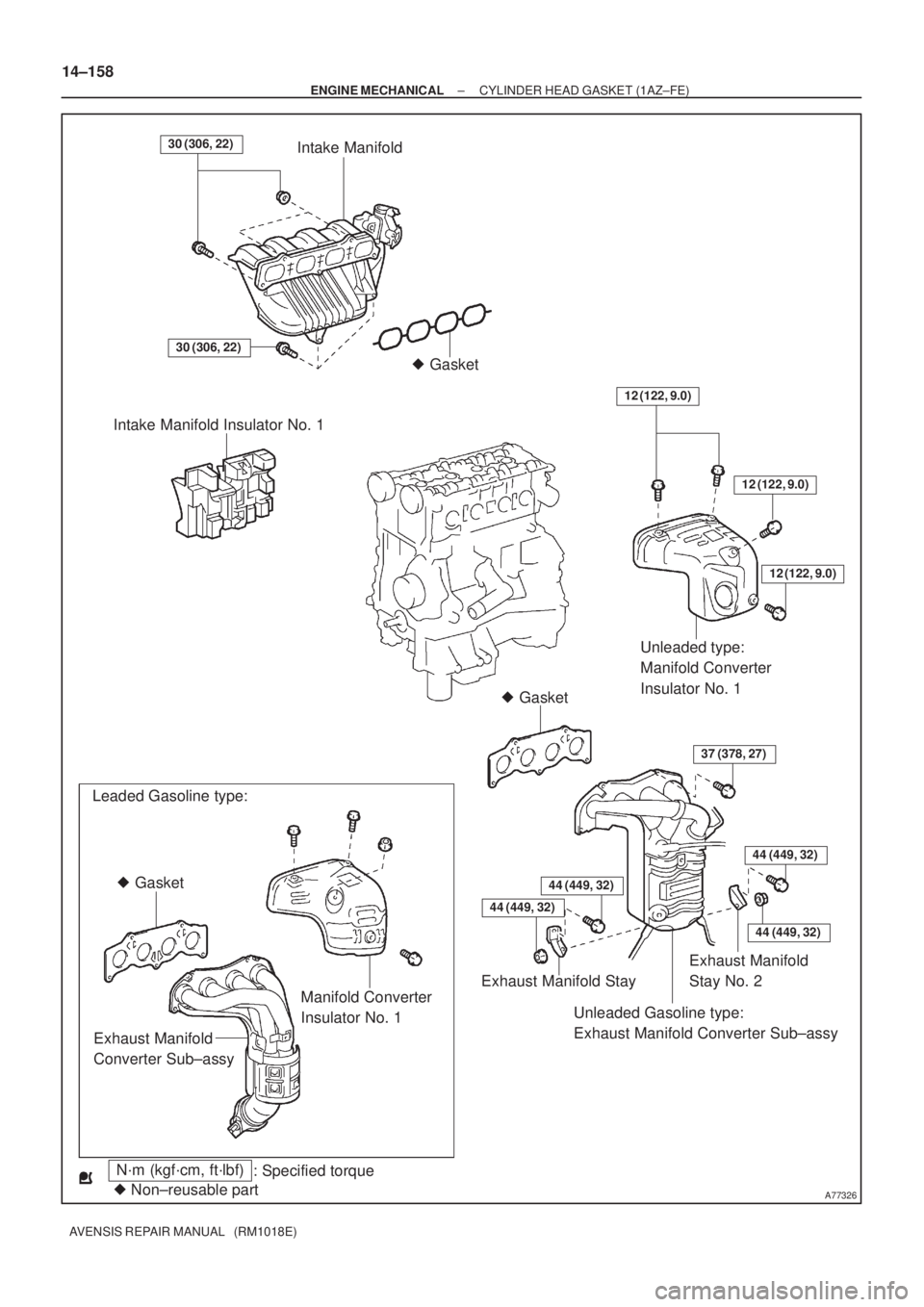

N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
30 (306, 22)

Gasket
30 (306, 22)
Intake Manifold Insulator No. 1
12 (122, 9.0)
Unleaded type:
Manifold Converter
Insulator No. 1

Gasket
Unleaded Gasoline type:
Exhaust Manifold Converter Sub±assyExhaust Manifold
Stay No. 2
44 (449, 32)
Leaded Gasoline type:
Manifold Converter
Insulator No. 1
Exhaust Manifold
Converter Sub±assy
12 (122, 9.0)
12 (122, 9.0)
44 (449, 32)
37 (378, 27)
44 (449, 32)
44 (449, 32)
Exhaust Manifold Stay
Gasket 14±158
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77283
A77284
A77285
Unleaded Gasoline
Timing
Marks

eaded Gasoline
Timing
Marks
Timing
Marks
Timing
Marks
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE)
14±141
AVENSIS REPAIR MANUAL (RM1018E)

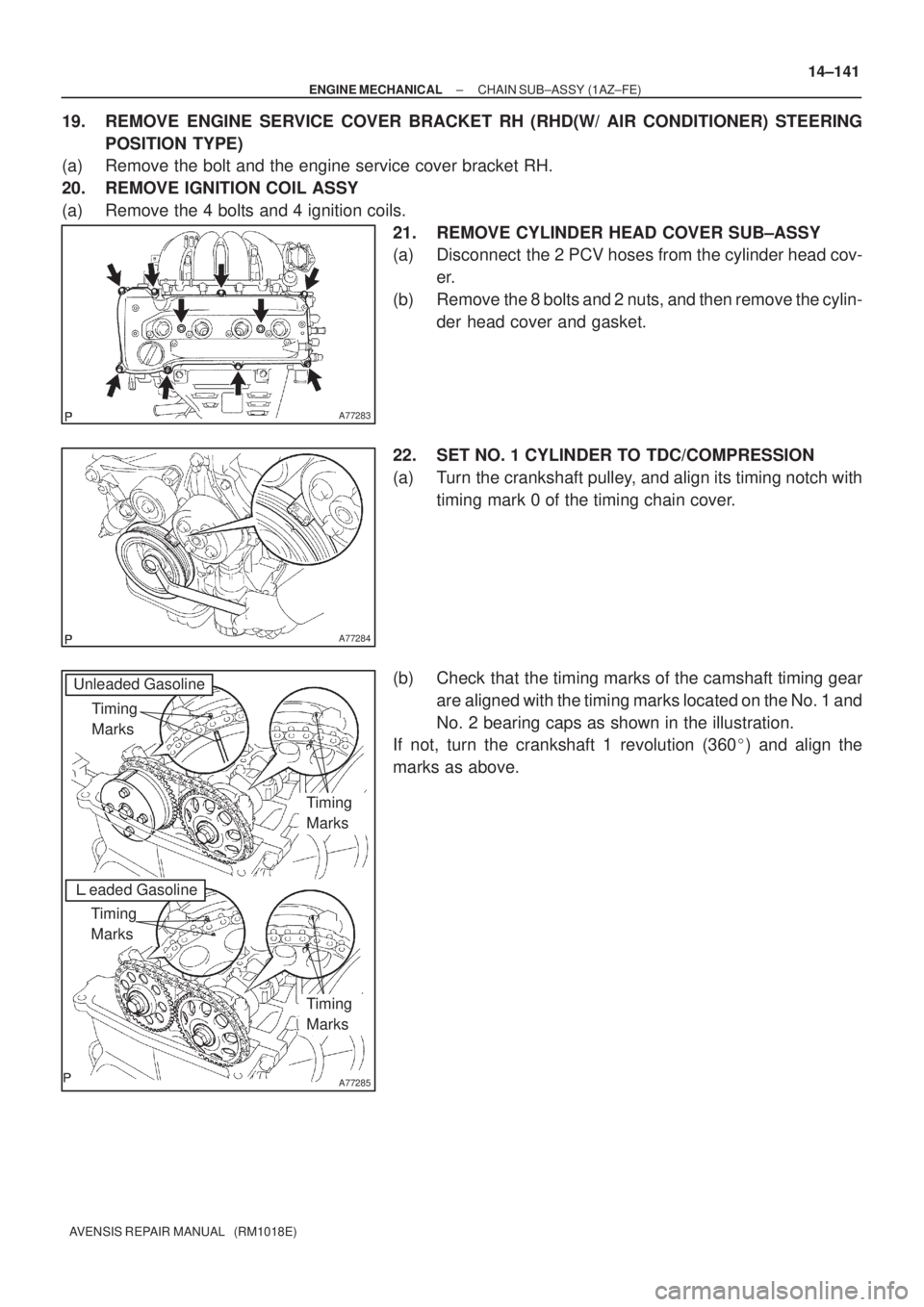

19. REMOVE ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
(a) Remove the bolt and the engine service cover bracket RH.
20. REMOVE IGNITION COIL ASSY
(a) Remove the 4 bolts and 4 ignition coils.
21. REMOVE CYLINDER HEAD COVER SUB±ASSY
(a) Disconnect the 2 PCV hoses from the cylinder head cov-
er.
(b) Remove the 8 bolts and 2 nuts, and then remove the cylin-
der head cover and gasket.
22. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley, and align its timing notch with
timing mark 0 of the timing chain cover.
(b) Check that the timing marks of the camshaft timing gear
are aligned with the timing marks located on the No. 1 and
No. 2 bearing caps as shown in the illustration.
If not, turn the crankshaft 1 revolution (360
) and align the
marks as above.
