A77344
IN
EX
No. 4 Cylinder TDC / Compression
A01082
EXAMPLE: (Intake)
Measure valve clearance = 0.44 mm (0.0173 in.)
0.44 mm (0.0173 in.) ± 0.24 mm (0.0094 in.) = 0.20 mm (0.0079 in\
.)
(Measured ± Specification = Excess clearance)
Used shim measurement = 5.30 mm (0.2087 in.)
0.20 mm (0.0079 in.) + 5.30 mm (0.2087 in.) = 5.50 mm (0.2165 in.)\

(Excess clearance + Used shim = Ideal new shim)
Closest new shim = 5.50 mm (0.2165 in.) = Shim No. º50º
±
ENGINE MECHANICAL VALVE CLEARANCE(1AZ±FSE)
14±187
AVENSIS REPAIR MANUAL (RM1018E)
(c)Check only the valve indicated in the illustration.
(1)Using a feeler gauge, measure the clearance be-tween the valve lifter and the camshaft.
(2)Record the out±of specification valve clearance measurements. They will be used later to determine
the required replacement adjusting shim.
Valve clearance (Cold):
Intake 0.19 to 0.29 mm (0.0075 to 0.0114 in.)
Exhaust 0.30 to 0.40 mm (0.0118 to 0.0157 in.)
13.ADJUST VALVE CLEARANCE
NOTICE:
Be sure not to turn the crankshaft without the chain ten-
sioner.
(a)Set the No. 1 cylinder to TDC/compression. (See page 14±240)
(b)Remove the chain tensioner. (See page 14±240)
(c)Remove the camshafts. (See page 14±240)
(d) Tie the timing chain with a string.
NOTICE:
Be careful not to drop anything inside the timing chain cov-
er.
(e) Remove the valve lifters.
(f) Using a micrometer, measure the thickness of the re-
moved lifter.
(g) Calculate the thickness of a new lifter so that the valve clearance comes within the specified valve.
AThickness of new lifter
BThickness of used lifter
CMeasured valve clearance
Valve clearance:
Intake: A = B + (C ± 0.24 mm (0.0094 in.))
Exhaust: A = B + (C ± 0.35 mm (0.0138 in.))

A77340
A77335
14±256
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
24.REMOVE COOL ER BRACKET (LHD STEER ING
POSITION TYPE)
(a)Remove the bolt and the cooler bracket.
25.REMOVE ENGINE SERVICE COVER BRACKET RH (RHD STEERING POSITION TYPE)
(a)Remove the bolt and the engine service cover bracket RH.
26.REMOVE CYLINDER HEAD COVER SUB±ASSY (See page 14±222)
27.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±222)
28.REMOVE ENGINE MOUNTING BRACKET NO.2 RH (
See page 14±222)
29.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR (
See page 14±222 )

30.REMOVE CRANKSHAFT PULLEY (See page 14±222) SST 09213±54015 (91651±60855), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05021)
31.REMOVE CHAIN TENSIONER ASSY NO.1 (See page 14±222)
32.REMOVE CRANKSHAFT POSITION SENSOR (See page 18±17)
33.REMOVE OIL PAN SUB±ASSY (See page 14±222)
SST 09032±00100
34.REMOVE V±RIBBED BELT TENSIONER ASSY (See page 14±222)
35.REMOVE TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±222)
36.REMOVE CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±222)
37. REMOVE CHAIN TENSIONER SLIPPER
38. REMOVE CHAIN VIBRATION DAMPER NO.1
39.REMOVE TIMING CHAIN GUIDE (See page 14±222)
40. REMOVE CHAIN SUB±ASSY
41. REMOVE BATTERY
42. REMOVE AIR CLEANER ASSEMBLY WITH HOSE
(a) Disconnect the 2 connectors.
(b) Disconnect the 2 vacuum hoses.
(c) Disconnect the ventilation hose.
(d) Disconnect the air cleaner hose from the throttle body.

90

A09683
TDC Mark
Dot Mark
A09624
A09625
A09626
Alignment Mark
± ENGINE MECHANICALCAMSHAFT (1CD±FTV)
14±321
AVENSIS REPAIR MANUAL (RM1018E)
40. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Using the crankshaft pulley bolt, turn the crankshaft to set
the dot mark of the crankshaft timing pulley at the position
of 90
BTDC.
NOTICE:
If the timing belt is disengaged, having the crankshaft tim-
ing pulley at wrong angle can cause the piston head and
valve head to come into contact with each other.
41. INSTALL CAMSHAFT
NOTICE:
Since the thrust clearance of the camshaft is small, the
camshaft must be kept level while it is being installed. If the
camshaft is not kept level, damage to the cylinder head or
the camshaft may result. To avoid this, the following proce-
dures should be carried out.
(a) Place the camshaft carrier on the cylinder head.
(b) Install the camshaft sub±assy No. 1.
(c) Apply engine oil to the cam and gear of the camshaft, and
the journal of the camshaft carrier.
(d) Place the intake camshaft on the camshaft carrier as
shown in the illustration so that the No. 3 and No. 4 of cyl-
inder cam lobes face downward.
42. INSTALL NO.2 CAMSHAFT
(a) Install the camshaft sub±assy No. 2.
(b) Apply engine oil to the cam and gear of the camshaft, and
the journal of the camshaft carrier.
(c) Engage the exhaust camshaft gear and the intake cam-
shaft gear by aligning the alignment marks on each gear.
(d) Roll down the exhaust camshaft onto the bearing journals
while engaging gears with each other.

A09609
A09680
SST
A09611
A09606
A09609
± ENGINE MECHANICALTIMING BELT (1CD±FTV)
14±309
AVENSIS REPAIR MANUAL (RM1018E)
20. REMOVE TIMING BELT
HINT:
If re±use the timing belt, draw an arrow on the belt which indi-
cates the engine revolution direction and put match marks on
the pulleys and the belt before removing. This operation will be
very helpful when re±installing the timing belt.
(a) Alternately loosen the 2 bolts to remove the timing belt
tensioner.
(b) Remove the timing belt.
21. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Using SST, set the pulleys of the camshaft and the injec-
tion pump so that each timing mark of the pulleys is
aligned with its timing mark on the cylinder head assem-
bly and the water pump assembly.
SST 09960±10010 (09962±01000, 09963±01000)
(b) Using the crankshaft pulley bolt, align the dot mark of the
crankshaft timing pulley with the TDC mark of the oil pump
by turning the crankshaft.
NOTICE:
Take great care, when turning the camshaft and crank-
shaft. Since the valve head and the piston head are sensi-
tive, damage to them may result when the piston head con-
tacts with the valve heads.
22. INSTALL TIMING BELT
NOTICE:
The engine should be cold.
(a) Remove any oil or water on each pulley and keep them
clean.
NOTICE:
Do not use any cleaning agent.

A15985
A78280
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±291
AVENSIS REPAIR MANUAL (RM1018E)
56.REMOVE IDLER PULLEY SUB±ASSY (See page 14±307)
57.REMOVE TIMING BELT NO.2 COVER (See page 14±307)
58.REMOVE TIMING BELT NO.1 COVER (See page 14±307)
59.REMOVE TIMING BELT GUIDE
60.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
61.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307)
62.REMOVE TIMING BELT (See page 14±307)
HINT:
If re±use the timing belt, draw an arrow which indicates the engine rev\
olution direction on the belt and put
match marks on the pulleys and the belt before removing. This operation will \
be very helpful when re±instal-
ling the timing belt.
63.REMOVE GENERATOR ASSY
64.REMOVE GENERATOR BRACKET NO.1
(a)Remove the 2 bolts and the generator bracket.
65.REMOVE V±RIBBED BELT TENSIONER ASSY
66.REMOVE OIL FILTER BRACKET SUB±ASSY
(a)Remove the bolt and 2 nuts, and then remove the oil filter
bracket and the gasket.
67.REMOVE TURBO INSULATOR NO.2 (See page 13±11)
68.REMOVE TURBO INSULATOR NO.1 (See page 13±11)
69.REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO.2 (See page 13±11)
70.REMOVE MANIFOLD STAY NO.2 (See page 13±11)
71.REMOVE MANIFOLD STAY (See page 13±11)
72.REMOVE EXHAUST MANIFOLD CONVERTER SUB±ASSY (See page 13±11)
73.REMOVE TURBOCHARGER STAY (See page 13±11)
74.DISCONNECT TURBO WATER HOSE NO.1 (See page 13±11)
75.DISCONNECT TURBO WATER HOSE NO.2 (See page 13±11)
76.SEPARATE TURBO OIL INLET PIPE SUB±ASSY (See page 13±11)
77.REMOVE TURBO OIL OUTLET PIPE NO.2 (See page 13±11)
78.REMOVE TURBOCHARGER SUB±ASSY (See page 13±11) 79. DISCONNECT WATER BY±PASS HOSE NO.3

A77857
A78440
New Gasket
15±12
± EXHAUSTEXHAUST PIPE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

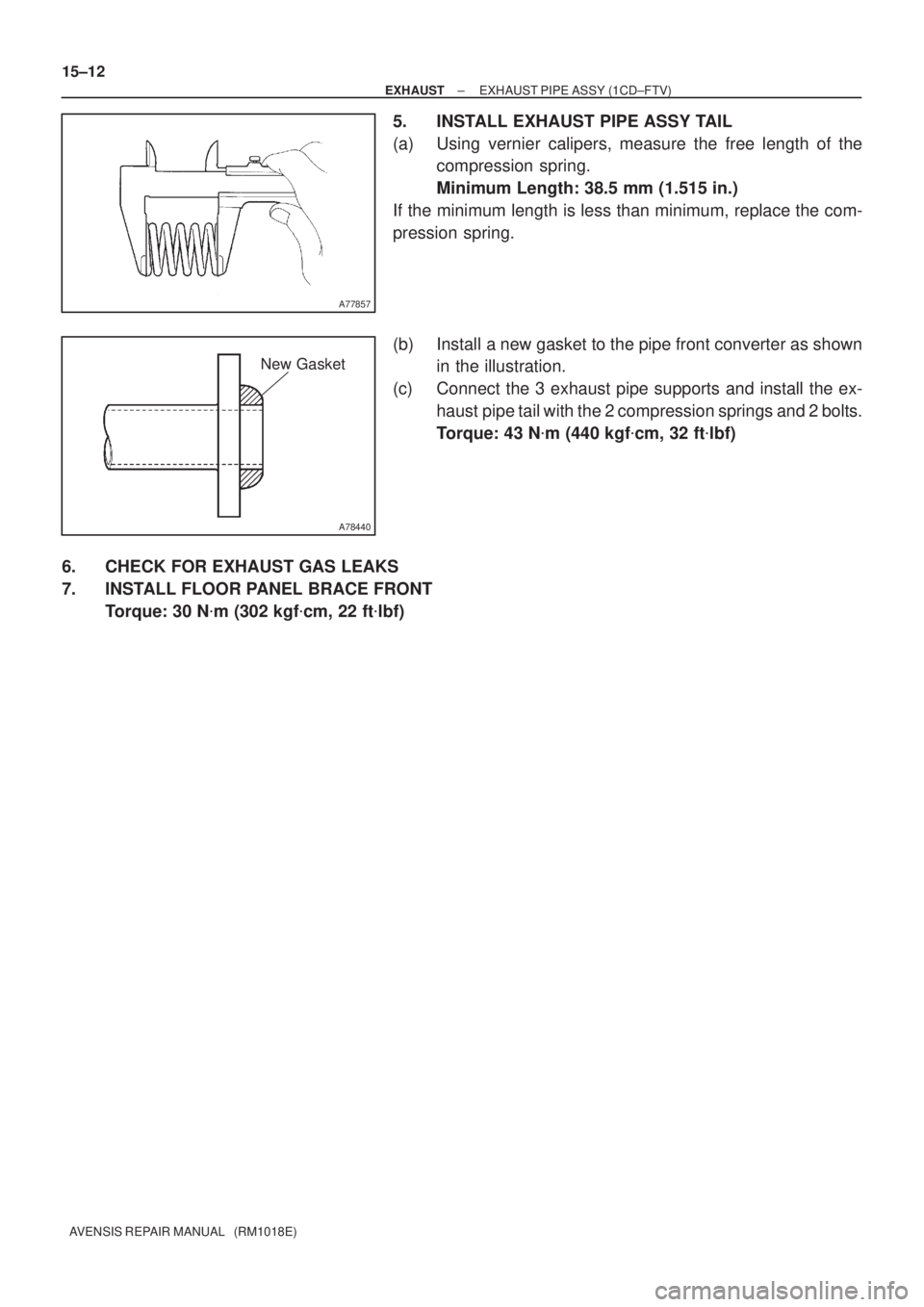

5. INSTALL EXHAUST PIPE ASSY TAIL
(a) Using vernier calipers, measure the free length of the
compression spring.
Minimum Length: 38.5 mm (1.515 in.)
If the minimum length is less than minimum, replace the com-
pression spring.
(b) Install a new gasket to the pipe front converter as shown
in the illustration.
(c) Connect the 3 exhaust pipe supports and install the ex-
haust pipe tail with the 2 compression springs and 2 bolts.
Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
6. CHECK FOR EXHAUST GAS LEAKS
7. INSTALL FLOOR PANEL BRACE FRONT
Torque: 30 N
m (302 kgf
cm, 22 ft
lbf)

A77857
A78440
New Gasket
15±8
±
EXHAUST EXHAUST PIPE ASSY(1AZ±FE/1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

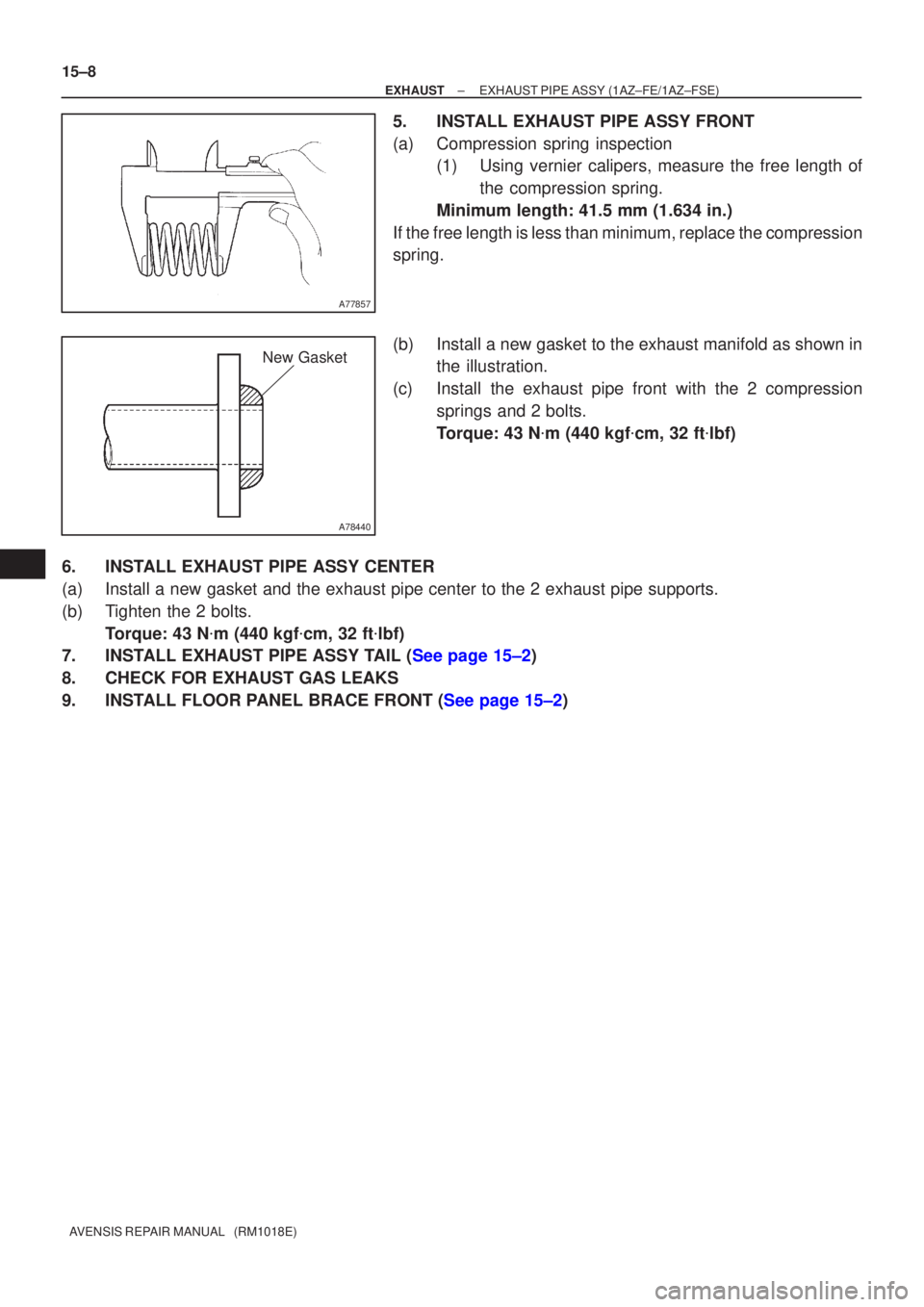

5.INSTALL EXHAUST PIPE ASSY FRONT
(a)Compression spring inspection (1)Using vernier calipers, measure the free length of
the compression spring.
Minimum length: 41.5 mm (1.634 in.)
If the free length is less than minimum, replace the compression
spring.
(b)Install a new gasket to the exhaust manifold as shown in the illustration.
(c)Install the exhaust pipe front with the 2 compression springs and 2 bolts.
Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
6.INSTALL EXHAUST PIPE ASSY CENTER
(a)Install a new gasket and the exhaust pipe center to the 2 exhaust pipe s\
upports.
(b)Tighten the 2 bolts. Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
7.INSTALL EXHAUST PIPE ASSY TAIL (See page 15±2)
8. CHECK FOR EXHAUST GAS LEAKS
9.INSTALL FLOOR PANEL BRACE FRONT (See page 15±2)

A78492
(a)(a)
(b)
(b)
A77857
A78440
New Gasket
15±4
± EXHAUSTEXHAUST PIPE ASSY (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
6. REMOVE EXHAUST PIPE ASSY FRONT
(a) Remove the 2 bolts and 2 compression springs.
(b) Remove the exhaust pipe front from the 2 exhaust pipe
supports.
(c) Remove the gasket from the exhaust manifold.
7. INSTALL EXHAUST PIPE ASSY FRONT
(a) Compression spring inspection
(1) Using vernier calipers, measure the free length of
the compression spring.
Minimum length: 41.5 mm (1.634 in.)
If the free length is less than minimum, replace the compression
spring.
(b) Install a new gasket to the exhaust manifold as shown in
the illustration.
(c) Install the exhaust pipe front to the 2 exhaust pipe sup-
ports.
(d) Tighten the 2 compression springs and 2 bolts.
Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
