± EXHAUSTEXHAUST PIPE ASSY (1ZZ±FE/3ZZ±FE)
15±5
AVENSIS REPAIR MANUAL (RM1018E)
8. INSTALL EXHAUST PIPE ASSY TAIL
(a) Compression spring inspection
(1) Using vernier calipers, measure the free length of
the compression spring.
Minimum length: 38.5 mm (1.516 in.)
If the free length is less than minimum, replace the compression
spring.
(b) Install a new gasket to the exhaust pipe front as shown in
the illustration.
(c) Install the exhaust pipe tail to the 3 exhaust pipe supports.
(d) Tighten the 2 compression springs and 2 bolts.
Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
9. INSTALL HEATED OXYGEN SENSOR (W/O HID SENSOR)
Torque: 44 N
m (449 kgf
cm, 33 ft
lbf)
10. INSTALL HEATED OXYGEN SENSOR (W/ HID SENSOR)
Torque: 44 N
m (449 kgf
cm, 33 ft
lbf)
11. CHECK FOR EXHAUST GAS LEAKS
12. INSTALL FLOOR PANEL BRACE FRONT
Torque: 30 N
m (302 kgf
cm, 22 ft
lbf)
13. INSTALL FRONT FLOOR FOOTREST (W/O HID SENSOR)

A77392Seal Packing6mm
A64641
±
LUBRICATION OIL PUMP ASSY(1AZ±FSE)
17±17
AVENSIS REPAIR MANUAL (RM1018E)
46.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±139)
47.INSTALL CHAIN VIBRATION DAMPER NO.1
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
48.INSTALL CHAIN SUB±ASSY (See page 14±139)
49.INSTALL TIMING CHAIN GUIDE Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
50.INSTALL CHAIN TENSIONER SLIPPER (See page 14±139)
51.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±139)
52.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
53.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)

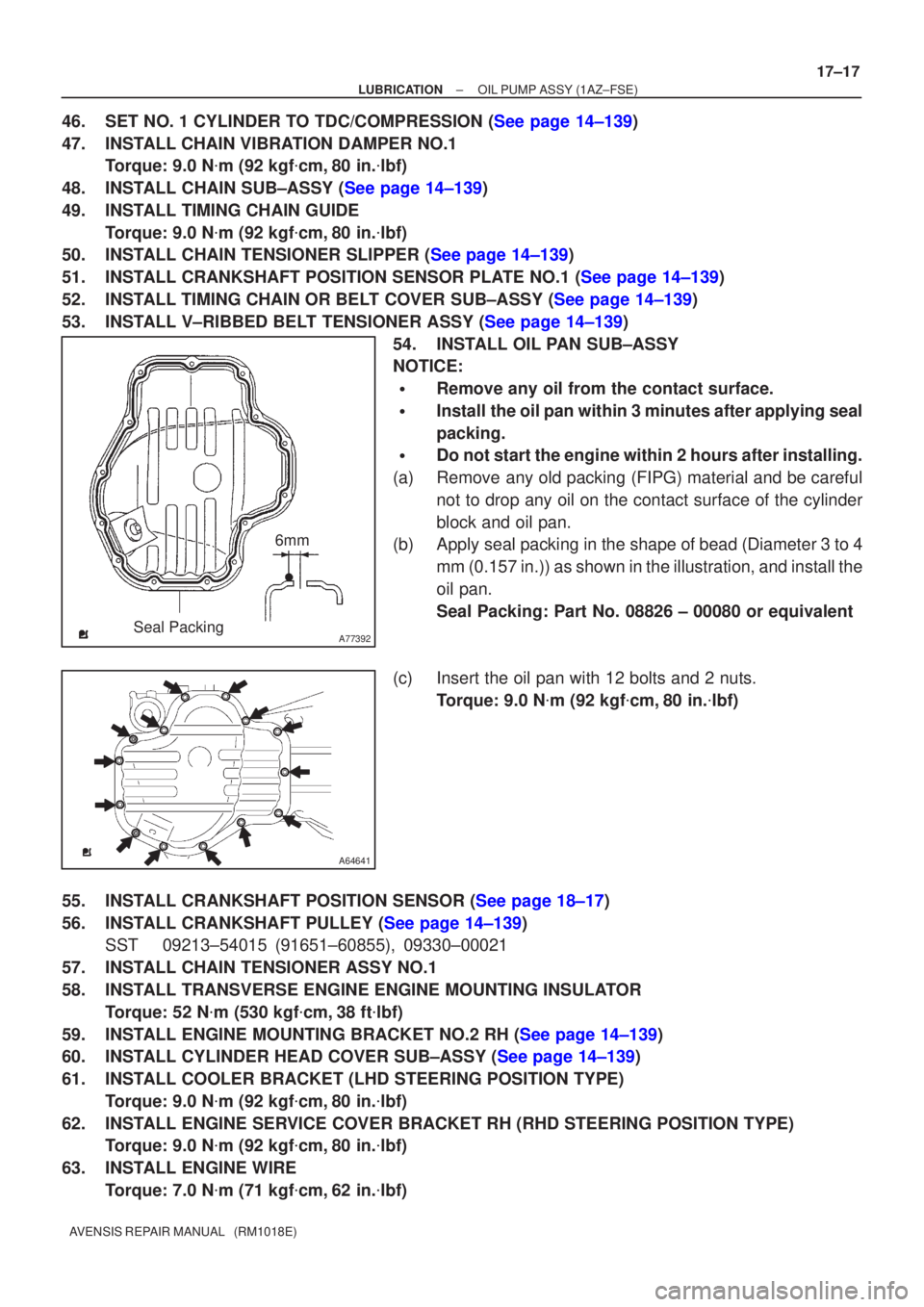

54.INSTALL OIL PAN SUB±ASSY
NOTICE:

Remove any oil from the contact surface.

Install the oil pan within 3 minutes after applying seal
packing.

Do not start the engine within 2 hours after installing.
(a)Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surface of the cylinder
block and oil pan.
(b)Apply seal packing in the shape of bead (Diameter 3 to 4
mm (0.157 in.)) as shown in the illustration, and install the
oil pan.
Seal Packing: Part No. 08826 ± 00080 or equivalent
(c)Insert the oil pan with 12 bolts and 2 nuts. Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
55.INSTALL CRANKSHAFT POSITION SENSOR (See page 18±17)
56.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST 09213±54015 (91651±60855), 09330±00021
57. INSTALL CHAIN TENSIONER ASSY NO.1
58. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
59.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
60.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
61. INSTALL COOLER BRACKET (LHD STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
62. INSTALL ENGINE SERVICE COVER BRACKET RH (RHD STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
63. INSTALL ENGINE WIRE Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)

A77392Seal Packing6mm
A64641
17±10
±
LUBRICATION OIL PUMP ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
43.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±139)
44. INSTALL CHAIN VIBRATION DAMPER NO.1 Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
45.INSTALL CHAIN SUB±ASSY (See page 14±139)
46. INSTALL TIMING CHAIN GUIDE Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
47.INSTALL CHAIN TENSIONER SLIPPER (See page 14±139)
48.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±139)
49.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
50.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)
51. INSTALL OIL PAN SUB±ASSY
NOTICE:

Remove any oil from the contact surface.

Install the oil pan within 3 minutes after applying seal
packing.

Do not start the engine within 2 hours after installing.
(a) Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surface of the cylinder
block and oil pan.
(b) Apply seal packing in the shape of bead (Diameter 3 to 4
mm (0.157 in.)) as shown in the illustration, and install the
oil pan.
Seal Packing: Part No. 08826 ± 00080 or equivalent
(c) Insert the oil pan with 12 bolts and 2 nuts. Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
52.INSTALL CRANKSHAFT POSITION SENSOR (See page 14±139)
53.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST 09213±54015 (91651±60855), 09330±00021
54.INSTALL CHAIN TENSIONER ASSY NO.1 (See page 14±139)
55. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
56.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
57.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
58. INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
59. INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
60. INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)

F42475
F40330
A
SST(s)
BFulcrum Length
F41596
Pressure Feed
Tube Assy
Stopper
51±16
± POWER STEERINGVANE PUMP ASSY (AZ Series)
AVENSIS REPAIR MANUAL (RM1018E)
32. INSTALL FLOW CONTROL VALVE ASSY
(a) Coat the compression spring and the flow control valve
assy with power steering fluid.
(b) Install the compression spring and the flow control valve
assy.
(c) Coat a new O±ring with power steering fluid and install it
onto the pressure port union sub±assy.
(d) Install the pressure port union sub±assy.
Torque: 69 N
m (704 kgf
cm, 51 ft
lbf)
33. INSTALL POWER STEERING SUCTION PORT UNION
(a) Coat a new O±ring with power steering fluid, and install it to the suction port union.
(b) Install the suction port union with the bolt.
Torque: 12 N
m (122 kgf
cm, 9 ft
lbf)
34. INSTALL PUMP BRACKET REAR
(a) Install the vane pump bracket rear with the bolt.
Torque: 44 N
m (449 kgf
cm, 32 ft
lbf)
HINT:
Make sure that the stopper of the bracket touches the vane pump body, then torque the bolt.
35. INSTALL VANE PUMP ASSY
(a) Temporarily tighten the bolt A to the vane pump assy.
(b) Install the vane pump assy and the bolt B.
Torque: 37 N
m (377 kgf
cm, 27 ft
lbf)
(c) Using SST(s) and a deep socket (14 mm), tighten the bolt
A.
SST 09249±63010
Torque: 26 N
m (264 kgf
cm, 19 ft
lbf)
HINT:

Use a torque wrench with a fulcrum length of 345 mm
(13.58 in.).

This torque value is effective when SST(s) is parallel to a
torque wrench.
(d) Connect the connector to the oil pressure switch.
36. CONNECT PRESSURE FEED TUBE ASSY
(a) Install the pressure feed tube assy and gasket to the vane
pump assy with the union bolt.
HINT:
Make sure the stopper of the pressure feed tube assy touches
the pump housing front as shown in the illustration.
(b) Using a spanner (27 mm) to hold the pressure port union,
torque the union bolt.
Torque: 52 N
m (525 kgf
cm, 38 ft
lbf)
(c) Install the pressure feed tube assy with bolt to the pump
bracket rear.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)

140KL±01
A62179
A62185
Mark
Mark
Mark
Timing Chain
Cover Surface
Groove
14±4
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
OVERHAUL
1. REMOVE OIL FILLER CAP SUB±ASSY
(a) Remove the oil filler cap from the cylinder head cover.
2. REMOVE OIL FILLER CAP GASKET
(a) Remove the gasket from the oil filler cap.
3. REMOVE VENTILATION VALVE SUB±ASSY
(a) Remove the ventilation valve from the cylinder head cover.
4. REMOVE SPARK PLUG
(a) Using a spark plug wrench, remove the 4 spark plugs.
5. REMOVE CYLINDER HEAD COVER SUB±ASSY
(a) Remove the 9 bolts, 2 seal washer, 2 nuts and cylinder head cover.
6. REMOVE CYLINDER HEAD COVER GASKET
(a) Remove the gasket from the cylinder head cover.
7. REMOVE WATER PUMP ASSY
(a) Remove the 6 bolts, water pump and O±ring.
8. REMOVE CRANKSHAFT PULLEY
(a) Set No. 1 cylinder to TDC/compression.
(1) Turn the crankshaft pulley, and align its groove with
timing mark º0º of the timing chain cover.
(2) Check that the point marks of the camshaft timing
sprocket and VVT timing sprocket are in straight line
on the timing chain cover surface as shown in the
illustration.
HINT:
If not, turn the crankshaft 1 revolution (360
) and align the
marks as above.

A62190
Advance
Side Path Retard Side
Path
Open
Close
Rubber Vinyl Tape Open Close
A62191
Advanced
Side Path Retard
Side Path
A62192
Hold Pressure
DecompressAdvanced
Side Path Retard
Side Path
14±8
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
19. REMOVE CAMSHAFT TIMING GEAR ASSY
(a) Grip the camshaft with a vice, and confirm that the gear
is locked.
CAUTION:
Be careful not to damage the camshaft.
(b) Cover 4 oil paths of cam journal with vinyl tape as shown
in the illustration.
HINT:
Two advance side paths are provided in the groove of the cam-
shaft. Plug one of the path with a rubber piece.
(c) Break through the tapes of the advance side path and the
retard side path on the opposite side of the groove.
(d) Put air pressure into two broken paths (the advance side
path and the retard side path) with about 150 kPa {1.5 kgf/
cm
2}.
CAUTION:
Cover the pathes with shop rag to avoid oil splashing.
(e) Confirm if the camshaft timing gear assembly revolves in
the timing advance direction when weakening the air
pressure of the timing retard path.
HINT:
The lock pin is released, and camshaft timing gear revolves in
the advance direction.
(f) When the camshaft timing gear comes to the most ad-
vanced position, take out the air pressure of the timing re-
tard side path, and then, takeout that of timing advance
side path.
CAUTION:
Camshaft timing gear assembly occasionally shifts to the
retard side abruptly, if the air compression of the advanced
side path is released before retard side paths. It often
causes the breakage of the lock pin.

A62825
62 4 8
51 3 7 11
10
9
A10079
Mark
A62170
Set KeyUpward
A62171
Yellow
Color Line
Timing Mark
A62172
SST
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±17
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
(c) Examine the front marks and numbers and tighten the
bolts in the order shown in the illustration.
Torque:
Bearing cap No. 1 23 N
m (235 kgf
cm, 17 ft
lbf)
Bearing cap No. 3 13 N
m (133 kgf
cm, 10 ft
lbf)

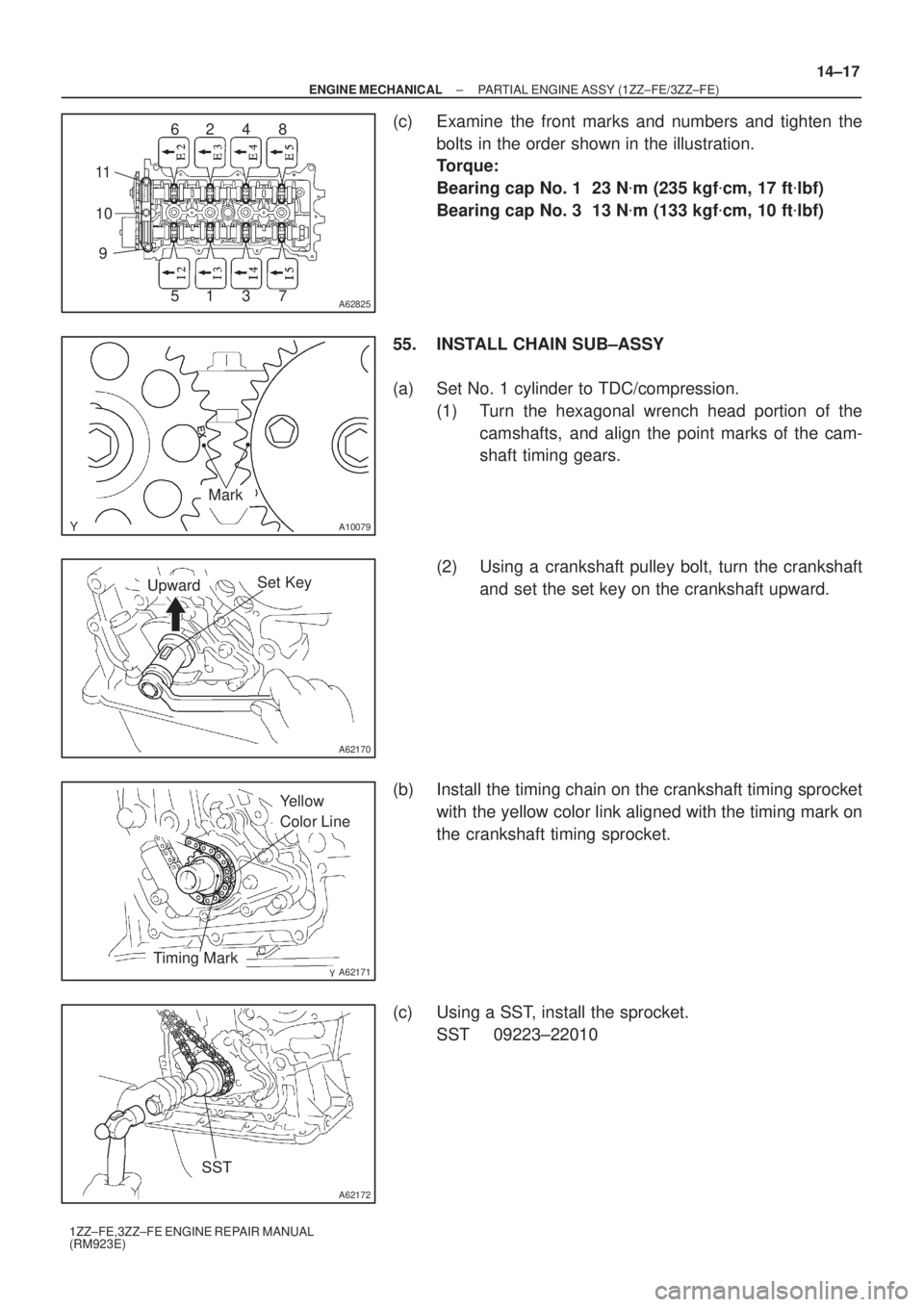

55. INSTALL CHAIN SUB±ASSY
(a) Set No. 1 cylinder to TDC/compression.
(1) Turn the hexagonal wrench head portion of the
camshafts, and align the point marks of the cam-
shaft timing gears.
(2) Using a crankshaft pulley bolt, turn the crankshaft
and set the set key on the crankshaft upward.
(b) Install the timing chain on the crankshaft timing sprocket
with the yellow color link aligned with the timing mark on
the crankshaft timing sprocket.
(c) Using a SST, install the sprocket.
SST 09223±22010

A62185
Mark
Mark
Mark
Timing Chain
Cover Surface
Groove
A01131
A01132
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±21
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

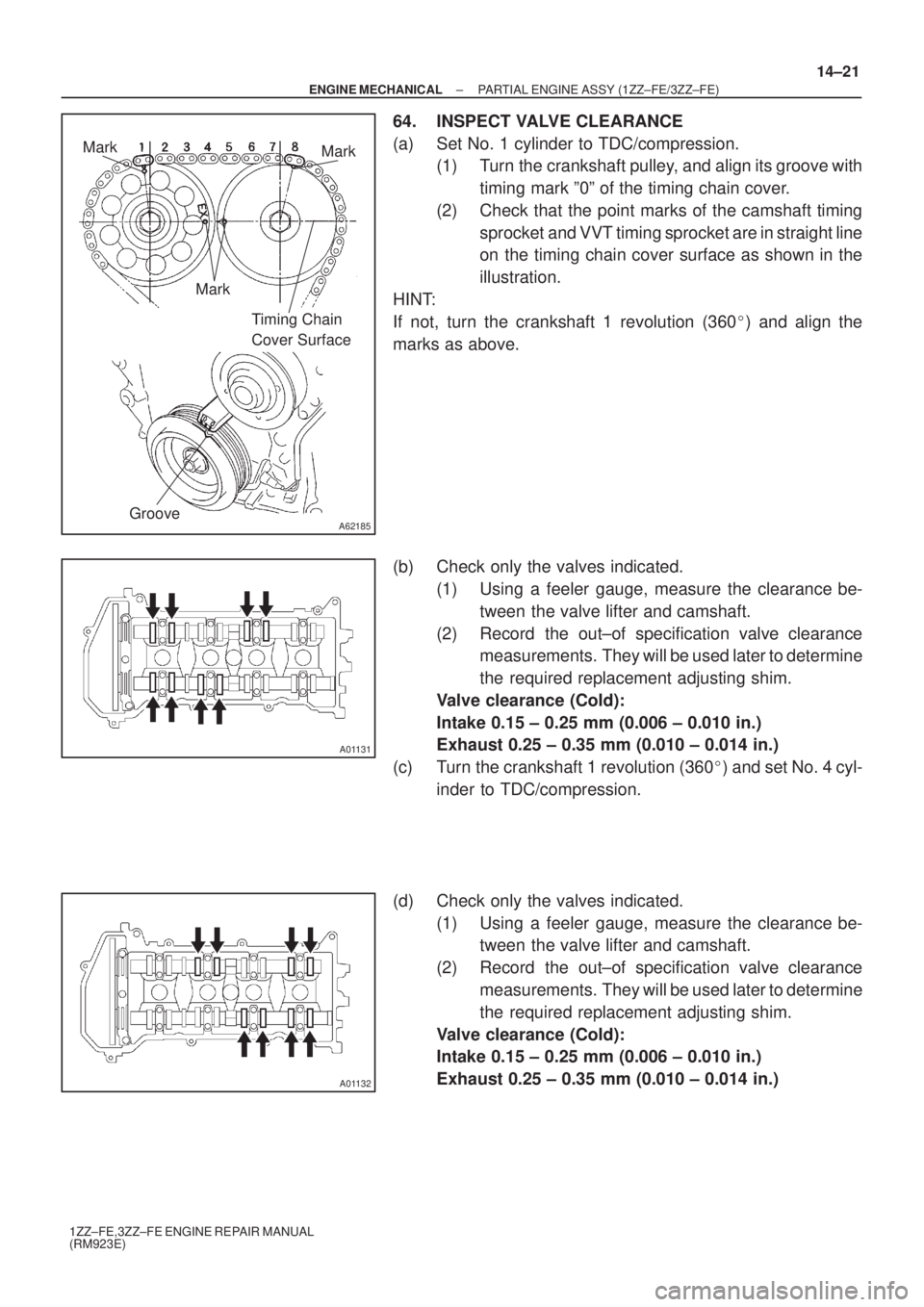

64. INSPECT VALVE CLEARANCE
(a) Set No. 1 cylinder to TDC/compression.
(1) Turn the crankshaft pulley, and align its groove with
timing mark º0º of the timing chain cover.
(2) Check that the point marks of the camshaft timing
sprocket and VVT timing sprocket are in straight line
on the timing chain cover surface as shown in the
illustration.
HINT:
If not, turn the crankshaft 1 revolution (360
) and align the
marks as above.
(b) Check only the valves indicated.
(1) Using a feeler gauge, measure the clearance be-
tween the valve lifter and camshaft.
(2) Record the out±of specification valve clearance
measurements. They will be used later to determine
the required replacement adjusting shim.
Valve clearance (Cold):
Intake 0.15 ± 0.25 mm (0.006 ± 0.010 in.)
Exhaust 0.25 ± 0.35 mm (0.010 ± 0.014 in.)
(c) Turn the crankshaft 1 revolution (360
) and set No. 4 cyl-
inder to TDC/compression.
(d) Check only the valves indicated.
(1) Using a feeler gauge, measure the clearance be-
tween the valve lifter and camshaft.
(2) Record the out±of specification valve clearance
measurements. They will be used later to determine
the required replacement adjusting shim.
Valve clearance (Cold):
Intake 0.15 ± 0.25 mm (0.006 ± 0.010 in.)
Exhaust 0.25 ± 0.35 mm (0.010 ± 0.014 in.)
