2005 TOYOTA AVENSIS sensor

05C6O±01
A76850
Combination Meter
Fuel Pump
DLC3
Circuit Opening Relay
Engine Room J/B No.1
Engine Room R/B No.1 Variable Resister (*1)
ECM
VSV (EVAP)
Mass Air Flow Meter
Engine Room J/B No.4
Engine Room R/B No.4
Idle Speed Control Valve
Canshaft Position Sensor
Engine Coolamt
Temperature SensorThrottle Body
Knock Sensor
Neutral Start Switch Injector Camshaft Oil Control Valve
Ignition Coli and Igniter
Crank Position Sensor
A/F Sensor
(Bank 1 Sensor 1)
Heated Oxygen Sensor
(Bank 1 Sensor 2) A/F Sensor
(Bank 2 Sensor 1)
Heated Oxygen Sensor
(Bank 2 Sensor 2)
*1: Leaded Only
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±165
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION

05C6N±01
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±161
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
HINT:
Parameters listed in the chart may not be exactly the same as your readings due to\
the type of instrument
or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit f\
or the codes
listed in the table below. For details of each code, refer to the ''See page '' under the respective ''DTC No.''
in the DTC chart.



\f \b
 *1
CHK ENG
P0010/39 *4 (05±169)Camshaft Position ºAº Actuator
Circuit (Bank 1)
Open or short in oil control valve (OCV) circuit

Oil control valve

ECM

P0011/59 *4
(05±174)Camshaft Position ºAº ±Timing
Over±Advanced or System Per-
formance (Bank 1)
Valve timing

Oil control valve (OCV)

Camshaft timing gear assy


P0012/59 *4
(05±174)Camshaft Position ºAº ±Timing
Over± Retarded (Bank 1)
Camshaft timing gear assy

ECM


P0016/18 *4
(05±181)Crankshaft Position ± Camshaft
Position Correlation (Bank 1
Sensor A)
Mechanical system (Timing chain has jumped a tooth, chain
stretched)

ECM


P0031/21
*2, *4
(05±182)Oxygen (A/F) Sensor Heater
Control Circuit Low (Bank 1 Sen-
sor 1)


P0032/21
*2, *4
(05±182)Oxygen (A/F) Sensor Heater
Control Circuit High (Bank 1
Sensor 1)

Open or short in heater circuit of A/F sensor

A/F sensor heater

P0051/28
*2, *4
(05±182)Oxygen (A/F) Sensor Heater
Control Circuit Low (Bank 2 Sen-
sor 1)
A/F sensor heater

A/F relay

ECM


P0052/28
*2, *4
(05±182)Oxygen (A/F) Sensor Heater
Control Circuit High (Bank 2
Sensor 1)


P0100/31
(05±186)Mass Air Flow Circuit
Ohti ifltiit

P0102/31(05±186)Mass or volume Air Flow Circuit
Low Input
Open or short in mass air flow meter circuit

Mass air flow meter

ECM

P0103/31
(05±186)Mass or volume Air Flow Circuit
High Input
ECM

P0110/24(05±194)Intake Air Temperature Circuit
O h ti itk it i it


P0112/24(05±194)Intake Air Temperature Circuit
Low Input
Open or short in intake air temp. sensor circuit

Intake air temp. sensor (built in mass air flow meter)

ECM


P0113/24
(05±194)Intake Air Temperature Circuit
High Input
ECM


P0115/22(05±199)Engine Coolant Temperature Cir-
cuit
Open or short in engine coolant temperature sensor circuit

P0117/22(05±199)Engine Coolant Temperature Cir-
cuit Low Input
Open or short in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0118/22
(05±199)Engine Coolant Temperature Cir-
cuit High Input
ECM

P0120/41 (05±204)Throttle/Pedal Position Sensor/
Switch ºAº Circuit
Throttle position sensor (built in throttle body)

ECM

P0122/41
(05±204)Throttle/Pedal Position Sensor/
Switch ºAº Circuit Low Input

Throttle position sensor (built in throttle body)

Short in VTA1 circuit

Open in VC circuit

ECM



05±162
±
DIAGNOSTICS SFI SYSTEM (1AZ±FE)

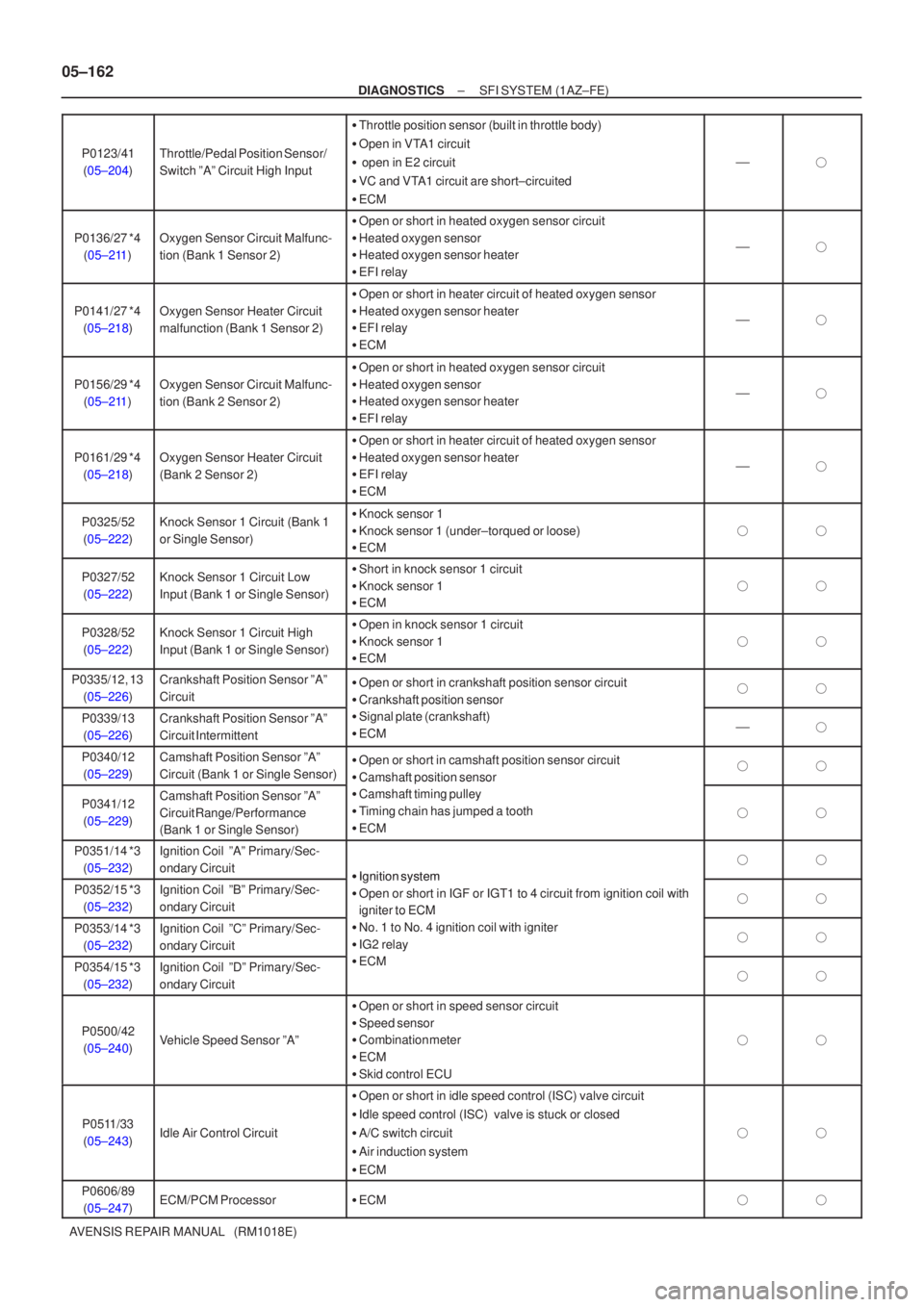

AVENSIS REPAIR MANUAL (RM1018E) P0123/41
(05±204)
Throttle/Pedal Position Sensor/
Switch ºAº Circuit High Input

Throttle position sensor (built in throttle body)

Open in VTA1 circuit

open in E2 circuit

VC and VTA1 circuit are short±circuited

ECM


P0136/27 *4
(05±211)Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 2)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay


P0141/27 *4
(05±218)Oxygen Sensor Heater Circuit
malfunction (Bank 1 Sensor 2)

Open or short in heater circuit of heated oxygen sensor

Heated oxygen sensor heater

EFI relay

ECM


P0156/29 *4
(05±211)Oxygen Sensor Circuit Malfunc-
tion (Bank 2 Sensor 2)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay


P0161/29 *4
(05±218)Oxygen Sensor Heater Circuit
(Bank 2 Sensor 2)

Open or short in heater circuit of heated oxygen sensor

Heated oxygen sensor heater

EFI relay

ECM


P0325/52
(05±222)Knock Sensor 1 Circuit (Bank 1
or Single Sensor)
Knock sensor 1

Knock sensor 1 (under±torqued or loose)

ECM

P0327/52
(05±222)Knock Sensor 1 Circuit Low
Input (Bank 1 or Single Sensor)
Short in knock sensor 1 circuit

Knock sensor 1

ECM

P0328/52
(05±222)Knock Sensor 1 Circuit High
Input (Bank 1 or Single Sensor)
Open in knock sensor 1 circuit

Knock sensor 1

ECM

P0335/12, 13
(05±226)Crankshaft Position Sensor ºAº
Circuit
Open or short in crankshaft position sensor circuit

Crankshaft position sensor
P0339/13
(05±226)Crankshaft Position Sensor ºAº
Circuit Intermittent
Crankshaft osition sensor

Signal plate (crankshaft)

ECM

P0340/12
(05±229)Camshaft Position Sensor ºAº
Circuit (Bank 1 or Single Sensor)
Open or short in camshaft position sensor circuit

Camshaft position sensor
P0341/12
(05±229)Camshaft Position Sensor ºAº
Circuit Range/Performance
(Bank 1 or Single Sensor)
Camshaft osition sensor

Camshaft timing pulley

Timing chain has jumped a tooth

ECM

P0351/14 *3
(05±232)Ignition Coil ºAº Primary/Sec-
ondary Circuit

Ignition system

P0352/15 *3(05±232)Ignition Coil ºBº Primary/Sec-
ondary Circuit
Ignition system

Open or short in IGF or IGT1 to 4 circuit from ignition coil with
igniter to ECM
P0353/14 *3
(05±232)Ignition Coil ºCº Primary/Sec-
ondary Circuit
igniter to ECM

No. 1 to No. 4 ignition coil with igniter

IG2 relay
P0354/15 *3
(05±232)Ignition Coil ºDº Primary/Sec-
ondary Circuit
ECM
P0500/42
(05±240)Vehicle Speed Sensor ºAº

Open or short in speed sensor circuit

Speed sensor

Combination meter

ECM

Skid control ECU

P0511/33
(05±243)Idle Air Control Circuit

Open or short in idle speed control (ISC) valve circuit

Idle speed control (ISC) valve is stuck or closed

A/C switch circuit

Air induction system

ECM

P0606/89
(05±247)ECM/PCM Processor
ECM

±
DIAGNOSTICS SFI SYSTEM (1AZ±FE)
05±163
AVENSIS REPAIR MANUAL (RM1018E)P0710/38
(05±882)
Transmission Fluid Temperature
Sensor ºAº Circuit
P0712/38(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit Low Input
P0713/38(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit High Input
P0717/37(05±884)Input/Turbine Speed Sensor ºAº
Circuit No Signal
P0748/62(05±886)Pressure Control Solenoid ºAº
Electrocal (Shift Solenoid Valve
SL1)

Electronic controlled automatic transmission (ECT)
P0778/63
(05±886)Pressure Control Solenoid ºBº
Electrocal (Shift Solenoid Valve
SL2)

P0793/67(05±892)Intermediate Shaft Speed Sen-
sor ºAº
P0982/65(05±886)Shift Solenoid ºDº Control Circuit
Low (Shift Solenoid Valve S4)
P0983/65(05±886)Shift Solenoid ºDº Control Circuit
High (Shift Solenoid Valve S4)
P2237/21 *2, *4
(05±248)Oxygen Sensor Pumping Cur-
rent Circuit/ Open (for A/F sen-
sor) (Bank 1 Sensor 1)


P2238/21
*2, *4
(05±248)Oxygen Sensor Pumping Cur-
rent Circuit Low (for A/F sensor)
(Bank 1 Sensor 1)


P2239/21
*2, *4
(05±248)Oxygen Sensor Pumping Cur-
rent Circuit High (for A/F sensor)
(Bank 1 Sensor 1)


P2240/28
*2, *4
(05±248)Oxygen Sensor Pumping Cur-
rent Circuit/ Open (for A/F sen-
sor) (Bank 2 Sensor 1)


P2241/28
*2, *4
(05±248)Oxygen Sensor Pumping Cur-
rent Circuit Low (for A/F sensor)
(Bank 2 Sensor 1)


P2242/28
*2, *4
(05±248)Oxygen Sensor Pumping Cur-
rent Circuit High (for A/F sensor)
(Bank 2 Sensor 1)
Open or short in A/F sensor circuit

A/F sensor

A/F sensor heater

P2251/21
*2, *4
(05±248)Oxygen Sensor Reference
Ground Circuit/ Open (for A/F
senor) (Bank 1 Sensor 1)
A/F sensor heater

A/F sensor heater relay

A/F sensor heater and relay circuit

ECM


P2252/21
*2, *4
(05±248)Oxygen Sensor Reference
Ground Circuit Low (for A/F se-
nor) (Bank 1 Sensor 1)


P2253/21
*2, *4
(05±248)Oxygen Sensor Reference
Ground Circuit High (for A/F se-
nor) (Bank 1 Sensor 1)


P2254/28
*2, *4
(05±248)Oxygen Sensor Reference
Ground Circuit/ Open (for A/F
senor) (Bank 2 Sensor 1)


P2255/28
*2, *4
(05±248)Oxygen Sensor Reference
Ground Circuit Low (for A/F se-
nor) (Bank 2 Sensor 1)


P2256/28
*2, *4
(05±248)Oxygen Sensor Reference
Ground Circuit High (for A/F se-
nor) (Bank 2 Sensor 1)



05±164
±
DIAGNOSTICS SFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E) P2716/77
(05±894)
Pressure Control Solenoid ºDº
Electrical

P2769/64(05±897)DSL Solenoid Circuit Low
(Shift Solenoid Valve DSL)
Electronic controlled automatic transmission (ECT)

P2770/64
(05±897)DSL Solenoid Circuit High
(Shift Solenoid Valve DSL)

B2799/99
(05±1625)Engine Immobilizer System Mal-
function
Immobilizer system

*1:  ... CHK ENG is illuminated.
... CHK ENG is not illuminated.
*2: This DTC is related to A/F sensor, although the caption is heated oxygen sensor.
*3: This DTC indicate a malfunction related to primary circuit.
*4: For European spec. only

\bA79115
Reference (Bank 1 Sensor 2 System Drawing)Heated Oxygen Sensor
EFI Relay
Heater
SensorOX1B HT1BECM
From
Battery EFI Fuse
O1B±
MREL
EFI No.2 Fuse
05±218
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

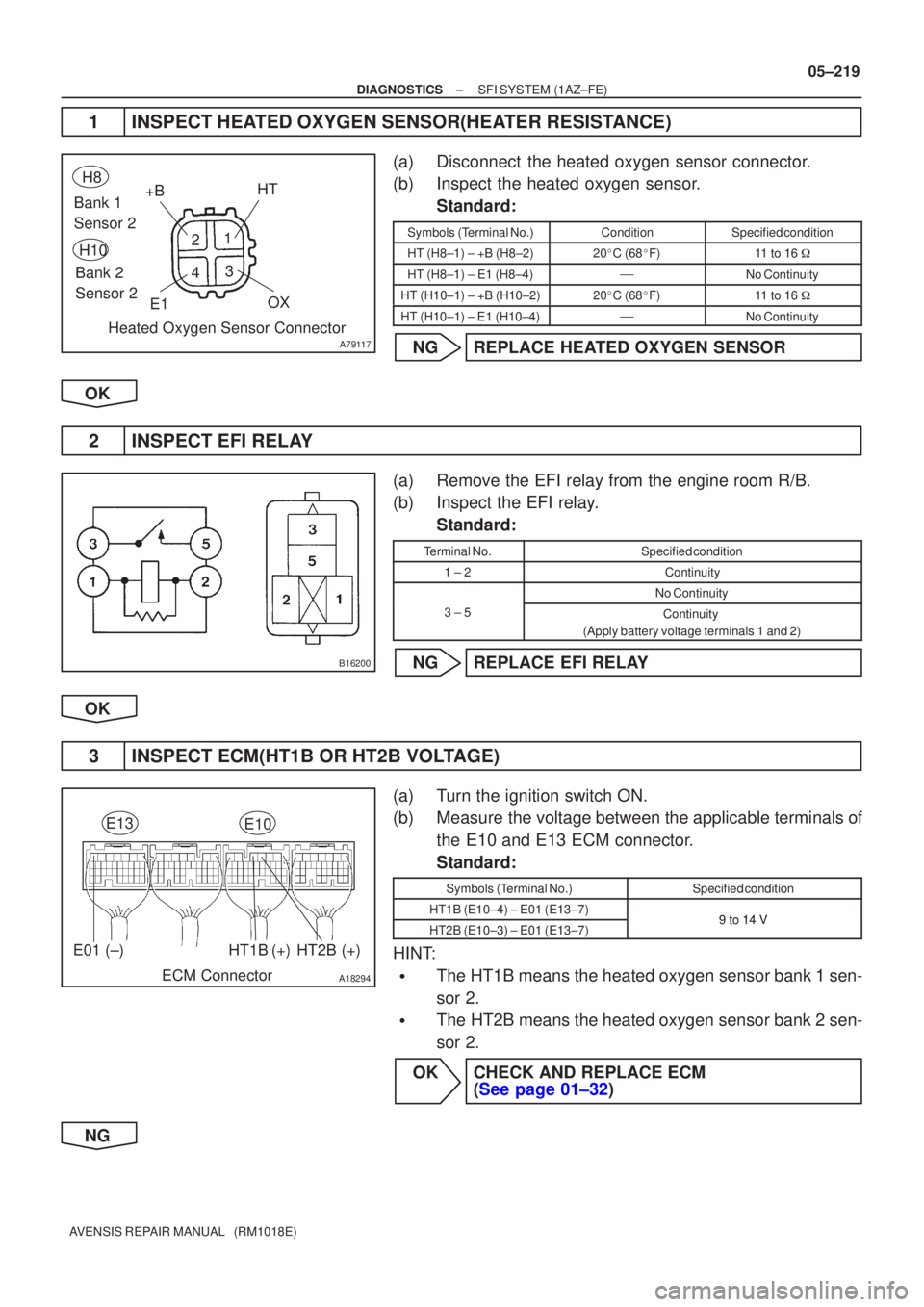

DTCP0141/27OXYGEN SENSOR HEATER CIRCUIT MALFUNCTION (BANK 1 SENSOR 2)
DTCP0161/29OXYGEN SENSOR HEATER CIRCUIT (BANK 2 SENSOR 2)
CIRCUIT DESCRIPTION
Refer to DTC P0136/27 on page 05±211.
HINT:
The ECM provides a pulse width modulated control circuit to adjust current \
through the heater. The heated
oxygen sensor heater circuit uses a relay on the B+ side of the circuit.
DTC No.DTC Detection ConditionTrouble Area
P0141/27
Heated current is 0.2 A or less when heater operates
(1 trip detection logic)
Open or short in heater circuit of heated oxygen sensor

Heated oxygen sensor heater
P0141/27
P0161/29When heater operates, heated current exceeds 2 A
(1 trip detection logic)
yg

EFI relay

ECM
HINT:

Bank 1 refers to the bank that includes cylinder No.1.

Bank 2 refers to the bank that does not include cylinder No.1.

Sensor 1 refers to the sensor closest to the engine assembly.

Sensor 2 refers to the sensor farthest away from the engine assembly.
WIRING DIAGRAM
Refer to DTC P0136/27 on page 05±211.
INSPECTION PROCEDURE
HINT:

If different DTCs that are related to a different system are output simultaneously while terminal E2 is
used as a ground terminal, terminal E2 may be open.

Read freeze frame data using
\f

\f \f\f Freeze frame data records the engine conditions
when a malfunction is detected. When troubleshooting, it is useful for d\
etermining whether the vehicle
was running or stopped, the engine was warmed up or not, the air±fuel ra\
tio was lean or rich, etc. at
the time of the malfunction.
05C6Y±01

23
4 1
A79117
+B
HT
Bank 1
Sensor 2
Bank 2
Sensor 2 H8
H10
Heated Oxygen Sensor Connector
E1
OX
B16200
A18294
HT1B (+)HT2B (+)E01 (±)E13
E10
ECM Connector
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±219
AVENSIS REPAIR MANUAL (RM1018E)
1INSPECT HEATED OXYGEN SENSOR(HEATER RESISTANCE)
(a)Disconnect the heated oxygen sensor connector.
(b)Inspect the heated oxygen sensor.
Standard:
Symbols (Terminal No.)ConditionSpecified condition
HT (H8±1) ± +B (H8±2)20C (68 F)11 to 16

HT (H8±1) ± E1 (H8±4)
No Continuity
HT (H10±1) ± +B (H10±2)20C (68 F)11 to 16

HT (H10±1) ± E1 (H10±4)
No Continuity
NGREPLACE HEATED OXYGEN SENSOR
OK
2INSPECT EFI RELAY
(a)Remove the EFI relay from the engine room R/B.
(b)Inspect the EFI relay. Standard:
Terminal No.Specified condition
1 ± 2Continuity
No Continuity
3 ± 5Continuity
(Apply battery voltage terminals 1 and 2)
NGREPLACE EFI RELAY
OK
3INSPECT ECM(HT1B OR HT2B VOLTAGE)
(a)Turn the ignition switch ON.
(b)Measure the voltage between the applicable terminals of the E10 and E13 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
HT1B (E10±4) ± E01 (E13±7)9to14VHT2B (E10±3) ± E01 (E13±7)9 to 14 V
HINT:

The HT1B means the heated oxygen sensor bank 1 sen-
sor 2.

The HT2B means the heated oxygen sensor bank 2 sen-
sor 2.
OKCHECK AND REPLACE ECM (See page 01±32)
NG

A79118
Wire Harness SideBank 1
Sensor 2
Bank 2
Sensor 2 H8
H10
Heated Oxygen Sensor Connector +B
HT
A65744
HT2B
E10
ECM Connector
HT1B



A79070
Engine Room R/B No.4
1 2
EFI No.2 Fuse
A66053
Engine Room R/B No.4
EFI Relay
±

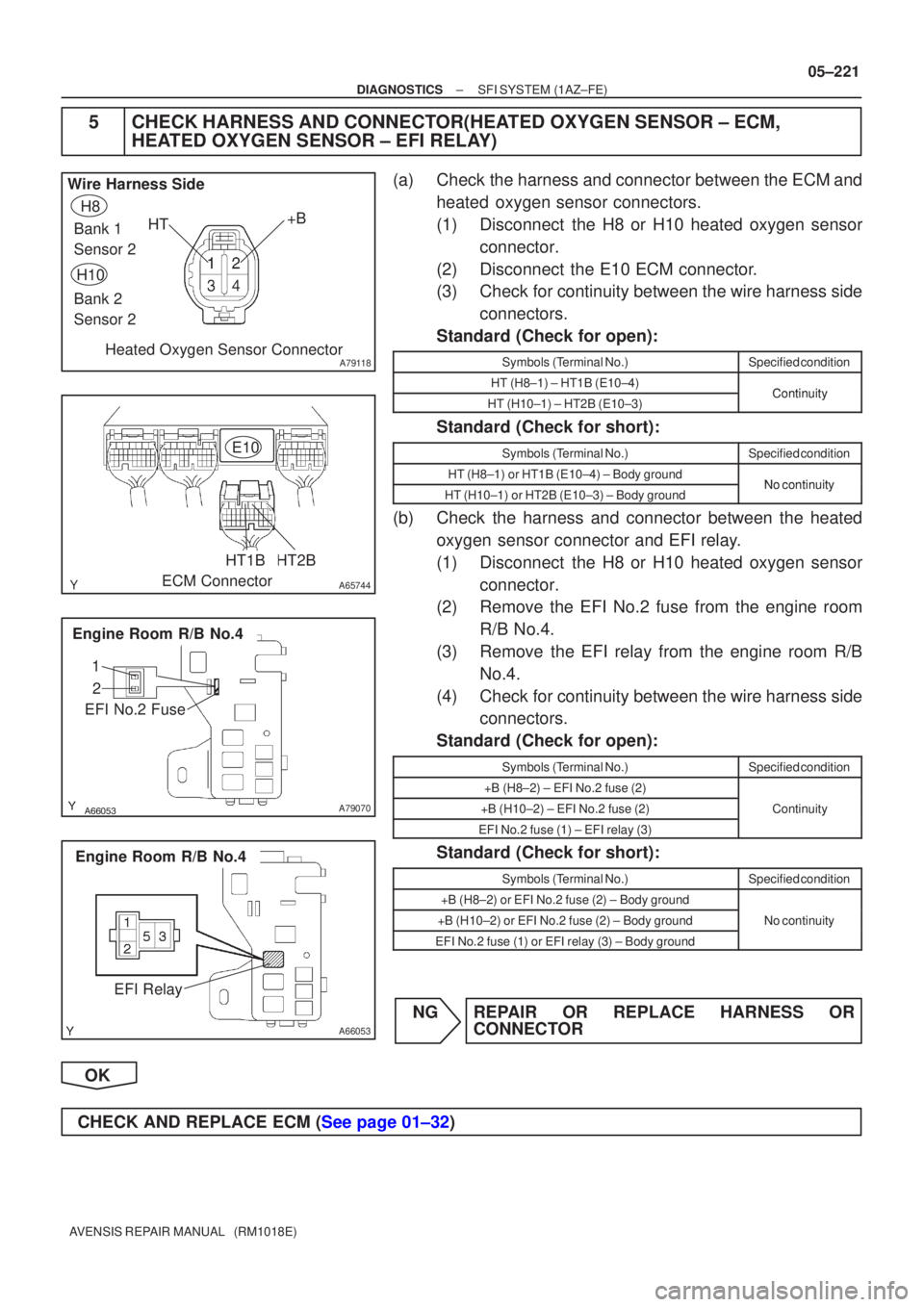

DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±221
AVENSIS REPAIR MANUAL (RM1018E)
5CHECK HARNESS AND CONNECTOR(HEATED OXYGEN SENSOR ± ECM,
HEATED OXYGEN SENSOR ± EFI RELAY)
(a)Check the harness and connector between the ECM and
heated oxygen sensor connectors.
(1)Disconnect the H8 or H10 heated oxygen sensorconnector.
(2)Disconnect the E10 ECM connector.
(3)Check for continuity between the wire harness side connectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
HT (H8±1) ± HT1B (E10±4)ContinuityHT (H10±1) ± HT2B (E10±3)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
HT (H8±1)or HT1B (E10±4) ± Body groundNocontinuityHT (H10±1)or HT2B (E10±3) ± Body groundNo continuity
(b)Check the harness and connector between the heated oxygen sensor connector and EFI relay.
(1)Disconnect the H8 or H10 heated oxygen sensorconnector.
(2)Remove the EFI No.2 fuse from the engine room
R/B No.4.
(3)Remove the EFI relay from the engine room R/B No.4.
(4)Check for continuity between the wire harness side connectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
+B (H8±2) ± EFI No.2 fuse (2)
+B (H10±2) ± EFI No.2 fuse (2)Continuity
EFI No.2 fuse (1) ± EFI relay (3)
y
Standard (Check for short):
Symbols (Terminal No.)Specified condition
+B (H8±2) or EFI No.2 fuse (2) ± Body ground
+B (H10±2) or EFI No.2 fuse (2) ± Body groundNo continuity
EFI No.2 fuse (1) or EFI relay (3) ± Body ground
y
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)
