GND KNK1 Signal Waveform 05–132
– DIAGNOSTICSSFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DTC P0325 KNOCK SENSOR 1 CIRCUIT (BANK 1 OR
SINGLE SENSOR)
DTC P0327 KNOCK SENSOR 1 CIRCUIT LOW INPUT
(BANK 1 OR SINGLE SENSOR)
DTC P0328 KNOCK SENSOR 1 CIRCUIT HIGH INPUT
(BANK 1 OR SINGLE SENSOR)
CIRCUIT DESCRIPTION
The flat type knock sensor (non–resonant type) has a structure that can detect vibration in a wider band of
frequency, from about 6 kHz to 15 kHz and has the following features:
The knock sensor is fitted on the cylinder block to detect engine knocking.
The sensor contains a piezoelectric element which generates voltage when it becomes deformed. This
occurs when the cylinder block vibrates due to knocking. If engine knocking occurs, the ignition timing
is retarded to suppress it.
DTC No.DTC Detecting ConditionTrouble Area
P0325Knock sensor signal level remains at low for more than 10
secondsOpen or short in knock sensor circuit
Knock sensor (under–torqued or looseness)
ECM
P0327Output voltage of the knock sensor is 0.5 V or less
Short in knock sensor circuit
Knock sensor
ECM
P0328Output voltage of the knock sensor is 4.5 V or more
Open in knock sensor circuit
Knock sensor
ECM
HINT:
If the ECM detects DTC P0325, P0327 and/or P0328, it enters fail–safe mode in which the corrective re-
tarded angle value is set to the maximum value.
Reference: Inspection by using the oscilloscope.
The correct waveform is as shown.
ItemContents
TerminalKNK1 – EKNK
Equipment Setting0.01 to 10 V/Division,
0.01 to 10 msec./Division
ConditionAfter warming up the engine,
keep the engine speed at 4,000 rpm
05JOG–03

056IK–10
–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–245
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the \
table below and proceed to the page
given.
HINT:

*1 :  ... MIL (Malfunction Indicator Lamp) light up

*2 : ’’ ’’ mark means ECM memorizes the malfunction code if the ECM detects the DT\
C detection
condition.

This DTC may be output when the clutch, brake and gear components etc. inside\
the automatic trans-
axle are damaged.
DTC No.
(See Page)Detection ItemTrouble AreaMIL *1Memory *2
P0500
( 05–158 )Vehicle Speed Sensor ”A”

Combination meter

Open or short in vehicle speed sensor circuit

Vehicle speed sensor

ECM

P0705
( 05–247 )Transmission Range Sensor Cir-
cuit Malfunction (PRNDL Input)
Open or short in park/neutral position switch circuit

Park/neutral position switch

ECM

P0710
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit
Open or short in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0711
( 05–255 )Transmission Fluid Temperature
Sensor ”A” Performance
Open or short in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0712
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit Low Input
Short in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0713
( 05–252 )Transmission Fluid Temperature
Sensor ”A” Circuit High Input
Open in ATF temperature sensor circuit

Transmission wire (ATF temperature sensor)

ECM

P0717
( 05–258 )Turbine Speed Sensor Circuit No
Signal

Open or short in transmission revolution sensor NT (speed
sensor NT) circuit

Transmission revolution sensor NT (speed sensor NT)

ECM

Automatic transaxle assembly

P0724
( 05–261 )Brake Switch ”B” Circuit High

Short in stop light switch circuit

Stop light switch

ECM

P0741
( 05–264 )Torque Converter Clutch Sole-
noid Performance
(Shift Solenoid Valve SL)

Shift solenoid valve SL remains open or closed

Valve body is blocked

Shift solenoid valve SL

Torque converter clutch

Automatic transaxle (clutch, brake or gear etc.)

Line pressure is too low

ECM

P0751
( 05–268 )Shift Solenoid ”A” Performance
(Shift Solenoid Valve S1)

Shift solenoid valve S1 remains open or closed

Valve body is blocked

Shift solenoid valve S1

Automatic transaxle (clutch, brake or gear etc.)

ECM

P0756
( 05–271 )Shift Solenoid ”B” Performance
(Shift Solenoid Valve S2)

Shift solenoid valve S2 remains open or closed

Valve body is blocked

Shift solenoid valve S2

Automatic transaxle (clutch, brake or gear etc.)

ECM

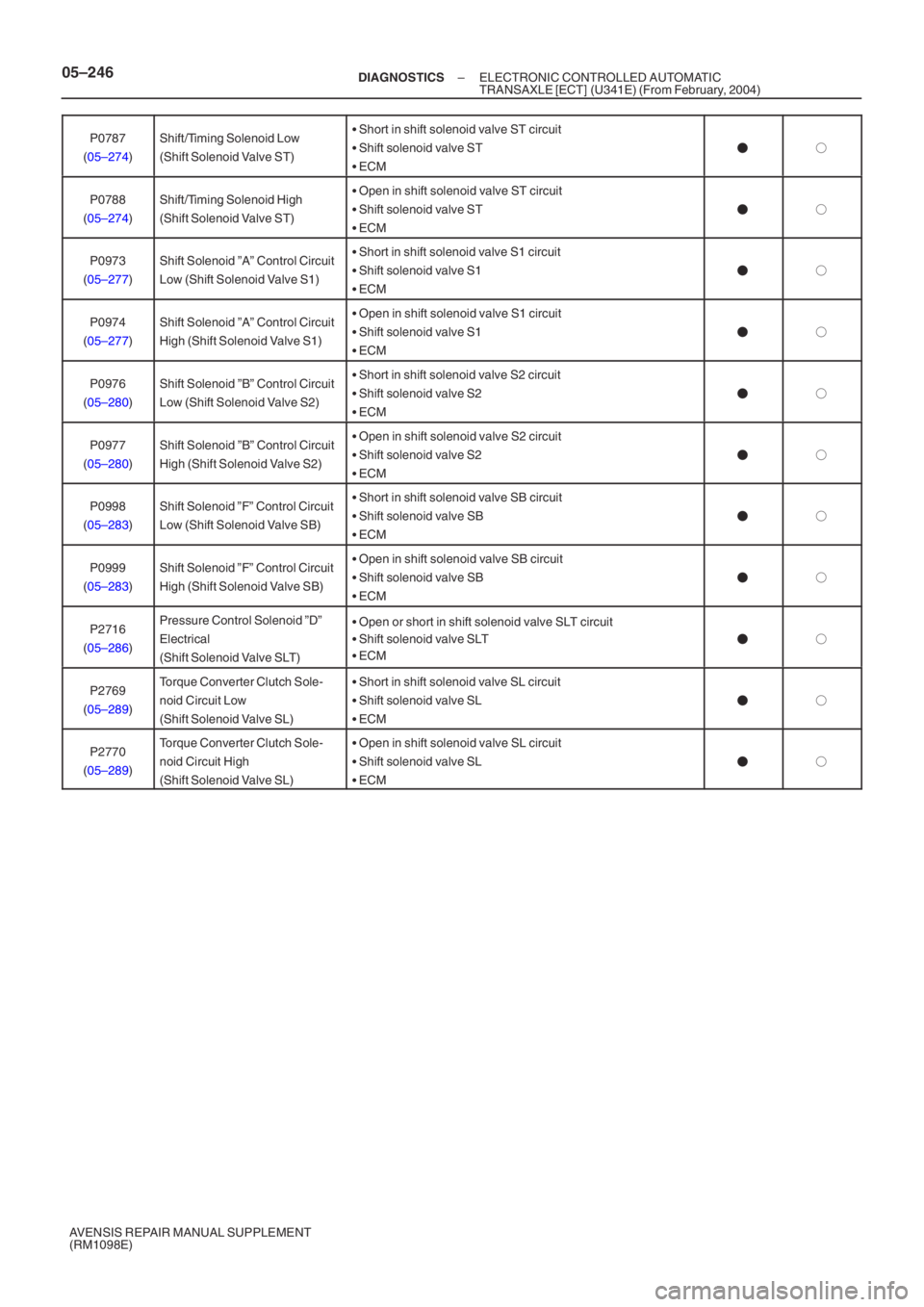

05–246–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E) P0787
( 05–274 )
Shift/Timing Solenoid Low
(Shift Solenoid Valve ST)
Short in shift solenoid valve ST circuit

Shift solenoid valve ST

ECM

P0788
( 05–274 )Shift/Timing Solenoid High
(Shift Solenoid Valve ST)
Open in shift solenoid valve ST circuit

Shift solenoid valve ST

ECM

P0973
( 05–277 )Shift Solenoid ”A” Control Circuit
Low (Shift Solenoid Valve S1)
Short in shift solenoid valve S1 circuit

Shift solenoid valve S1

ECM

P0974
( 05–277 )Shift Solenoid ”A” Control Circuit
High (Shift Solenoid Valve S1)
Open in shift solenoid valve S1 circuit

Shift solenoid valve S1

ECM

P0976
( 05–280 )Shift Solenoid ”B” Control Circuit
Low (Shift Solenoid Valve S2)
Short in shift solenoid valve S2 circuit

Shift solenoid valve S2

ECM

P0977
( 05–280 )Shift Solenoid ”B” Control Circuit
High (Shift Solenoid Valve S2)
Open in shift solenoid valve S2 circuit

Shift solenoid valve S2

ECM

P0998
( 05–283 )Shift Solenoid ”F” Control Circuit
Low (Shift Solenoid Valve SB)
Short in shift solenoid valve SB circuit

Shift solenoid valve SB

ECM

P0999
( 05–283 )Shift Solenoid ”F” Control Circuit
High (Shift Solenoid Valve SB)
Open in shift solenoid valve SB circuit

Shift solenoid valve SB

ECM

P2716
( 05–286 )Pressure Control Solenoid ”D”
Electrical
(Shift Solenoid Valve SLT)
Open or short in shift solenoid valve SLT circuit

Shift solenoid valve SLT

ECM

P2769
( 05–289 )Torque Converter Clutch Sole-
noid Circuit Low
(Shift Solenoid Valve SL)
Short in shift solenoid valve SL circuit

Shift solenoid valve SL

ECM

P2770
( 05–289 )Torque Converter Clutch Sole-
noid Circuit High
(Shift Solenoid Valve SL)
Open in shift solenoid valve SL circuit

Shift solenoid valve SL

ECM


05KAQ–02
G24063
SST
SST
– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–223
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
HYDRAULIC TEST
1. PERFORM HYDRAULIC TEST
(a) Measure the line pressure.
NOTICE:

Perform the test at the normal operating ATF (Automatic Transmission Fluid) temperature 50
to 80
C (122 to 176
F).

The line pressure test should always be carried out in pairs. One technician should observe
the conditions of wheels or wheel stopper outside the vehicle while the other is doing the test.

Be careful to prevent SST’s hose from interfering with the exhaust pipe.

This check must be conducted after checking and adjusting engine.

Perform under condition that A/C is OFF.

When conducting stall test, do not continue more than 10 seconds.
(1) Warm up the ATF.
(2) Remove the test plug on the left side of the trans-
axle case and connect SST.
SST 09992–00095 (09992– 00231, 09992–00271)
(3) Fully apply the parking brake and chock the 4
wheels.
(4) Connect an Intelligent Tester II to the DLC3.
(5) Start the engine and check idling speed.
(6) Keep your left foot pressing firmly on the brake ped-
al and shift into D position.
(7) Measure the line pressure when the engine is idling.
(8) Depress the accelerator pedal all the way down.
Quickly read the highest line pressure when engine
speed reaches stall speed.
(9) In the same way, do the test in R position.
Specified line pressure:
ConditionD position kPa (kgf / cm2, psi)R position kPa (kgf / cm2, psi)
Idling372 to 412 kPa
(3.8 to 4.2 kgf/cm2, 54 to 60 psi)
553 to 623 kPa
(5.6 to 6.4 kgf/cm2, 80 to 90 psi)
Stall test1,126 to 1,226 kPa
(11.5 to 12.5 kgf/cm2, 163 to 178 psi)
1,664 to 1,864 kPa
(17.0 to 19.0 kgf/cm2, 241 to 270 psi)
Evaluation:
ProblemPossible cause
If the measured values at all positions are higher
Shift solenoid valve SLT defective

Regulator valve detective
If the measured values at all positions are lower

Shift solenoid valve SLT defective

Regulator valve detective

Oil pump defective
If pressure is low in the D position only
D position circuit fluid leak

Forward clutch defective
If pressure is low in the R position only

R position circuit fluid leak

Reverse clutch defective

1st and reverse brake defective

05–216–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
10 Basic Inspection (See Pub. No. RM1018E, page 40–2, 40–8 and 40–69)\
NG Go to step 19
OK
1 1 Mechanical System Test ( SEE PAGE 05–221 )
NG Go to step 16
OK
12 Hydraulic Test ( SEE PAGE 05–223 )
NG Go to step 16
OK
13 Manual Shifting Test ( SEE PAGE 05–224 )
NG Go to step 15
OK
14 Problem Symptoms Table Chapter 1 ( SEE PAGE 05–229 )
NG Go to step 18
OK
15 Problem Symptoms Table Chapter 2 ( SEE PAGE 05–229 )
16 Part Inspection
Go to step 19
17 DTC Chart ( SEE PAGE 05–245 )
18 Circuit Inspection

05KAK–01
– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)05–209
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
PART AND SYSTEM NAME LIST
This reference list indicates the part names used in this manual along with their definitions.
Part and system nameDefinition
Toyota HCAC system, Hydrocarbon adsorptive Catalyst
(HCAC) system, HC adsorptive three–way catalystHC adsorptive three–way catalytic converter
Variable Valve Timing sensor, VVT sensorCamshaft position sensor
Variable valve timing system, VVT systemCamshaft timing control system
Camshaft timing oil control valve, Oil control valve OCV,
VVT, VSVCamshaft timing oil control valve
Variable timing and lift, VVTLCamshaft timing and lift control
Crankshaft position sensor ”A”Crankshaft position sensor
Engine speed sensorCrankshaft position sensor
THAIntake air temperature
Knock control moduleEngine knock control module
Knock sensorEngine knock sensor
Mass or volume air flow circuitMass air flow sensor circuit
Vacuum sensorManifold air pressure sensor
Internal control module, Control module, Engine control
ECU, PCMPower train control module
FC idleDeceleration fuel cut
Idle air control valveIdle speed control
VSV for CCV, Canister close valve VSV for canister controlEvaporative emissions canister vent valve
VSV for EVAP, Vacuum switching valve assembly No. 1,
EVAP VAV, Purge VSVEvaporative emissions canister purge valve
VSV for pressure switching valve, Bypass VSVEvaporative emission pressure switching valve
Vapor pressure sensor, EVAP pressure sensor, Evaporative
emission control system pressure sensorFuel tank pressure sensor
Charcoal canisterEvaporative emissions canister
ORVR systemOn–boad refueling vapor recovery system
Intake manifold runner controlIntake manifold tuning system
Intake manifold runner valve, IMRV, IACV (runner valve)Intake manifold tuning valve
Intake control VSVIntake manifold tuning solenoid valve
AFSAir fuel ratio sensor
O2 sensorHeater oxygen sensor
Oxygen sensor pumping current circuitOxygen sensor output signal
Oxygen sensor reference ground circuitOxygen sensor signal ground
Accel position sensorAccelerator pedal position sensor
Throttle actuator control motor, Actuator control motor, Elec-
tronic throttle motor, Throttle control motorElectronic throttle actuator
Electronic throttle control system, Throttle actuator control
systemElectronic throttle control system
Throttle/pedal position sensor, Throttle/pedal position switch,
Throttle position sensor/switchThrottle position sensor
Turbo press sensorTurbocharger pressure sensor
Turbo VSVTurbocharger pressure control solenoid valve
P/S pressure switchPower–steering pressure switch
VSV for ACMActive control engine mount
Speed sensor, Vehicle speed sensor ”A”, Speed sensor for
skid control ECUVehicle speed sensor
ATF temperature sensor, Trans. fluid temp. sensor, ATF
temperature sensor ”A”Transmission fluid temperature sensor
Electronic controlled automatic transmission, ECTElectronically controlled automatic
Intermediate shaft speed sensor ”A”Couter gear speed sensor

056HH–07
–
DIAGNOSTICS CRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)05–313
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DIAGNOSTIC TROUBLE CODE CHART
If a trouble code is indicated while checking DTCs, inspect the circuit li\
sted for that code in the table below,
and proceed to the applicable page.
DTC No.
(See Page)Circuit InspectionTrouble Area
P0500/21 ( 05–317 )Vehicle speed sensor circuit
Vehicle speed sensor
 Vehicle speed sensor signal circuit
 ECM
P0503/23
( 05–317 )Vehicle speed sensor circuit
Vehicle speed sensor
 Vehicle speed sensor signal circuit
 ECM
P0571/52
( 05–318 )Stop light switch circuit
Stop lamp switch assy
 Stop lamp switch assy circuit
 ECM
P0607/54
( 05–321 )Input signal circuitECM

N17520
(2)
I34749
CRUISE main
indicator light
BE4034
Indicator Light:ON
OFF 1.5 sec. 0.5 sec.
–
DIAGNOSTICS CRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)05–307
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
(c) Check the indicator.
(1) Turn the ignition switch to the ON position.
(2) Check that the CRUISE main indicator light comeson when the cruise control main switch ON–OFF
button is pushed on, and that the indicator light
goes off when the ON–OFF button is pushed off.
HINT:
If there is a problem with the indicator light, inspect the CRUISE
main indicator light circuit ( see page 05–327).
HINT:
If a malfunction occurs in the vehicle speed sensors, stop lamp
switch assy or other related parts during cruise control driving,
the ECM actuates AUTO CANCEL of the cruise control. Then
the CRUISE main indicator light starts to blink, informing the
driver of the malfunction. At the same time, data of the malfunc-
tion is stored as a diagnostic trouble code (DTC).
