1-40
Seat, seatbelt and SRS airbags
8. To remove the child restraint system, press the re-
lease button on the seatbelt buckle and allow the belt
to retract completely. The belt will return to ELR mode.
If you have any question concerning proper child re-
straint system installation, ask your SUBARU dealer.
NOTE
When the child restraint system is no longer in
use, remove it and restore the ELR function of the
retractor. The function is restored by retracting
the seatbelt fully. „
Installation of child restraint systems
by use of lower and tether anchorages (LATCH)
yChild restraint systems and seatbelts can be-
come hot in a vehicle that has been closed up
in sunny weather; they could burn a small child.
Check the child restraint system before you
place a child in it. y Do not leave an unsecured child restraint
system in your vehicle. Unsecured child re-
straint systems can be thrown around inside of the vehicle in a sudden stop, turn or accident; it
can strike and injure vehicle occupants as well
as result in serious injuries or death to the
child.
When you install a child restraint system, fol-
low the manufacturer’s instructions supplied
with it. After installing the child restraint sys-
tem, check to ensure that it is held securely in
position. If it is not held tight and secure, the
danger of your child suffering personal injury in
the event of an accident may be increased.

1-41
Seat, seatbelt and SRS airbags
– CONTINUED –
Some types of child restraint systems can be installed
on the rear seat of your vehicle without use of the seat-
belts. Such child restraint systems are secured to the
dedicated anchorages provided on the vehicle body.
The lower and tether anchorages are sometimes re-
ferred to as the LATCH system ( Lower Anchors and
T ethers for CHildren).
Your vehicle is equipped with four lower anchorages
(bars) on the back panel behind the markings on the
bottom part of the rear seatback and two upper an-
chorages (tether anchorages) on the back side of the
seatback for accommodating such child restraint sys- tems. The lower anchorages (bars) are used for installing a
child restraint system on the rear seat. For each seat-
ing position of the rear seat, two lower anchorages are
provided.
The tether anchorages (upper anchorages) are also
provided for each seating position of the rear seat.
You will find marks “ ” at the bottom of the rear
seat seatbacks. These marks indicate the positions of
the lower anchorages (bars).
UB1154CA
UB1174BA

1-42
Seat, seatbelt and SRS airbags
Each lower anchorage is located where the seat cush-
ion meets the seatback.
1. Place the child restraint system on the rear seat cushion.
2. Unlock the rear seatback locking knob and fold the
seatback forward to see the tether anchorages on the
backside of the seatback.
UB1133BA
UB1134CA

1-43
Seat, seatbelt and SRS airbags
– CONTINUED –
3. Connect the hook of the upper tether belt onto the
tether anchorage on the backside of the seatback. Do
not allow slack in the tether belt. 4. Put the other end of the tether belt through under
the headrest.
5. Return the seatback to the locked position. Confirm
that the red mark on the locking knob is no longer vis-
ible and check if the seatback has been securely
locked by moving it back and forth.
UB1144BAUB1146BA

1-44
Seat, seatbelt and SRS airbags

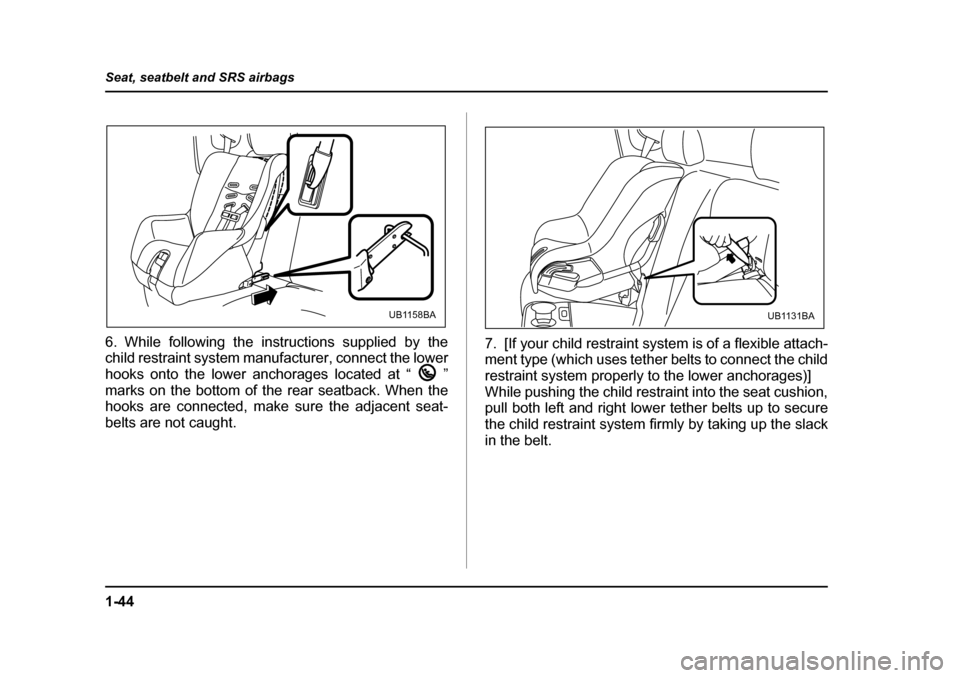

6. While following the instructions supplied by the
child restraint system manufacturer, connect the lower
hooks onto the lower anchorages located at “ ”
marks on the bottom of the rear seatback. When the
hooks are connected, make sure the adjacent seat-
belts are not caught.
7. [If your child restraint system is of a flexible attach-
ment type (which uses tether belts to connect the child
restraint system properly to the lower anchorages)]
While pushing the child restraint into the seat cushion,
pull both left and right lower tether belts up to secure
the child restraint system firmly by taking up the slack
in the belt.
UB1158BAUB1131BA

1-45
Seat, seatbelt and SRS airbags
– CONTINUED –
8. Pull the upper tether belt straight up to secure the
child restraint system firmly by taking up the slack in
the belt.
9. Put the loose end of the tether belts behind the seatback.
10.Before seating a child in the child restraint system,
try to move seatback and forth and left and right to ver-
ify that it is held securely in position.
11.To remove the child restraint system, follow the re-
verse procedures of installation.
If you have any question concerning proper child re-
straint system installation, ask your SUBARU dealer. „
Installing a booster seat
yChild restraint systems and seatbelts can be-
come hot in a vehicle that has been closed up
in sunny weather; they could burn a small child.
Check the child restraint system before you
place a child in it. y Do not leave an unsecured child restraint
system in your vehicle. Unsecured child re-
straint systems can be thrown around inside of
the vehicle in a sudden stop, turn or accident; it
can strike and injure vehicle occupants as well
as result in serious injuries or death to the
child.
When you install a child restraint system, fol-
low the manufacturer’s instructions supplied
with it. After installing the child restraint sys-
tem, check to ensure that it is held securely in
position. If it is not held tight and secure, the
danger of your child suffering personal injury in
UB1147BA

1-46
Seat, seatbelt and SRS airbags
the event of an accident may be increased.

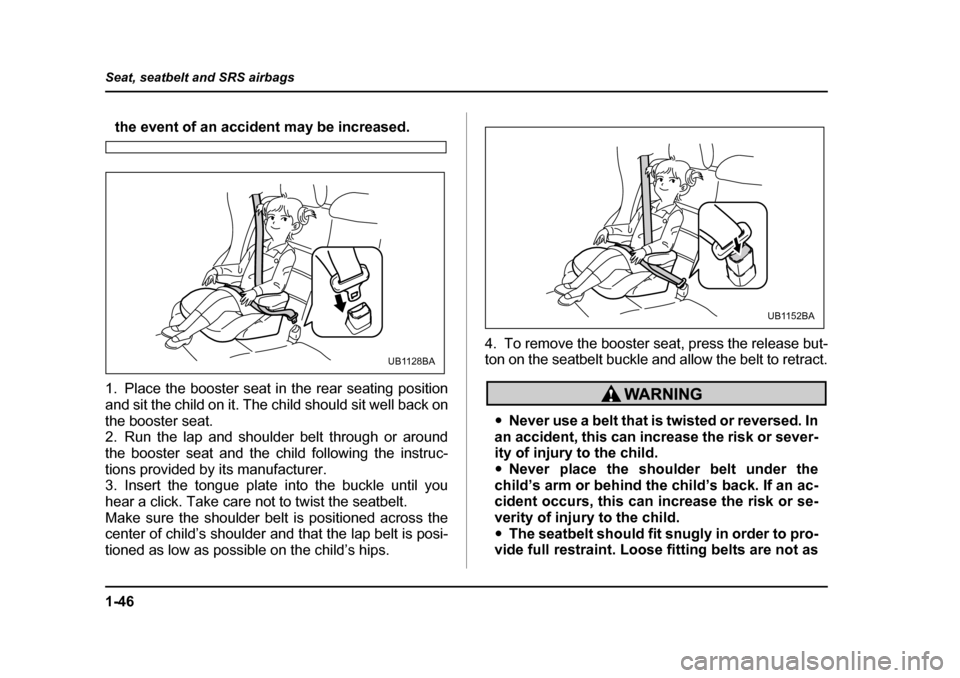

1. Place the booster seat in the rear seating position
and sit the child on it. The child should sit well back on
the booster seat.
2. Run the lap and shoulder belt through or around
the booster seat and the child following the instruc-
tions provided by its manufacturer.
3. Insert the tongue plate into the buckle until you
hear a click. Take care not to twist the seatbelt.
Make sure the shoulder belt is positioned across the
center of child’s shoulder and that the lap belt is posi-
tioned as low as possible on the child’s hips. 4. To remove the booster seat, press the release but-
ton on the seatbelt buckle and allow the belt to retract.
y
Never use a belt that is twisted or reversed. In
an accident, this can increase the risk or sever-
ity of injury to the child. y Never place the shoulder belt under the
child’s arm or behind the child’s back. If an ac-
cident occurs, this can increase the risk or se-
verity of injury to the child.y The seatbelt should fit snugly in order to pro-
vide full restraint. Loose fitting belts are not as
UB1128BA
UB1152BA

1-47
Seat, seatbelt and SRS airbags
– CONTINUED –
effective in preventing or reducing injury. yPlace the lap belt as low as possible on the
child’s hips. A high-positioned lap belt will in-
crease the risk of sliding under the lap belt and
of the lap belt sliding up over the abdomen, and
both can result in serious internal injury or
death. y Make sure the shoulder belt is positioned
across the center of child’s shoulder. Placing
the shoulder belt over the neck may result in
neck injury during sudden braking or in a colli-
sion. *SRS airbag (Supplemental Restraint
System airbag) *SRS: This stands for supplemental restraint system.
This name is used because the airbag system supple- ments the vehicle’s seatbelts. „
Vehicle with driver’s and front passen-
ger’s SRS airbags and lap/shoulder re-
straints
Your vehicle is equipped with a supplemental restraint
system in addition to a lap/shoulder belt at each front
seating position.
The supplemental restraint system (SRS) consists of
two airbags (driver’s and front passenger’s frontal air-
bags).
These SRS airbags are designed only as a supple-
ment to the primary protection provided by the
seatbelt.
The system also controls front seatbelt pretensioners.
For operation, instructions are precautions concerning
the seatbelt pretensioner, see the “Front seatbelt pre-
tensioners” section in this chapter.
