2005 SUBARU BAJA Owners Manual

2-32
Keys and doors
y
Do not operate the moonroof if falling snow
or extremely cold conditions have caused it to
freeze shut.
„ Tilting/sliding moonroof
The moonroof has both tilting and sliding functions.
The moonroof operates only when the ignition switch
is in the “ON” position.
1) Open/Close switch
2) Tilt switch
T To raise or lower the moonroof
The tilting function will only operate when the moon- roof is fully closed.
Push the rear side of the “Tilt” switch to raise the moonroof.
Push the front side of the “Tilt” switch to lower the moonroof.
Release the switch after the moonroof has been
raised or has been lowered completely. Pushing the
switch continuously may cause damage to the moon-roof. T
To open or close the moonroof
Push the “Open/Close” switch rearward to open the
moonroof. The sun shade will be also opened together
with the moonroof.
Push the “Open/Close” switch forward to close the
moonroof. The moonroof will stop halfway if you con-
tinue to press on the switch.
Release the switch once and push it again to close the moonroof completely.
After washing the vehicle or after it rains, wipe away
water on the roof prior to opening the moonroof to pre-
vent water drops from falling into the passenger com-partment.
NOTE
If the moonroof cannot be closed through the
switch operation because of system failure, it can
1
2
UB2034BB

2-33
Keys and doors
– CONTINUED –
be closed manually using a hex-headed wrench.
For the procedure, refer to “Moonroof – if the
moonroof cannot be closed” in Chapter 9 “In case
of emergency”. „Sun shade
The sun shade can be slid forward or backward by
hand while the moonroof is closed.
If the moonroof is opened, the sun shade also movesback.
UG2510BA

3-1
3
Instruments and controls
Ignition switch .............................................. 3-2 LOCK .................................................................. 3-2
ACC .................................................................... 3-3
ON ....................................................................... 3-3
START ................................................................ 3-4
Key reminder chime .......................................... 3-4
Ignition switch light (if equipped) .................... 3-4
Key interlock release (AT vehicles) ................. 3-4
Hazard warning flasher ................................ 3-5
Meters and gauges ....................................... 3-6 Speedometer ..................................................... 3-6
Odometer/Trip meter ........................................ 3-6
Tachometer ........................................................ 3-7
Outside temperature indicator (if equipped) .. 3-7
Fuel gauge ......................................................... 3-8
Temperature gauge ........................................... 3-8
Warning and indicator lights ....................... 3-9 Seatbelt warning light and chime .................... 3-9
SRS airbag system warning light .................... 3-10
CHECK ENGINE warning light/Malfunction indicator lamp ................................................. 3-10
Charge warning light ........................................ 3-11
Oil pressure warning light ................................ 3-12
AT OIL TEMPerature warning light (AT vehicles) ................................................... 3-12
ABS warning light ............................................. 3-12
Brake system warning light ............................. 3-13
Door ajar warning lights ................................... 3-14
Switchback door indicator light ...................... 3-14
Low fuel warning light ...................................... 3-14
All-Wheel Drive warning light (AT vehicles) ... 3-14 Security system status indicator light
(if equipped) .................................................... 3-15
Selector lever position indicator (AT vehicles) ................................................... 3-15
Gear position indicator (Turbo-AT vehicles) .. 3-16
Turn signal indicator lights .............................. 3-16
High beam indicator light ................................. 3-16
Cargo lamp indicator light ............................... 3-16
Cruise control set indicator light .................... 3-16
Clock .............................................................. 3-17
Light control switch ...................................... 3-18 Headlights ......................................................... 3-18
High/low beam change (dimmer) .................... 3-19
Headlight flasher ............................................... 3-19
Daytime running light system ......................... 3-20
Turn signal lever ........................................... 3-20
Illumination brightness control ................... 3-21
Parking light switch ...................................... 3-22
Fog light button ............................................. 3-23
Wiper and washer ......................................... 3-23 Windshield wiper and washer switches ......... 3-25
Rear window defogger button ..................... 3-26
Windshield wiper deicer (if equipped) ........ 3-27
Mirrors ............................................................ 3-28 Inside mirror ...................................................... 3-28
Outside mirrors ................................................. 3-30
Tilt steering wheel ......................................... 3-33
Horn ................................................................ 3-34

3-2
Instruments and controls
Instruments and controlsIgnition switch
Never turn the ignition switch to “LOCK” while
the vehicle is being driven or towed because
that will lock the steering wheel, preventing
steering control. And when the engine is turned
off, it takes a much greater effort than usual to
steer.
The ignition switch has four positions: LOCK, ACC,
ON and START.
NOTE y Keep the ignition switch in the “LOCK” position
when the engine is not running. y Using electrical accessories for a long time with
the ignition switch in the “ON” or “ACC” position
can cause the battery to go dead.
If the ignition switch will not move from the
“LOCK” position to the “ACC” position, turn the
steering wheel slightly to the left and right as you
turn the ignition switch. y If the key is attached to a keyholder or to a large
bunch of other keys, centrifugal force may act on
it as the vehicle moves, resulting in unwanted
turning of the ignition switch. Also, if a large key-
holder is attached to the key, your knees or hands
may accidentally touch it in a way that turns the ig-
nition switch. „ LOCK
The key can only be inserted or removed in this posi-
tion. The ignition switch will lock the steering wheel
when you remove the key.
If turning the key is difficult, turn the steering wheel
slightly to the right and left as you turn the key.
UB4000CA

3-3
Instruments and controls
– CONTINUED –

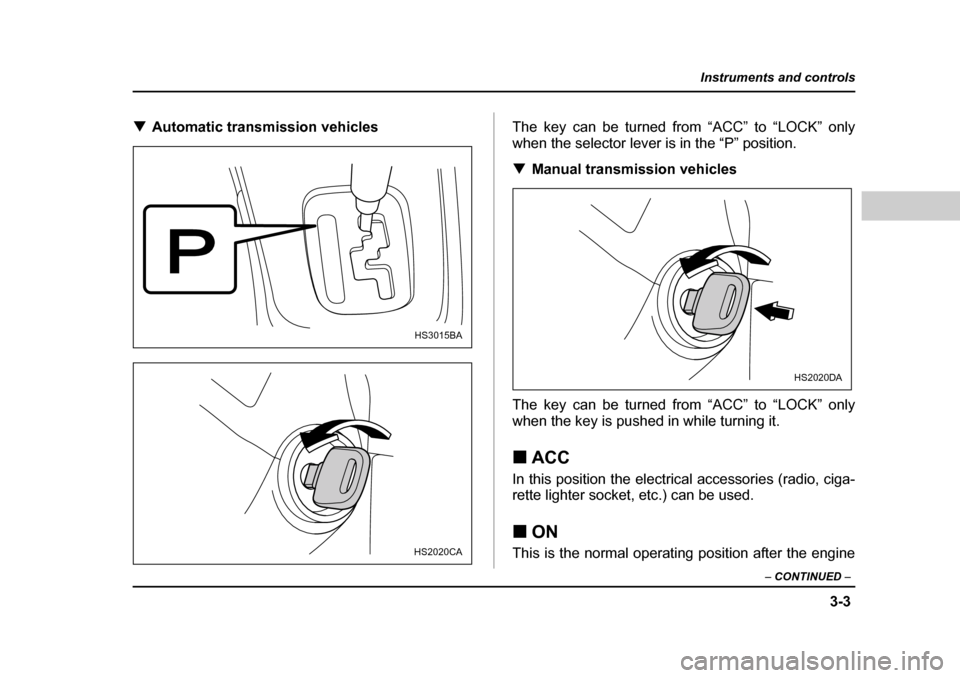

TAutomatic transmission vehicles The key can be turned from “ACC” to “LOCK” only
when the selector lever is in the “P” position. TManual transmission vehicles
The key can be turned from “ACC” to “LOCK” only
when the key is pushed in while turning it. „ ACC
In this position the electrical accessories (radio, ciga-
rette lighter socket, etc.) can be used. „ ON
This is the normal operating position after the engine
HS3015BA
HS2020CA
HS2020DA

3-4
Instruments and controls
is started. „
START
Do not turn the ignition switch to the “START”position while the engine is running.
The engine is started in this position. The starter
cranks the engine to start it. When the key is released
(after the engine has started), the key automatically
returns to the “ON” position. „ Key reminder chime
The reminder chime sounds when the driver’s door
opens and the key is in the “LOCK” or “ACC” positions.
The chime stops when the key is removed from the ig-
nition switch. „ Ignition switch light (if equipped)
For easy access to the ignition switch in the dark, the
ignition switch light comes on when driver’s door is
opened. The light remains on for 10 seconds and goes
out after driver’s door is closed or if the key is turned to the “ON” position. „
Key interlock release (AT vehicles)
If the key can not be turned to the “LOCK” position
even when the selector lever is in the “P” position:
1. Take out the screwdriver from the tool bag.
2. Remove the cover under the steering column using
a Phillips screwdriver.
HS3016BA

3-5
Instruments and controls
– CONTINUED –
3. Turn the ignition key while pressing the key inter- lock release lever.
Take your vehicle to the nearest SUBARU dealer im-
mediately to have the key interlock system repaired.
Hazard warning flasher
The hazard warning flasher is used to warn other driv-
ers when you have to park your vehicle under emer-
gency conditions. The hazard warning flasher works
with the ignition switch in any position.
To turn on the hazard warning flasher, push the haz-
ard warning button on the instrument panel. To turn off
the flasher, push the button again.
NOTE
When the hazard warning flasher is on, the turn
signals do not work.
UG3025BA
UB8002BA
