Maintenance and service
„
License plate light0

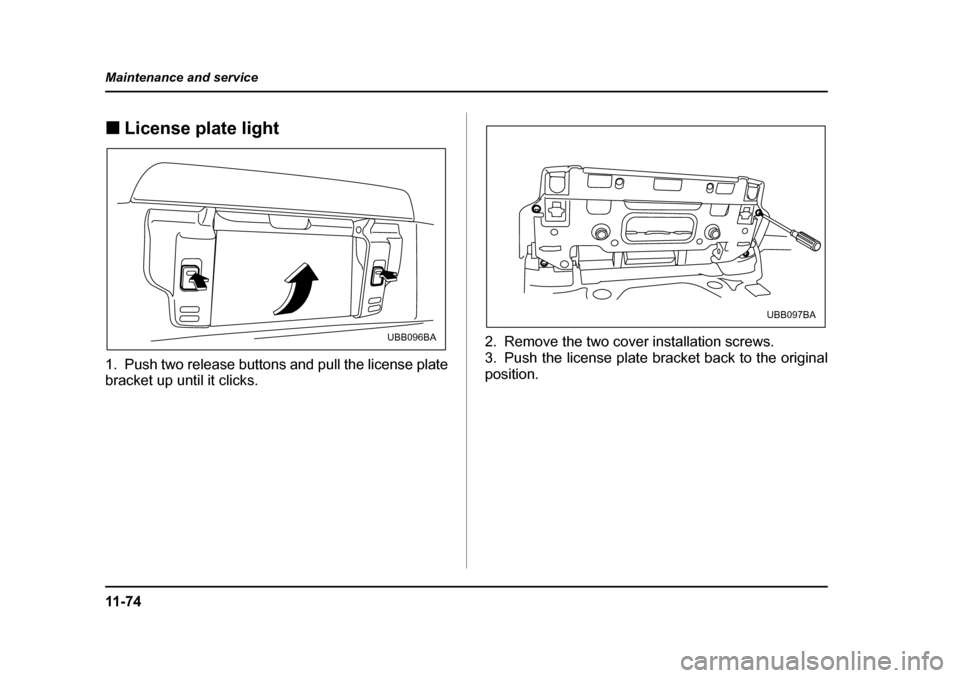

1. Push two release buttons and pull the license plate
bracket up until it clicks. 2. Remove the two cover installation screws.
3. Push the license plate bracket back to the original position.
UBB096BA
UBB097BA

11 -7 5
Maintenance and service
– CONTINUED –
4. Remove the screw from the side of the cover.
5. Remove the cover. 6. Remove the bulb socket from the license plate
bracket by turning it counterclockwise.
7. Pull the bulb out of the socket.
8. Install a new bulb in the socket by pushing it.
9. Install the bulb socket into the license plate bracket.
10.Install the covers by reversing procedures for re-moval.
UBB092BAUBB093BA

11 - 7 6
Maintenance and service
„
Map light, dome light and door step light

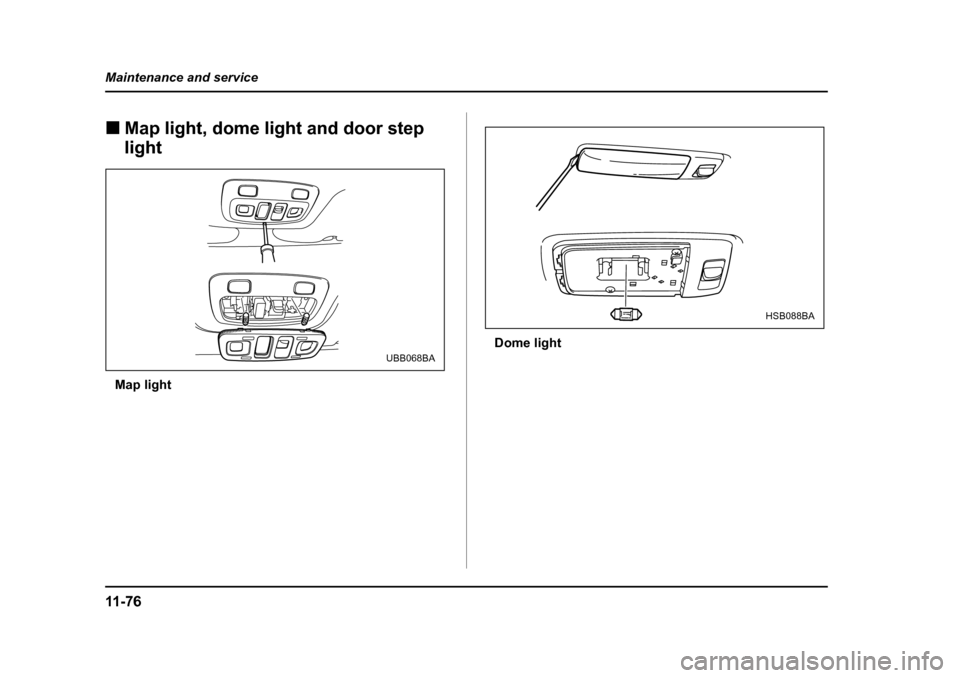

Map light Dome light
UBB068BA
HSB088BA

11 -7 7
Maintenance and service
– CONTINUED –
Door step light

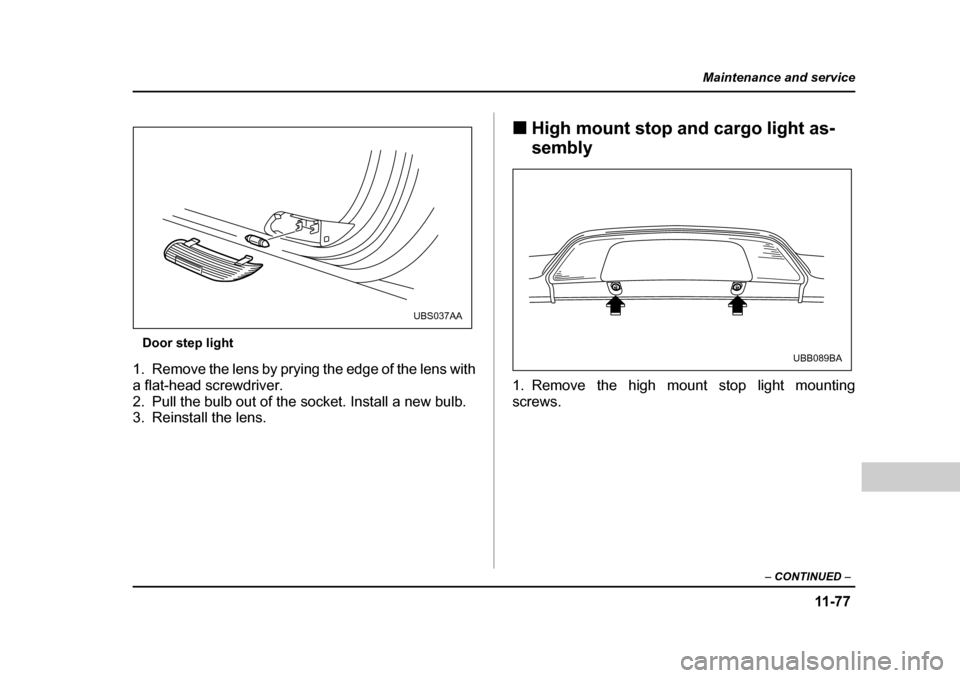

1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens. „
High mount stop and cargo light as-
sembly
1. Remove the high mount stop light mounting screws.
UBS037AA
UBB089BA

11 - 7 8
Maintenance and service
1) Cargo lights
2) High mount stop lights
2. Remove the bulb socket from the light assembly by
turning it counterclockwise. 3. Remove the bulb from the socket by pulling it.
4. Install a new bulb in the socket by pushing it.
5. Set the socket into the light assembly and turn it
clockwise until it clicks.
6. Mount the light assembly with the mounting screws.
1
2
UBB090BBUBB048BA

11 -7 9
Maintenance and service
– CONTINUED –
„Sport activity lights (if equipped)
1. Remove front lamp screw and remove the lens and
reflector. 2. Disconnect the two wires from the lamp electrical
connector.
3. Squeeze the bulb retainer spring to remove.
4. Replace the bulb, then reset the retainer spring se- curely.
5. Reconnect the bulb wire to the electrical connector.
6. Install the lens and reflector in the housing and se-
cure with the screw.
NOTE
Other bulbs may be difficult to replace. Have your
SUBARU dealer replace these bulbs if necessary.
UBB081BA
UBB082BA
