2005 SUBARU BAJA Owners Manual

9-24
In case of emergency

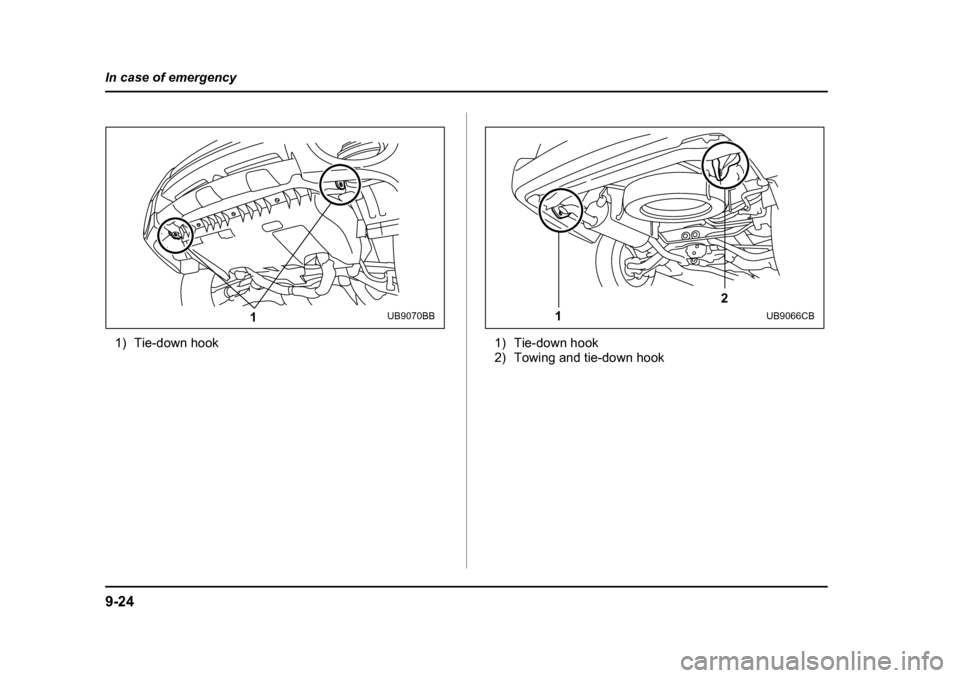

1) Tie-down hook
1) Tie-down hook
2) Towing and tie-down hook
1UB9070BB
2
1
UB9066CB

9-25
In case of emergency
– CONTINUED –
Vehicle with trailer hitch (if equipped)
1) Tie-down hook T
Towing hook cover removal procedure
The towing hook cover is secured by tabs that fit into
corresponding slots in the vehicle body.
To remove the cover:
1. Free the tabs on the towing hook cover by firmly
pressing the point indicated by an arrow with the palm
of your hand.
1UB9010BB
UB9083BA

9-26
In case of emergency
2. Pull off the towing hook cover.
T
Towing hook cover installation procedure
To reinstall the towing hook cover, push it in on both
sides while pushing it back to its original position.
Make certain that the tabs at the end of the cover are
securely inserted into the corresponding slots in the vehicle’s body.
UB9084BA
UB9069BA

9-27
In case of emergency
– CONTINUED –
„Using a flat-bed truck
This is the best way to transport your vehicle. Use the
following procedures to ensure safe transportation.
1. Shift the selector lever into the “P” position for au-
tomatic transmission vehicles or “1st” for manual
transmission vehicles.
2. Pull up the parking brake lever firmly.
3. Secure the vehicle onto the carrier properly with
safety chains. Each safety chain should be equally
tightened and care must be taken not to pull the chains
so tightly that the suspension bottoms out. „
Towing with all wheels on the ground
yNever turn the ignition switch to the “LOCK”
position while the vehicle is being towed be-
cause the steering wheel and the direction of
the wheels will be locked.y Remember that the brake booster and power
steering do not function when the engine is not
running. Because the engine is turned off, it will
take greater effort to operate the brake pedal
and steering wheel.
UB9072AAUB9071AA

9-28
In case of emergency
y
If transmission failure occurs, transport your
vehicle on a flat-bed truck. y Do not run the engine while the vehicle is be-
ing towed using this method. Transmission
damage could result if the vehicle is towed with
the engine running. y For vehicles with automatic transmission,
the traveling speed must be limited to less than
20 mph (30 km/h) and the traveling distance to
less than 30 miles (50 km). For greater speeds
and distances, transport your vehicle on a flat-
bed truck.
1. Check the transmission and differential oil levels
and add oil to bring it to the upper level if necessary.
2. Release the parking brake and put the transmis-
sion in neutral.
3. The ignition switch should be in the “ACC” position
while the vehicle is being towed.
4. Take up slack in the towline slowly to prevent dam-
age to the vehicle. Moonroof – if the moonroof cannot be
closed
If the moonroof cannot be closed with the moonroof
switch, you can close the moonroof manually.
1. Take out the moonroof wrench and screwdriver
from the tool bag.
UB9006BA

9-29
In case of emergency
– CONTINUED –
1) Screws
2. Remove the map light lens by prying the edge of
the lens with a flat-head screwdriver, then remove the
switch body retaining screws and take off the moon- roof switch. 3. Insert the wrench in the end of the motor shaft. y
To lower the moonroof, turn the wrench clockwise.
y To close the moonroof, turn the wrench counter-
clockwise.
Have your vehicle checked by an authorized SUBARU
dealer.
1UB9007BBUB9008BA
