2005 SUBARU BAJA Owners Manual

6-22
Interior and exterior equipments

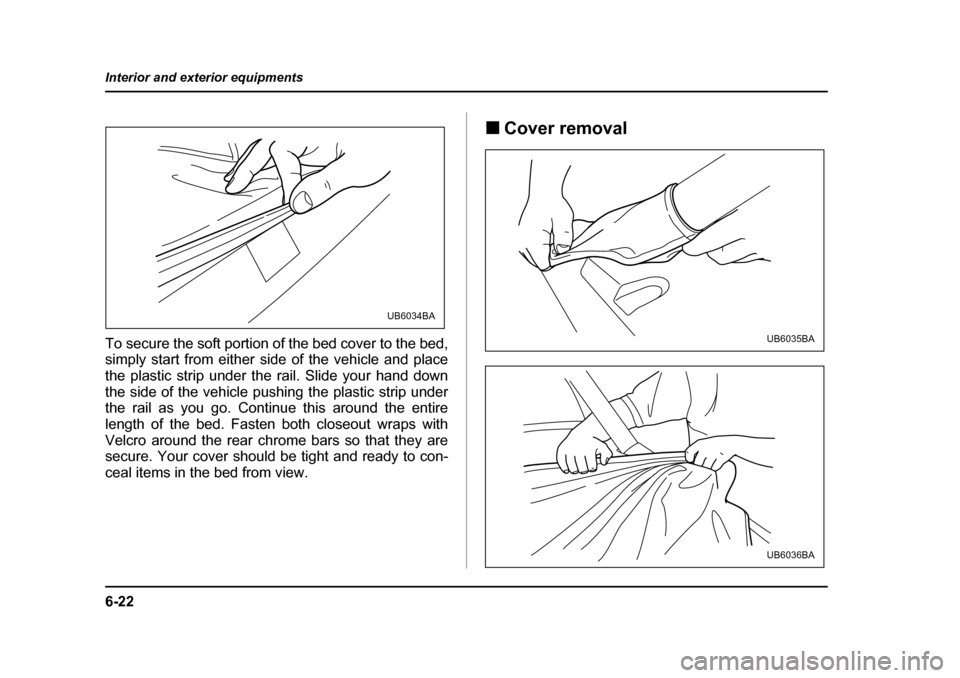

To secure the soft portion of the bed cover to the bed,
simply start from either side of the vehicle and place
the plastic strip under the rail. Slide your hand down
the side of the vehicle pushing the plastic strip under
the rail as you go. Continue this around the entire
length of the bed. Fasten both closeout wraps with
Velcro around the rear chrome bars so that they are
secure. Your cover should be tight and ready to con-
ceal items in the bed from view.
„
Cover removal
UB6034BA
UB6035BA
UB6036BA

6-23
Interior and exterior equipments
– CONTINUED –
The soft portion of the bed cover can be removed from
the bed cover’s hard section for cleaning or storage.
Unfasten the Velcro on the tube closeout wraps and
firmly pull the cover out to one side. „Cover reinstallation

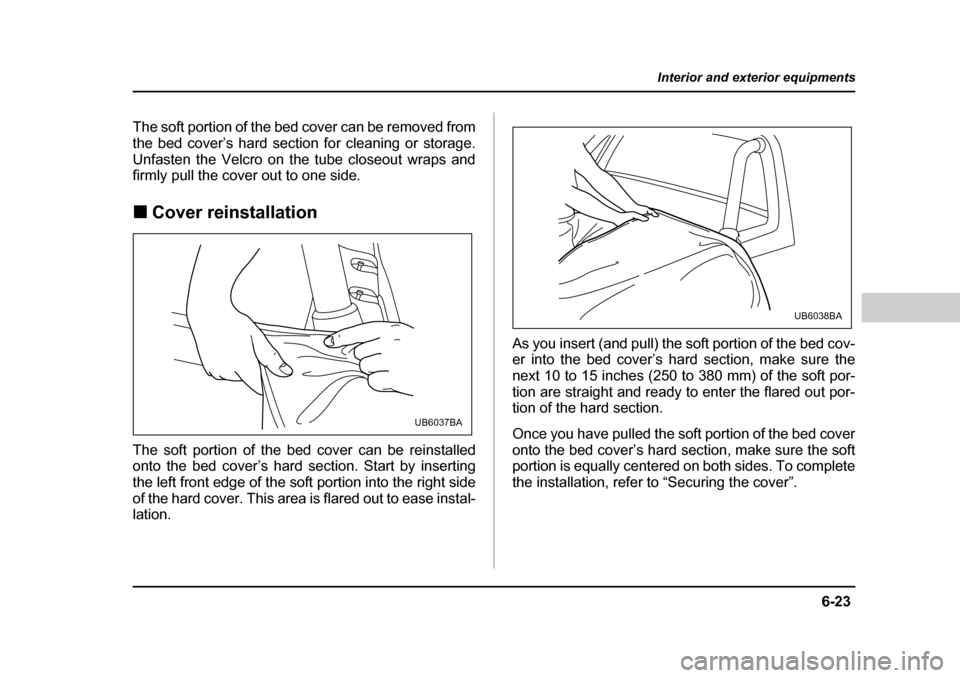

The soft portion of the bed cover can be reinstalled
onto the bed cover’s hard section. Start by inserting
the left front edge of the soft portion into the right side
of the hard cover. This area is flared out to ease instal-
lation. As you insert (and pull) the soft portion of the bed cov-
er into the bed cover’s hard section, make sure the
next 10 to 15 inches (250 to 380 mm) of the soft por-
tion are straight and ready to enter the flared out por-
tion of the hard section.
Once you have pulled the soft portion of the bed cover
onto the bed cover’s hard section, make sure the soft
portion is equally centered on both sides. To complete
the installation, refer to “Securing the cover”.
UB6037BA
UB6038BA

6-24
Interior and exterior equipments

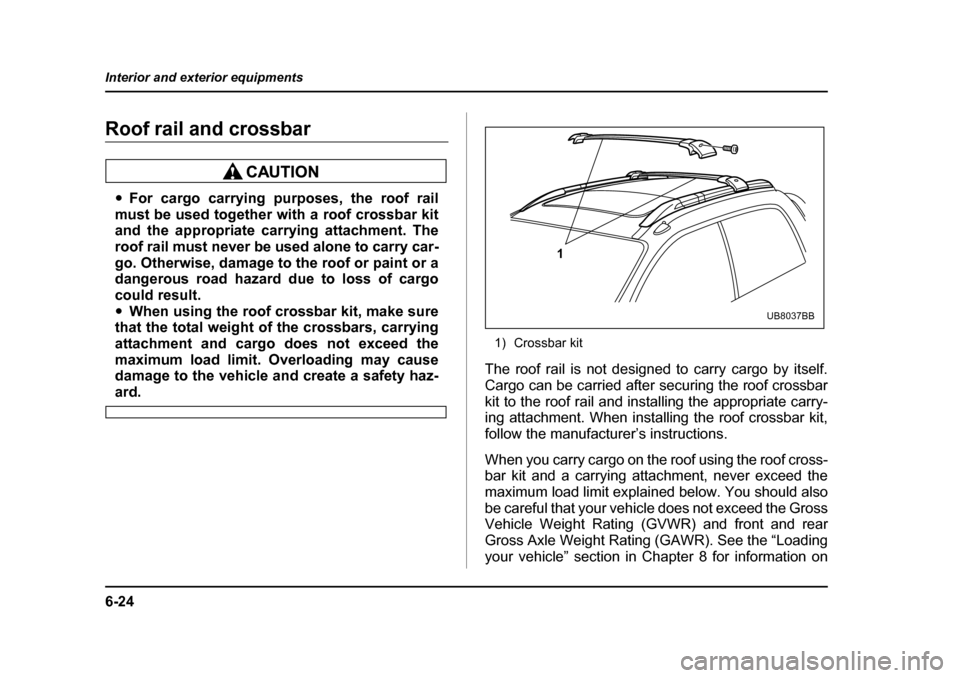

Roof rail and crossbar
y
For cargo carrying purposes, the roof rail
must be used together with a roof crossbar kit
and the appropriate carrying attachment. The
roof rail must never be used alone to carry car-
go. Otherwise, damage to the roof or paint or a
dangerous road hazard due to loss of cargo
could result. y When using the roof crossbar kit, make sure
that the total weight of the crossbars, carrying
attachment and cargo does not exceed the
maximum load limit. Overloading may cause
damage to the vehicle and create a safety haz-
ard. 1) Crossbar kit
The roof rail is not designed to carry cargo by itself.
Cargo can be carried after securing the roof crossbar
kit to the roof rail and installing the appropriate carry-
ing attachment. When installing the roof crossbar kit,
follow the manufacturer’s instructions.
When you carry cargo on the roof using the roof cross-
bar kit and a carrying attachment, never exceed the
maximum load limit explained below. You should also
be careful that your vehicle does not exceed the Gross
Vehicle Weight Rating (GVWR) and front and rear
Gross Axle Weight Rating (GAWR). See the “Loading
your vehicle” section in Chapter 8 for information on
1
UB8037BB

6-25
Interior and exterior equipments
– CONTINUED –
loading cargo into or onto your vehicle. The maximum
load limit of the cargo, crossbars and carrying attach-
ment must not exceed 100 lbs (45 kg). Place the
heaviest load at the bottom, nearest the roof, and
evenly distribute the cargo. Always properly secure all
cargo. „Installing carrying attachments on the crossbars
When installing any carrying attachment such as a
bike carrier, ski carrier, kayak carrier, cargo basket,
etc. on the crossbars, follow the manufacturer’s in-
structions and make sure that the attachment is se-
curely fixed to the crossbars. Use only attachments
designed specifically for the crossbars. A set of the
crossbars is designed to carry loads (cargo and at-
tachment) of not more than 100 lbs (45 kg). Before
operating the vehicle, make sure that the cargo is
properly secured on the attachment.
NOTE
Remember that the vehicle’s center of gravity is al-
tered with the weight of the load on the roof, thus
affecting the driving characteristics.
Drive carefully. Avoid rapid starts, hard cornering
and abrupt stops. Crosswind effects will be in-
creased. „
Removal and installation of the cross- bars
Do not carry cargo on the roof when the cross-
bars are removed. Luggage on the roof will be
thrown forward or backward in sudden stops or
rapid accelerations, resulting in a dangerous
road hazard.
The crossbars can be removed when you do not use
the roof to carry cargo.

6-26
Interior and exterior equipments
T
To remove the crossbar 1. Loosen and remove the T-30 torx® head screw
from the side of each crossbar end support.
2. Move the end support and inner clamp to unhook
each side of the crossbar from the roof rail.
3. Carefully raise the crossbar from roof rails.
NOTE
It may be necessary to move the Front crossbar
rearward, near the center of the roof rail for easier
removal. Use care not to cross-thread the screw in
the insert if it has been removed. TTo install the crossbar
NOTE
Both Crossbars have a label indicating the direc-
tion of mount. If they are not present, orient with
the larger section of the Crossbar towards the
front of vehicle (see below). The Front Crossbar
also has a MAXIMUM LOAD Label affixed to it. UB6047BA
UB6048BA

6-27
Interior and exterior equipments
– CONTINUED –

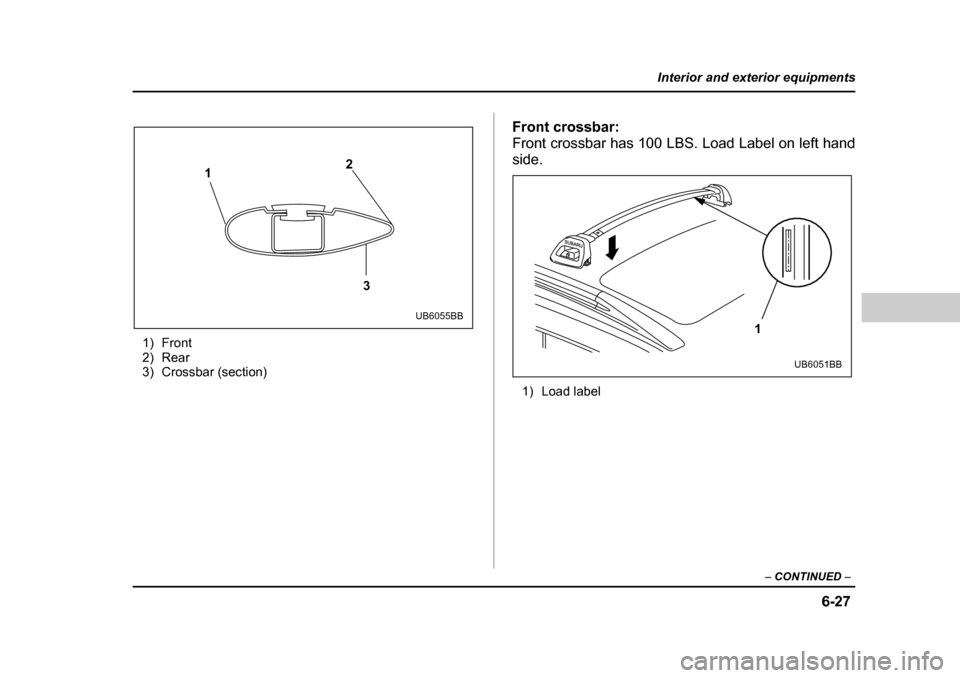

1) Front
2) Rear
3) Crossbar (section) Front crossbar:
Front crossbar has 100 LBS. Load Label on left handside.
1) Load label
1 2
3
UB6055BB1
UB6051BB

6-28
Interior and exterior equipments
1. Before placing the crossbar on the roof rails, make
sure that the T-30 torx® head screw is fully loosened
from each end support.
2. Spread the inner clamp and the end support as far
apart as possible.
3. With the front direction arrow label on the top right
side of the crossbar pointing toward the front of the ve-
hicle, carefully place the crossbar across the top of the
vehicle so that the crossbar end supports rest on the
top of the roof rails 7 inches (180 mm) rearward in the
front radius of the roof rail.
4. Move the end support and inner clamp to hook un-
der the end of the roof rail on both sides and loosely
assemble the T-30 torx® head screw with the tool pro-
vided into the threaded insert in the inner clamp on
each end of the crossbar.
NOTE
It may be necessary to start the inner clamp and
end support at the center of the roof rail for easier
installation, then move the crossbar forward. Use
care not to cross-thread the screw in the insert if it
has been removed.
5. Adjust the alignment of the crossbar on the roof
rails, and if available, use a T-30 torx® bit and torque
wrench and tighten the T-30 torx® head screws to 30
to 35 lbf·in (3.4 to 4.0 N·m, 0.35 to 0.41 kgf·m) of
torque (or tighten securely with the torx® wrench pro-
7 in (180 mm)
UB6052BB
UB6053BA

6-29
Interior and exterior equipments
– CONTINUED –
vided).
Rear crossbar:
Install the rear crossbar in the same manner as the front crossbar.

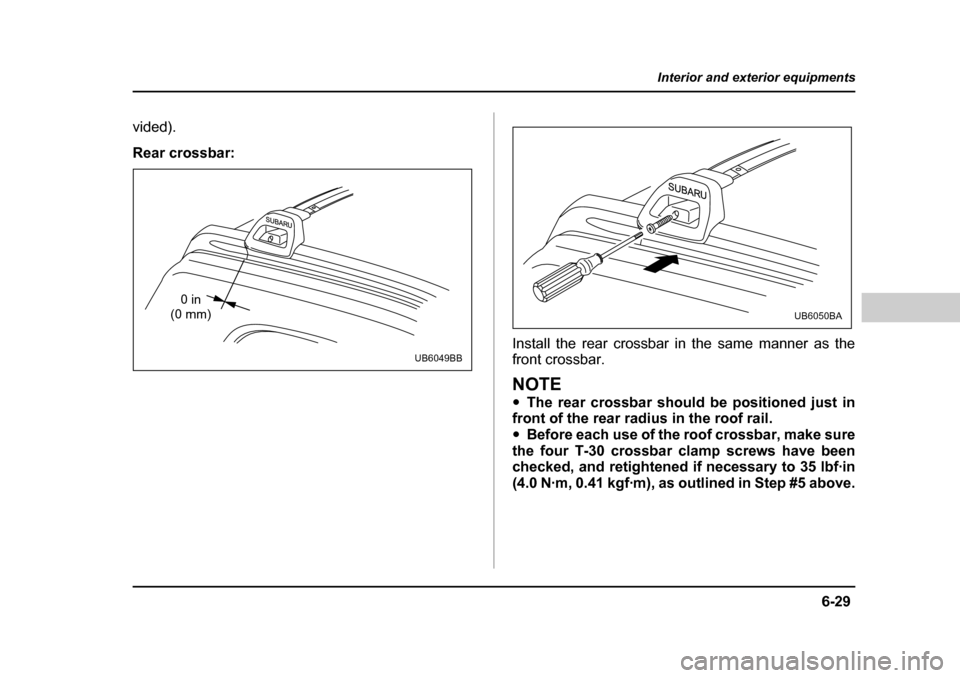

NOTE yThe rear crossbar should be positioned just in
front of the rear radius in the roof rail. y Before each use of the roof crossbar, make sure
the four T-30 crossbar clamp screws have been
checked, and retightened if necessary to 35 lbf·in
(4.0 N·m, 0.41 kgf·m), as outlined in Step #5 above.
0 in
(0 mm)
UB6049BB
UB6050BA
