2005 SUBARU BAJA Owners Manual

8-20
Driving tips
Trailer hitch (if equipped)
y
Never exceed the maximum weight specified
for the trailer hitch. Exceeding the maximum
weight could cause an accident resulting in se-
rious personal injuries. Permissible trailer
weight changes depending on the situation. Re-
fer to the next section “Trailer towing” for pos-
sible recommendations and limitations. y Trailer brakes are required when the towing
load exceeds 1,000 lbs (453 kg). Be sure your
trailer has safety chains and that each chain
will hold the trailer’s maximum gross weight.
Towing trailers without safety chains could cre-
ate a traffic safety hazard if the trailer separates
from the hitch due to coupling damage or hitch
ball damage. y Be sure to check the hitch pin and safety pin
for positive locking placement before towing a
trailer. If the ball mount comes off the hitch re-
ceiver, the trailer could get loose and create a
traffic safety hazard.y Use only the ball mount supplied with this
hitch. Use the hitch only as a weight carrying
hitch. Do not use with any type of weight dis-
tributing hitch.
The trailer hitch is designed to tow a Class 1 rated
load. A maximum of 2,400 lbs (1,087 kg) gross trailer
weight and a maximum of 200 lbs (90 kg) gross
tongue weight are permissible for the trailer hitch.
When you tow a trailer, follow the instructions in the
next section “Trailer towing”. „ Connecting a trailer
UB8047BA

8-21
Driving tips
– CONTINUED –

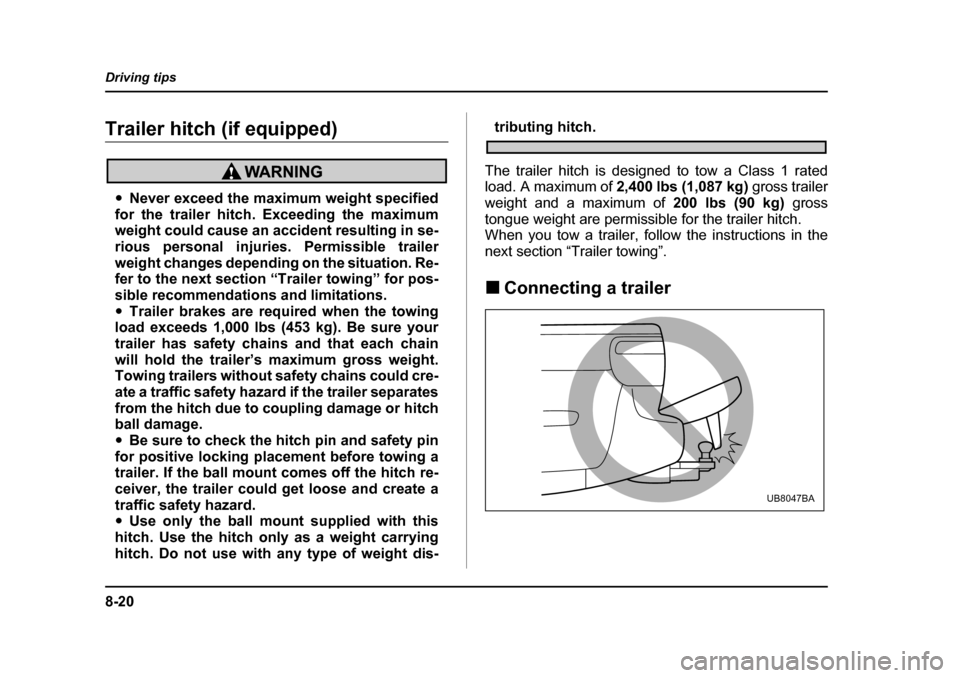

The license plate bracket will hit the hitch ball
and may be damaged if the tailgate is opened
and the license plate bracket is at the lowered/ open position. Close the tailgate and return the
license plate bracket to its normal position
flush against the tailgate itself whenever you
tow a trailer or whenever a trailer is hitched to
the vehicle.
1. Before connecting the ball mount to the hitch re-
ceiver, close the tailgate and return the license plate
bracket to its normal retracted position up against the
tailgate. Refer to “License plate bracket” under the
heading “Tailgate” in chapter 2 for more information on
the function of the license plate bracket.

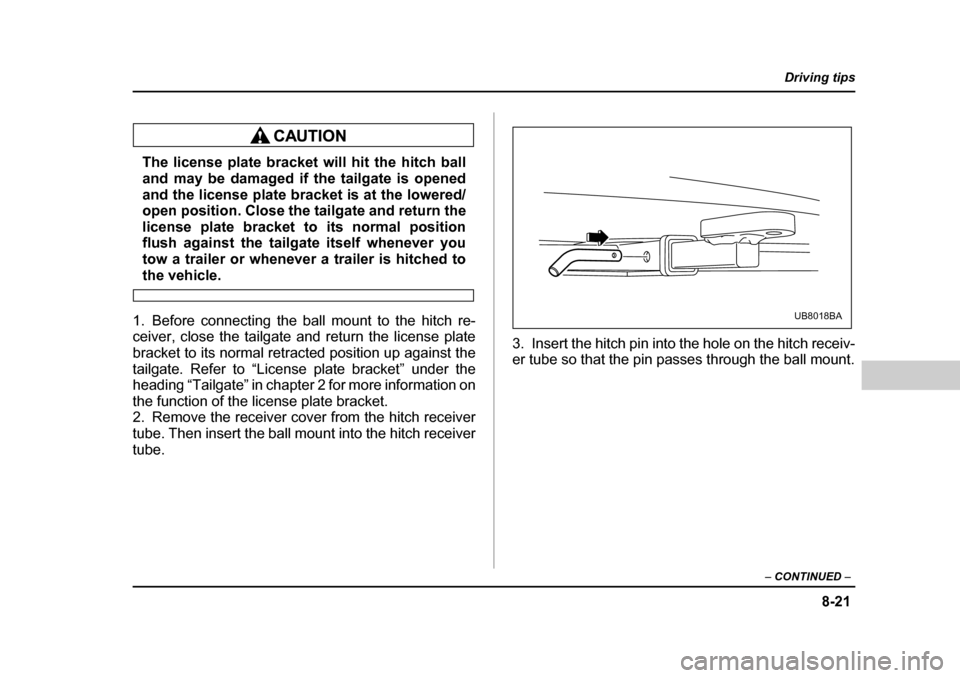

2. Remove the receiver cover from the hitch receiver
tube. Then insert the ball mount into the hitch receivertube. 3. Insert the hitch pin into the hole on the hitch receiv-
er tube so that the pin passes through the ball mount.
UB8018BA

8-22
Driving tips

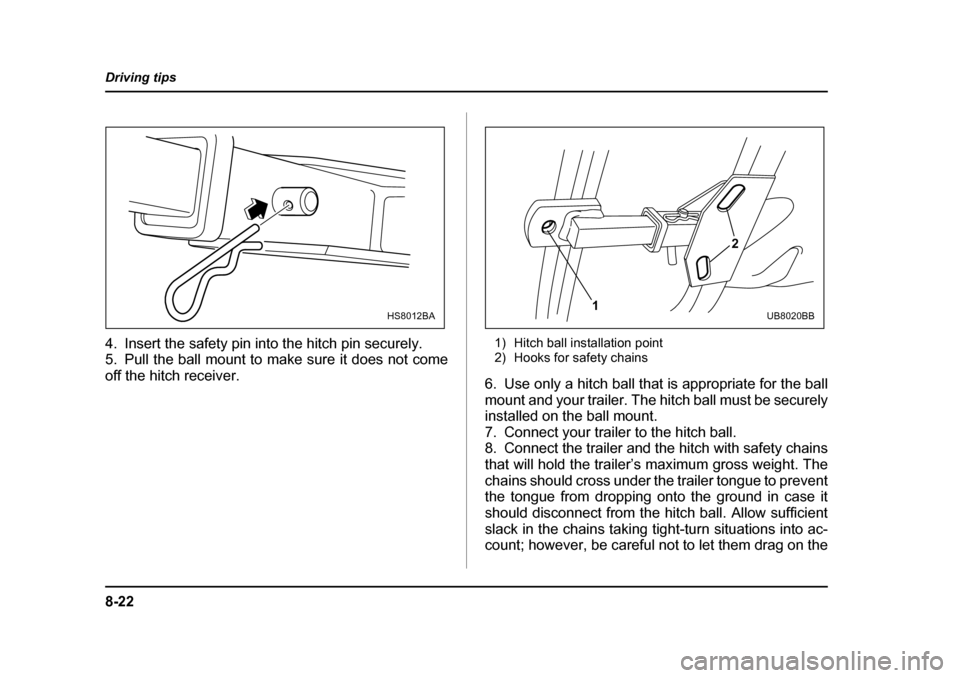

4. Insert the safety pin into the hitch pin securely.
5. Pull the ball mount to make sure it does not come
off the hitch receiver.
1) Hitch ball installation point
2) Hooks for safety chains
6. Use only a hitch ball that is appropriate for the ball
mount and your trailer. The hitch ball must be securely
installed on the ball mount.
7. Connect your trailer to the hitch ball.
8. Connect the trailer and the hitch with safety chains
that will hold the trailer’s maximum gross weight. The
chains should cross under the trailer tongue to prevent
the tongue from dropping onto the ground in case it
should disconnect from the hitch ball. Allow sufficient
slack in the chains taking tight-turn situations into ac-
count; however, be careful not to let them drag on the
HS8012BA1 2UB8020BB

8-23
Driving tips
– CONTINUED –
ground.
Do not connect safety chains to part of the ve-
hicle other than the safety chain hooks. Hitch harness connector
9. Connect the hitch wire harness’s black four-pin
wire connector to the towing trailer’s wire harness.
10.Confirm proper function of the hitch wire harness
by individually activating the brake, right turn signal,
left turn signal, stop, and parking lights on the trailer.
NOTE
Always disconnect the trailer wire harness before
launching or retrieving a watercraft.
UG8034BA
HS8015BA

8-24
Driving tips
„
When you do not tow a trailer
Remove the ball mount from the hitch receiver
tube when the tailgate is open and the bed ex-
tender is used. The rear license plate will not be
visible because the license plate bracket can
not be used at the lowered/open position when
the ball mount is connected.
In addition, the license plate bracket will hit the
hitch ball and may be damaged if the tailgate is
opened and the license plate bracket is at the
lowered/open position.
y Remove the ball mount from the hitch receiver tube
and insert the receiver cover onto the hitch receiver tube.y Place the dust cap over the four-pin connector of the
hitch wire harness to protect against possible damage.y Occasionally lubricate terminals of the four-pin con-
nector using the terminal grease, and cover with the
attached rubber cap.
Trailer towing
Your vehicle is designed and intended to be used pri-
marily to carry passengers and cargo. Towing a trailer
puts additional loads on your vehicle’s engine, driv-
etrain, brakes, tires and suspension and has an ad-
verse effect on fuel economy.
If you do decide to tow a trailer, your safety and satis-
faction depend upon proper use of correct equipment
and cautious operation of your vehicle. Seek the ad-
vice of your SUBARU dealer to assist you in purchas-
ing a hitch and other necessary towing equipment ap-
propriate for your vehicle. In addition, be sure to follow
the instructions on correct installation and use provid-
ed by the trailer and other towing equipment manufac- turers.
SUBARU assumes no responsibility for injuries or ve-
hicle damage that result from trailer towing equipment,
or from any errors or omissions in the instructions ac-
companying such equipment or for your failure to fol-
low the proper instructions. „ Warranties and maintenance
SUBARU warranties do not apply to vehicle damage
or malfunction caused by trailer towing. If you use your
vehicle to tow a trailer, more frequent maintenance will
be required due to the additional load. (Refer to “Main-

8-25
Driving tips
– CONTINUED –
tenance schedule under severe driving conditions” in
the “Warranty and Maintenance Booklet”.)
Under no circumstances should a trailer be towed with
a new vehicle or a vehicle with any new powertrain
component (engine, transmission, differential, wheel
bearings, etc.) for the first 1,000 miles (1,600 km) of
driving. „Maximum load limits
Never exceed the maximum load limits ex-
plained below. Exceeding the maximum load
limits could cause personal injury and/or vehi-
cle damage.
yAdequate size trailer brakes are required
when the trailer and its cargo exceed 1,000 lbs
(453 kg) total weight. y Before towing a trailer, check the trailer total
weight, GVW, GAWs and tongue load. Make
sure the load and its distribution in your vehicle
and trailer are acceptable.
T Total trailer weight
Total trailer weight
The total trailer weight (trailer weight plus its cargo
load) must never exceed the maximum weight shown
in the following table.
HS8016AA

8-26
Driving tips
T

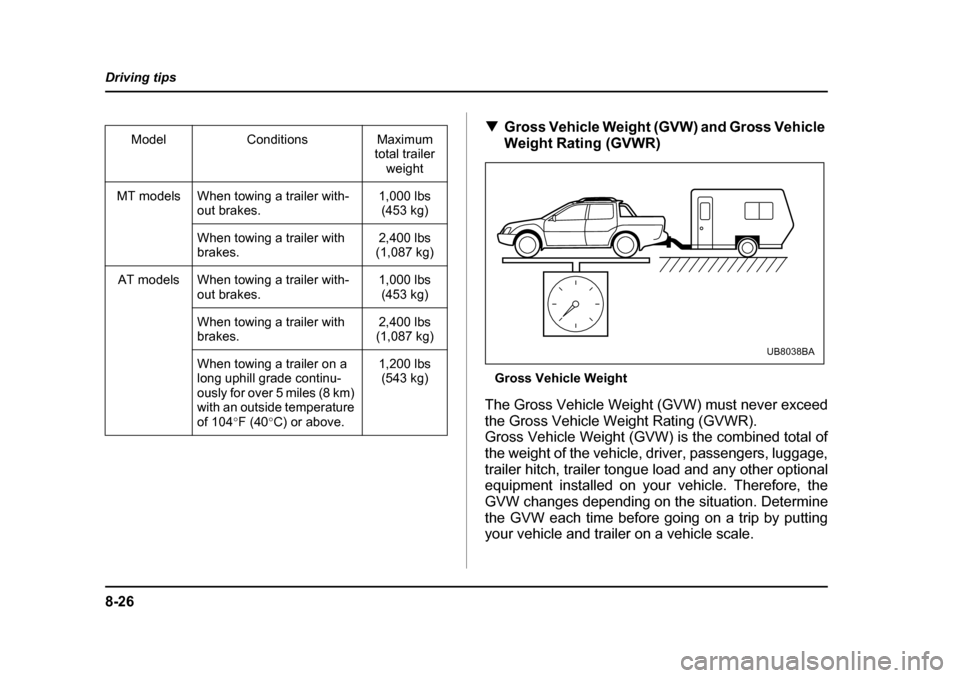

Gross Vehicle Weight (GVW) and Gross Vehicle
Weight Rating (GVWR)
Gross Vehicle Weight
The Gross Vehicle Weight (GVW) must never exceed
the Gross Vehicle Weight Rating (GVWR).
Gross Vehicle Weight (GVW) is the combined total of
the weight of the vehicle, driver, passengers, luggage,
trailer hitch, trailer tongue load and any other optional
equipment installed on your vehicle. Therefore, the
GVW changes depending on the situation. Determine
the GVW each time before going on a trip by putting
your vehicle and trailer on a vehicle scale.
Model Conditions Maximum
total trailer weight
MT models When towing a trailer with- out brakes. 1,000 lbs
(453 kg)
When towing a trailer with
brakes. 2,400 lbs
(1,087 kg)
AT models When towing a trailer with- out brakes. 1,000 lbs
(453 kg)
When towing a trailer with
brakes. 2,400 lbs
(1,087 kg)
When towing a trailer on a
long uphill grade continu-
ously for over 5 miles (8 km)
with an outside temperature of 104 °F (40 °C) or above. 1,200 lbs
(543 kg)
UB8038BA

8-27
Driving tips
– CONTINUED –

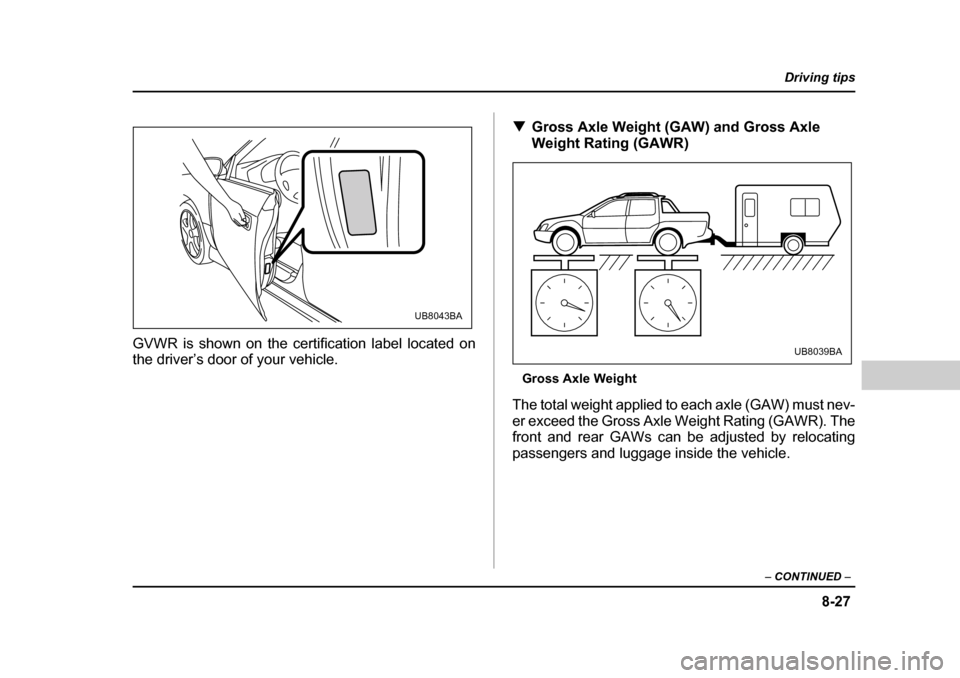

GVWR is shown on the certification label located on
the driver’s door of your vehicle. T
Gross Axle Weight (GAW) and Gross Axle
Weight Rating (GAWR)
Gross Axle Weight
The total weight applied to each axle (GAW) must nev-
er exceed the Gross Axle Weight Rating (GAWR). The
front and rear GAWs can be adjusted by relocating
passengers and luggage inside the vehicle.
UB8043BA
UB8039BA
