Page 134 of 469

SUBARU BAJA 2005 1.G Owners Manual 3-11
Instruments and controls
– CONTINUED –
is running, it may indicate that there is a problem or po-
tential problem somewhere in the emission controlsystem. �TIf the light comes on steadily:

3-11
Instruments and controls
– CONTINUED –
is running, it may indicate that there is a problem or po-
tential problem somewhere in the emission controlsystem. TIf the light comes on steadily:
If the light comes on steadily while driving or does not
go out after the engine starts, an emission control sys-
tem malfunction has been detected.
You should have your vehicle checked by an autho-
rized SUBARU dealer immediately.
NOTE
This light also comes on when the fuel filler cap is
not tightened until it clicks.
If you have recently refueled your vehicle, the cause of
the CHECK ENGINE warning light/malfunction indica-
tor lamp coming on could be a loose or missing fuel fill-
er cap. Remove the cap and retighten it until it clicks.
Make sure nothing is interfering with the sealing of the
cap. Tightening the cap will not make the CHECK EN-
GINE warning light turn off immediately. It may take
several driving trips. If the light does not go out, take
your vehicle to your authorized SUBARU dealer im-
mediately. T If the light is blinking:
If the light is blinking while driving, an engine misfire
condition has been detected which may damage the emission control system.
To prevent serious damage to the emission control
system, you should do the following: y
Reduce vehicle speed.
y Avoid hard acceleration.
y Avoid steep uphill grades.
y Reduce the amount of cargo, if possible.
y Stop towing a trailer as soon as possible.
The CHECK ENGINE warning light may stop blinking
and come on steadily after several driving trips. You
should have your vehicle checked by an authorized
SUBARU dealer immediately. „ Charge warning light
If this light comes on when the engine is running, it
may indicate that the charging system is not working
properly.
If the light comes on while driving or does not go out
after the engine starts, stop the engine at the first safe
opportunity and check the alternator belt. If the belt is
loose, broken or if the belt is in good condition but the
light remains on, contact your nearest SUBARU deal-
er immediately.

Page 377 of 469

SUBARU BAJA 2005 1.G Owners Manual 11 - 2 6
Maintenance and service
The spark plugs should be replaced according to the
maintenance schedule in the “Warranty and Mainte-
nance Booklet”. �„
Recommended spark plugs
Non-turbo model

Page 434 of 469

SUBARU BAJA 2005 1.G Owners Manual 12-3
Specifications
– CONTINUED –
�„Electrical system
�„ Capacities
Battery type and capacity (5HR)MT55D23L (12-48AH)
AT75D23L (12-52AH)
Alternator12V-90A
Spark plugsNon-turboRC10YC4 (Champi

Page 438 of 469

SUBARU BAJA 2005 1.G Owners Manual 12-7
Specifications
– CONTINUED –

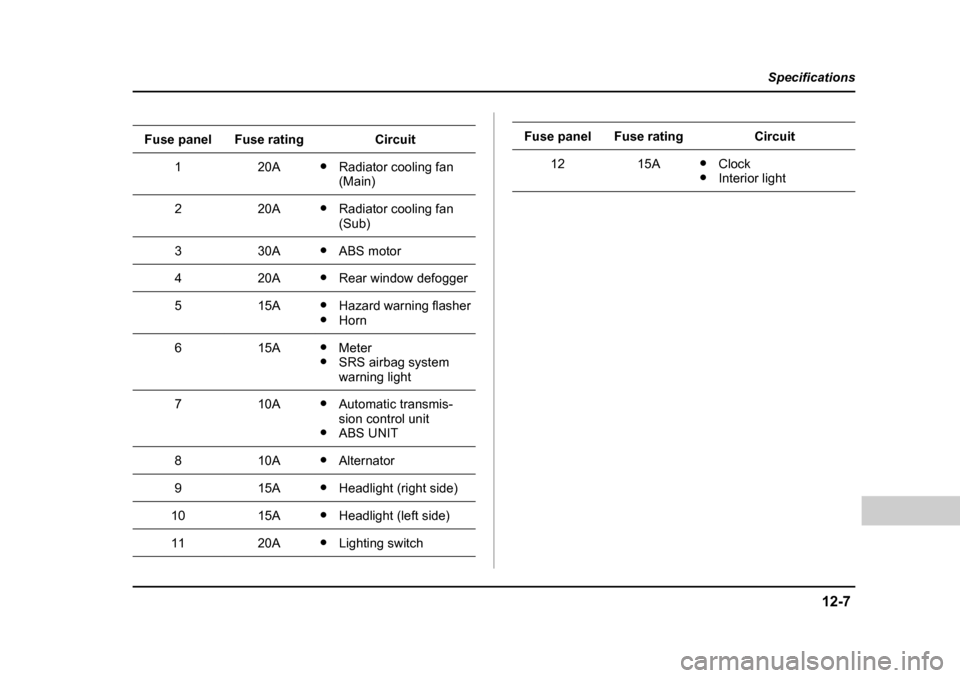

Fuse panelFuse ratingCircuit
120A�yRadiator cooling fan (Main)
220A�yRadiator cooling fan (Sub)
330A�yABS motor
420A�yRear window defogger
515A�yHazard warnin
