2005 SUBARU BAJA ECO mode

1-16
Seat, seatbelt and SRS airbags
T

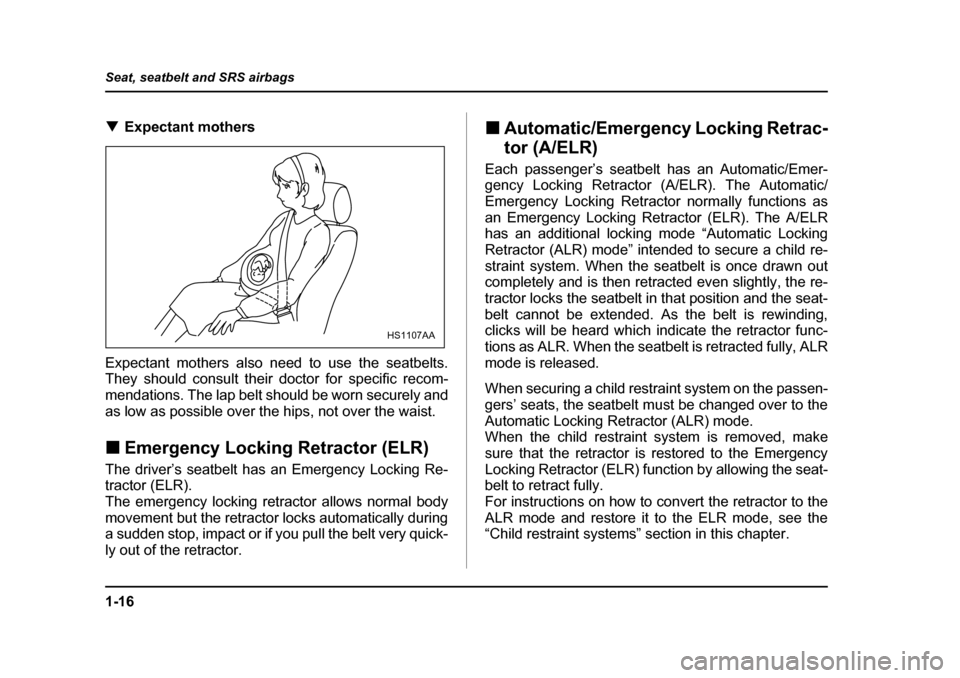

Expectant mothers
Expectant mothers also need to use the seatbelts.
They should consult their doctor for specific recom-
mendations. The lap belt should be worn securely and
as low as possible over the hips, not over the waist. „ Emergency Locking Retractor (ELR)
The driver’s seatbelt has an Emergency Locking Re-
tractor (ELR).
The emergency locking retractor allows normal body
movement but the retractor locks automatically during
a sudden stop, impact or if you pull the belt very quick-
ly out of the retractor. „
Automatic/Emergency Locking Retrac- tor (A/ELR)
Each passenger’s seatbelt has an Automatic/Emer-
gency Locking Retractor (A/ELR). The Automatic/
Emergency Locking Retractor normally functions as
an Emergency Locking Retractor (ELR). The A/ELR
has an additional locking mode “Automatic Locking
Retractor (ALR) mode” intended to secure a child re-
straint system. When the seatbelt is once drawn out
completely and is then retracted even slightly, the re-
tractor locks the seatbelt in that position and the seat-
belt cannot be extended. As the belt is rewinding,
clicks will be heard which indicate the retractor func-
tions as ALR. When the seatbelt is retracted fully, ALR
mode is released.
When securing a child restraint system on the passen-
gers’ seats, the seatbelt must be changed over to the
Automatic Locking Retractor (ALR) mode.
When the child restraint system is removed, make
sure that the retractor is restored to the Emergency
Locking Retractor (ELR) function by allowing the seat-
belt to retract fully.
For instructions on how to convert the retractor to the
ALR mode and restore it to the ELR mode, see the “Child restraint systems” section in this chapter.
HS1107AA

2-11
Keys and doors
– CONTINUED –
LOCK/DISARM” button six times to synchronize
the unit. „ Replacing lost transmitters
If you lose a transmitter or want to purchase additional
transmitters (up to four can be programmed), you
should re-program all of your transmitters for security
reasons. It is recommended that you have your dealer
program all of your transmitters into your system. T Programming the transmitters
The keyless entry system is equipped with a special
code learning feature that allows you to program new
transmitter codes into the system or to delete old
ones. The system can learn up to four unique transmit-
ter codes. The four transmitter codes may be the
same or different. To enter the programming mode:0
1. Press “UNLOCK/DISARM” button to disarm the se-
curity system. (if your vehicle is equipped with the op-
tional security system.)
HS2016CA

2-12
Keys and doors
2. Open the driver’s door and sit in the driver’s seat.
3. Close the driver’s door.
1) ON
2) LOCK
4. Place the ignition key into the ignition switch and
cycle the switch from LOCK to ON ten times within 15
seconds . Be sure to stop at the LOCK position. The
horn will sound once to indicate that you are in the
transmitter programming mode.
NOTE
You must finish the next step (opening the driver’s
door) within 45 seconds of starting this proce-
dures.
3
2
HS2019BD
1
2
HS2020BB

2-15
Keys and doors
– CONTINUED –
Security system (if equipped)
The security system helps to protect your vehicle and
valuables from theft. The horn sounds and the turn
signal lights flash if someone attempts to break into
your vehicle. The starter motor is also interrupted to
prevent starting the vehicle without a key.
The system can be armed and disarmed with the re-
mote transmitter.
The system does not operate when the key is inserted
into the ignition switch. „System operation
The security system will give the following alarm indi-
cations when triggered: y The turn signal lights will flash and the horn will
sound intermittently. In addition, the starter motor will
not operate. y The alarm automatically resets after 30 seconds;
however, the alarm will reactivate if the vehicle is tam-
pered with again. The alarm will continue for six times
if any sensor continues to be activated.
The alarm is triggered by: y Opening a door.
y Application of physical shock to the vehicle (e.g. breaking glass or forced entry). Note that there are two
alarm levels for shock: warning and alarm. In warning
mode, the alarm detects lower level vibrations and
triggers 2 warning chirps on the horn and two flashes
on the lights as a deterrent to would be vandals. In
alarm mode, higher levels of shock are detected and
the system will go into full alarm. y
Ignition switch being turned on while in armed state.
NOTE yThe alarm will not be triggered by opening the
switchback door. y The alarm may not be triggered when the win-
dow is broken with a sharp-edged tool. y With the valet mode selected, the security sys-
tem does not operate and the turn signal lights do
not flash when the remote transmitter is used for
locking and unlocking.
The security system indicator light in the combi-
nation meter flashes twice per second to show
that the valet mode is selected.
For details, refer to “Valet mode” in this section. „ Arming the system
T To arm the system using remote transmitter
1. Close all windows and moonroof.

2-18
Keys and doors
2. The alarm will sound.
3. Insert the key into the ignition switch and cycle it
from “LOCK” to “ON” three (3) times
within 5 sec-
onds .
„ Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button
pressed for more than two seconds .
The horn will sound and the turn signal lights will flash.
To deactivate it, press the “LOCK/ARM” button or “UNLOCK/DISARM” button.
Unless a button on the remote is pressed, the alarm
will be deactivated after approximately 30 seconds. „ Valet mode
When you choose the valet mode, the security system
does not operate. In valet mode, the remote transmit-
ter is used only for locking and unlocking the doors
and panic activation.
To enter the valet mode, open the driver’s door and
keep the “UNLOCK/DISARM” button depressed for
more than two seconds . The security system indica-
tor light will continue to flash 2 times per second indi-
cating that the system is in the valet mode.
To exit valet mode, open the driver’s door and keep the “UNLOCK/DISARM” button pressed
for more
than two seconds . The indicator will stop flashing.
„ Passive arming
When passive arming mode has been programmed by
the dealer, arming of the system is automatically ac-
complished without using the remote transmitter. Note
that in this mode, DOORS MUST BE MANUALLYLOCKED. T To enter the passive mode
Since programming the passive arming mode is a
complicated procedure, have it done by your nearestSUBARU dealer. T Arming the system
In passive mode, the system will automatically activate the alarm but WILL NOT automatically
lock the doors. In order to lock the doors you
must either lock them as indicated in step 4 be-
low or with the key once they have been closed.
Failure to lock the doors manually will result in
a higher security risk.

2-20
Keys and doors
DISARM” button on the transmitter. T
Tripped sensor identification
If an electronic chirp sounds four times and the turn
signal lights flash four times when you disarm the sys-
tem, this indicates that the alarm was triggered. The
number of times the indicator light flashes indicates
what sensor caused the alarm condition.
To enter identification mode:
1. Open the driver’s door and leave it open.
2. Turn the ignition switch to “ON” twice. (“LOCK”
“ON” “LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications.
Flashing once: Any door has been opened.
Flashing three times: The impact sensor in the sys-
tem’s unit has been activated. This may indicate that
your vehicle has been shocked or tampered with by
some outside force and/or unauthorized person.
Flashing four times: The ignition switch has been
turned on or the battery has been disconnected.
NOTE
The battery must be reconnected before the indi-
cator light will flash.
To exit this mode, close the door and turn the ignition switch to “ON”.

3-7
Instruments and controls
– CONTINUED –
TDouble trip meter
1) A trip meter
2) B trip meter
The trip meter shows the distance that the vehicle has
been driven since you last set it to zero.
To change the mode indication, briefly push the knob.
Each press of the knob changes the function alter-
nately.
To set the trip meter to zero, select either the A trip or
B trip meter and push the knob and keep it pushed for more than 1 second.
NOTE
If the connection between the combination meter
and battery is broken for any reason such as vehi-
cle maintenance or fuse replacement, the data re-
corded on the trip meter will be lost. „
Tachometer
Do not operate the engine with the pointer of
the tachometer in the red zone. In this range,
fuel injection will be cut by the engine control
module to protect the engine from overrevving.
The engine will resume running normally after
the engine speed is reduced below the red
zone.
The tachometer shows the engine speed in thousands
of revolutions per minute. „ Outside temperature indicator (if
equipped)
The outside temperature indicator shows the outside
1 2
UB3027BB
A trip meter B trip meter

3-8
Instruments and controls
temperature in a range from –22 to 122
°F (–30 to
50 °C).
The indicator can give a false reading under any of the
following conditions: y When there is too much sun.
y During idling; while running at low speeds in a traffic
jam; when the engine is restarted immediately follow-
ing a shutdown.y When the actual outside temperature falls outside
the specified indicator range. „ Fuel gauge
The fuel gauge shows the approximate amount of fuel
remaining in the tank.
The gauge does not return to “E” even though the ig-
nition switch is in the “ACC” or “LOCK” position.
The gauge may move slightly during braking, turning
or acceleration due to fuel level movement in the tank. „ Temperature gauge
If the pointer exceeds the normal operating
range, safely stop the vehicle as soon as possi- ble.
See “In case of emergency” in chapter 9.
1) Normal operating range
The temperature gauge shows engine coolant temper-
ature when the ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with
the outside temperature and driving conditions.
We recommend that you drive moderately until the
pointer of the temperature gauge reaches near the
middle of the range. Engine operation is optimum with
1
