2005 SUBARU BAJA set clock

20
„

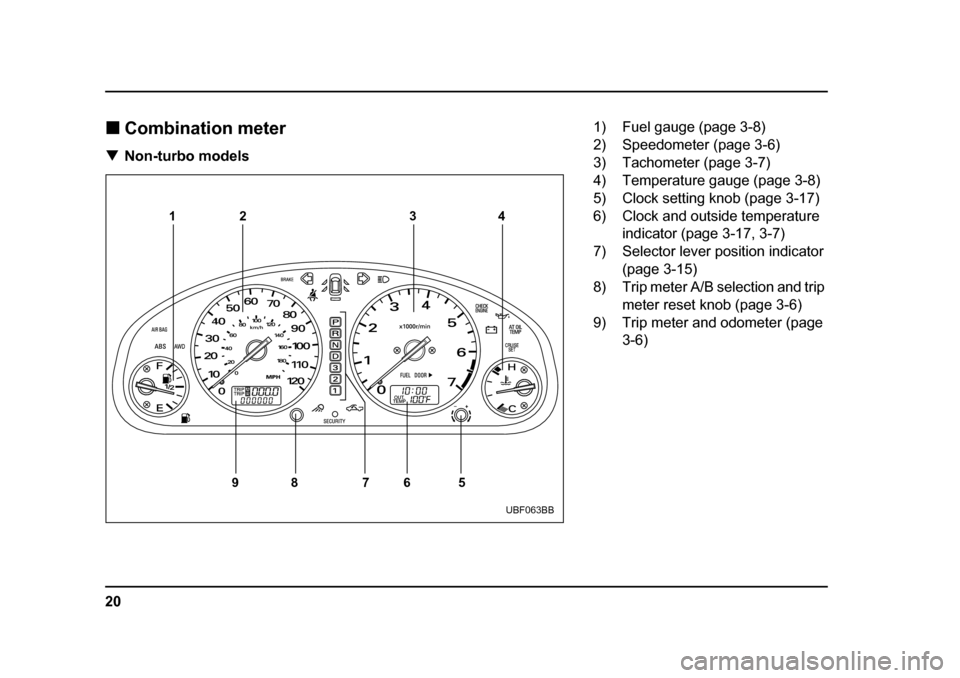

Combination meter
T Non-turbo models
12 3 4
5
6
7
8
9
UBF063BB
1) Fuel gauge (page 3-8)
2) Speedometer (page 3-6)
3) Tachometer (page 3-7)
4) Temperature gauge (page 3-8)
5) Clock setting knob (page 3-17)
6) Clock and outside temperature
indicator (page 3-17, 3-7)
7) Selector lever position indicator (page 3-15)
8) Trip meter A/B selection and trip
meter reset knob (page 3-6)
9) Trip meter and odometer (page 3-6)

21
–
CONTINUED –

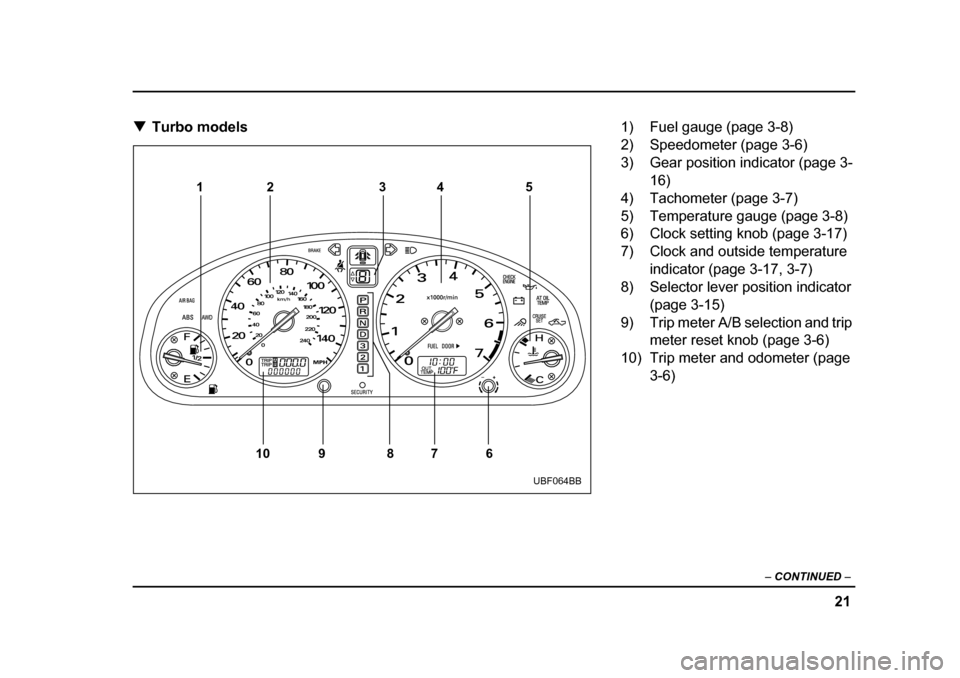

TTurbo models
12 4 35
6
7
8
9
10
UBF064BB
1) Fuel gauge (page 3-8)
2) Speedometer (page 3-6)
3) Gear position indicator (page 3-
16)
4) Tachometer (page 3-7)
5) Temperature gauge (page 3-8)
6) Clock setting knob (page 3-17)
7) Clock and outside temperature indicator (page 3-17, 3-7)
8) Selector lever position indicator
(page 3-15)
9) Trip meter A/B selection and trip meter reset knob (page 3-6)
10) Trip meter and odometer (page 3-6)

3-1
3
Instruments and controls
Ignition switch .............................................. 3-2 LOCK .................................................................. 3-2
ACC .................................................................... 3-3
ON ....................................................................... 3-3
START ................................................................ 3-4
Key reminder chime .......................................... 3-4
Ignition switch light (if equipped) .................... 3-4
Key interlock release (AT vehicles) ................. 3-4
Hazard warning flasher ................................ 3-5
Meters and gauges ....................................... 3-6 Speedometer ..................................................... 3-6
Odometer/Trip meter ........................................ 3-6
Tachometer ........................................................ 3-7
Outside temperature indicator (if equipped) .. 3-7
Fuel gauge ......................................................... 3-8
Temperature gauge ........................................... 3-8
Warning and indicator lights ....................... 3-9 Seatbelt warning light and chime .................... 3-9
SRS airbag system warning light .................... 3-10
CHECK ENGINE warning light/Malfunction indicator lamp ................................................. 3-10
Charge warning light ........................................ 3-11
Oil pressure warning light ................................ 3-12
AT OIL TEMPerature warning light (AT vehicles) ................................................... 3-12
ABS warning light ............................................. 3-12
Brake system warning light ............................. 3-13
Door ajar warning lights ................................... 3-14
Switchback door indicator light ...................... 3-14
Low fuel warning light ...................................... 3-14
All-Wheel Drive warning light (AT vehicles) ... 3-14 Security system status indicator light
(if equipped) .................................................... 3-15
Selector lever position indicator (AT vehicles) ................................................... 3-15
Gear position indicator (Turbo-AT vehicles) .. 3-16
Turn signal indicator lights .............................. 3-16
High beam indicator light ................................. 3-16
Cargo lamp indicator light ............................... 3-16
Cruise control set indicator light .................... 3-16
Clock .............................................................. 3-17
Light control switch ...................................... 3-18 Headlights ......................................................... 3-18
High/low beam change (dimmer) .................... 3-19
Headlight flasher ............................................... 3-19
Daytime running light system ......................... 3-20
Turn signal lever ........................................... 3-20
Illumination brightness control ................... 3-21
Parking light switch ...................................... 3-22
Fog light button ............................................. 3-23
Wiper and washer ......................................... 3-23 Windshield wiper and washer switches ......... 3-25
Rear window defogger button ..................... 3-26
Windshield wiper deicer (if equipped) ........ 3-27
Mirrors ............................................................ 3-28 Inside mirror ...................................................... 3-28
Outside mirrors ................................................. 3-30
Tilt steering wheel ......................................... 3-33
Horn ................................................................ 3-34

3-17
Instruments and controls
– CONTINUED –
NOTE yIf you move the cruise control lever while turn-
ing the ignition switch “ON”, the cruise control
function is deactivated and the cruise control set
indicator light flashes. To reactivate the cruise
control function, turn the ignition switch back to
the “ACC” or “LOCK” position, and then turn it
again to the “ON” position. y If this indicator light and the “ ” indicator
light flash simultaneously during driving, have the

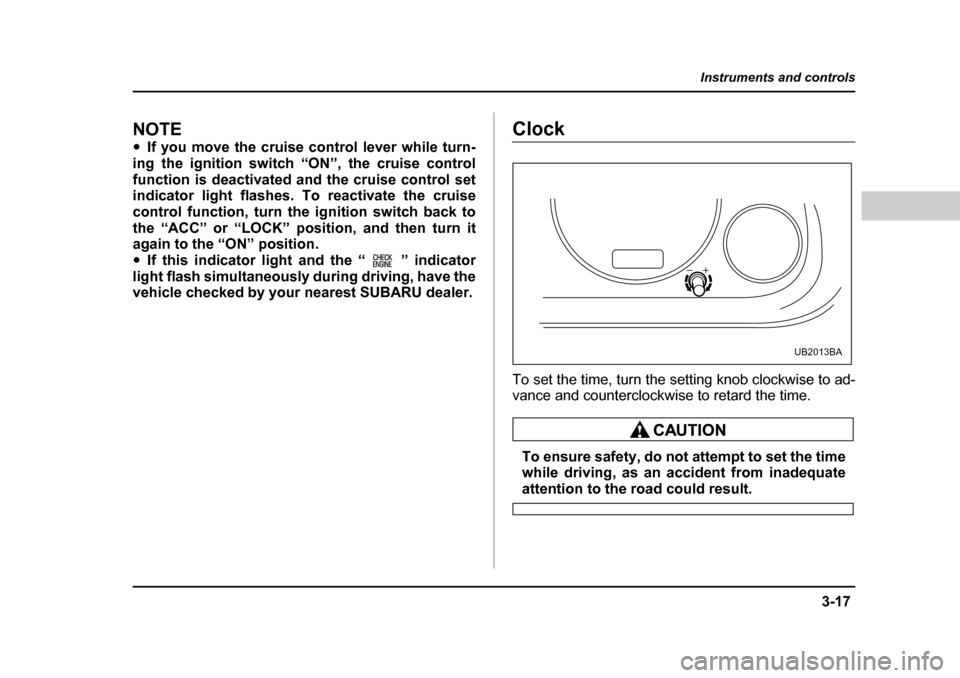

vehicle checked by your nearest SUBARU dealer.Clock
To set the time, turn the setting knob clockwise to ad-
vance and counterclockwise to retard the time.
To ensure safety, do not attempt to set the time
while driving, as an accident from inadequate
attention to the road could result.
UB2013BA

11 - 7 0
Maintenance and service
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb in the socket.
5. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
6. Set the headlight assembly into the vehicle body.
Tighten the mounting screws. „

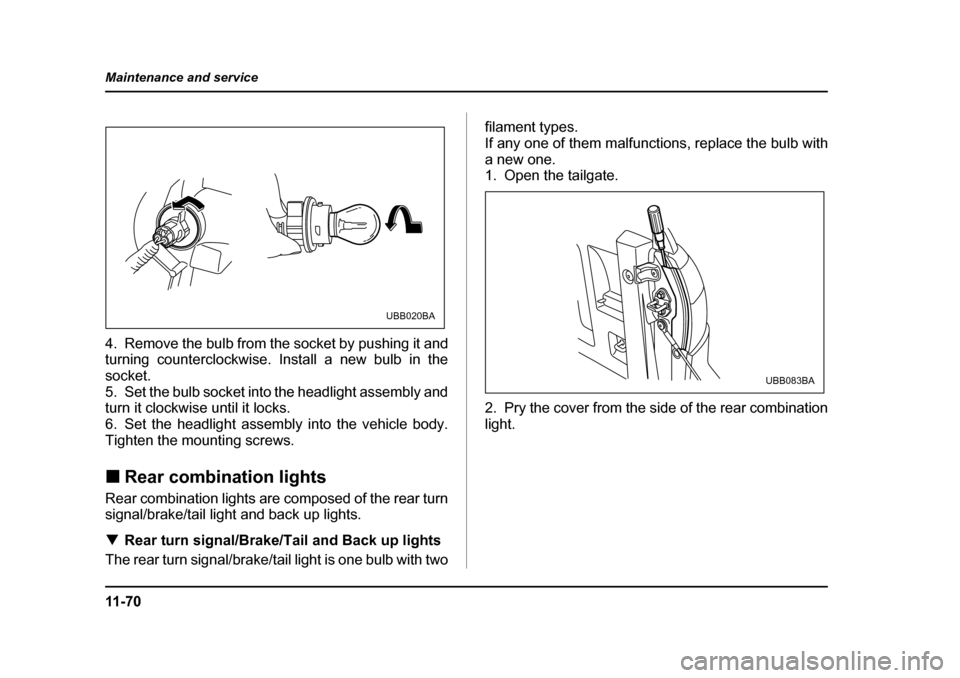

Rear combination lights
Rear combination lights are composed of the rear turn
signal/brake/tail light and back up lights. T Rear turn signal/Brake/Tail and Back up lights
The rear turn signal/brake/tail light is one bulb with two filament types.
If any one of them malfunctions, replace the bulb with
a new one.
1. Open the tailgate.
2. Pry the cover from the side of the rear combination
light.
UBB020BA
UBB083BA

11 -7 1
Maintenance and service
– CONTINUED –
3. Remove the rear combination light mounting bolts.
Then, slide the rear combination light assembly to the

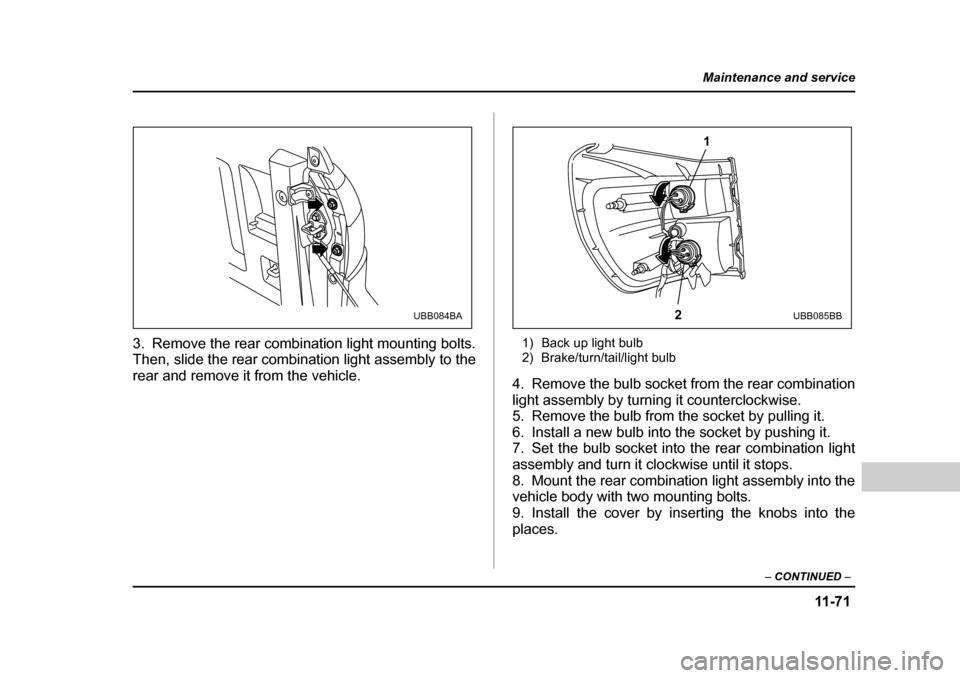

rear and remove it from the vehicle. 1) Back up light bulb
2) Brake/turn/tail/light bulb
4. Remove the bulb socket from the rear combination
light assembly by turning it counterclockwise.
5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Set the bulb socket into the rear combination light
assembly and turn it clockwise until it stops.
8. Mount the rear combination light assembly into the
vehicle body with two mounting bolts.
9. Install the cover by inserting the knobs into the
places.
UBB084BA2
1
UBB085BB

11 - 7 8
Maintenance and service

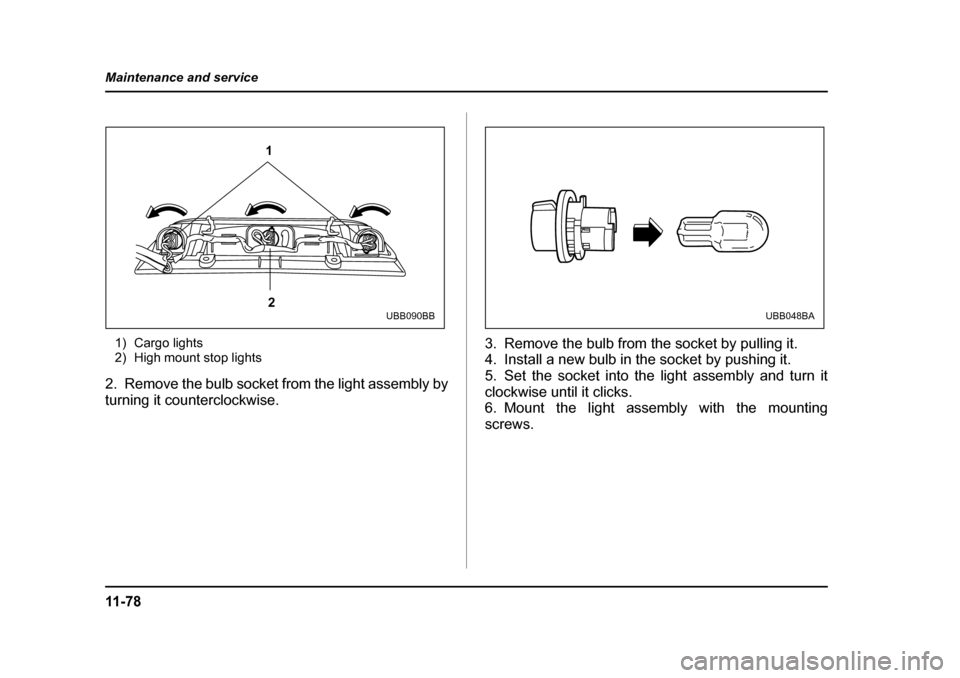

1) Cargo lights
2) High mount stop lights
2. Remove the bulb socket from the light assembly by
turning it counterclockwise. 3. Remove the bulb from the socket by pulling it.
4. Install a new bulb in the socket by pushing it.
5. Set the socket into the light assembly and turn it
clockwise until it clicks.
6. Mount the light assembly with the mounting screws.
1
2
UBB090BBUBB048BA

14-3
Index
Cargo
Bed ............................................................... 6-16
Lamp ............................................................. 6-20
Lamp indicator light ...................................... 3-16
Net hooks ..................................................... 6-13
Tie-down hooks ............................................ 6-17
Catalytic converter ............................................... 8-4
Center
Console .......................................................... 6-5
Ventilators ....................................................... 4-2
Changing Flat tire .......................................................... 9-12
Oil and oil filter ............................................ 11-12
Charge warning light ......................................... 3-11 CHECK ENGINE warning light/ Malfunction indicator lamp ............................. 3-10
Checking
Brake pedal free play .................................. 11-41
Brake pedal reserve distance ..................... 11-42
Clutch function ............................................ 11-42
Clutch pedal free play ................................. 11-43
Engine oil level ........................................... 11-10
Fluid level ................. 11-29, 11-36, 11-38, 11-39
Gear oil level .................................... 11-27, 11-33
Child restraint systems ...................................... 1-28
Installation with seatbelt ............................... 1-32
Lower and tether anchorages ....................... 1-40 Child safety ............................................................. 5
Locks ............................................................ 2-21
Chime Key ................................................................. 3-4
Seatbelt ................................................. 1-17, 3-9
Cigarette lighter socket ........................................ 6-9
Cleaning Aluminum wheels ......................................... 10-4
Fog light lens ................................................ 10-4
Interior .......................................................... 10-6
Ventilator grille .............................................. 4-11
Clock ................................................................. 3-17
Clutch fluid ....................................................... 11-39
Clutch pedal .................................................... 11-42
Coat hook .......................................................... 6-13
Coin compartment ............................................... 6-6
Convenience hook ............................................. 6-13
Cooling system ................................................ 11-17
Corrosion protection .......................................... 10-5 Cover Soft bed ........................................................ 6-21
Cruise control .................................................... 7-38
Set indicator light .......................................... 3-16
