2005 SUBARU BAJA audio

2
How to use this owner’s manual „Using your Owner’s manual
Before you operate your vehicle, carefully read this
manual. To protect yourself and extend the service life
of your vehicle, follow the instructions in this manual.
Failure to observe these instructions may result in se-
rious injury and damage to your vehicle.
This manual is composed of fourteen chapters. Each
chapter begins with a brief table of contents, so you
can usually tell at a glance if that chapter contains the
information you want.
Chapter 1: Seat, seatbelt and SRS airbags
This chapter informs you how to use the seat and seat-
belt and contains precautions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate the keys,
locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the operation of instru-
ment panel indicators and how to use the instruments
and other switches.
Chapter 4: Climate control
This chapter informs you how to operate the climate
control.
Chapter 5: Audio This chapter informs you how to operate your audiosystem.
Chapter 6: Interior and exterior equipments
This chapter informs you how to operate interior and
exterior equipments.
Chapter 7: Starting and operating
This chapter informs you how to start and operate your SUBARU.
Chapter 8: Driving tips
This chapter informs you how to drive your SUBARU
in various conditions and explains some safety tips on
driving.
Chapter 9: In case of emergency
This chapter informs you what to do if you have a prob-
lem while driving, such as a flat tire or engine over-
heating.
Chapter 10: Appearance care
This chapter informs you how to keep your SUBARU
looking good.
Chapter 11: Maintenance and service
This chapter informs you when you need to take your
SUBARU to the dealer for scheduled maintenance
and informs you how to keep your SUBARU running
properly.
Chapter 12: Specifications
This chapter informs you about dimension and capac-
ities of your SUBARU.

14
9
12
8
1
2
3
4
5
6
7
13
10
11
Table of contentsSeat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control Audio
Interior equipment
Starting and operating
Driving tips
In case of emergency
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects
Index

5-1
5
Audio
Antenna system ............................................ 5-2 Pillar mounted antenna (Non-turbo models) .. 5-2
Roof mounted antenna (Turbo models) ......... 5-2
FM reception ..................................................... 5-3
Installation of accessories ........................... 5-4
Audio set ........................................................ 5-4 Type A audio set ............................................... 5-4
Type B audio set ............................................... 5-5
In-dash 6 CD auto changer (Optional audio unit – if equipped) ............... 5-5
AM/FM radio with CD player ........................ 5-6 Radio operation ................................................ 5-6
Compact disc player operation ....................... 5-11
CD changer control (if optional in dash CD changer is connected) ................................... 5-13
Type B audio set (if equipped) ..................... 5-17 Radio operation ................................................ 5-17
Built-in CD changer operation ......................... 5-23
In-dash 6 CD auto changer (if equipped) .... 5-27
Precautions to observe when handling a compact disc .......................................... 5-30

5-2
Audio
AudioAntenna system „

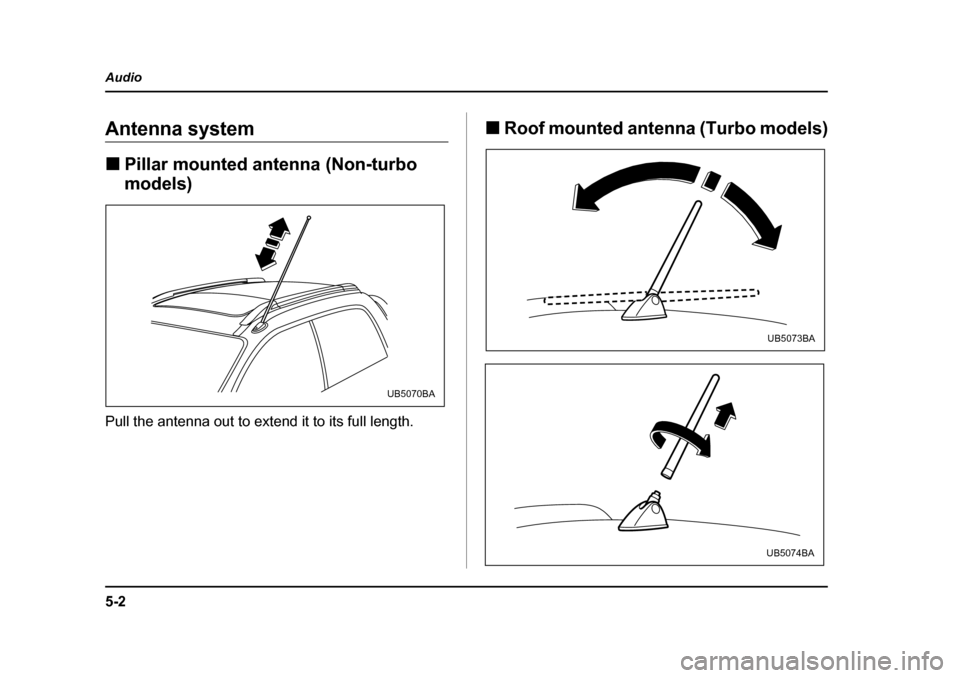

Pillar mounted antenna (Non-turbo
models)
Pull the antenna out to extend it to its full length. „
Roof mounted antenna (Turbo models)
UB5070BA
UB5073BA
UB5074BA

5-3
Audio
– CONTINUED –
Stand the roof antenna up for use. You can detach the
roof antenna by turning it counterclockwise. When fit-
ting the roof antenna, turn it clockwise and tighten it securely.
When working on the cargo bed, be careful notto get poked in the eye by the roof antenna.
NOTE yDetach the roof antenna before putting the vehi-
cle in a garage and before washing it in an auto-
matic car wash.y After detaching the roof antenna, keep the
mounting hole free of dirt and dust. If any dirt or
dust sticks to the hole, remove it before attaching
the roof antenna. y When detaching the roof antenna, grasp and
turn the roof antenna at the base. y To avoid damaging the roof antenna, be careful
not to overtighten it when attaching it.y Radio reception is not possible with the roof an-
tenna folded down. Also, reception deteriorates if
metallic objects are placed near the roof antenna. „
FM reception
Although FM is normally static free, reception can be
affected by the surrounding area, atmospheric condi-
tions, station strength and transmitter distance. Build-
ings or other obstructions may cause momentary stat-
ic, flutter or station interference. If reception continues
to be unsatisfactory, switch to a stronger station.

5-4
Audio
Installation of accessories
Always consult your SUBARU dealer before installing
a citizen band radio or other transmitting device in
your vehicle. Such devices may cause the electronic
control system to malfunction if they are incorrectly in-
stalled or if they are not suited for the vehicle.Audio set
Your SUBARU may be equipped with one of the fol-
lowing audio sets. See the pages indicated in this sec-
tion for operating details. „
Type A audio set
y Radio operation: refer to page 5-6
y CD (compact disc) player operation: refer to page 5-
11 y CD changer control: refer to page 5-13
UB5066AA

5-5
Audio
– CONTINUED –

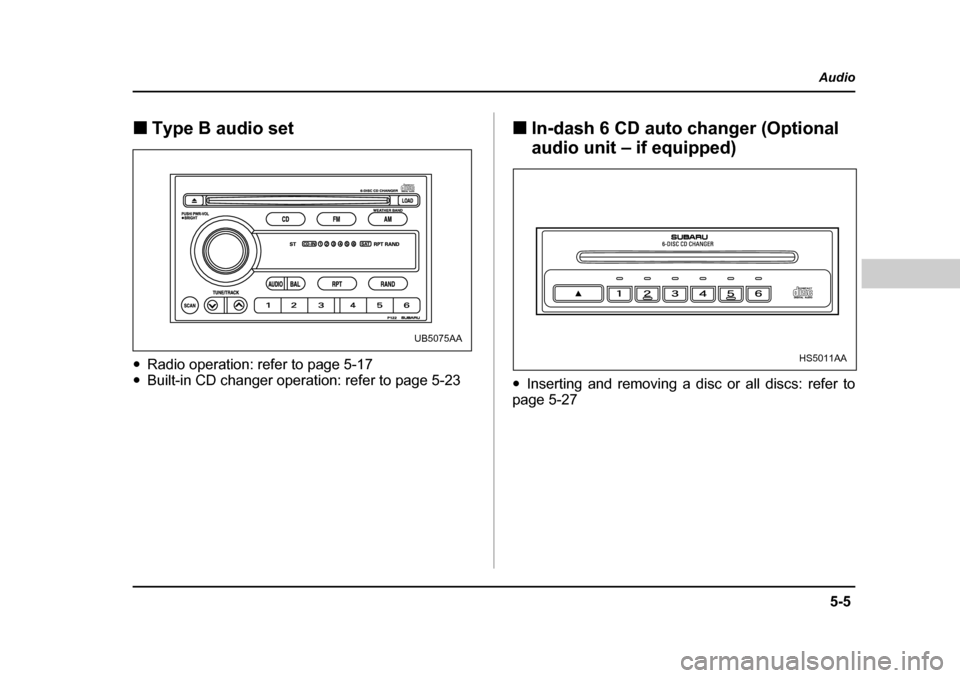

„Type B audio set
y Radio operation: refer to page 5-17
y Built-in CD changer operation: refer to page 5-23 „
In-dash 6 CD auto changer (Optional
audio unit – if equipped)
y Inserting and removing a disc or all discs: refer to
page 5-27
UB5075AA
HS5011AA

5-6
Audio
AM/FM radio with CD player
The audio set will operate only when the ignition switch is in the “ACC” or
“ON” position. „

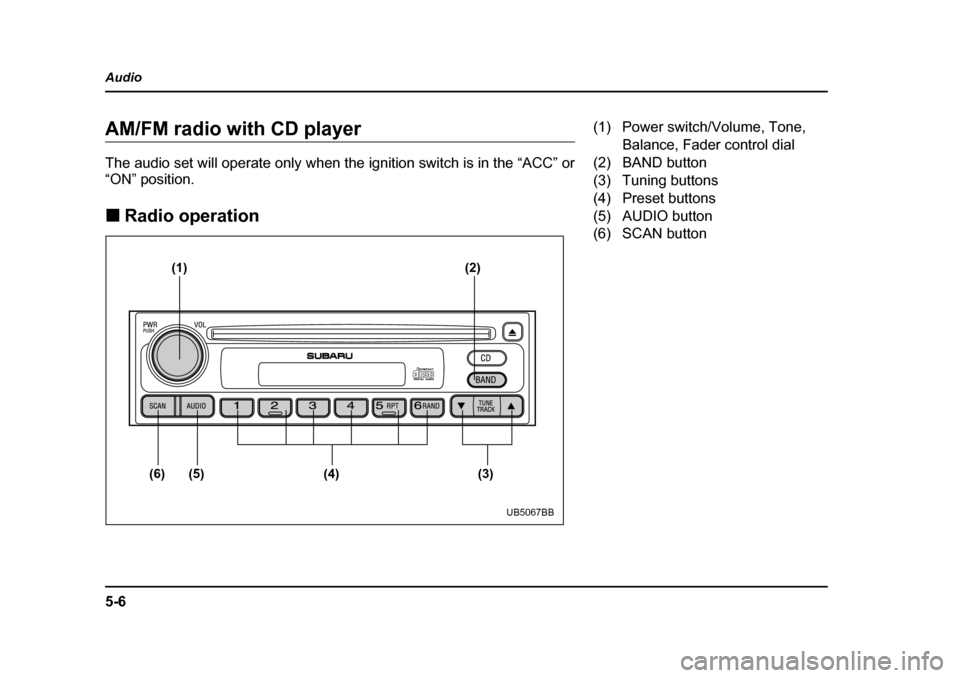

Radio operation
(1) (2)
(6) (5) (4) (3)
UB5067BB
(1) Power switch/Volume, Tone, Balance, Fader control dial
(2) BAND button
(3) Tuning buttons
(4) Preset buttons
(5) AUDIO button
(6) SCAN button
