2005 MERCEDES-BENZ SL600 Owner's Manual

Page 393 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 391 Practical hints
Flat tire

After attaining a tire inflation pressure
of 26 psi (1.8 bar), press 0 on electric
air pump switch8.
The electric air pump should now be
switched off.

Turn the Sma

Page 394 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 392 Practical hintsFlat tire
After driving vehicle for an initial
10 minutes, check tire inflation pres-
sure using the pressure gauge on the
air pump.

Visit an authorized Mercedes-Benz
Center a

Page 395 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 393 Practical hints
Flat tire
Mounting the spare wheel Preparing the vehicle
Prepare the vehicle as described
(
page 388).

Turn spare wheel bracket counter-
clockwise to loosen.

Take the spare w

Page 396 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 394 Practical hintsFlat tire
On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The jack support tubes are located behind
the front w

Page 397 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 395 Practical hints
Flat tire

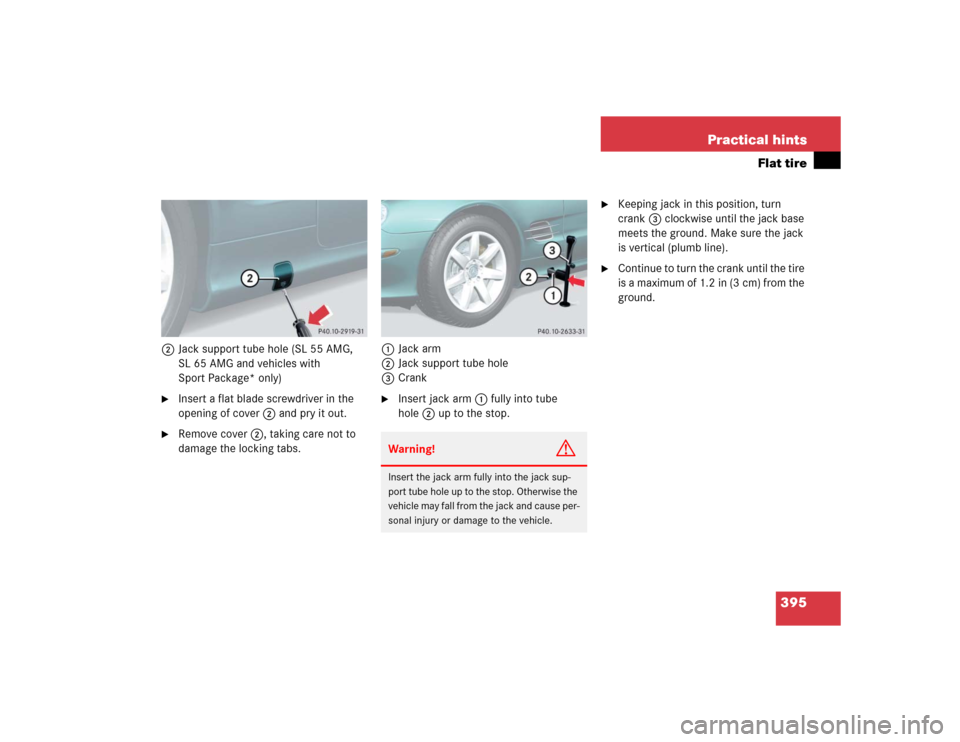

2Jack support tube hole (SL 55 AMG,
SL 65 AMG and vehicles with
Sport Package* only)
Insert a flat blade screwdriver in the
opening of cover2 and pry it out.

Remove

Page 398 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 396 Practical hintsFlat tireRemoving the wheel

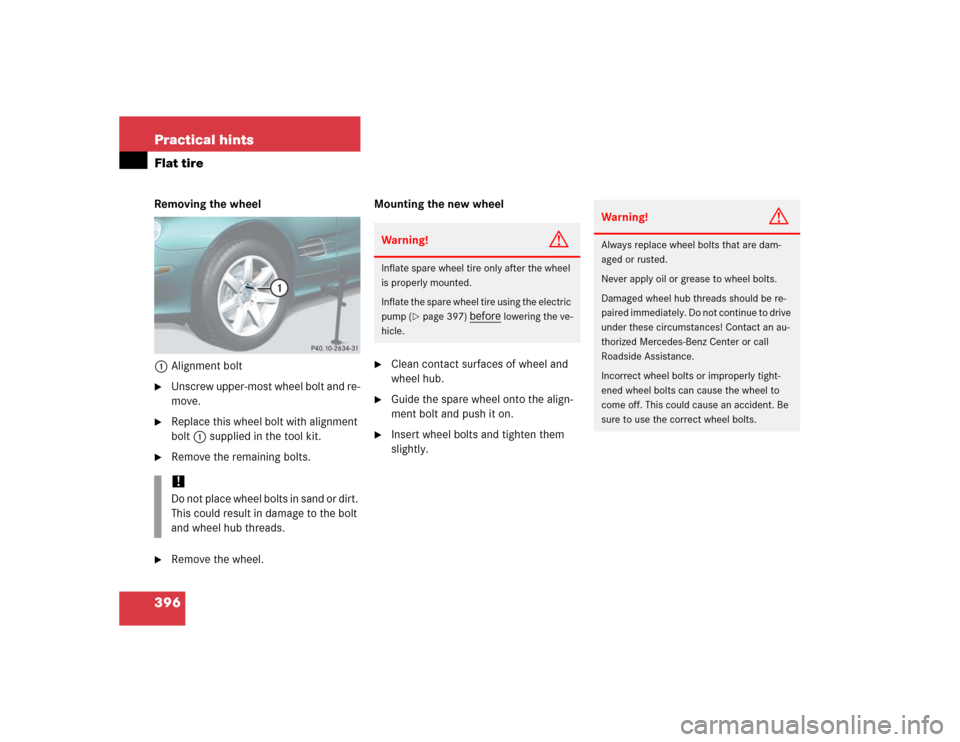

1Alignment bolt
Unscrew upper-most wheel bolt and re-
move.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remai

Page 399 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 397 Practical hints
Flat tire

Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Inflating the spare tire

Take the electric air pump out of the
trunk (
page 372).
1Flap
2A

Page 400 of 474

MERCEDES-BENZ SL600 2005 R230 Owners Manual 398 Practical hintsFlat tire
Turn the SmartKey in the starter switch
to position1.
or

Press the KEYLESS-GO* start/stop
button on the gear selector lever once
without depressing the brake pedal.
