2005 MERCEDES-BENZ SL600 Owner's Manual

151 Controls in detail
Control system
Setting the time (minutes)
This function is only available if the func-
tion
Time sync. with head unit

(
page 149) has been set to
Off
. The time
is then not set automatically by the
COMAND and must be set manually if re-
quired.

Move the selection marker with the
æ or ç button to the
Time

submenu.

Press button j or k repeatedly
until the message
Set time Minutes

appears in the multifunction display.
The selection marker is on the minute
setting.

Press button æ or ç to set the
hour.

Press the reset button in the instru-
ment cluster (
page 25) to confirm
the setting.
Selecting time display mode

Move the selection marker with the
æ or ç button to the
Inst.
cluster
submenu.

Press button j or k repeatedly
until the message
Clock
appears in the
multifunction display.
The selection marker is on the current
setting.

Press æ or ç to set the
12-hour

or
24-hour
time display mode.
iFor information on setting the time, re-
fer to the separate COMAND operating
instructions.

152 Controls in detailControl systemLighting submenu
Access the
Lighting
submenu via the
Settings
menu. Use the
Lighting
sub-
menu to change the lamp and lighting set-
tings on your vehicle. The following
functions are available:Setting daytime running lamp mode
(USA only)

Move the selection marker with button
æ or ç to the
Lighting
sub-
menu.

Press button j or k repeatedly
until you see
Light circuit Headlamp
mode
in the multifunction display.The selection marker is on the current
setting.

Press button æ or ç to select
manual operation (
Manual
) or daytime
running lamp mode (
Constant
).
With daytime running lamp mode activated
and the exterior lamp switch at
positionM or U the low beam head-
lamps are switched on when the engine is
running.
Function
Page
Setting daytime running lamp
mode (USA only)
152
Setting locator lighting
153
Setting night security illumina-
tion
154
Setting interior lighting delayed
switch-off
155
iThis function is not available in coun-
tries where the daytime running lamp
mode is mandatory and therefore in a
constant mode.

153 Controls in detail
Control system
In low ambient light conditions the follow-
ing lamps will switch on additionally:

Parking lamps


Tail lamps


License plate lamps


Side marker lampsSetting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in position
U, the following lamps will switch on
when the vehicle is unlocked with the
SmartKey during darkness:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
the vehicle with the SmartKey, the lamps
will switch off automatically after approxi-
mately 40 seconds.

Move the selection marker with button
æ or ç to the
Lighting
sub-
menu

Press button j or k repeatedly
until you see
Locator lighting
in the
multifunction display.
The selection marker is on the current
setting.

Press button æ or ç to switch
the locator lighting feature to
On.

Turn the exterior lamp switch to posi-
tion U when exeting the vehicle.
The locator lighting feature is
activated.
iFor safety reasons, resetting the Lighting
submenu to factory settings
while driving (
page 146) will not de-
activate the daytime running lamp
mode.
The message following message ap-
pears in the multifunction display:
Cannot be fully reset to factory
settings when driving
.

154 Controls in detailControl systemSetting night security illumination
(Exterior lamps delayed switch-off)
Use this function to set whether and for
how long you would like the exterior lamps
to illuminate during darkness after exiting
the vehicle and the doors closed. With the
delayed switch-off feature activated and
the exterior lamp switch in position U
before the engine is turned off, the follow-
ing lamps will switch on after you have
removed the SmartKey from the starter
switch:

Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lampsIf you do not open a door after removing
the SmartKey from the starter switch, the
lamps will switch off automatically after
approximately 60 seconds.

Move the selection marker with button
æ or ç to the
Lighting
sub-
menu.

Press button j or k repeatedly
until you see
Headlamps delayed
switch-off in the multifunction dis-
play.
The selection marker is on the current
setting.

Press button æ or ç to select
the desired lamp-on period.

0 s
, the delayed switch-off feature
is deactivated.


15 s
, 30 s
, 45 s
or
60 s
, select the
desired lamp-on period.

Turn the exterior lamp switch to posi-
tion U before turning off the engine
(page 48).
iYou can reactivate this function within
ten minutes by opening a door.

155 Controls in detail
Control system
You can temporarily deactivate the de-
layed switch-off feature:
Before exiting the vehicle turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back
to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.Interior lighting delayed switch-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after you
have removed the SmartKey from the
starter switch.

Move the selection marker with button
æ or ç to the
Lighting
sub-
menu.

Press button j or k repeatedly
until you see
Int. lighting delayed
switch-off in the multifunction dis-
play.
The selection marker is on the current
setting.

Press æ or ç to select the de-
sired lamp-on time period.
You can select:

0 s
, the interior lighting delayed
switch-off feature is deactivated.


5 s
, 10 s
, 15 s
or
20 s
, the interior
lighting delayed switch-off feature
is activated with the desired
lamp-on period.

156 Controls in detailControl systemVehicle submenu
Access the
Vehicle
submenu via the
Set-
tings
menu. Use the
Vehicle
submenu to
make general vehicle settings. The follow-
ing functions are available:
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the
automatic central locking system
activated, the vehicle is centrally locked at
vehicle speeds of approximately
9mph(15km/h).

Move the selection marker with the
æ or ç button to the
Vehicle

submenu.

Press button j or k repeatedly
until you see this message in the left
display:
Automatic door lock
.
The selection marker is on the current
setting.

Press æ or ç to switch Automatic door lock
On or
Off
.Tire inflation pressure display
Use this function to set the unit for the tire
inflation pressure display.

Move the selection marker with the
æ or ç button to the
Vehicle

submenu.

Press button j or k repeatedly
until you see this message in the left
display:
Tire pres. display
.
The selection marker is on the current
setting.

Press æ or ç to select the de-
sired tire inflation pressure unit.
Function
Page
Setting automatic locking
156
Tire inflation pressure display
156

157 Controls in detail
Control system

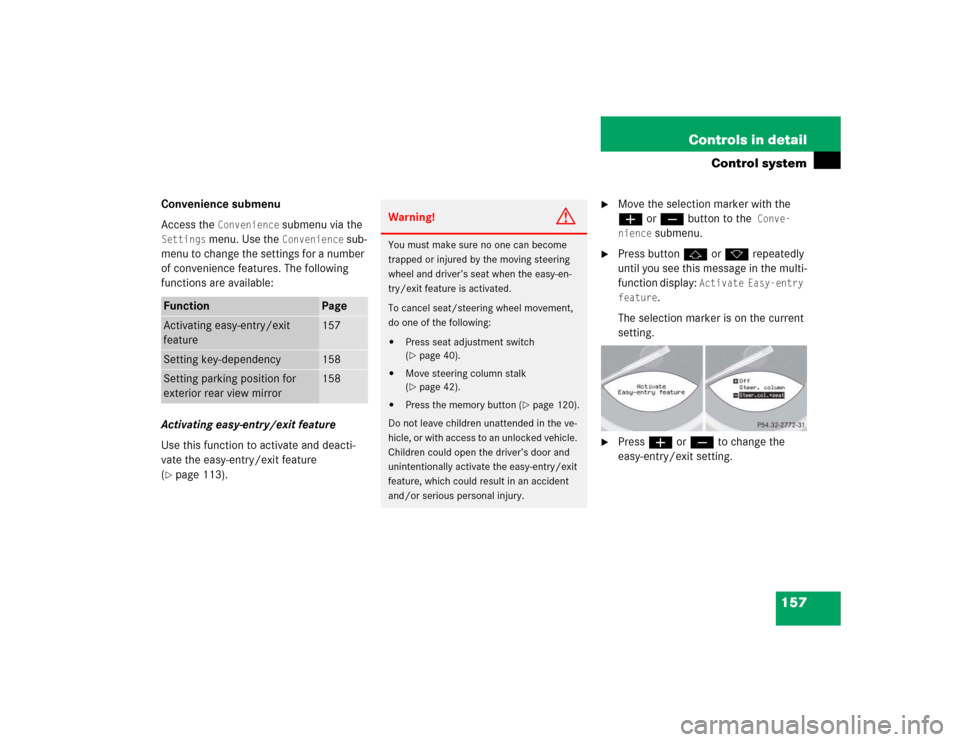

Convenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature
(
page 113).

Move the selection marker with the
æ orç button to the
Conve-
nience
submenu.

Press button j or k repeatedly
until you see this message in the multi-
function display:
Activate Easy-entry
feature
.
The selection marker is on the current
setting.

Press æ or ç to change the
easy-entry/exit setting.
Function
Page
Activating easy-entry/exit
feature
157
Setting key-dependency
158
Setting parking position for
exterior rear view mirror
158
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and driver’s seat when the easy-en-
try/exit feature is activated.
To cancel seat/steering wheel movement,
do one of the following:

Press seat adjustment switch
(page 40).


Move steering column stalk
(page 42).


Press the memory button (
page 120).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

158 Controls in detailControl systemThe following settings are available for the
easy-entry/exit feature:Setting key-dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the exterior rear view mirrors
mirrors should be stored separately for
each SmartKey (
page 120).

Move the selection marker with button
æ or ç to the
Convenience
sub-
menu.

Press button j or k repeatedly
until you see this message in the left
display:
Key-dependent
.
The selection marker is on the current
setting.

Press æ or ç to set key-depen-
dency to
On or
Off
. Setting parking position for exterior rear
view mirror
Use the
Mirror setting when parking

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers when reverse gear R is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 179).

Move the selection marker with button
æ or ç to the
Convenience
sub-
menu.

Press button j or k repeatedly
until you see this message in the left
display:
Mirror setting when park-
ing
.
Off
The easy-entry/ex-
it feature is deacti-
vated
Steer. column
Only the steering
column is moved
Steer.col. +seat
Both, the steering
column and the
seat are moved
