2005 MERCEDES-BENZ SL600 Owner's Manual

135 Controls in detail
Control system
Multifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel.
Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.

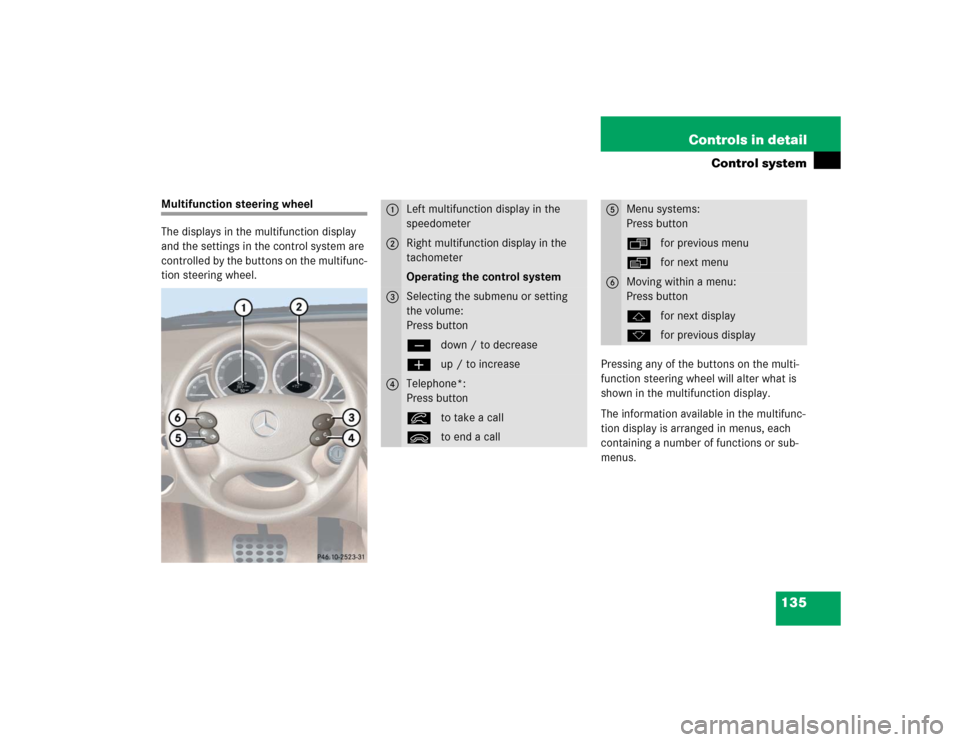

1
Left multifunction display in the
speedometer
2
Right multifunction display in the
tachometerOperating the control system
3
Selecting the submenu or setting
the volume:
Press buttonçdown / to decreaseæup / to increase
4
Telephone*:
Press buttoníto take a callìto end a call
5
Menu systems:
Press buttonÿfor previous menuèfor next menu
6
Moving within a menu:
Press buttonjfor next displaykfor previous display

136 Controls in detailControl systemThe individual functions are then found
within the relevant menu (radio or CD op-
erations under
AUDIO
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
It is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.


If you press button è or ÿ re-
peatedly, you will pass through each
menu one after the other.


If you press button k or j re-
peatedly, you will pass through each
function display, one after the other, in
the current menu. In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For in-
structions on using these submenus, see
“Settings menu” (page 144).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.

137 Controls in detail
Control system

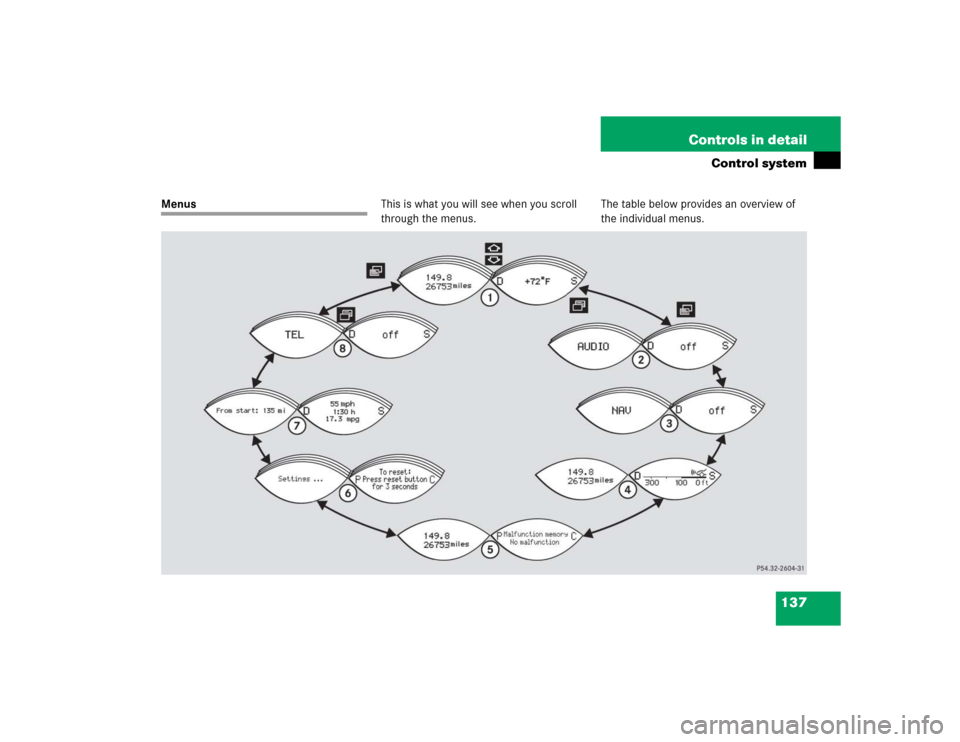

MenusThis is what you will see when you scroll
through the menus.The table below provides an overview of
the individual menus.

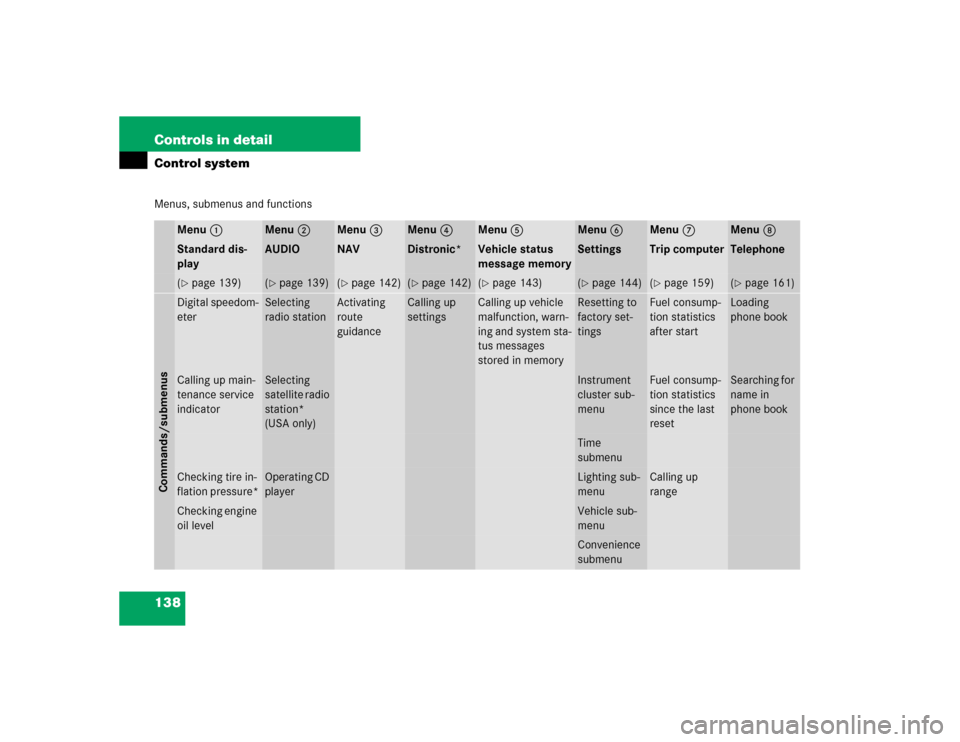

138 Controls in detailControl systemMenus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Menu 8
Standard dis-
play
AUDIO
NAV
Distronic*
Vehicle status
message memory
Settings
Trip computer
Telephone
(page 139)
(page 139)
(page 142)
(page 142)
(page 143)
(page 144)
(page 159)
(page 161)
Commands/submenusDigital speedom-
eter
Selecting
radio station
Activating
route
guidance
Calling up
settings
Calling up vehicle
malfunction, warn-
ing and system sta-
tus messages
stored in memory
Resetting to
factory set-
tings
Fuel consump-
tion statistics
after start
Loading
phone book
Calling up main-
tenance service
indicator
Selecting
satellite radio
station*
(USA only)
Instrument
cluster sub-
menu
Fuel consump-
tion statistics
since the last
reset
Searching for
name in
phone book
Time
submenu
Checking tire in-
flation pressure*
Operating CD
player
Lighting sub-
menu
Calling up
range
Checking engine
oil level
Vehicle sub-
menuConvenience
submenu

139 Controls in detail
Control system
Standard display menu
You can select the functions in the stan-
dard display menu with button k or
j.
The following functions are available:
Display digital speedometer
Press button j once.
The current vehicle speed is shown in
the right multifunction display.
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO off
is shown in the
right display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Calling up digital speedometer
139
Calling up maintenance service
indicator
313
Checking tire inflation pressure
290
Checking engine oil level
272
Function
Page
Selecting radio station
140
Selecting satellite radio
station* (USA only)
140
Operating CD player
141

140 Controls in detailControl systemSelect radio station
Turn on the radio. Refer to the separate
operating instructions.

Press button è or ÿ repeatedly
until you see the currently tuned sta-
tion in the right display.
1Waveband setting
2Station frequency

Press button k or j repeatedly
until the desired station is found.Select satellite radio station*
(USA only)
The satellite radio is treated as a radio ap-
plication.

Select satellite radio with the corre-
sponding key on the COMAND control
panel (SAT).

Press button è or ÿ repeatedly
until you see the currently tuned sta-
tion in the right display.
1SAT mode
2Channel name or number

Press button k or j repeatedly
until the desired channel is found.
iYou can only store new stations using
the designated feature on the radio.
Refer to the separate operating instruc-
tions.
You can also operate the radio in the
usual manner.

141 Controls in detail
Control system
Operate the CD player
Selecting CD track
Turn on COMAND and select CD. Refer
to the separate COMAND operating in-
structions.

Press button è or ÿ repeatedly
until the settings for the CD currently
being played appear in the right multi-
function display.
1Current CD (for CD changer)
2Current track

Press button k or j repeatedly
until the desired track is selected.Selecting MP3-CD track

Turn on COMAND and select MP3-CD.
Refer to the separate COMAND operat-
ing instructions.

Press button è or ÿ repeatedly
until the settings for the MP3-CD cur-
rently being played appear in the right
multifunction display.

Press button k or j repeatedly
until the desired track is selected.
iAdditional optional satellite radio
equipment and a subscription to satel-
lite radio service provider are required
for satellite radio operation. Contact an
authorized Mercedes-Benz Center for
details and availability for your vehicle.
For more information, refer to separate
COMAND operating instructions.

142 Controls in detailControl systemNAV menu
The
NAV
menu contains the functions need-
ed to operate your navigation system.

Press button è or ÿ repeatedly
until you see the message
NAV
in the
left multifunction display.
The message shown in the multifunction
display depends on the status of the navi-
gation system:


When the navigation system is off, the
message
NAV off
appears in the multi-
function display.


When the navigation system is on, the
message
HEADING
appears in the left
multifunction display and the destina-
tion in the right multifunction display.
Please refer to the COMAND manual for in-
structions on how to activate the route
guidance system.
Distronic* menu
Use the Distronic menu to display the cur-
rent settings for your Distronic system.
What information is shown in the left mul-
tifunction display depends on whether the
Distronic system is active or inactive.
Please refer to the “Driving systems” sec-
tion of this manual (
page 208) for in-
structions on how to activate Distronic.

Press button è or ÿ repeatedly
until you see one of the following two
pictures in the display.Distronic deactivated
When Distronic is deactivated you will see
the standard display in the left multifunc-
tion display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Preset distance threshold to vehicle
ahead
4Your vehicle
5Symbol for activated distance warning
function
