2005 MERCEDES-BENZ SL600 Owner's Manual

31 At a glance

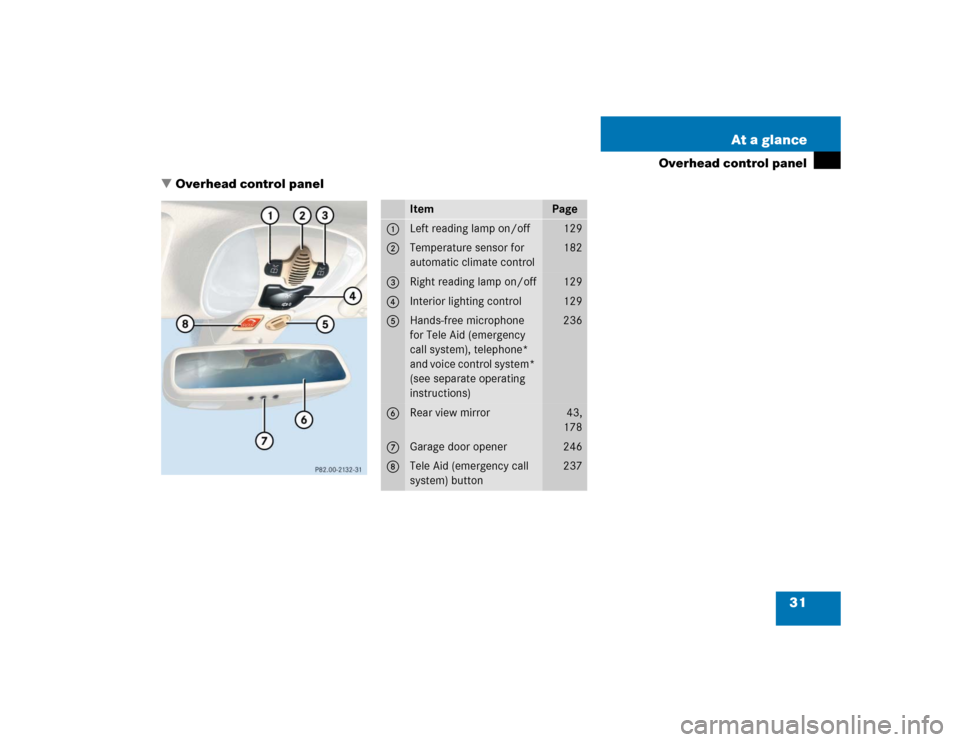

Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
129
2
Temperature sensor for
automatic climate control
182
3
Right reading lamp on/off
129
4
Interior lighting control
129
5
Hands-free microphone
for Tele Aid (emergency
call system), telephone*
and voice control system*
(see separate operating
instructions)
236
6
Rear view mirror
43,
178
7
Garage door opener
246
8
Tele Aid (emergency call
system) button
237

32 At a glanceDoor control panel
Item
Page
1
Door handle
106
2
Switches for open-
ing/closing front and rear
side windows
193
3
Memory function (for stor-
ing seat, mirror and steer-
ing wheel settings)
120
4
Seat heating switch
117
Seat ventilation* switch
119
5
Seat adjustment switch
39,
113
6
Remote trunk lid release
switch
109
7
Door pocket
229

33 Getting started
Unlocking
Adjusting
Driving
Parking and locking

34 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking
Unlocking with the SmartKeySmartKey with remote control1‹Lock button
2ŠUnlock button for trunk lid
3ŒUnlock button
4ÂPanic button
Press unlock button Πon the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The SBC brake system is activated.

Enter the vehicle and insert the
SmartKey in the starter switch.
For more information, see “SmartKey”
(
page 94).Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up-position when
the door is closed.

35 Getting started
Unlocking
Unlocking with KEYLESS-GO*
If your vehicle is equipped with the
KEYLESS-GO function, your vehicle checks
whether the SmartKey with KEYLESS-GO is
valid when you grasp the door handle. If
your SmartKey with KEYLESS-GO is valid,
the doors will unlock and you can open
them.
The function of the SmartKey overrules the
KEYLESS-GO function.

Grasp the door handle.
The turn signal lamps flash once. The
locking knobs on the doors move up.
The anti-theft alarm system is dis-
armed.
The SBC brake system is activated.If the SmartKey with KEYLESS-GO is inside
the vehicle, pressing the KEYLESS-GO
start/stop button on the gear selector le-
ver corresponds to turning the SmartKey
to the various starter switch positions
(
page 37).
For more information, see “SmartKey with
KEYLESS-GO*” (
page 98).
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approx. 3 feet
(1 meter) away from the door. iIf the vehicle has been parked for more
than 72 hours, you must pull the out-
side door handle in order to activate
the KEYLESS-GO function.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up-position when
the door is closed.

36 Getting startedUnlockingStarter switch positions SmartKey
Starter switch0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in the instrument cluster”
(
page 324).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (except high beam
headlamp indicator lamp and turn sig-
nal indicator lamps if activated) should
go out when the engine is running.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.

37 Getting started
Unlocking
SmartKey with KEYLESS-GO*
You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey.KEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.Position 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have the status0 (as with
SmartKey removed).
Position 1

Press the KEYLESS-GO start/stop but-
ton once.
This supplies power to some electrical
consumers, such as seat adjustment.
!If the SmartKey cannot be turned in the
starter switch, the starter battery may
not be sufficiently charged.

Check the starter battery and
charge it if necessary (
page 401).


Get a jump start (
page 406).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2)
is switched on


twice, the power supply is again
switched off

38 Getting startedUnlockingIgnition (or Position 2)
Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power to all electrical
consumers. All lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 98).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 49).
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (except high beam
headlamp indicator lamp and turn sig-
nal indicator lamps if activated) should
go out when the engine is running.
