2005 MERCEDES-BENZ SL600 Owner's Manual

175 Controls in detail
Automatic transmission
Upshifting
Press button2 on the right side of the
steering wheel.
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the transmission
when you are driving in the automatic
program mode (CorS).Manual shift program SL 55 AMG and
SL 65 AMG
In the MANUAL program mode you can
change the gears manually on the steering
wheel (
page 174) or by using the gear
selector lever (
page 166).The program mode selector switch is
located on the lower part of the center
console.
1Program mode selector switch
MANUAL For manual gear shifting
C Comfort For comfort driving
S Sport For standard driving
The current gear selector lever position
and the selected program mode (
M/C/S)
are indicated in the right multifunction
display (
page 165).
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or parking
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.

176 Controls in detailAutomatic transmissionActivating manual shift program
Press program mode selector
switch1 repeatedly until the
M for
MANUAL program mode appears in
the right multifunction display.
The transmission switches to the
MANUAL program mode. Automatic
shifting is switched off. The gear range
is not limited.
You can change the gears manually when
the gear selector lever is in positionD. You
can upshift or downshift through the gears
in succession.Downshifting

Briefly press the gear selector lever to
the left in theD-direction
(page 166).
or

Press button1 on the left side of the
steering wheel (
page 174).
The transmission shifts to the next
lower gear.Upshifting
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.iWhen you brake or stop, the transmis-
sion shifts down to a gear from which
you can easily accelerate or take off.
!In the MANUAL program mode, the
transmission will not upshift, even if
the engine has reached its overrevving
range. Shift up to the next gear before
the engine has reached its overrevving
range. Make absolutely certain that the
engine speed does not reach the red
marking on the tachometer
(page 24). Otherwise the engine
could be damaged which is not covered
by the Mercedes-Benz Limited Warran-
ty

177 Controls in detail
Automatic transmission

Briefly press the gear selector lever to
the right in theD+direction
(page 166).
or

Press button2 on the right side of the
steering wheel (
page 174).
The transmission shifts to the next
higher gear.
If, instead of the manual program mode
symbol
M, the symbolp appears in the
right multifunction display (
page 165),
shift to the next higher gear. The fuel
supply will otherwise be interrupted to
prevent the engine from overrevving.
Kickdown
Using the kickdown when driving in the
MANUAL program mode is not possible.Deactivating manual shift program

Press the program mode selector
switch (
page 175) repeatedly
until
Cor
S appears in the right
multifunction display.
or

Restart the engine.
The transmission will go to the
automatic program mode (C orS).
The MANUAL program mode is not
stored.Emergency operation (Limp Home
Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever toP.

Turn off the engine.

Wait at least ten seconds before
restarting.

Restart the engine.

Move gear selector lever to positionD
(for second gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.

178 Controls in detailGood visibilityFor information on windshield wiper opera-
tion, see “Windshield wipers” (
page 53).
Headlamp cleaning system
The switch is located on the left side of the
dashboard.
1Headlamp washer button
Switch on the ignition (
page 36).

Press button1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer flu-
id reservoir, see “Windshield washer sys-
tem and headlamp cleaning system”
(
page 278).
Rear window defroster
For information, see “Rear window defrost-
er” (
page 189).
Rear view mirrors
For information on setting the rear view
mirrors, see “Mirrors” (
page 43).
Auto-dimming rear view mirror
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when


the ignition is switched on
and


incoming light from headlamps falls on
the sensor in the interior rear view mir-
ror.
The interior rear view mirror will not react if


reverse gear is engaged


the interior lighting is switched on

179 Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored position.
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 121).

Make sure the
Mirror setting when
parking
function in the
Convenience

submenu of the control system is
switched to
ON (page 158).

Switch on the ignition (
page 36).

Press button2 for the passenger-side
exterior rear view mirror.

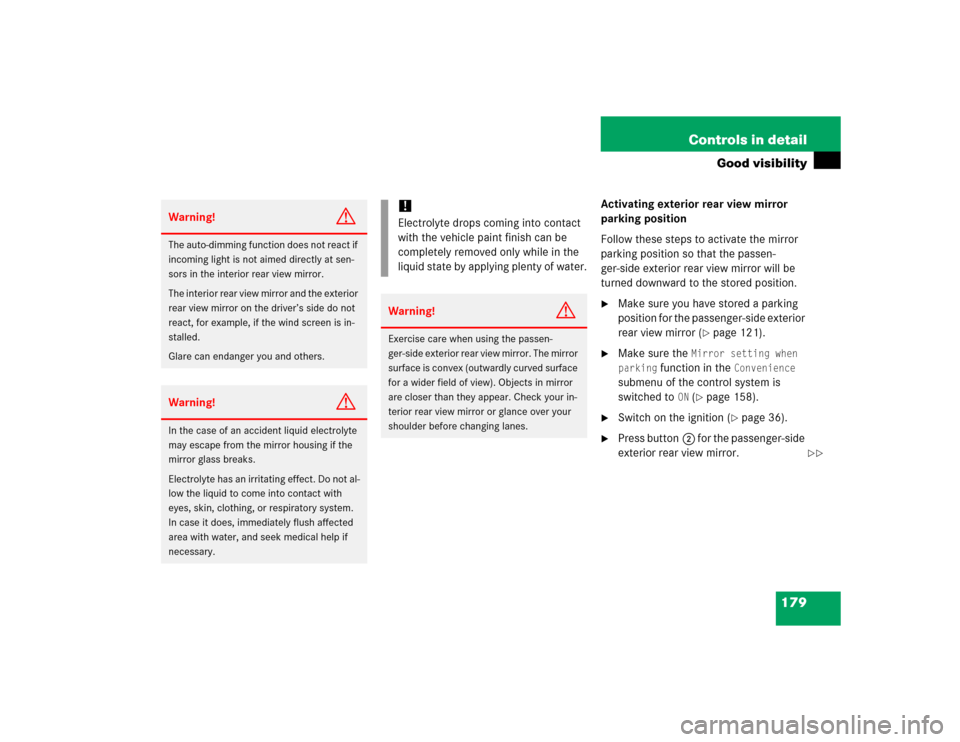

Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the wind screen is in-
stalled.
Glare can endanger you and others.Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.


180 Controls in detailGood visibility
Place the gear selector lever in reverse
gearR.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.
1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view
mirror buttonThe exterior rear view mirror returns to its
previously stored driving position:


ten seconds after you put the gear se-
lector lever out of positionR


immediately once your vehicle exceeds
a speed of approximately 6 mph
(10 km/h)


immediately when you press button1
for driver’s side mirror.
Sun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare.Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.


181 Controls in detail
Good visibility
1Mounting
2Mirror cover
3Mirror lamp
4Holder for gas cards
To use mirror, lift up cover2.iIf sunlight enters through a side win-
dow, disengage sun visor from
mounting1 and pivot to the side.
The mirror lamp3 will switch off.

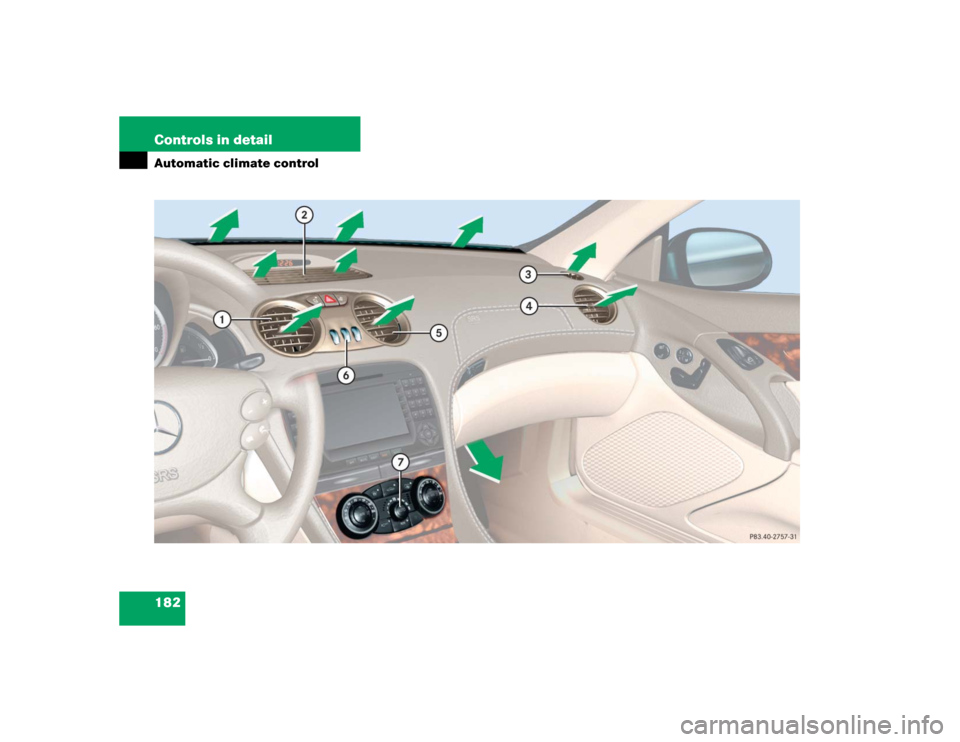

182 Controls in detailAutomatic climate control
