2005 MERCEDES-BENZ SL600 Owner's Manual

271 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1
1/2ft (50 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.

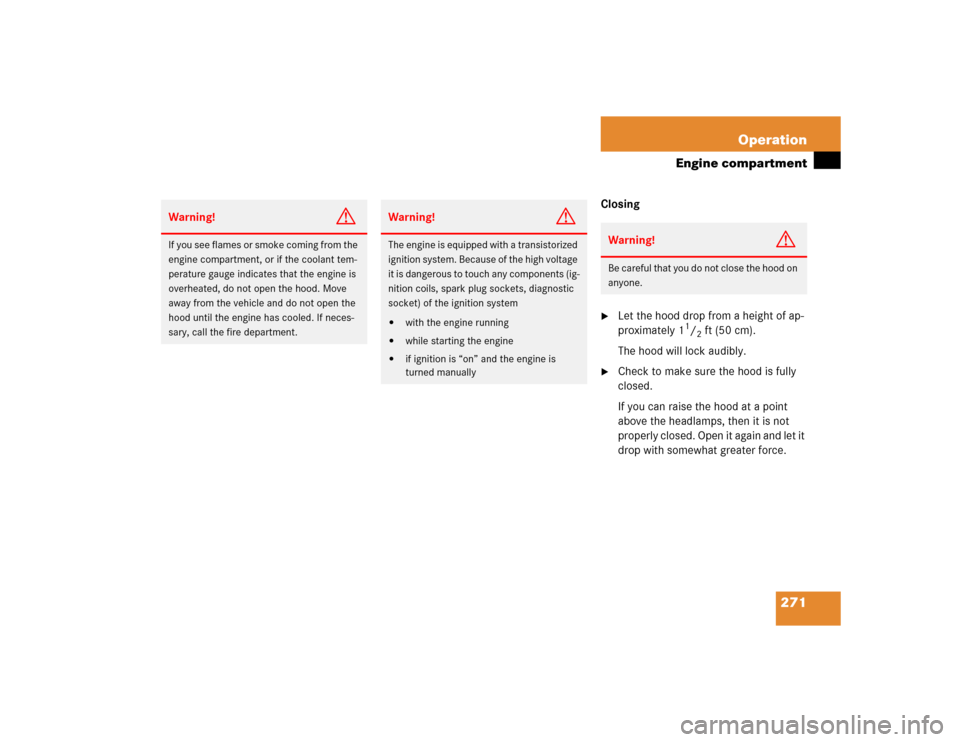

Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from the vehicle and do not open the
hood until the engine has cooled. If neces-
sary, call the fire department.
Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.

272 OperationEngine compartmentEngine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.Checking engine oil level with the
control system
When checking the oil level


the vehicle must be parked on level
ground


with the engine at operating tempera-
ture, the vehicle must have been sta-
tionary for at least five minutes with the
engine turned off


with the engine not at operating tem-
perature, the vehicle must have been
stationary for at least 30 minutes with
the engine turned off
To check the engine oil level via the
multifunction display, do the following:

Switch on the ignition (
page 36).
The standard display (
page 134) should
appear in the multifunction display.

Press buttonk orj on the
steering wheel until the following
message appears in the multifunction
displays:
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
More information on this subject is
available at any Mercedes-Benz
Center.

273 Operation
Engine compartment
One of the following messages will
subsequently appear in the right multi-
function display:

Engine oil level
OK


Add 1.0 qt.to reach
max.
oil level
(Canada:
1.0 l
)


Add 1.5 qts.
to reach max.oil level
(Canada:
1.5 l
)


Add 2.0 qts.to reach
max.
oil level
(Canada:
2.0 l
)

If necessary, add engine oil.
For adding engine oil see (
page 274).
For more information on engine oil, see the
“Technical data” section (
page 431) and
(
page 433).
Other display messages
If the SmartKey or the KEYLESS-GO*
start/stop button is not in position2, the
following message will appear:
Turn ignition on to
measure engine
oil level
Switch on the ignition (
page 36).If you see the message:
Observe
waiting time
If the engine is at operating tempera-
ture, wait five minutes before repeating
the check procedure.

If the engine is not at operating temper-
ature yet, wait 30 minutes before re-
peating the check procedure.
If you see the message:
Engine oil level
Not when
engine on
Turn off the engine.

If the engine is at operating tempera-
ture, wait five minutes before checking
oil.

If the engine is at operating tempera-
ture yet, you must wait 30 minutes be-
fore checking oil.
iIf you want to interrupt the checking
procedure, press thek orj
button on the multifunction steering
wheel.

274 OperationEngine compartmentIf there is excess engine oil with the engine
at normal operating temperature, the
following message will appear:Engine oil level
Reduce
oil level
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center
For more information on messages in the
display concerning engine oil, see the
“Practical hints” section (
page 355). Adding engine oil
SL 500 and SL 55 AMG1Filler capSL 6001Filler cap
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System (U.S. vehicles) or
FSS (Canada vehicles). For a listing of
approved engine oils and oil filters, re-
fer to the Factory Approved Service
Products pamphlet in your vehicle liter-
ature portfolio, or contact an autho-
rized Mercedes-Benz Center.
Using engine oils and oil filters of spec-
ification other than those expressly re-
quired for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.

275 Operation
Engine compartment
SL 65 AMG1Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 431) and
(
page 433).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission. Oil level in the ABC system
The oil level in the ABC system does not
need to be checked. If there is visible oil
loss or if malfunction messages appear in
the display, have an authorized
Mercedes-Benz Center check the ABC
system.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

276 OperationEngine compartmentCoolantThe engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.

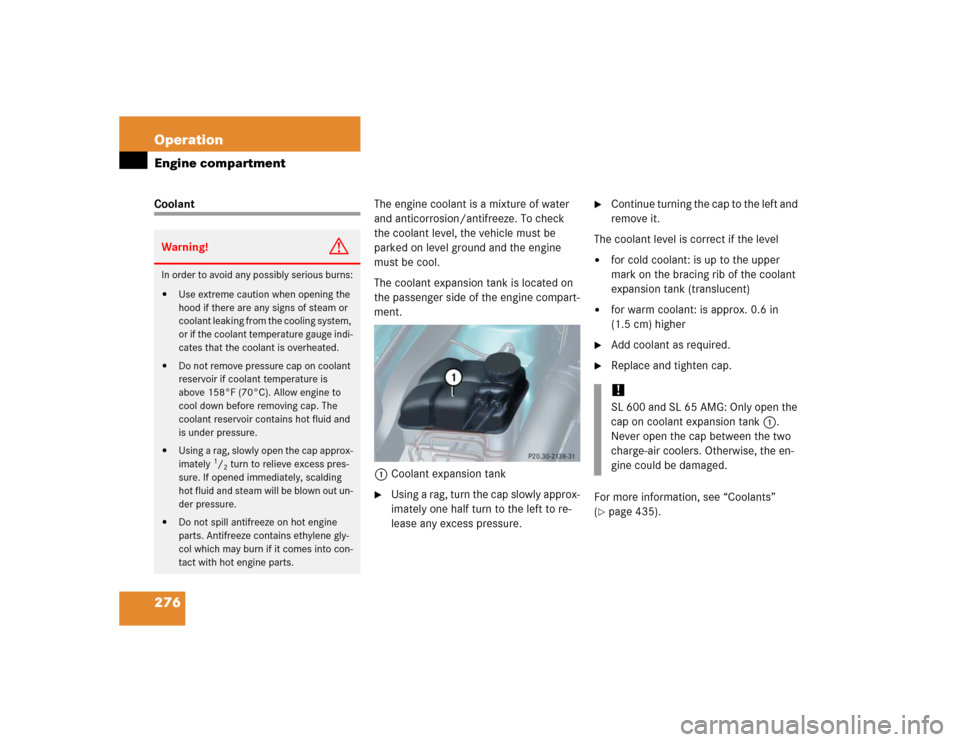

The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank

Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level


for cold coolant: is up to the upper
mark on the bracing rib of the coolant
expansion tank (translucent)


for warm coolant: is approx. 0.6 in
(1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information, see “Coolants”
(
page 435).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
!SL 600 and SL 65 AMG: Only open the
cap on coolant expansion tank1.
Never open the cap between the two
charge-air coolers. Otherwise, the en-
gine could be damaged.

277 Operation
Engine compartment
Battery
Your vehicle is equipped with two batter-
ies:

The starter battery (located in the en-
gine compartment)


The battery for electrical consumers
(located in the trunk)
These batteries should always be suffi-
ciently charged in order to achieve their
rated service life. Refer to Maintenance
Booklet for battery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more frequent-
ly.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.

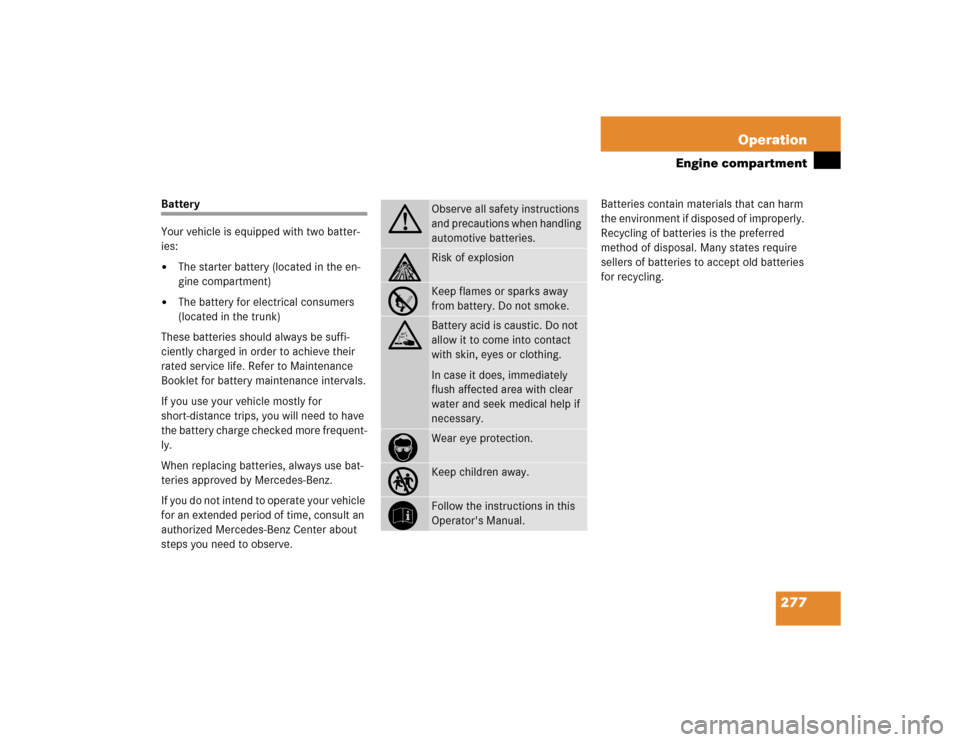

G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.

278 OperationEngine compartmentWindshield washer system and headlamp cleaning system

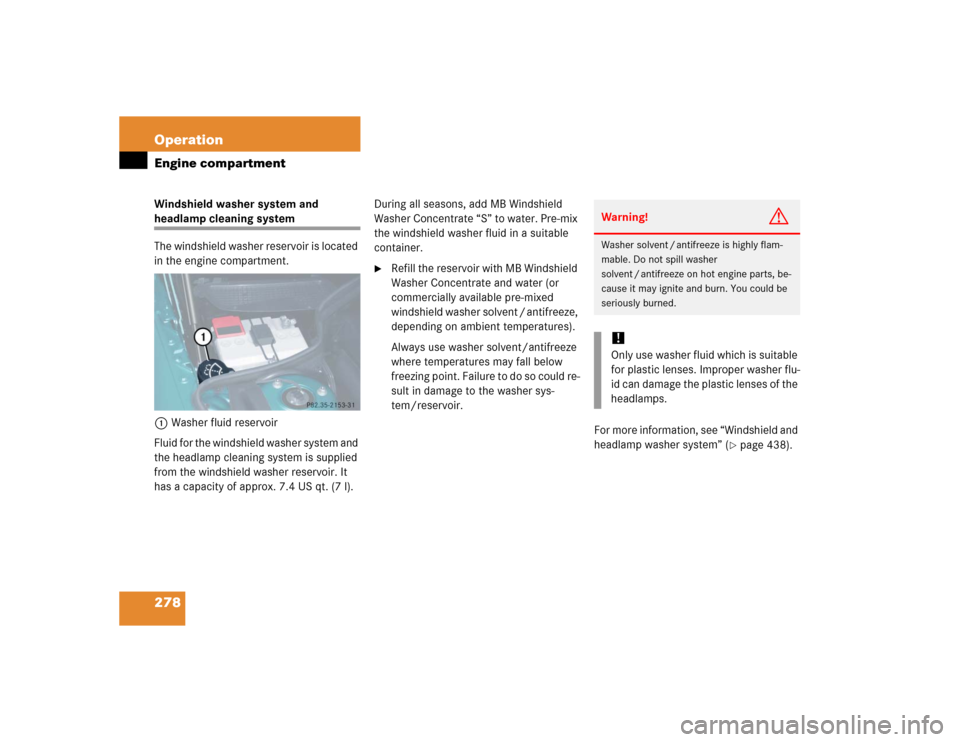

The windshield washer reservoir is located
in the engine compartment.
1Washer fluid reservoir
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approx. 7.4 US qt. (7 l).During all seasons, add MB Windshield
Washer Concentrate “S” to water. Pre-mix
the windshield washer fluid in a suitable
container.

Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available pre-mixed
windshield washer solvent / antifreeze,
depending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could re-
sult in damage to the washer sys-
tem/reservoir.
For more information, see “Windshield and
headlamp washer system” (
page 438).
Warning!
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent / antifreeze on hot engine parts, be-
cause it may ignite and burn. You could be
seriously burned.!Only use washer fluid which is suitable
for plastic lenses. Improper washer flu-
id can damage the plastic lenses of the
headlamps.
