Page 377 of 474

375 Practical hints
Locking/unlocking in an emergency
Unlocking the trunk
A minimum height clearance of
6.2 ft (1.89 m) is required to open the
trunk lid.
If you are unable to unlock the trunk with
the SmartKey, open the trunk with the me-
chanical key.
The handle is located above the rear li-
cense plate recess.Trunk lid lock1Unlocking
2Handle
Insert the mechanical key into the
trunk lid lock.
Turn the mechanical key counterclock-
wise to position 1 and hold it in this
position.
Pull the trunk lid handle 2 and lift lid.Unlocking interior storage compart-
ments
Locking storage areas in the passenger
compartment include:
the glove box
the storage compartment under the
armrest
the rear storage compartments
If these cannot be unlocked by means of
the SmartKey, the SmartKey with
KEYLESS-GO*, or the central locking but-
ton, use the mechanical key to open the
glove box.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:
Press button Œ or ‹on the
SmartKey.
Insert the SmartKey in the starter
switch.
Press the KEYLESS-GO* start/stop
button (
page 37).
Grasp the outside door handle (ve-
hicles with KEYLESS-GO* only).
iThe storage compartment under the
armrest and the rear storage compart-
ments can only be unlocked at the
glove box lock using the mechanical
key.
Page 378 of 474

376 Practical hintsLocking/unlocking in an emergency1Separately unlock storage compart-
ments
2Centrally lock/unlock storage com-
partments
3Separately lock storage compartments
Slide mechanical key out of SmartKey
housing (
page 374).
Insert the mechanical key into the
glove box lock and turn it to
position2.
All storage compartments are now un-
locked.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, lock it with the mechanical
key as follows:
Close the passenger door and the trunk
lid.
Press the central locking switch in the
center console (
page 110).
Check to see whether the locking knob
on the passenger door is still visible. If
necessary push it down manually.
Slide the mechanical key out of the
SmartKey.
Lock the driver’s door with the me-
chanical key.
Lowering the load assist manually
If the load assist feature does not fully low-
er the retractable hardtop into the trunk
compartment and you are unable to close
the trunk lid, follow the instructions below.
1Hex-socket wrench
2Locking screw
Remove the trunk floor from the trunk.
Lift up the lid located at the lower left
side of the trunk.
Have a second person lift and hold the
retracted hardtop.
Page 379 of 474

377 Practical hints
Locking/unlocking in an emergency
Using the hex-socket wrench provided
in the vehicle tool kit, carefully turn the
locking screw 2 approximately one
quarter turn.
Hook luggage cover into holders
(page 197).
Let go of the hardtop.
It should gradually lower into the trunk.
When top is completely lowered, return
locking screw 2 to its original posi-
tion.
Close the lid.
Replace the trunk floor.
Visit an authorized Mercedes-Benz
Center as soon as possible.Replacing batteries in the SmartKey/
SmartKey with KEYLESS-GO*
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.SmartKey
1Mechanical key
2Battery compartment
Replacement batteries: Lithium, type
CR 2025 or equivalent.
!Do not overtighten the screw.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen replacing batteries, always re-
place both batteries. The required re-
placement batteries are available at
any Mercedes-Benz Center.
Page 380 of 474
378 Practical hintsLocking/unlocking in an emergency
Remove mechanical key (
page 374).
Insert the mechanical key1in side
opening and push gray slide.
The battery compartment is unlatched.
Pull battery compartment2out of the
SmartKey housing in direction of ar-
row.
Remove the batteries.
3Battery
4Contact spring
Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.
Return battery compartment into hous-
ing until it locks into place.SmartKey with KEYLESS-GO*
1Battery
2Tilt battery up
3Mechanical key
Replacement batteries: Lithium, type
CR 2025 or equivalent.
iThe required replacement batteries are
available at any Mercedes-Benz
Center.
Page 381 of 474
379 Practical hints
Locking/unlocking in an emergency
Remove mechanical key (
page 374).
Insert the mechanical key in side open-
ing and push gray slide.
The battery compartment is unlatched.
Pull the battery compartment out of the
SmartKey housing.
Using mechanical key3, apply pres-
sure to position 2.
Battery 1 tilts up slightly.
Pull battery 1 out in direction of ar-
row.
Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.
Return battery compartment into hous-
ing until it locks into place.
Page 382 of 474
380 Practical hintsReplacing bulbsBulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.
iBackup lamps will be brought into use
when the following lamps malfunction:
Turn signal lamps
Brake lamps
Parking lamps
Tail lamps
Observe the messages in the multi-
function display (
page 335).
Page 383 of 474
381 Practical hints
Replacing bulbs

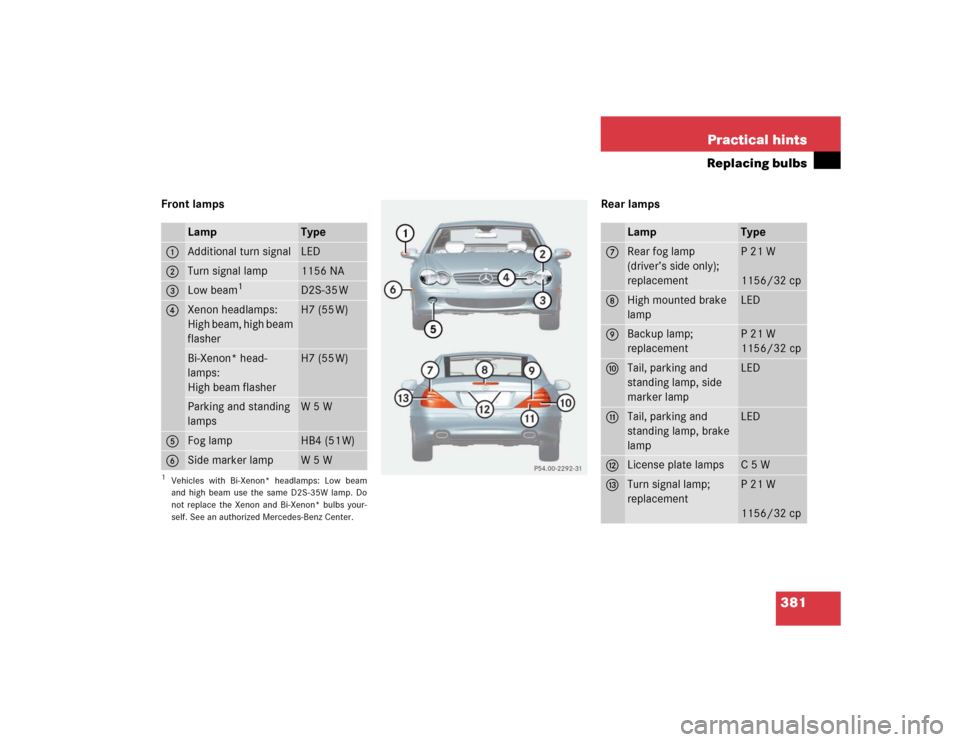

Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
LED
2
Turn signal lamp
1156 NA
3
Low beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Xenon and Bi-Xenon* bulbs your-
self. See an authorized Mercedes-Benz Center.
D2S-35 W
4
Xenon headlamps:
High beam, high beam
flasher
H7 (55 W)
Bi-Xenon* head-
lamps:
High beam flasher
H7 (55 W)
Parking and standing
lamps
W 5 W
5
Fog lamp
HB4 (51 W)
6
Side marker lamp
W 5 W
Lamp
Type
7
Rear fog lamp
(driver’s side only);
replacement
P 21 W
1156/32 cp
8
High mounted brake
lamp
LED
9
Backup lamp;
replacement
P 21 W
1156/32 cp
a
Tail, parking and
standing lamp, side
marker lamp
LED
b
Tail, parking and
standing lamp, brake
lamp
LED
c
License plate lamps
C 5 W
d
Turn signal lamp;
replacement
P 21 W
1156/32 cp
Page 384 of 474

382 Practical hintsReplacing bulbs
Notes on bulb replacement
Only use 12-volt bulbs of the same type
and with the specified watt rating.
Switch the lights off before changing a
bulb to prevent short circuits.
Always use a clean lint-free cloth when
handling bulbs.
Your hands should be dry and free of oil
and grease.
If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:
the additional turn signals in the exteri-
or rear view mirrors
the high mounted brake lamp
the brake lamps
the parking lamps and the side marker
lamps in the tail lamp unit
the rear fog lamps
the low beam (Xenon or Bi-Xenon*)
lamps
the front fog lamps
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
touch or move it when hot
drop the bulb
scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
iHave the headlamp adjustment
checked regularly.
