2004 TOYOTA SIENNA Owners Manual

04 SIENNA_U (L/O 0408)
59
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
4. SEAT LUMBAR SUPPORTADJUSTING KNOB
To change the amount of lumber sup-
port, turn the knob either way.

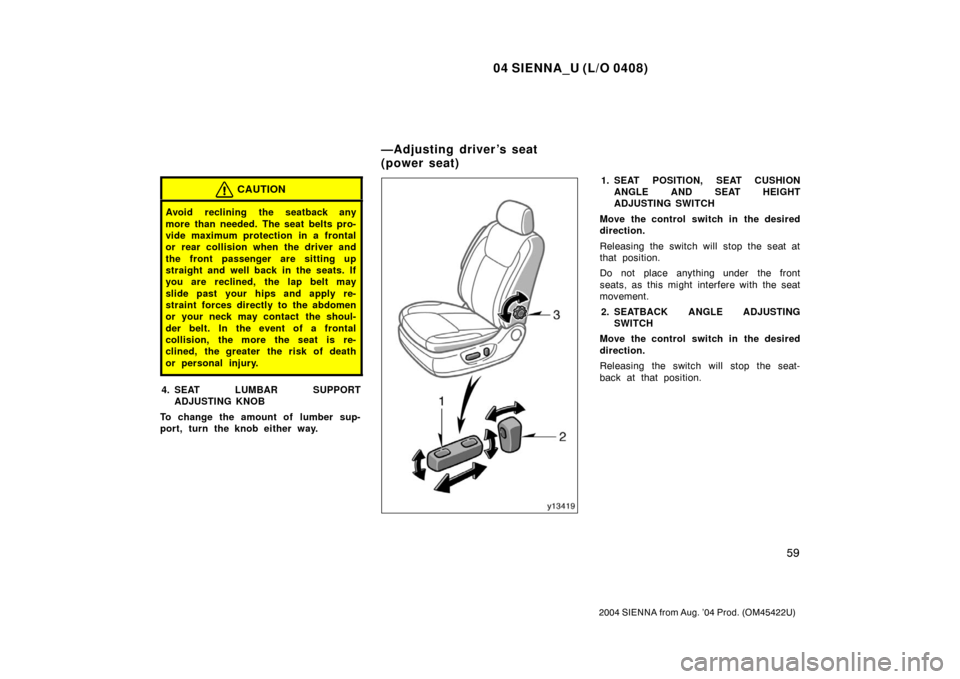

1. SEAT POSITION, SEAT CUSHION ANGLE AND SEAT HEIGHT
ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting driver’s seat
(power seat)

04 SIENNA_U (L/O 0408)
60
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORTADJUSTING KNOB
To change the amount of lumber sup-
port, turn the knob either way.

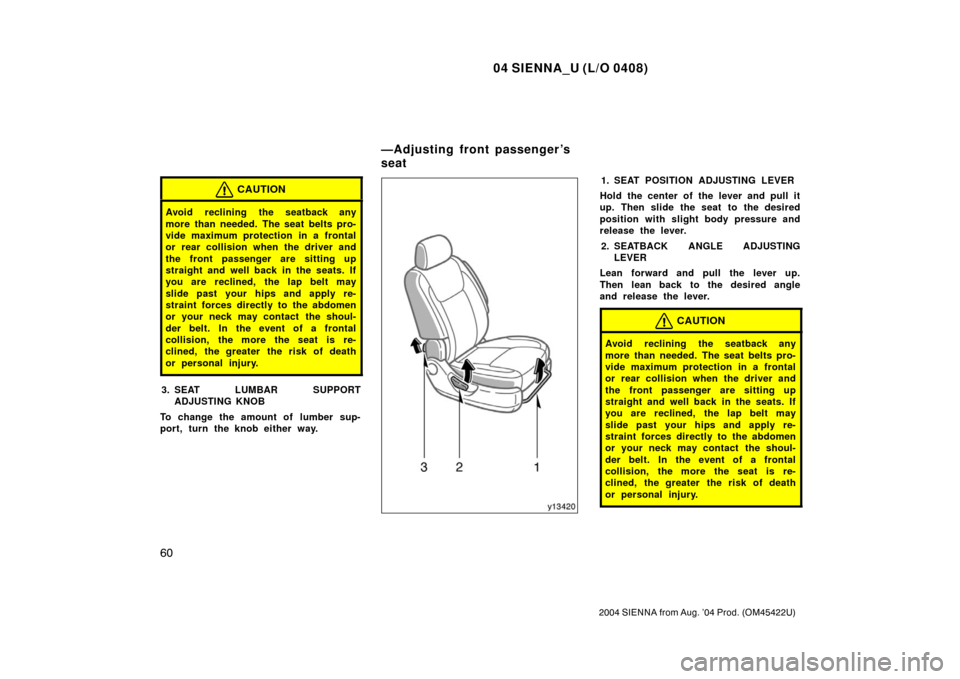

1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
—Adjusting front passenger ’s
seat

04 SIENNA_U (L/O 0408)
61
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
3. SEATBACK FOLDING LEVER (onsome models)
The front passenger ’s seat can be
folded down using this lever.

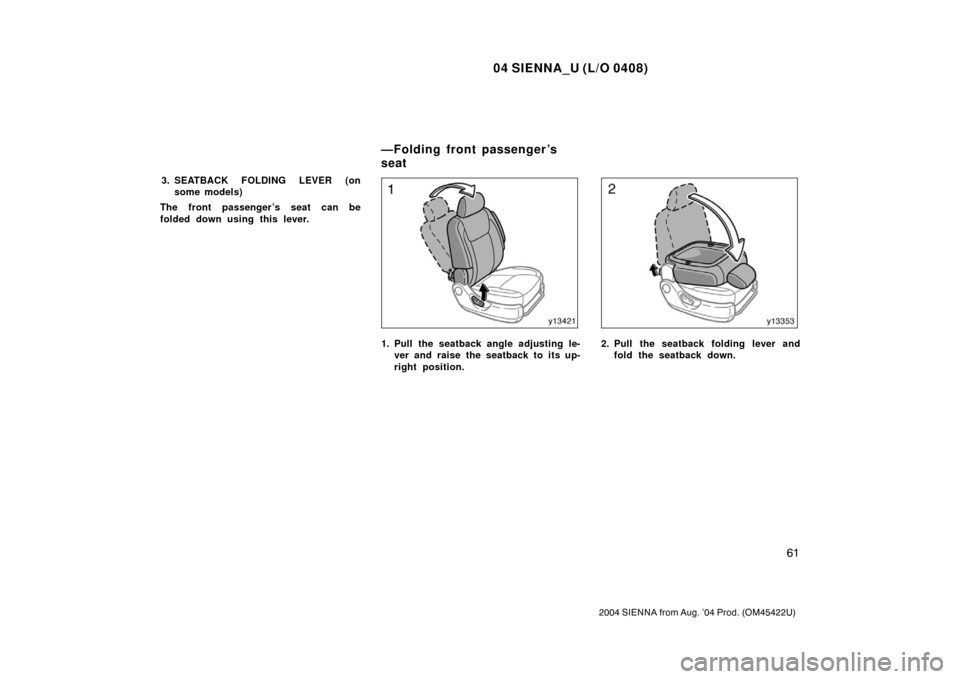

1. Pull the seatback angle adjusting le- ver and raise the seatback to its up-
right position.2. Pull the seatback folding lever andfold the seatback down.
—Folding front passenger ’s
seat

04 SIENNA_U (L/O 0408)
62
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
You can use the seatback as a temporary
table only when the vehicle is stopped.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the front passenger ’s
seat is securely locked in sliding
position when you set the seat as
a temporary table.
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is lock in position.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Rear seats—
—Rear seat precautions

04 SIENNA_U (L/O 0408)
63
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 389 in Section 2 for
precautions when loading luggage.
Outer seatCenter seat

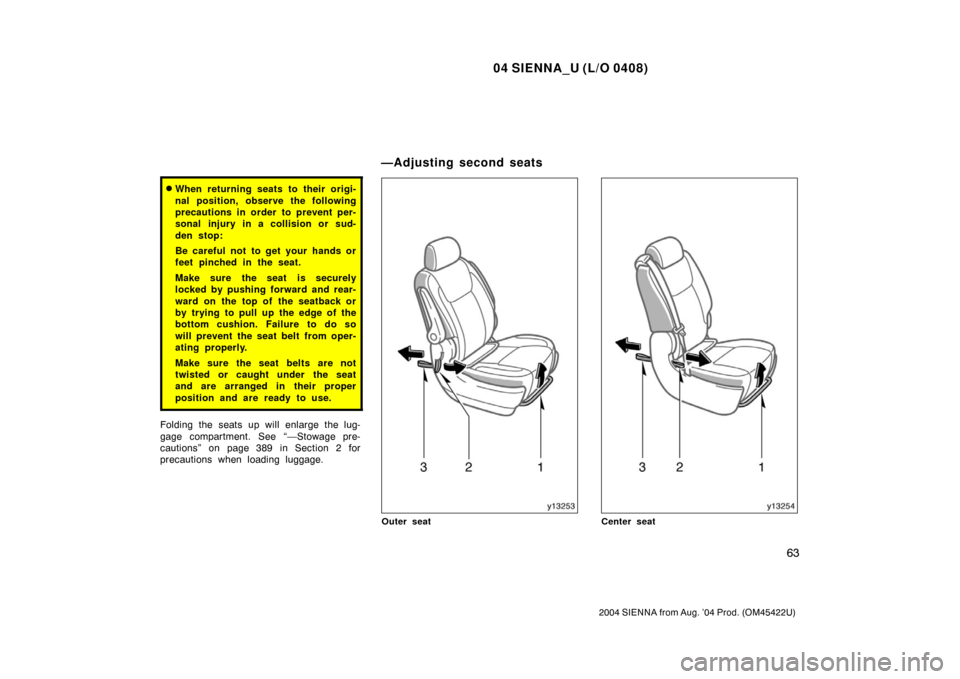

—Adjusting second seats

04 SIENNA_U (L/O 0408)
64
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER/STRAP (from front)
Lean forward and pull the lever or strap
toward you. Then lean back to the de-
sired angle and release the lever or
strap.

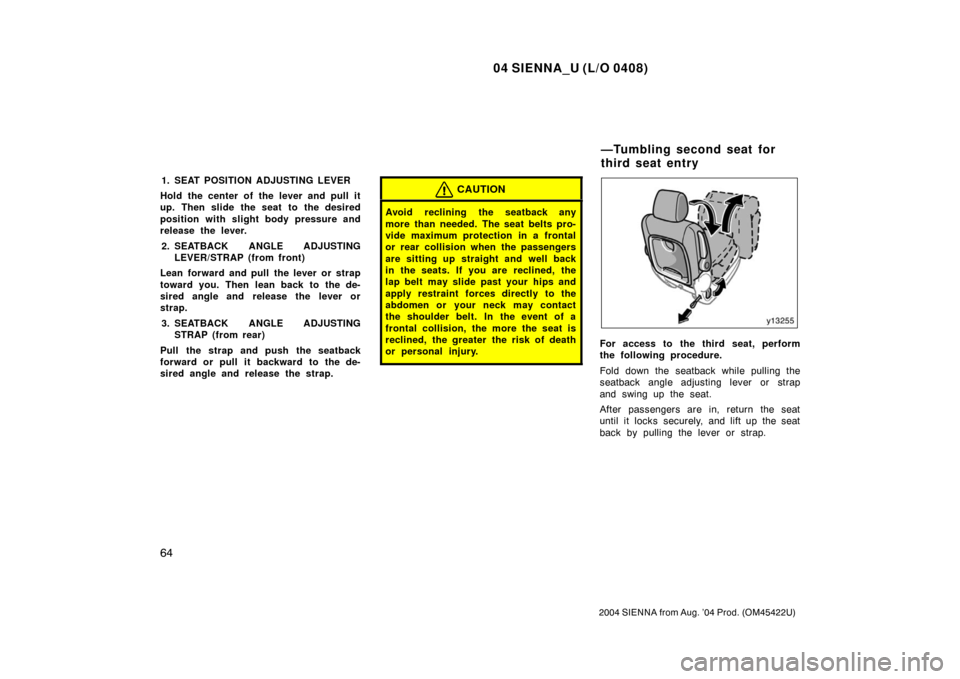

3. SEATBACK ANGLE ADJUSTING STRAP (from rear)
Pull the strap and push the seatback
forward or pull it backward to the de-
sired angle and release the strap.CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the passengers
are sitting up straight and well back
in the seats. If you are reclined, the
lap belt may slide past your hips and
apply restraint forces directly to the
abdomen or your neck may contact
the shoulder belt. In the event of a
frontal collision, the more the seat is
reclined, the greater the risk of death
or personal injury.
For access to the third seat, perform
the following procedure.
Fold down the seatback while pulling the
seatback angle adjusting lever or strap
and swing up the seat.
After passengers are in, return the seat
until it locks securely, and lift up the seat
back by pulling the lever or strap.
—Tumbling second seat for
third seat entry

04 SIENNA_U (L/O 0408)
65
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
CAUTION
After returning the seat, make sure
the seat is securely locked by push-
ing forward and rearward on the top
of the seatback or by trying to pull
up the edge of the bottom cushion.
Failure to do so will prevent seat belt
from operating properly.

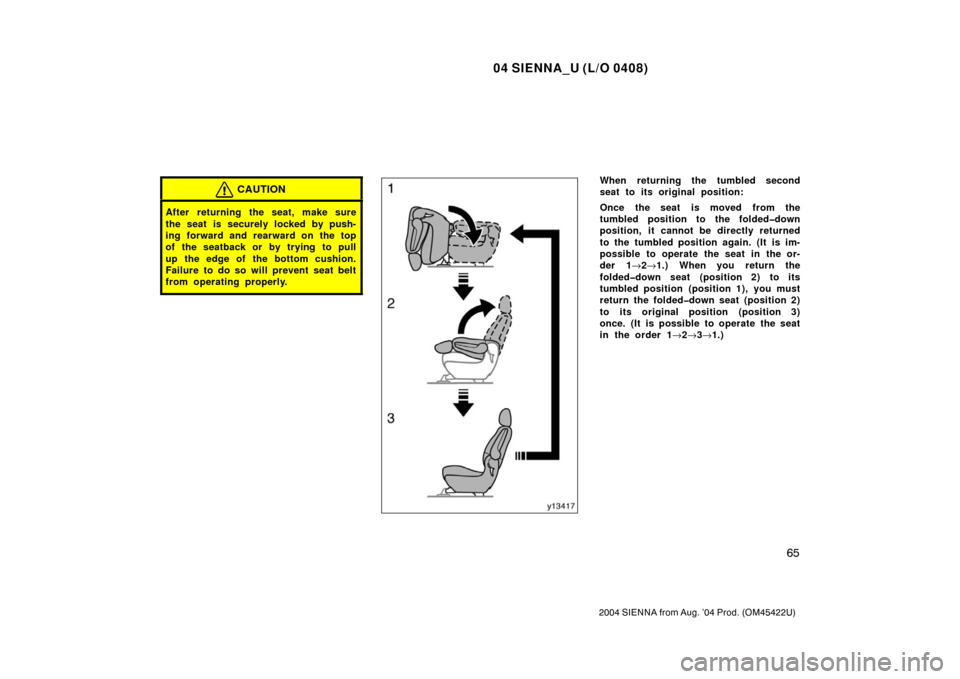

When returning the tumbled second
seat to its original position:
Once the seat is moved from the
tumbled position to the foldeddown
position, it cannot be directly returned
to the tumbled position again. (It is im-
possible to operate the seat in the or-
der 1→2→ 1.) When you return the
foldeddown seat (position 2) to its
tumbled position (position 1), you must
return the foldeddown seat (position 2)
to its original position (position 3)
once. (It is possible to operate the seat
in the order 1→ 2→ 3→ 1.)

04 SIENNA_U (L/O 0408)
66
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
BEFORE TUMBLING SECOND SEATS
(7passenger models)1. Stow the second seat belt buckles as shown in the illustration.
This prevents the buckles from sticking
out when you tumble the second seats.
NOTICE
To prevent damage to the seat belt
buckles, the buckles must be stowed
before you fold the seatback.
2. Make sure the shoulder belt passes through the hanger when folding the
second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
TUMBLING SECOND SEATS 1. Lower the head restraint to the low- est position. Hold the center of the
lever and pull it up. Then slide the
seat to the rearmost lock position.
—Tumbling second seats
(outer seats)
