2004 TOYOTA SIENNA Owners Manual

04 SIENNA_U (L/O 0408)
347
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Type D (instrument panel, with seat heat-
er)
Type E (upper side of the glove box)
Type F (front door)
Type G (quarter trim)
Type H (spare tire cover)
Type I (front seat side table)

04 SIENNA_U (L/O 0408)
348
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Type J (rear side of console box)
Type K (front passenger’s seat)
Type L (center roof, with rear seat audio
system)To use the coin holder, push the but-
ton.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the coin holder
closed when it is not in use.
Coin holder

04 SIENNA_U (L/O 0408)
349
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The cup holder is designed for holding
cups or drinkcans. To use them, ob-
serve the following illustrations.
Type C and D—For details, see “Front
seat side table” on page 357 in this Sec-
tion.
Type G—For details, see “Removable con-
sole box” on page 352 in this Section.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A and F—To reduce the
chance of injury in case of an acci-
dent or a sudden stop while driv-
ing, keep the cup holder closed
when it is not in use.
Type A (instrument panel)
Type B (quarter trim)
Type C (front side of the front seat side
table)
Type D (rear side of the front seat side
table)
Cup holders

04 SIENNA_U (L/O 0408)
350
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Type E (front side of console box)
Type F (rear side of console box)
Type G (console box tray)

04 SIENNA_U (L/O 0408)
351
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Front door
Sliding door
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
This box is designed to place things
like bottles.
Bottle holdersStorage box

04 SIENNA_U (L/O 0408)
352
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CONSOLE BOX
To access the console box, pull up the
lock release lever and raise the console
box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Removable console box

04 SIENNA_U (L/O 0408)
353
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

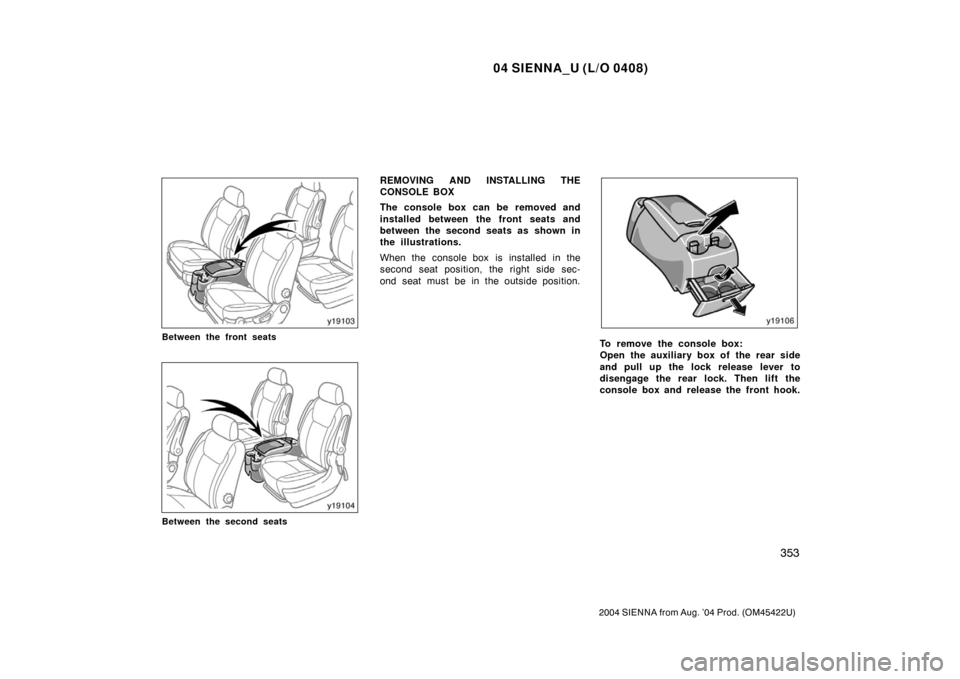

Between the front seats
Between the second seats
REMOVING AND INSTALLING THE
CONSOLE BOX
The console box can be removed and
installed between the front seats and
between the second seats as shown in
the illustrations.
When the console box is installed in the
second seat position, the right side sec-
ond seat must be in the outside position.
To remove the console box:
Open the auxiliary box of the rear side
and pull up the lock release lever to
disengage the rear lock. Then lift the
console box and release the front hook.

04 SIENNA_U (L/O 0408)
354
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

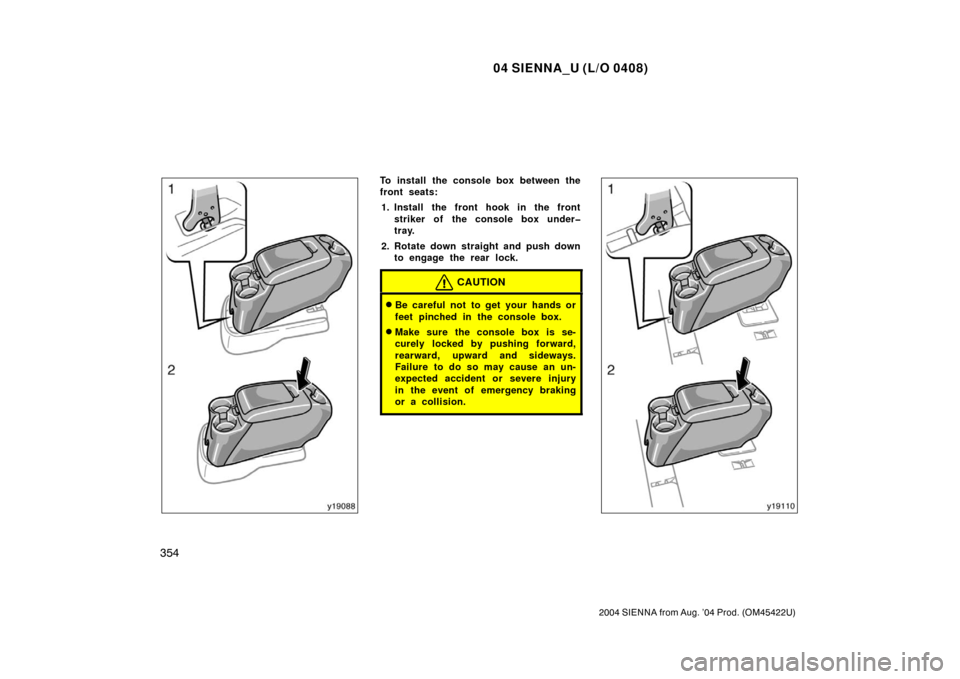

To install the console box between the
front seats:1. Install the front hook in the front striker of the console box under
tray.
2. Rotate down straight and push down to engage the rear lock.
CAUTION
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward,
rearward, upward and sideways.
Failure to do so may cause an un-
expected accident or severe injury
in the event of emergency braking
or a collision.
