2004 TOYOTA SIENNA Owners Manual

04 SIENNA_U (L/O 0408)
131
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt to retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

04 SIENNA_U (L/O 0408)
132
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
4. To remove the convertible seat, pressthe buckle −release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.
Move seat fully back

04 SIENNA_U (L/O 0408)
133
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

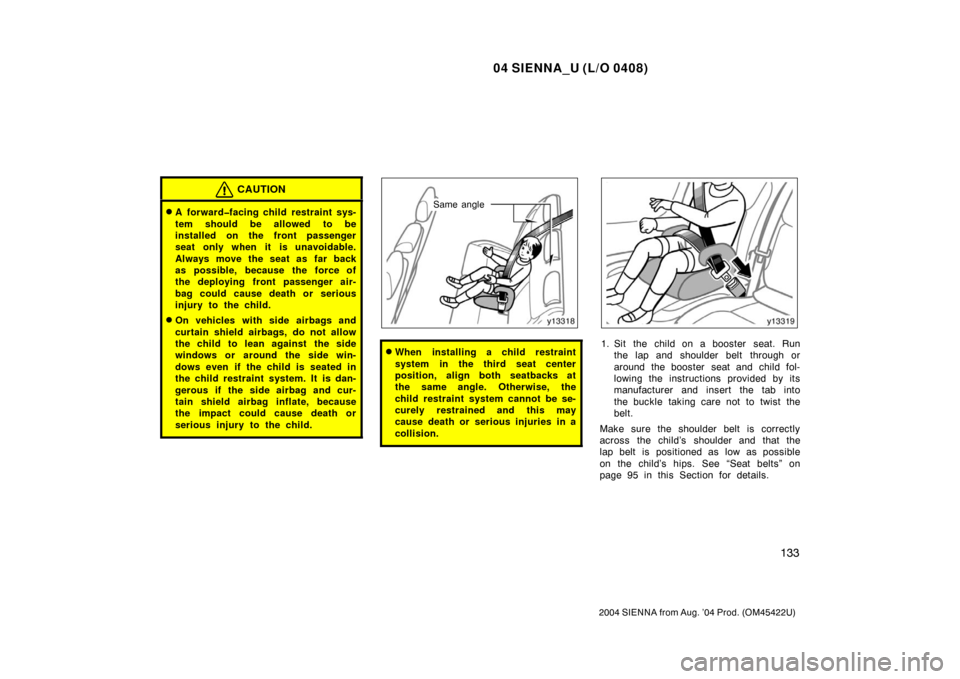

CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the side
windows or around the side win-
dows even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, because
the impact could cause death or
serious injury to the child.
Same angle
When installing a child restraint
system in the third seat center
position, align both seatbacks at
the same angle. Otherwise, the
child restraint system cannot be se-
curely restrained and this may
cause death or serious injuries in a
collision.1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 95 in this Section for details.

04 SIENNA_U (L/O 0408)
134
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

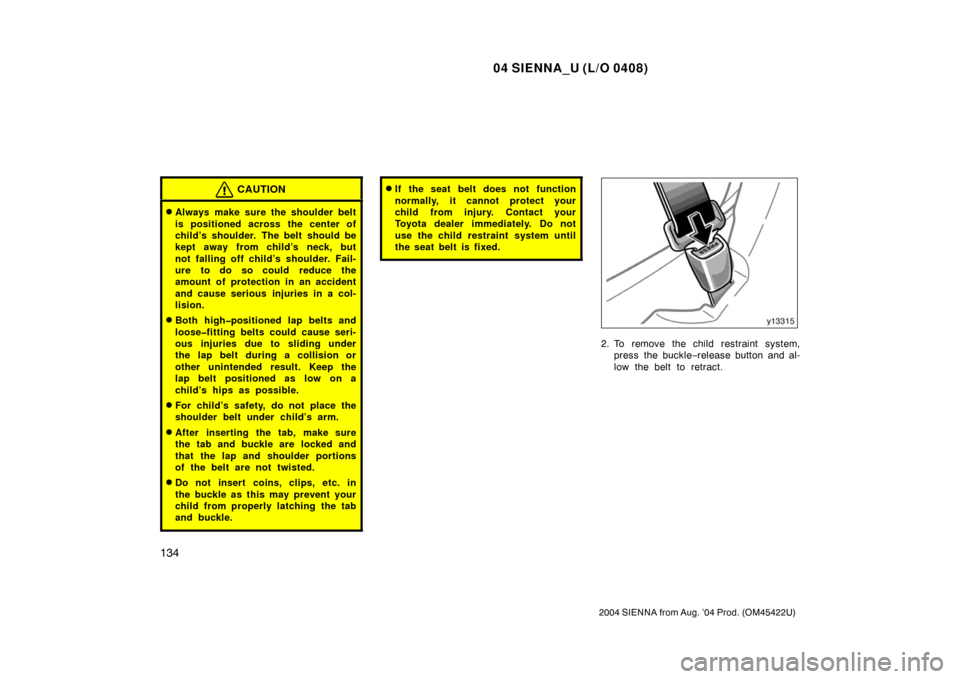

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
2. To remove the child restraint system, press the buckle −release button and al-
low the belt to retract.

04 SIENNA_U (L/O 0408)
135
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
7passenger models
Anchor brackets
8passenger models
Use the anchor brackets on the back of
the second seats to attach the top strap.
Anchor bracket is installed for each sec-
ond seating position.
— U sin g a to p st rap
(for second seats)

04 SIENNA_U (L/O 0408)
136
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 121 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Replace the head restraint.

04 SIENNA_U (L/O 0408)
137
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

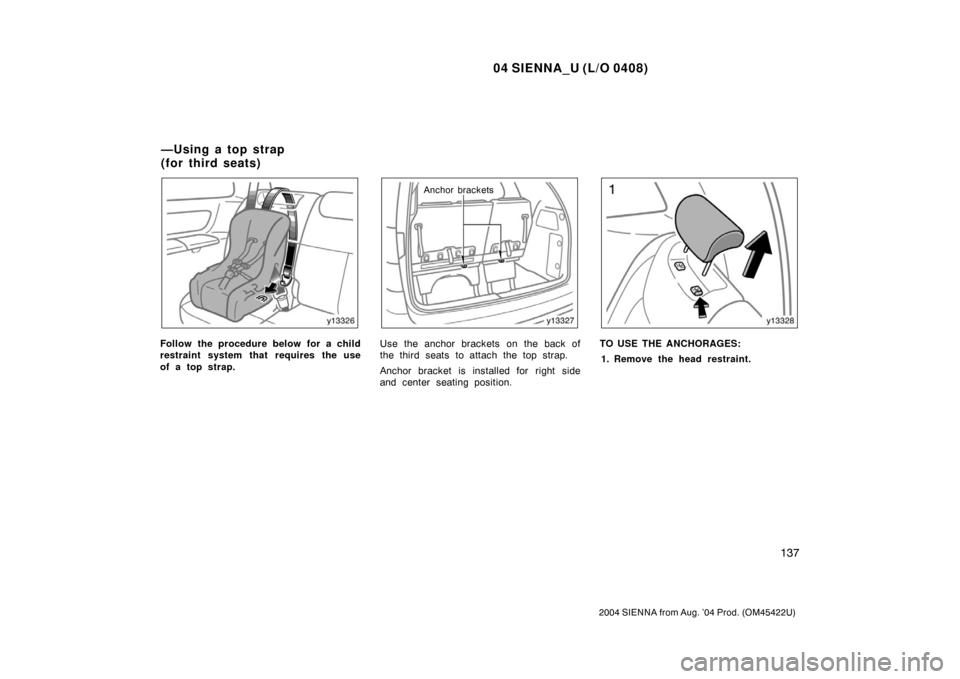

Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use the anchor brackets on the back of
the third seats to attach the top strap.
Anchor bracket is installed for right side
and center seating position.TO USE THE ANCHORAGES:1. Remove the head restraint.
— U sin g a to p st rap
(for third seats)

04 SIENNA_U (L/O 0408)
138
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

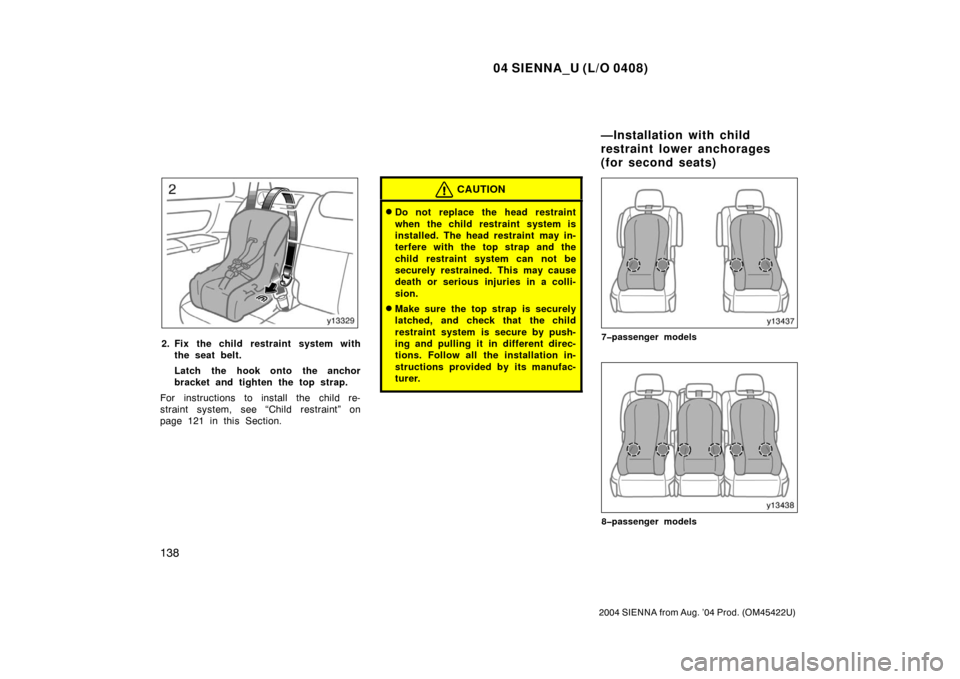

2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 121 in this Section.
CAUTION
Do not replace the head restraint
when the child restraint system is
installed. The head restraint may in-
terfere with the top strap and the
child restraint system can not be
securely restrained. This may cause
death or serious injuries in a colli-
sion.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.
7passenger models
8passenger models
—Installation with child
restraint lower anchorages
(for second seats)
