2004 TOYOTA SIENNA transmission

04 SIENNA_U (L/O 0408)
2
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

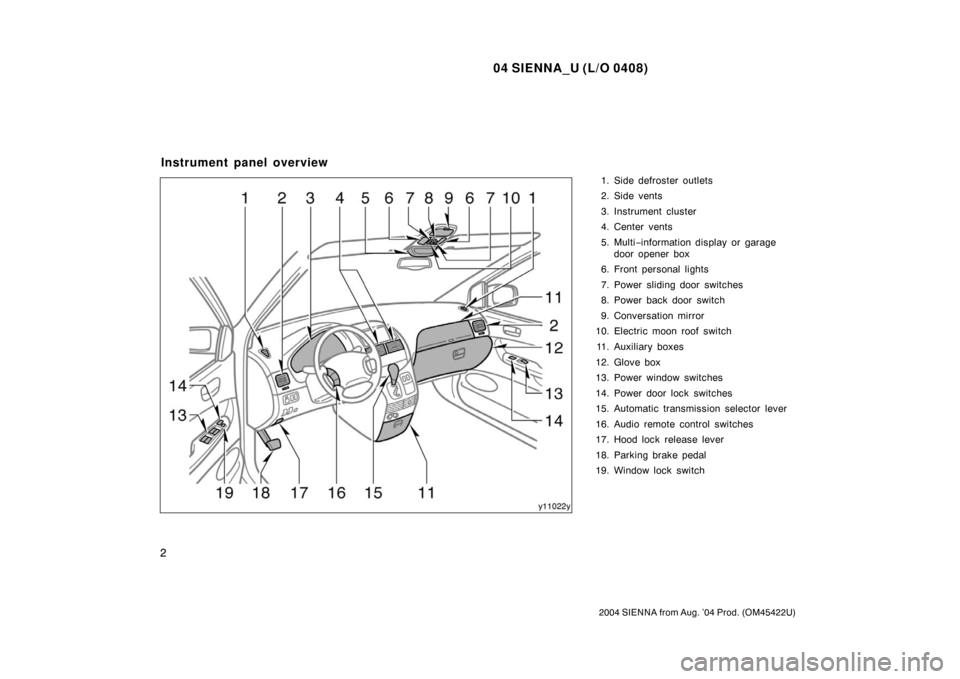

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Multi−information display or garage
door opener box
6. Front personal lights
7. Power sliding door switches
8. Power back door switch
9. Conversation mirror
10. Electric moon roof switch
11. Auxiliary boxes
12. Glove box
13. Power window switches
14. Power door lock switches
15. Automatic transmission selector lever
16. Audio remote control switches
17. Hood lock release lever
18. Parking brake pedal
19. Window lock switch
Instrument panel overview

04 SIENNA_U (L/O 0408)
7
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Cruise control indicator light∗2 or dynamic laser
cruise control indicator light∗ 3
Automatic transmission indicator lights Headlight high beam indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 167 in Section 1 −5.
∗
2: If this light flashes, see “Cruise control” on page 192 in
Section 1 −6.
∗
3: If this light flashes, see “Dynamic laser cruise control” on
page 195 in Section 1 −6.
Slip indicator light
Traction control system off indicator light
(two −wheel drive models)
Turn signal indicator lights
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light
Engine immobilizer/theft deterrent system
indicator light

04 SIENNA_U (L/O 0408)
33
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
The child−protector is unlocked.
(switches on the center pillar only)
Closing operation can be performed by
the switches under the following condi-
tions:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch is
pushed out.)
The sliding door is between the fully −
opened position and half −opened posi-
tion.
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel filler door
is opened.
The length of time required to push the
switches for operating the sliding door can
be changed. For details, contact your
Toyota dealer.
CAUTION
If you shift the automatic transmis-
sion selector lever out of “P” and
accelerate before the power sliding
door is closed completely, the sliding
door may reverse to the open posi-
tion. A child or others could fall out
of the vehicle and be injured. Always
make sure the power sliding door is
closed and latched before you start
driving.
OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push the
“
” or “” switches on the wire-
less remote control transmitter about
one second. (Only when the power slid-
ing door system is on.) For details, see
“Wireless remote control” on page 14
in this Section.
ASSISTS OPERATION WITH THE
OUTSIDE OR INSIDE HANDLE BY HAND
When the power sliding door system is on
(the “SLIDE DOOR OFF” switch is pushed
out), if you pull the outside handle or slide
the inside handle, the sliding door will
automatically and completely open or
close.
When the power sliding door system is
off, the sliding door can be operated
manually by the outside or inside handle.

04 SIENNA_U (L/O 0408)
40
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Opening operation can be performed by
the switch under the following condi-
tions:
The back door is unlocked.
The power back door system is on.
(The “BACK DOOR OFF” switch is
pushed out.)
The back door is between in the fully−
closed position and half −opened posi-
tion.
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
Closing operation can be performed by
the switch under the following condi-
tions:
The power back door system is on.
(The “BACK DOOR OFF” switch is
pushed out.)
The back door is between in the fully −
opened position and half −opened posi-
tion.
The time of pushing the switches for oper-
ating the back door can be changed. For
details, contact your Toyota dealer. OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push the
“
” switch on the wireless remote
control transmitter about one second.
(Only when the power back door sys-
tem is on.) For details, see “Wireless
remote control” on page 14 in this Sec-
tion.
ASSISTS CLOSING BY HAND
When the power back door system is on
(the “BACK DOOR OFF” switch is pushed
out), if you move the back door about
10—15 cm (4—6 in.) from its fully −opened
position, the back door will automatically
and completely close.
When the power back door system is off,
the back door can be closed manually.
The assisting function when closing the
back door can be disabled and the assist-
ing function when opening the back door
can be added. For details, contact your
Toyota dealer.
JAM PROTECTION FUNCTION
If anything with sufficient resistance ob-
structs the power back door while it is
closing or opening, the back door will au-
tomatically reverse to the opposite direc-
tion.
If the jam protection function operates
continuously at the closing operation more
than 2 times, the back door will be
stopped at that position.

04 SIENNA_U (L/O 0408)
171
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase with the
accelerator pedal depressed down, there
may be a problem somewhere in your
electronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible. Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On
−Board Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 446
in Section 6.

04 SIENNA_U (L/O 0408)
177
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Traction control system 182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Vehicle stability control system 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire pressure warning system 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Dynamic laser cruise controll 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 6

04 SIENNA_U (L/O 0408)
179
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and key
removal
R: Reverse
N: Neutral
D: Normal driving
(shifting into overdrive possible)
4: Engine braking
(shifting into overdrive not possible)
3, 2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
Selector lever
Shift normally. Shift with the brake pedal
depressed. (The ignition switch
must be in “ON” position.)

04 SIENNA_U (L/O 0408)
180
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
(b) Normal driving1. Start the engine as instructed in “How to start the engine” on page 394 in
Section 3. The transmission must be in
“P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low, the transmis-
sion will not shift into the overdrive gear
even in the “D” position.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting. (c) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Shift into the “4” position. The trans-
mission will downshift to fourth gear
and engine braking will be enabled.
Shift into the “3” position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Tw o −wheel drive models
141 km/h (88 mph)
All −wheel drive models
137 km/h (86 mph)
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Tw o −wheel drive models
91 km/h (57 mph)
All −wheel drive models
88 km/h (55 mph)
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Tw o −wheel drive models
43 km/h (27 mph)
All −wheel drive models
42 km/h (26 mph)
Vehicles with cruise control or dynamic
laser cruise control—When the cruise con-
trol is being used, even if you downshift
from “D” to “4”, engine braking will not be
enabled because the cruise control is not
cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” on page 192 or “Dy-
namic laser cruise control” on page 195
in this Section.
