2004 TOYOTA SIENNA Owners Manual

04 SIENNA_U (L/O 0408)
123
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.CAUTION
Never install a rearfacing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rearfacing child restraint system
is installed on the front seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the side
windows or around the side win-
dows even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, because
the impact could cause death or
serious injury to the child.
After installing the child restraint
system, make sure it is secured in
place following the manufacturer ’s
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.
—Child restraint system

04 SIENNA_U (L/O 0408)
124
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 135 in this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” on page 138 in this Sec-
tion.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system

04 SIENNA_U (L/O 0408)
125
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

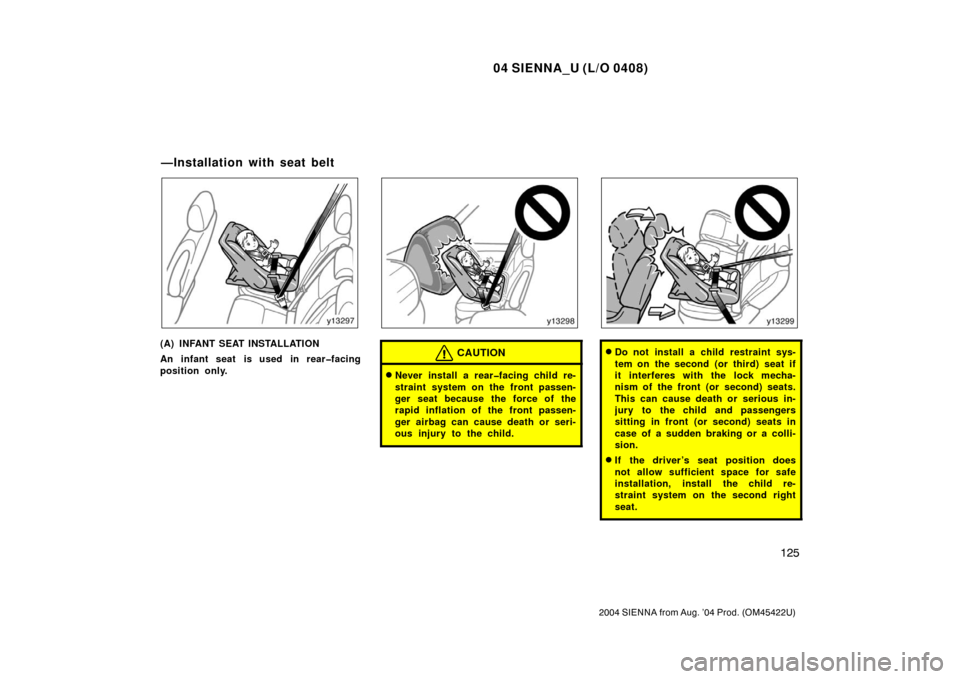

(A) INFANT SEAT INSTALLATION
An infant seat is used in rearfacing
position only.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
This can cause death or serious in-
jury to the child and passengers
sitting in front (or second) seats in
case of a sudden braking or a colli-
sion.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.
—Installation with seat belt

04 SIENNA_U (L/O 0408)
126
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

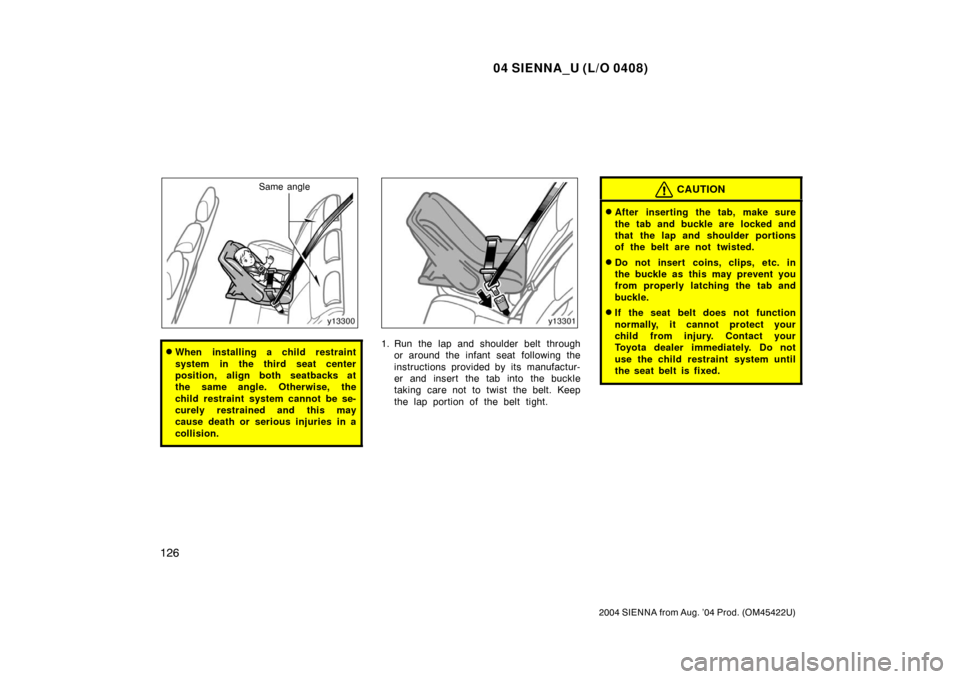

Same angle
When installing a child restraint
system in the third seat center
position, align both seatbacks at
the same angle. Otherwise, the
child restraint system cannot be se-
curely restrained and this may
cause death or serious injuries in a
collision.1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.

04 SIENNA_U (L/O 0408)
127
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

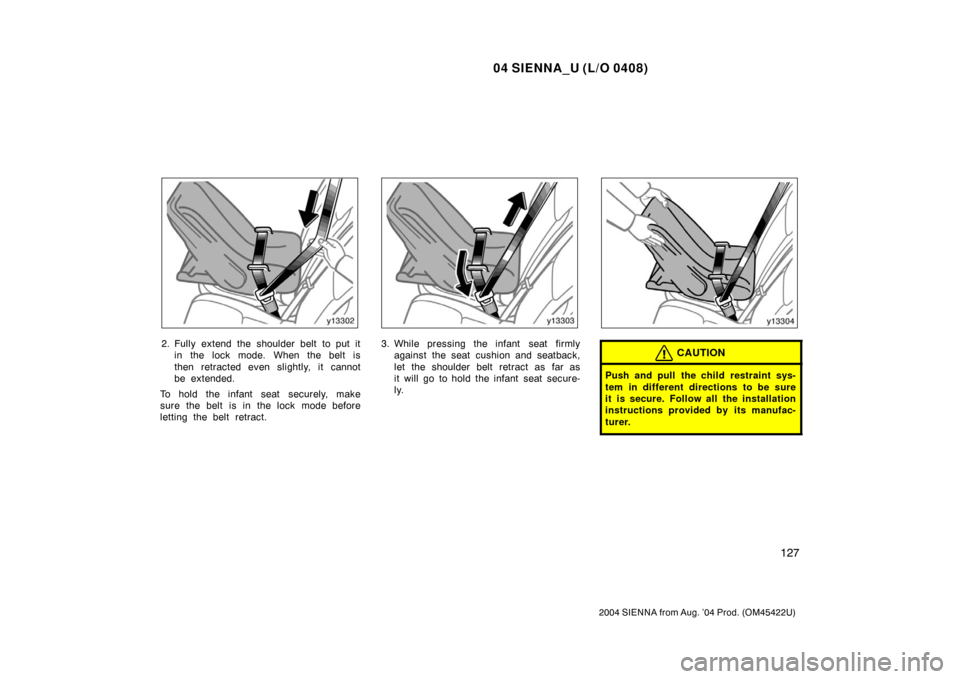

2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

04 SIENNA_U (L/O 0408)
128
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

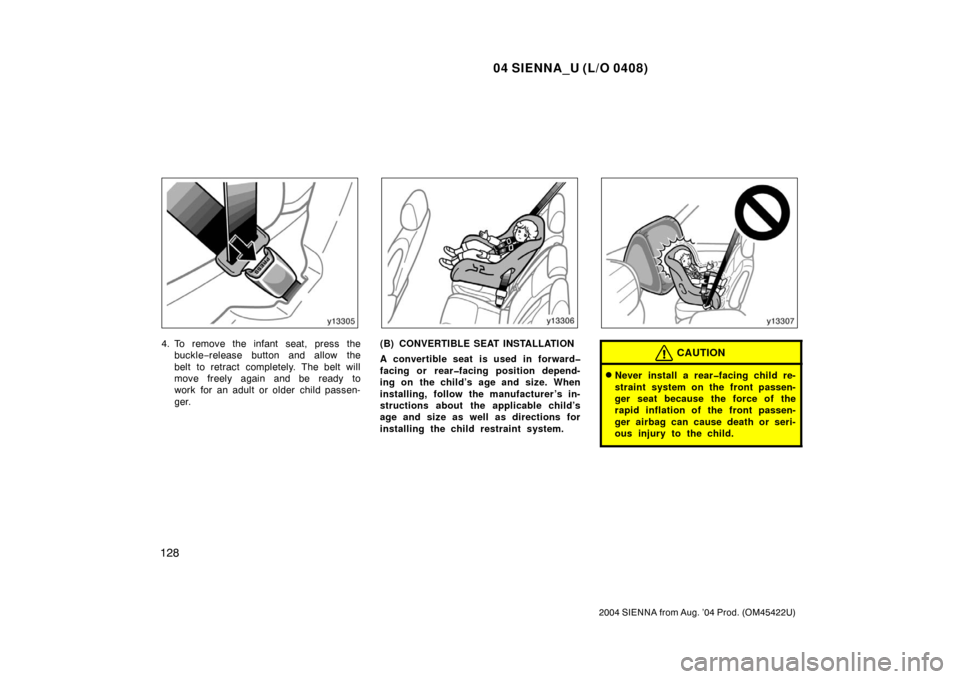

4. To remove the infant seat, press thebuckle −release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
structions about the applicable child’s
age and size as well as directions for
installing the child restraint system.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.

04 SIENNA_U (L/O 0408)
129
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

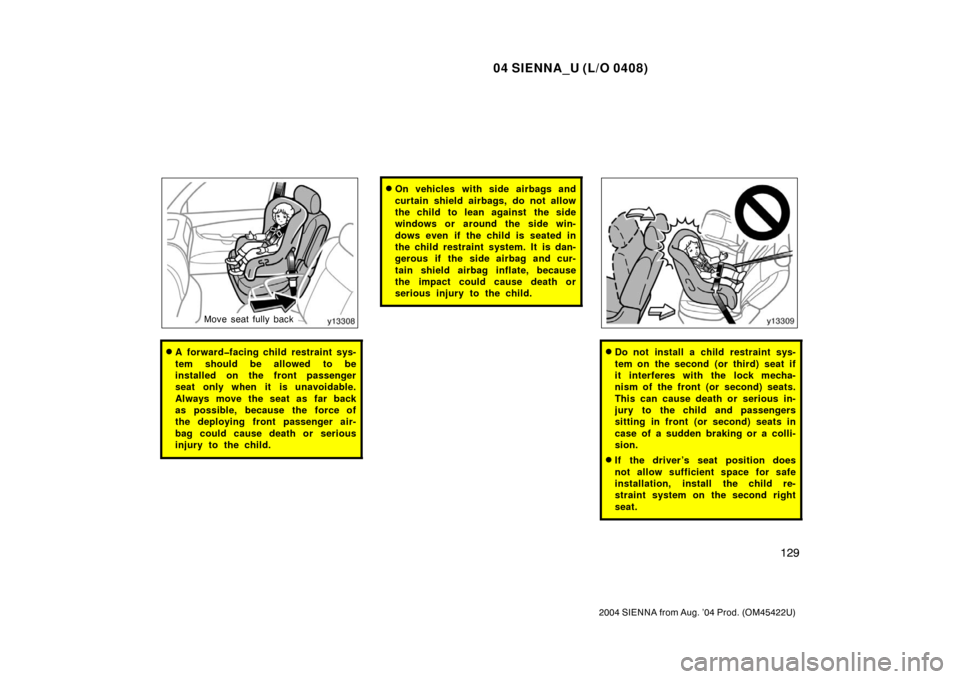

Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the side
windows or around the side win-
dows even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, because
the impact could cause death or
serious injury to the child.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
This can cause death or serious in-
jury to the child and passengers
sitting in front (or second) seats in
case of a sudden braking or a colli-
sion.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.

04 SIENNA_U (L/O 0408)
130
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

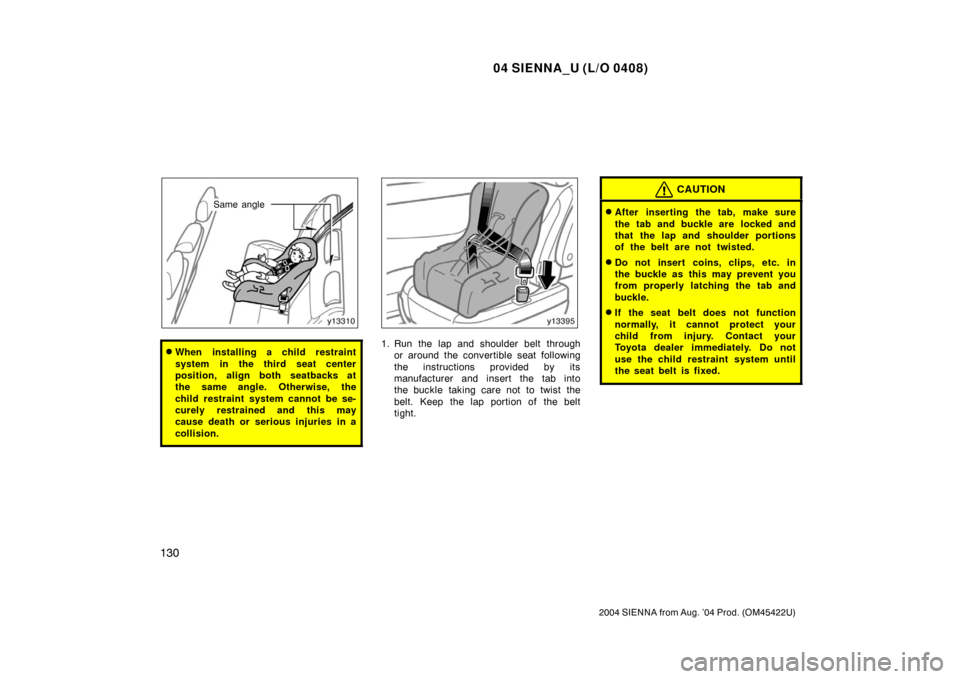

Same angle
When installing a child restraint
system in the third seat center
position, align both seatbacks at
the same angle. Otherwise, the
child restraint system cannot be se-
curely restrained and this may
cause death or serious injuries in a
collision.1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
