2004 TOYOTA SIENNA Owners Manual

04 SIENNA_U (L/O 0408)
83
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
1. Align the front leg hooks with therear strikers in the floor. Then swing
up the seat.2. Make sure the front leg is lockedsecurely, fold down the seat and en-
gage the rear leg lock.You can easily align the front leg hooks
with the rear strikers by using the floor
bezel. Put the front legs of the seat short
of the rear strikers as shown in the il-
lustration. Then slide the seat forward
along the groove of the bezel until the
front legs will reach the striker. Make sure
the front legs align with the striker, swing
up the seat.

04 SIENNA_U (L/O 0408)
84
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
When installing the seat, make sure
to align the front leg hooks with the
rearmost strikers of each pair in the
floor. If you align the legs with the
front strikers, the bezel in the floor
will be damaged.
If you lock the rear legs before the front
legs are not lock securely, disengage the
rear leg lock by pulling the rear leg re-
lease lever. Then reinstall the seat follow-
ing the correct procedure.

04 SIENNA_U (L/O 0408)
85
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
INSTALLING THE SECOND CENTER
SEAT IN THE FRONT AND CENTER
POSITION
The second center seat can be used in
the forward position.
To use the center second seat in the for-
ward position, install according to the fol-
lowing procedure.
BEFORE INSTALLING THE SECOND
CENTER SEAT IN FRONT AND CENTER
POSITION1. Slide the front seats forward from the rearmost position, stand the
seatbacks to the upright position.2. For vehicles equipped with the frontseat side table, pull up the lock re-
lease lever and fold the table down.

04 SIENNA_U (L/O 0408)
86
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
INSTALLING THE SECOND CENTER
SEAT IN THE FRONT AND CENTER
POSITION1. Remove the second center seat from the normal position. (For details, see
“—Removing second seat (center
seat)” on page 80 in this Section.)
Align the front leg hook with the
rear striker of the forward pair. Then
swing the seat until it reaches the
folded seat side table.
2. Push the foot pedal forward to se-curely latch the front leg locks. Make
sure the front leg is locked securely,
fold down the seat and engage the
rear leg lock.

04 SIENNA_U (L/O 0408)
87
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

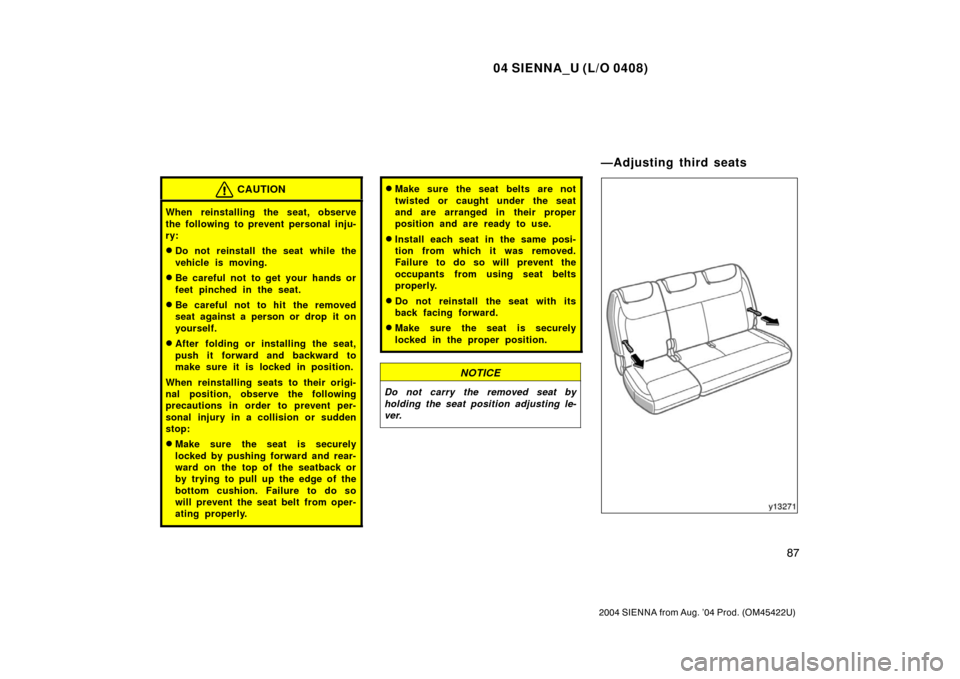

CAUTION
When reinstalling the seat, observe
the following to prevent personal inju-
ry:
Do not reinstall the seat while the
vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
When reinstalling seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or s udden
stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent the
occupants from using seat belts
properly.
Do not reinstall the seat with its
back facing forward.
Make sure the seat is securely
locked in the proper position.
NOTICE
Do not carry the removed seat by
holding the seat position adjusting le-
ver.
—Adjusting third seats

04 SIENNA_U (L/O 0408)
88
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
SEATBACK ANGLE ADJUSTING STRAP
Lean forward and pull the strap for-
ward. Then lean back to the desired
angle and release the strap.

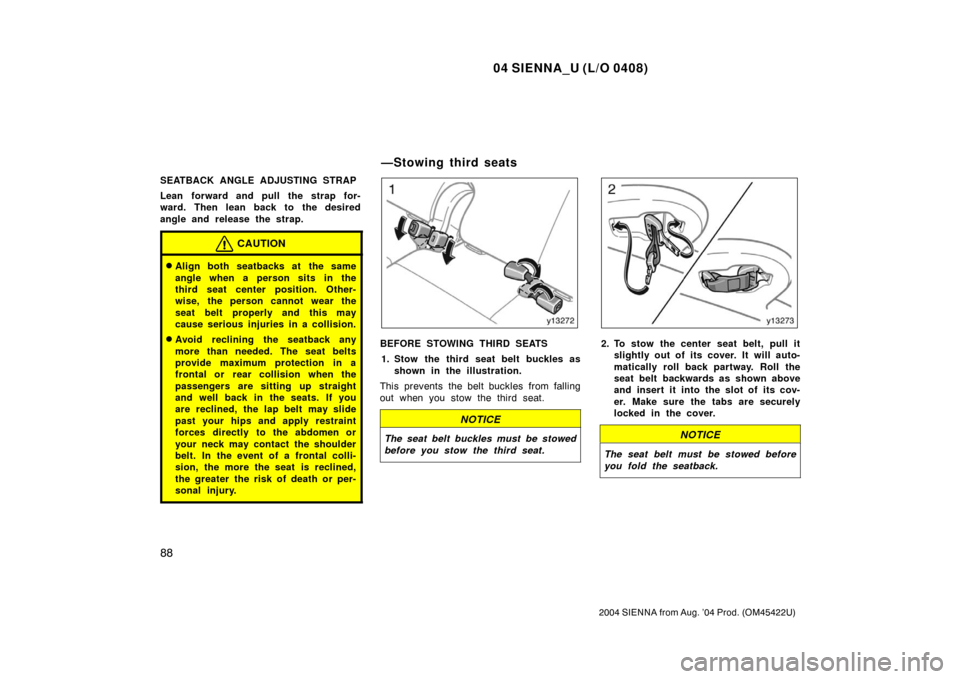

CAUTION
Align both seatbacks at the same
angle when a person sits in the
third seat center position. Other-
wise, the person cannot wear the
seat belt properly and this may
cause serious injuries in a collision.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or per-
sonal injury.BEFORE STOWING THIRD SEATS1. Stow the third seat belt buckles as shown in the illustration.
This prevents the belt buckles from falling
out when you stow the third seat.
NOTICE
The seat belt buckles must be stowed
before you stow the third seat.
2. To stow the center seat belt, pull it slightly out of its cover. It will auto-
matically roll back partway. Roll the
seat belt backwards as shown above
and insert it into the slot of its cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
—Stowing third seats

04 SIENNA_U (L/O 0408)
89
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
STOWING THIRD SEATS1. Lower the head restraint to the low- est position.2. Pull the seatback angle adjustingstrap (“TO FOLD/LIFT SEATBACK”
printed on its surface), then fold
down the seatback.

04 SIENNA_U (L/O 0408)
90
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
3. Pull and hold the seat lock releasestrap (“TO STOW/USE” printed on its
surface) and lift up the seat rear-
ward. Then push the seat down.
If the seat does not lift up when the seat
lock release strap (“TO STOW/USE”
printed on its surface) is pulled, reset as
following procedure.
Lift the seatback by pulling on the seat-
back angle adjusting strap (“TO FOLD/
LIFT SEATBACK” printed on its surface).
Then push the seatback down again.4. Push the seat against the floor and make sure it is locked securely.
