2004 TOYOTA SIENNA glove box

04 SIENNA_U (L/O 0408)
2
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Multi−information display or garage
door opener box
6. Front personal lights
7. Power sliding door switches
8. Power back door switch
9. Conversation mirror
10. Electric moon roof switch
11. Auxiliary boxes
12. Glove box
13. Power window switches
14. Power door lock switches
15. Automatic transmission selector lever
16. Audio remote control switches
17. Hood lock release lever
18. Parking brake pedal
19. Window lock switch
Instrument panel overview

04 SIENNA_U (L/O 0408)
10
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock.
2. Sub key—This key will not work in the glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the front doors and sliding doors
can be locked without a key, you should
always carry a spare master key in case
you accidentally lock your keys inside the
vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

04 SIENNA_U (L/O 0408)
11
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the front doors and sliding doors
can be locked without a key, you should
always carry a spare master key in case
you accidentally lock your keys inside the
vehicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

04 SIENNA_U (L/O 0408)
315
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Conversation mirror 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Toyota park assist system 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Glove box 342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 343
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Coin holder 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Cup holders 349
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 351
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage box 351
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Removable console box 352
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Note pad holder 356
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Front seat side table 357
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Coat hooks 358
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 360
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Tie −down hooks 361
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Roof luggage carrier 361
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Sun shade 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Floor mat 363
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

04 SIENNA_U (L/O 0408)
342
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.
To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Glove box

04 SIENNA_U (L/O 0408)
347
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

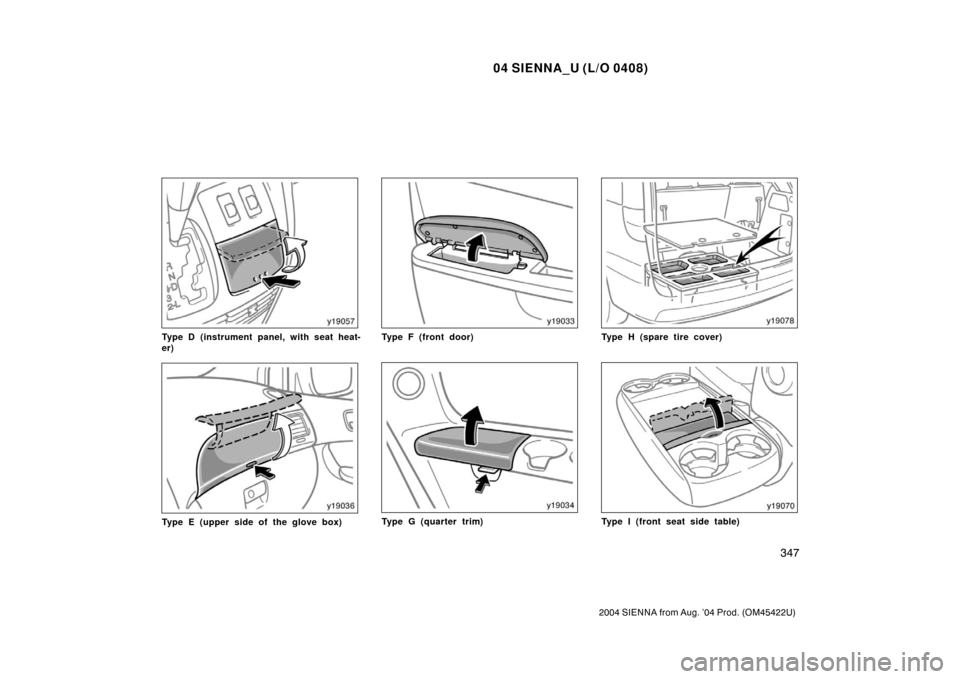

Type D (instrument panel, with seat heat-
er)
Type E (upper side of the glove box)
Type F (front door)
Type G (quarter trim)
Type H (spare tire cover)
Type I (front seat side table)

04 SIENNA_U (L/O 0408)
460
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If any of the above parts are extremely
dirty or you are not sure of their condi-
tion, take your vehicle to a Toyota dealer.
CAUTION
To prevent burning yourself, be care-
ful not to touch the radiator or con-
denser when the engine is hot.
NOTICE
To prevent damage to the radiator
and condenser, do not perform the
work by yourself.
The air conditioning filter is behind the
glove box.
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Checking the radiator and
condenser
Checking and replacing the
air conditioning filter

04 SIENNA_U (L/O 0408)
461
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

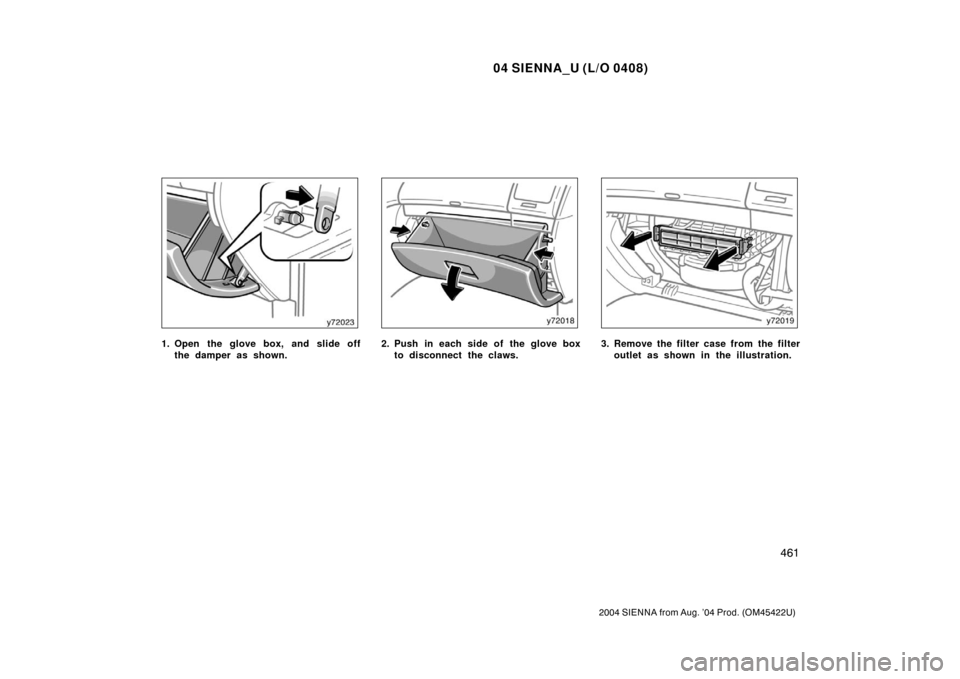

1. Open the glove box, and slide offthe damper as shown.2. Push in each side of the glove boxto disconnect the claws.3. Remove the filter case from the filteroutlet as shown in the illustration.
