SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-198
ENGINE (DIAGNOSTIC)

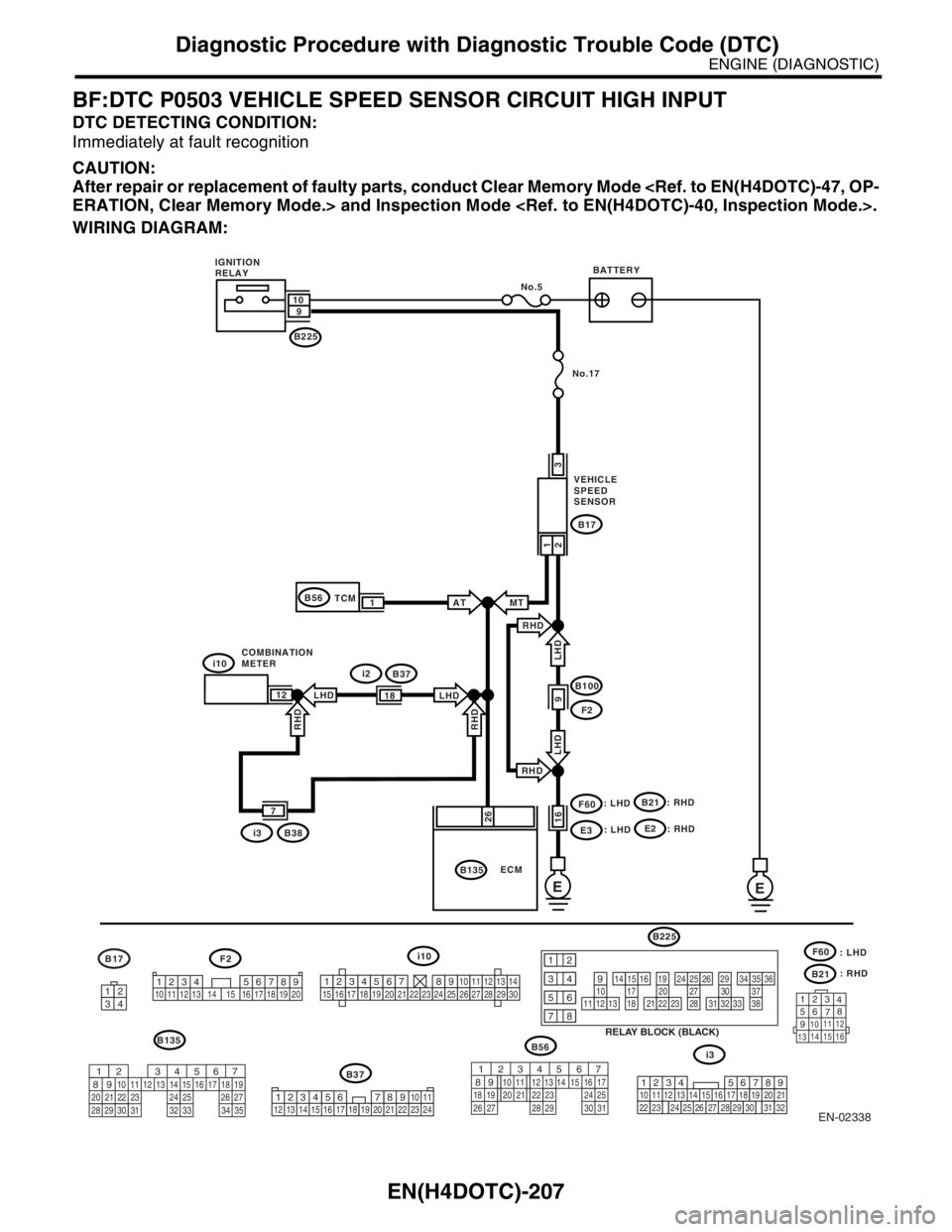

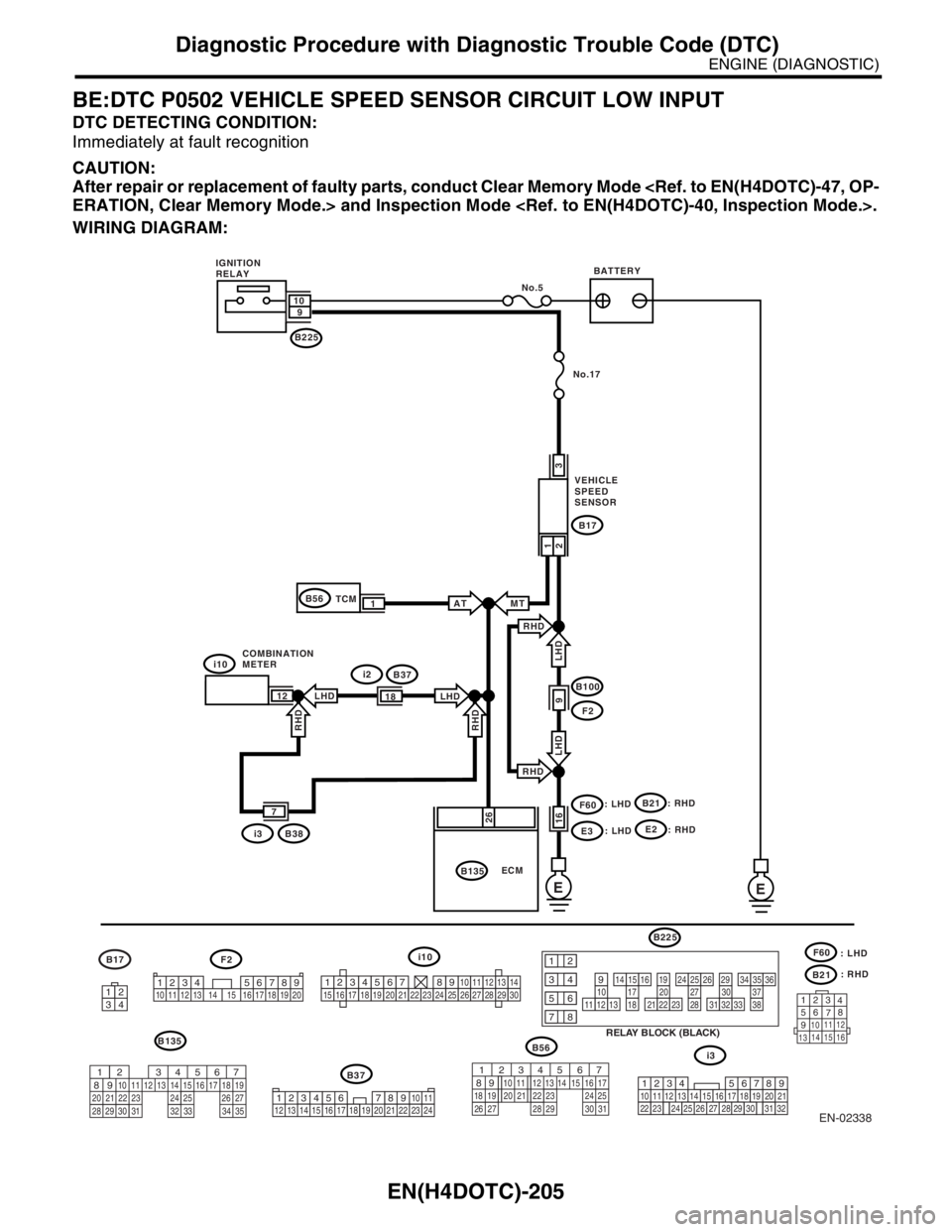

Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK SPEEDOMETER AND TACHOME-
TER OPERATION IN COMBINATION
METER.Does the speedometer a

EN(H4DOTC)-198
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK SPEEDOMETER AND TACHOME-
TER OPERATION IN COMBINATION
METER.Does the speedometer and
tachometer operate normally?Go to step 2.Repair or replace
the combination
meter. 3, Combination
Meter System.>
2 CHECK INPUT SIGNAL FROM ECM.
1) Turn the ignition switch to ON.(engine OFF)
2) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B136) No. 20 (+) — Chassis ground (
−):Is the voltage more than 4.75
V?Go to step 3.Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time.A tempo-
rary poor contact
of the connector
may be the cause.
N
OTE:
In this case repair
the following:
Poor contact in
fuel pump connec-
tor
Poor contact in
coupling connector
3 CHECK INPUT VOLTAGE OF ECM.
1) Turn the ignition switch to OFF.
2) Disconnect the combination meter connec-
tor (i11) and ECM connector.
3) Turn the ignition switch to ON.
4) Measure the voltage of harness between
ECM and chassis ground.
Connector & terminal
(B136) No. 20 (+) — Chassis ground (
−):Is the voltage more than 4.75
V?Go to step 4.Repair battery
short circuit
between ECM and
combination meter
connector.
4 CHECK HARNESS BETWEEN ECM AND
FUEL TANK CORD.
1) Turn the ignition switch to OFF.
2) Separate fuel tank cord connector (R57)
and rear wiring harness connector (R15).
3) Measure the resistance between ECM and
fuel tank cord.
Connector & terminal
(B136) No. 20 — (R15) No. 2:Is the resistance less than 5
Ω?Go to step 5.Repair open circuit
between ECM and
fuel tank cord.
5 CHECK HARNESS BETWEEN FUEL TANK
CORD AND CHASSIS GROUND.
Measure the resistance between fuel tank cord
and chassis ground.
Connector & terminal
(R15) No. 3 — Chassis ground:Is the resistance less than 5
Ω?Go to step 6.Repair open circuit
between fuel tank
cord and chassis
ground.
N
OTE:
In this case repair
the following:
Poor contact in
coupling connector

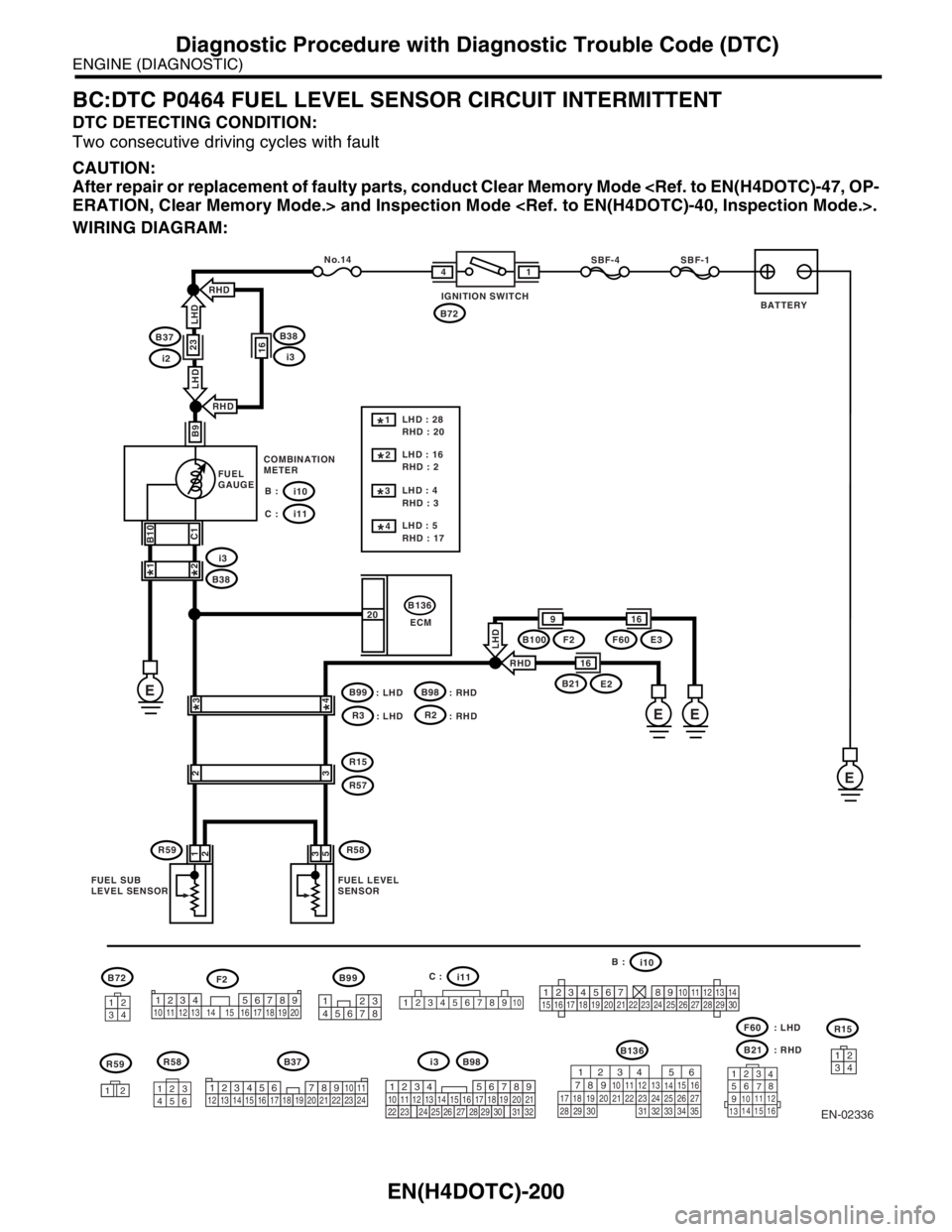

6 CHECK FUEL TANK CORD.
1) Disconnect the connector from fuel level
sensor.
2) Measure the resistance between fuel level
sensor and coupler connector.
Connector & terminal
(R57) No. 3 — (R58) No. 5:Is the resistance less than 10
Ω?Go to step 7.Repair open circuit
between coupling
connector and fuel
level sensor.
