2004 SUBARU FORESTER sensor

EN(H4DOTC)-177
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AS:DTC P0340 CAMSHAFT POSITION SENSOR “A” CIRCUIT (BANK 1 OR SIN-
GLE SENSOR)
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Engine stalls.
 Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .
WIRING DIAGRAM:
EN-02331
4
3E1
E15
B20
2
1
B135 ECM
23
31 11
E
E15
12
12 34
56
7
89
10
B20
B135
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
AVCS
CAMSHAFT
POSITION
SENSOR

EN(H4DOTC)-178
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR CONNECTOR AND ECM
CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from camshaft
position sensor connector.
3) Measure the resistance of harness
between camshaft position sensor connector
and engine ground.
Connector & terminal
(E15) No. 1 — Engine ground:Is the resistance more than
100 kΩ?Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
camshaft position
sensor connector
and ECM connec-
tor
 Poor contact in
ECM connector.
 Poor contact in
coupling connectorGo to step 2.
2 CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR CONNECTOR AND ECM
CONNECTOR.
Measure the resistance of harness between
camshaft position sensor connector and
engine ground.
Connector & terminal
(E15) No. 1 — Engine ground:Is the resistance less than 10
Ω?Repair ground
short circuit in har-
ness between
camshaft position
sensor connector
and ECM connec-
tor.
N
OTE:
The harness be-
tween both con-
nectors are
shielded.Repair
ground short circuit
in harness togeth-
er with shield.Go to step 3.
3 CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR CONNECTOR AND ECM
CONNECTOR.
Measure the resistance of harness between
camshaft position sensor connector and
engine ground.
Connector & terminal
(E15) No. 2 — Engine ground:Is the resistance less than 5
Ω?Go to step 4.Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
camshaft position
sensor connector
and ECM connec-
tor
 Poor contact in
ECM connector
 Poor contact in
coupling connector
4 CHECK CONDITION OF CAMSHAFT POSI-
TION SENSOR CONNECTOR.Is the camshaft position sensor
connector installation bolt tight-
ened securely?Go to step 5.Tighten the cam-
shaft position sen-
sor connector
installation bolt
securely.
5 CHECK CAMSHAFT POSITION SENSOR
CONNECTOR.
1) Remove the camshaft position sensor con-
nector.
2) Measure the resistance between connector
terminals of camshaft position sensor connector.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 1 — 4 kΩ? Repair poor con-
tact in camshaft
position sensor
connector.Replace the cam-
shaft position sen-
sor connector.
FU(H4DOTC)-31,
Camshaft Position
Sensor.>

EN(H4DOTC)-179
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AT:DTC P0341 CAMSHAFT POSITION SENSOR “A” CIRCUIT RANGE/PERFOR-
MANCE (BANK 1 OR SINGLE SENSOR)
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
 Engine stalls.
 Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .
WIRING DIAGRAM:
EN-02331
4
3E1
E15
B20
2
1
B135 ECM
23
31 11
E
E15
12
12 34
56
7
89
10
B20
B135
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
AVCS
CAMSHAFT
POSITION
SENSOR

EN(H4DOTC)-180
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the rele-
vant DTC using
“List of Diagnostic
Trouble Code
(DTC)”. EN(H4DOTC)-74,
List of Diagnostic
Trouble Code
(DTC).>Go to step 2.
2 CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR CONNECTOR AND ECM
CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from camshaft
position sensor connector.
3) Measure the resistance of harness
between camshaft position sensor connector
and engine ground.
Connector & terminal
(E15) No. 1 — Engine ground:Is the resistance more than
100 kΩ?Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
camshaft position
sensor connector
and ECM connec-
tor
 Poor contact in
ECM connector
 Poor contact in
coupling connectorGo to step 3.
3 CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR CONNECTOR AND ECM
CONNECTOR.
Measure the resistance of harness between
camshaft position sensor connector and
engine ground.
Connector & terminal
(E15) No. 1 — Engine ground:Is the resistance less than 10
Ω?Repair ground
short circuit in har-
ness between
camshaft position
sensor connector
and ECM connec-
tor.
N
OTE:
The harness be-
tween both con-
nectors are
shielded.Repair
ground short circuit
in harness togeth-
er with shield.Go to step 4.
4 CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR CONNECTOR AND ECM
CONNECTOR.
Measure the resistance of harness between
camshaft position sensor connector and
engine ground.
Connector & terminal
(E15) No. 2 — Engine ground:Is the resistance less than 5
Ω?Go to step 5.Repair the har-
ness and connec-
tor.
NOTE:
In this case repair
the following:
 Open circuit in
harness between
camshaft position
sensor connector
and ECM connec-
tor
 Poor contact in
ECM connector
 Poor contact in
coupling connector

EN(H4DOTC)-181
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
5 CHECK CONDITION OF CAMSHAFT POSI-
TION SENSOR CONNECTOR.Is the camshaft position sensor
connector installation bolt tight-
ened securely?Go to step 6.Tighten the cam-
shaft position sen-
sor connector
installation bolt
securely.
6 CHECK CAMSHAFT POSITION SENSOR
CONNECTOR.
1) Remove the camshaft position sensor con-
nector.
2) Measure the resistance between connector
terminals of camshaft position sensor connec-
tor.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 1 — 4 kΩ? Go to step 7.Replace the cam-
shaft position sen-
sor connector.
FU(H4DOTC)-31,
Camshaft Position
Sensor.>
7 CHECK CONDITION OF CAMSHAFT POSI-
TION SENSOR CONNECTOR.
Turn the ignition switch to OFF.Is the camshaft position sensor
connector installation bolt tight-
ened securely?Go to step 8.Tighten the cam-
shaft position sen-
sor connector
installation bolt
securely.
8 CHECK CAM SPROCKET.
Remove the front belt cover. ME(H4DOTC)-57, Timing Belt Cover.>Are cam sprocket teeth
cracked or damaged?Replace the cam
sprocket. ME(H4DOTC)-66,
Cam Sprocket.>Go to step 9.
9 CHECK INSTALLATION CONDITION OF
TIMING BELT.
Turn the crankshaft, and align alignment mark
on camshaft sprocket with alignment mark on
timing belt cover LH.Is the timing belt dislocated
from its proper position?Repair installation
condition of timing
belt. ME(H4DOTC)-58,
Timing Belt
Assembly.>Replace the cam-
shaft position sen-
sor connector.
FU(H4DOTC)-31,
Camshaft Position
Sensor.> Step Check Yes No

EN(H4DOTC)-182
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AU:DTC P0365 CAMSHAFT POSITION SENSOR “B” CIRCUIT (BANK 1)
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Engine stalls.
 Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .
WIRING DIAGRAM:
EN-02332
9
8E1
E36
B20
AVCS
CAMSHAFT
POSITION
SENSOR
RH
2
1
B135 ECM
29
30 21
E
E36
12
12 34
56
7
89
10
B20
B135
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35

EN(H4DOTC)-183
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK CURRENT DATA.
1) Start the engine.
2) Drive the vehicle at the speed of approx. 30
km/h (19 MPH), and then measure the ignition
timing advance angle using Subaru Select
Monitor or OBD-II general scan tool.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 33, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Does the ignition timing
advance angle changed
smoothly according to engine
output?
Idling: −2 — +2°
Driving: −2 — +50°Repair the poor
contact connector.
N
OTE:
In this case, repair
the following:
 Poor contact of
AVCS camshaft
position sensor
connector.
 Poor contact in
ECM connector.Go to step 2.
2 CHECK HARNESS BETWEEN AVCS CAM-
SHAFT POSITION SENSOR CONNECTOR
AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from AVCS cam-
shaft position sensor connector and ECM.
3) Measure the resistance of harness
between AVCS camshaft position sensor con-
nector and engine ground.
Connector & terminal
(B36) No. 1 — (B135) No. 21:
(B36) No. 2 — (B135) No. 29:Is the resistance less than 1
Ω?Go to step 3.Repair the har-
ness and connec-
tor.
N
OTE:
In this case, repair
the following:
 Open circuit in
harness between
AVCS camshaft
position sensor
connector and
ECM connector
 Poor contact in
ECM connector
 Poor contact in
coupling connector
3 CHECK HARNESS BETWEEN AVCS CAM-
SHAFT POSITION SENSOR CONNECTOR
AND ECM CONNECTOR.
Measure the resistance of harness between
AVCS camshaft position sensor connector and
engine ground.
Connector & terminal
(E36) No. 1 — Engine ground:
(E36) No. 2 — Engine ground:Is the resistance more than 1
MΩ?Go to step 4.Repair the ground
short circuit in har-
ness between
AVCS camshaft
position sensor
connector and
ECM connector.
NOTE:
The harness be-
tween both con-
nectors are
shielded.Repair
ground short circuit
in harness togeth-
er with shield.
4 CHECK CONDITION OF AVCS CAMSHAFT
POSITION SENSOR CONNECTOR.Is the AVCS camshaft position
sensor connector installation
bolt tightened securely?Go to step 5.Tighten the AVCS
camshaft position
sensor connector
installation bolt
securely.
5 CHECK AVCS CAMSHAFT POSITION SEN-
SOR CONNECTOR.
1) Remove the AVCS camshaft position sen-
sor.
2) Measure the resistance between the AVCS
camshaft position sensor connector terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 1 — 4 kΩ? Check for the clog-
ging on oil pres-
sure routing of oil
flow control sole-
noid valve.Replace the AVCS
camshaft position
sensor connector.
FU(H4DOTC)-32,
AVCS Camshaft
Position Sensor.>

EN(H4DOTC)-184
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
AV:DTC P0390 CAMSHAFT POSITION SENSOR “B” CIRCUIT (BANK 2)
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
 Engine stalls.
 Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .

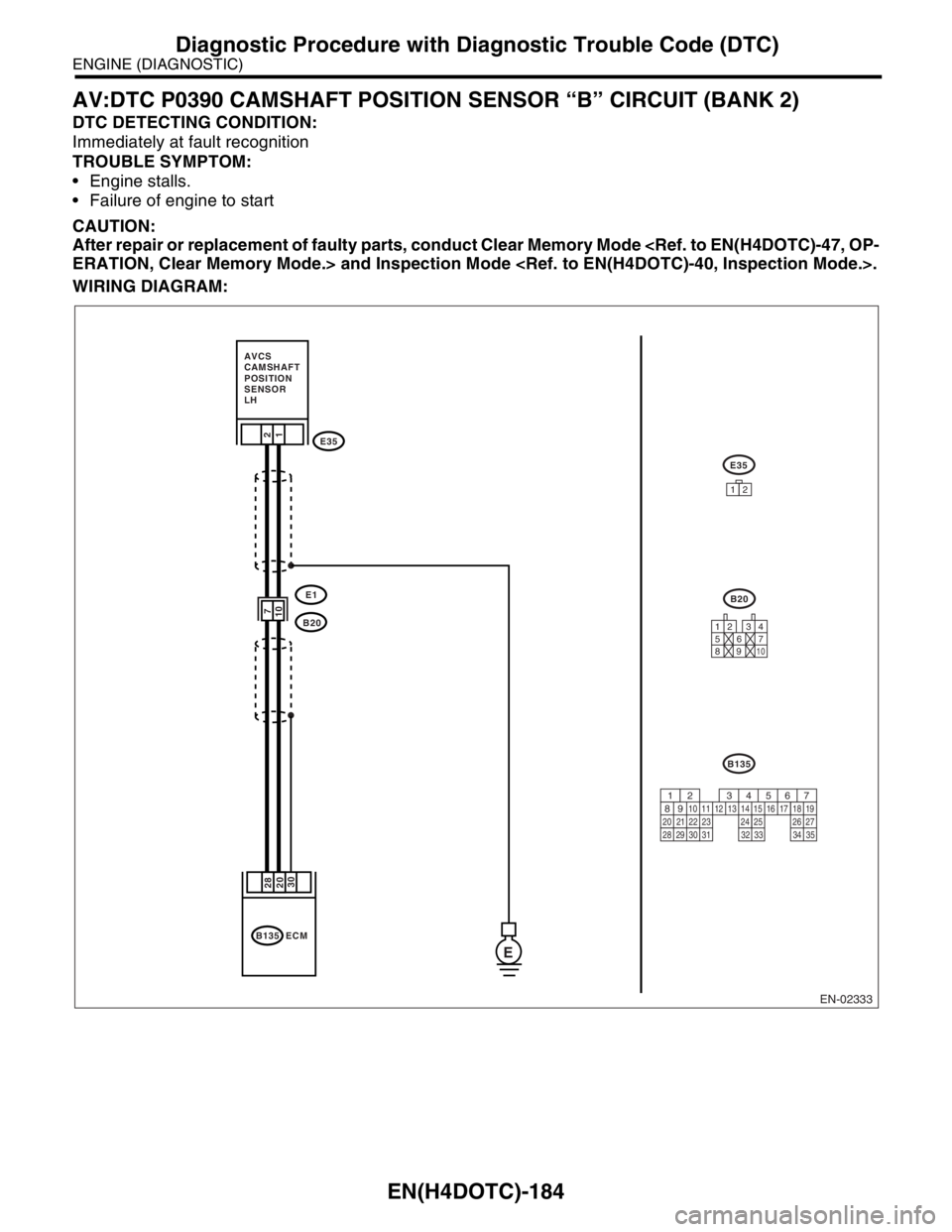

WIRING DIAGRAM:
EN-02333
E1
E35
B20
2
1
B135
ECM
28
30 20
E
E35
12
12 34
56
7
89
10
B20
B135
AVCS
CAMSHAFT
POSITION
SENSOR
LH
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
7
10
