2004 MITSUBISHI ENDEAVOR traction control

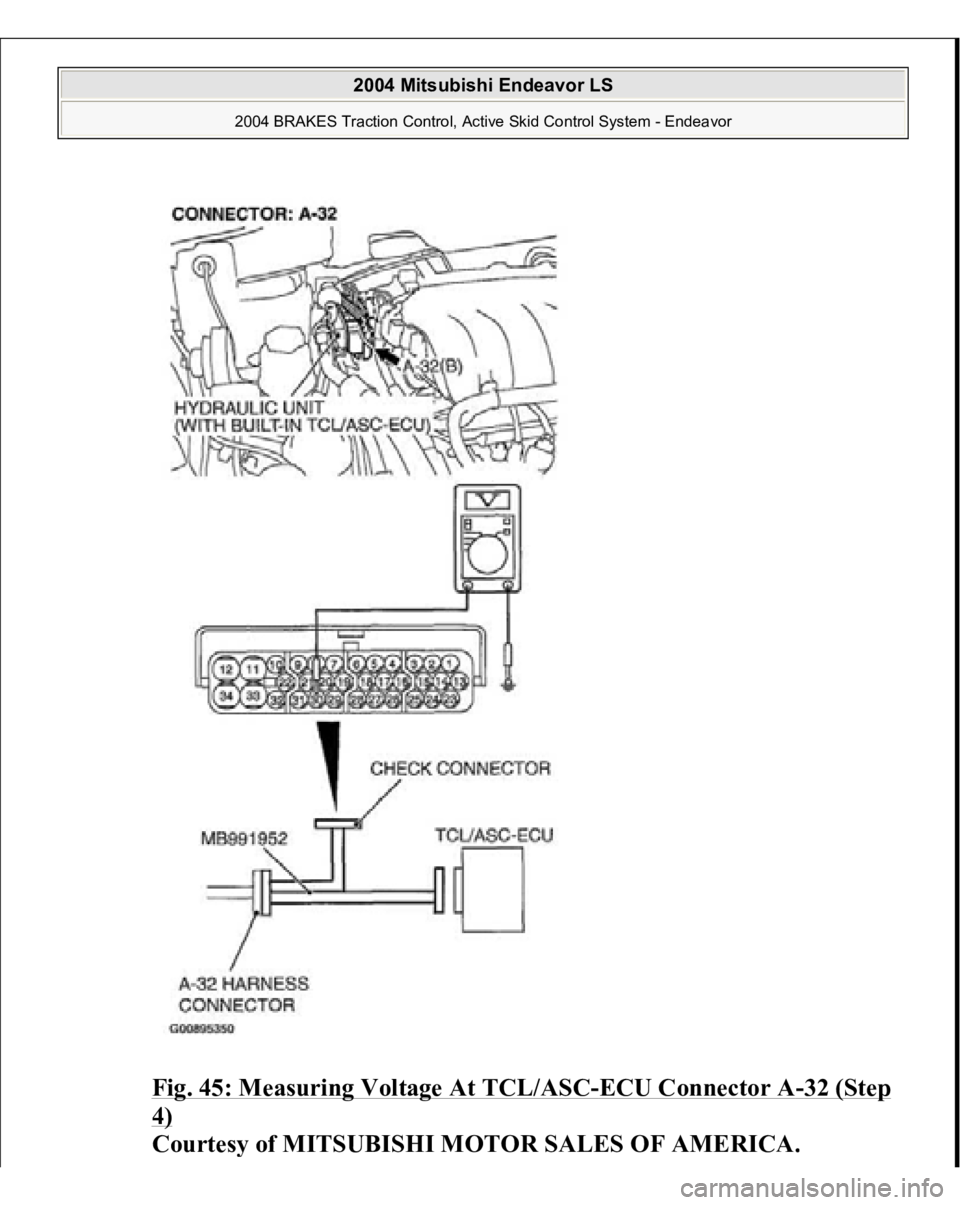

Fig. 45: Measuring Voltage At TCL/ASC
-ECU Connector A
-32 (Step
4)
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Q: Does the voltage measure 1 V or less?
YES: Go to Step 5.
NO (When the voltage between terminal 30 or 21 - and body ground
measures more than 1 V): Go to Step 7.
NO (When the voltage between terminal 22 or 31 - and body ground
measures more than 1 V): Go to Step 9
NO (When the voltage between terminal 8 or 9 - and body ground
measures more than 1 V): Go to Step 11.
NO (When the voltage between terminal 6 or 7 - and body ground
measures more than 1 V): Go to Step 13.
STEP 5. Measure the resistance at TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Measure the resistance between the relevant signal and ground terminals
in the ABS sensor circuit and body ground. There should be no continuity.
DTC C1200 is set: Between signal terminal 30 and body ground, and
between ground terminal 21 and body ground DTC C1205 is set: Between signal terminal 22 and body ground, and
between ground terminal 31 and body ground DTC C1210 is set: Between signal terminal 8 and body ground, and
between ground terminal 9 and body ground DTC C1215 is set: Between signal terminal 6 and body ground, and between ground terminal 7 and body ground
NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

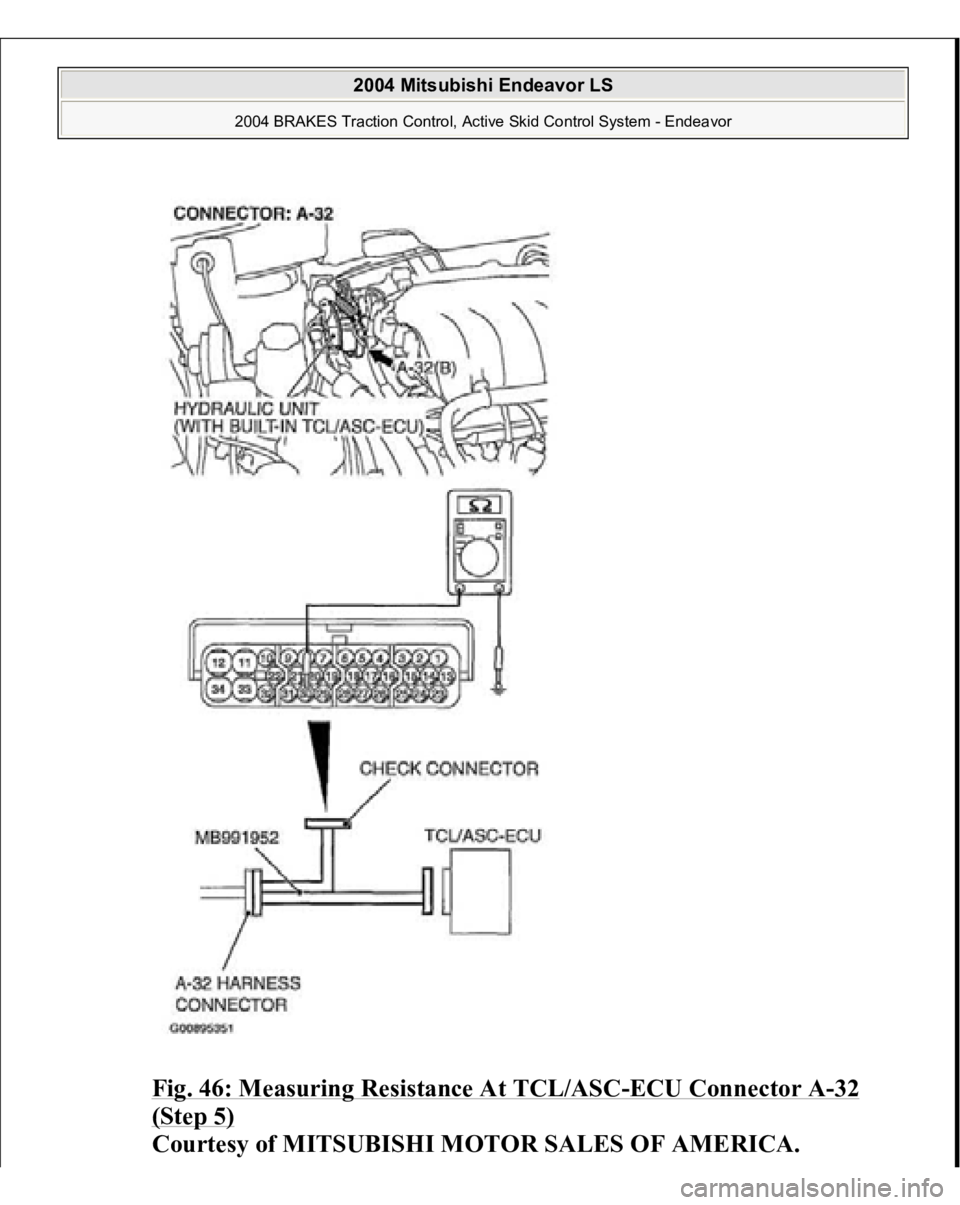

Fig. 46: Measuring Resistance At TCL/ASC
-ECU Connector A
-32
(Step 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

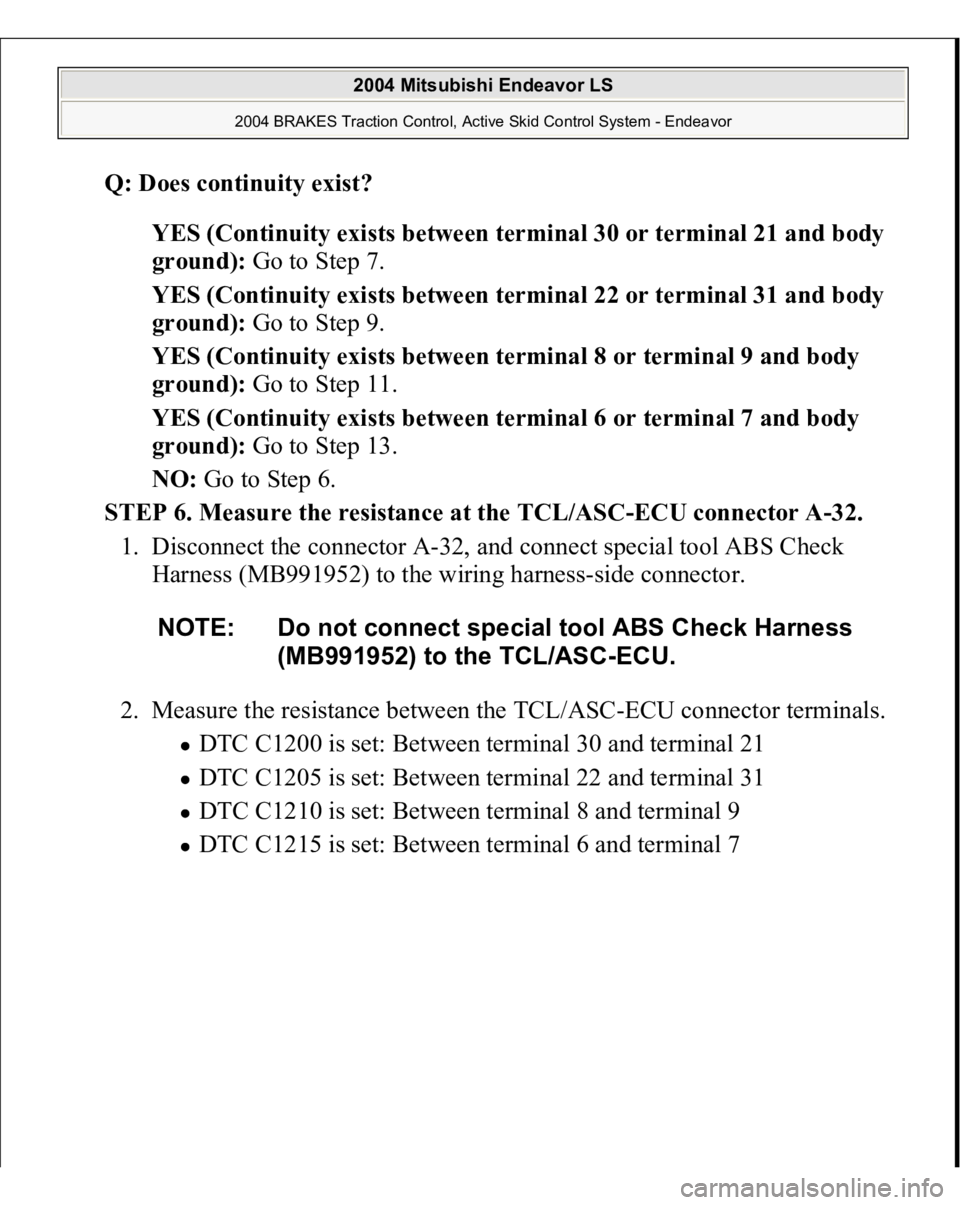

Q: Does continuity exist?
YES (Continuity exists between terminal 30 or terminal 21 and body
ground): Go to Step 7.
YES (Continuity exists between terminal 22 or terminal 31 and body
ground): Go to Step 9.
YES (Continuity exists between terminal 8 or terminal 9 and body
ground): Go to Step 11.
YES (Continuity exists between terminal 6 or terminal 7 and body
ground): Go to Step 13.
NO: Go to Step 6.
STEP 6. Measure the resistance at the TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Measure the resistance between the TCL/ASC-ECU connector terminals.
DTC C1200 is set: Between terminal 30 and terminal 21 DTC C1205 is set: Between terminal 22 and terminal 31 DTC C1210 is set: Between terminal 8 and terminal 9 DTC C1215 is set: Between terminal 6 and terminal 7
NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

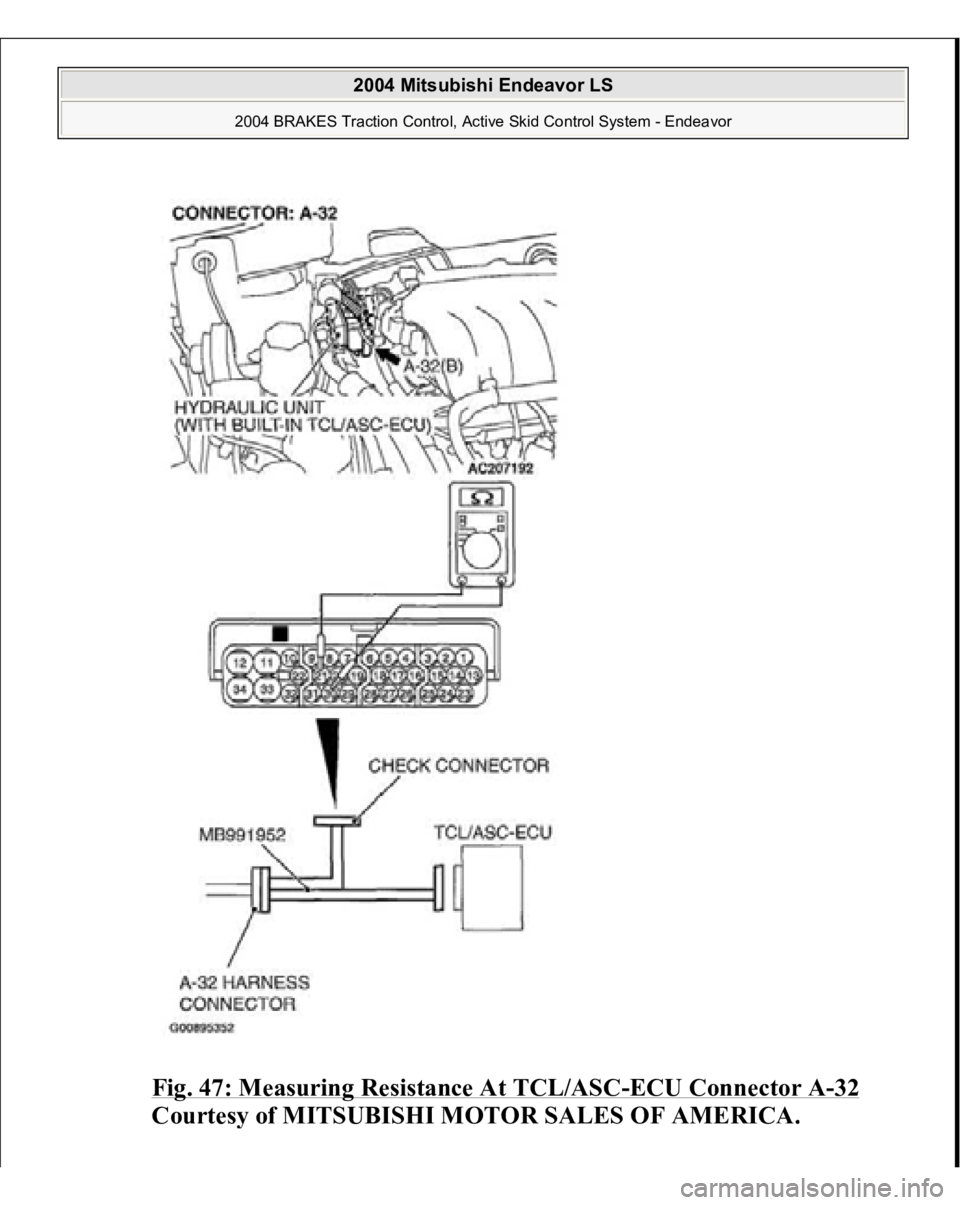

Fig. 47: Measuring Resistance At TCL/ASC
-ECU Connector A
-32
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Standard Value: 1.24 - 1.64 koh
m
Q: Is the resistance between terminals 30 and 21, 22 and 31, 8 and 9, or 6
and 7 within the standard value?
YES (When resistances between all terminals are within the standard
value): Go to Step 16.
NO (When resistance between terminal 30 and 21 is not within the
standard value): Go to Step 7.
NO (When resistance between terminals 22 and 31 is not within the
standard value): Go to Step 9.
NO (When resistance between terminals 8 and 9 is not within the
standard value): Go to Step 11.
NO (When resistance between terminals 6 and 7 is not within the
standard value): Go to Step 13.
STEP 7. Check TCL/ASC-ECU connector A-32 and ABS sensor < front:
RH > connector A-31 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

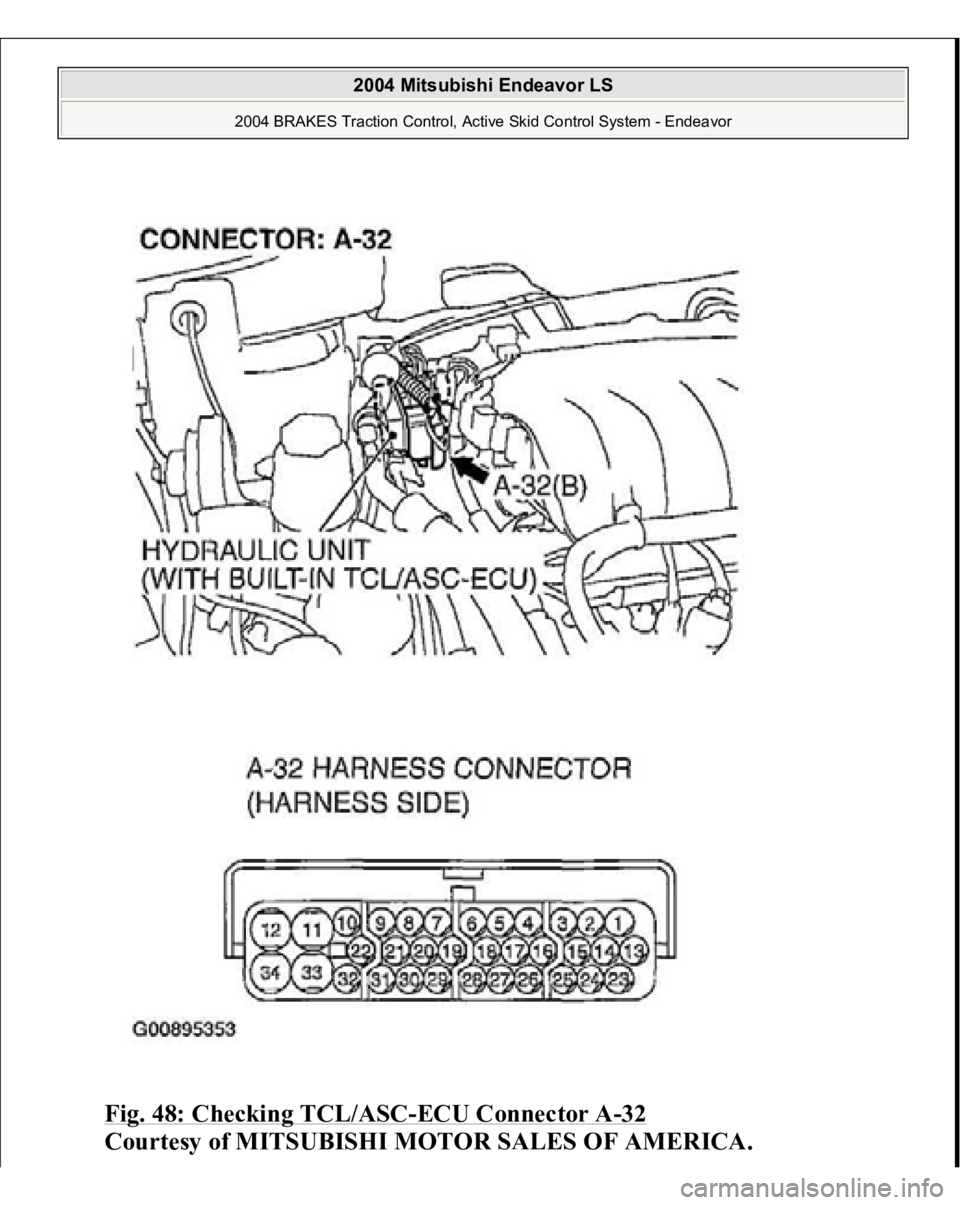

Fig. 48: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 49: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: RH >
connector A-31 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 17.
NO: Go to Step 8.
STEP 8. Check the harness wires between TCL/ASC-ECU connector A-32
(terminal 30, 21) and ABS sensor < front: RH > connector A-31 (terminal
2, 1).
