Page 3309 of 3870
Fig. 129: Disconnecting Parking Brake Switch Connector C
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the ignition switch to the "ON" position.
Q: Does the brake warning light illuminate?
YES: Go to Step 6.
NO: Check the brake fluid level switch (Refer to BRAKE FLUID
LEVEL SENSOR CHECK
, ) and parking brake switch and replace
them if necessary. Then go to Step 12.
STEP 6. Measure the resistance at combination meter connector C-102.
1. Disconnect brake fluid level switch connector A-04 and parking brake
switch connector
C-34.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3310 of 3870
Fig. 130: Disconnecting Brake Fluid Level Switch Connector A
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3311 of 3870

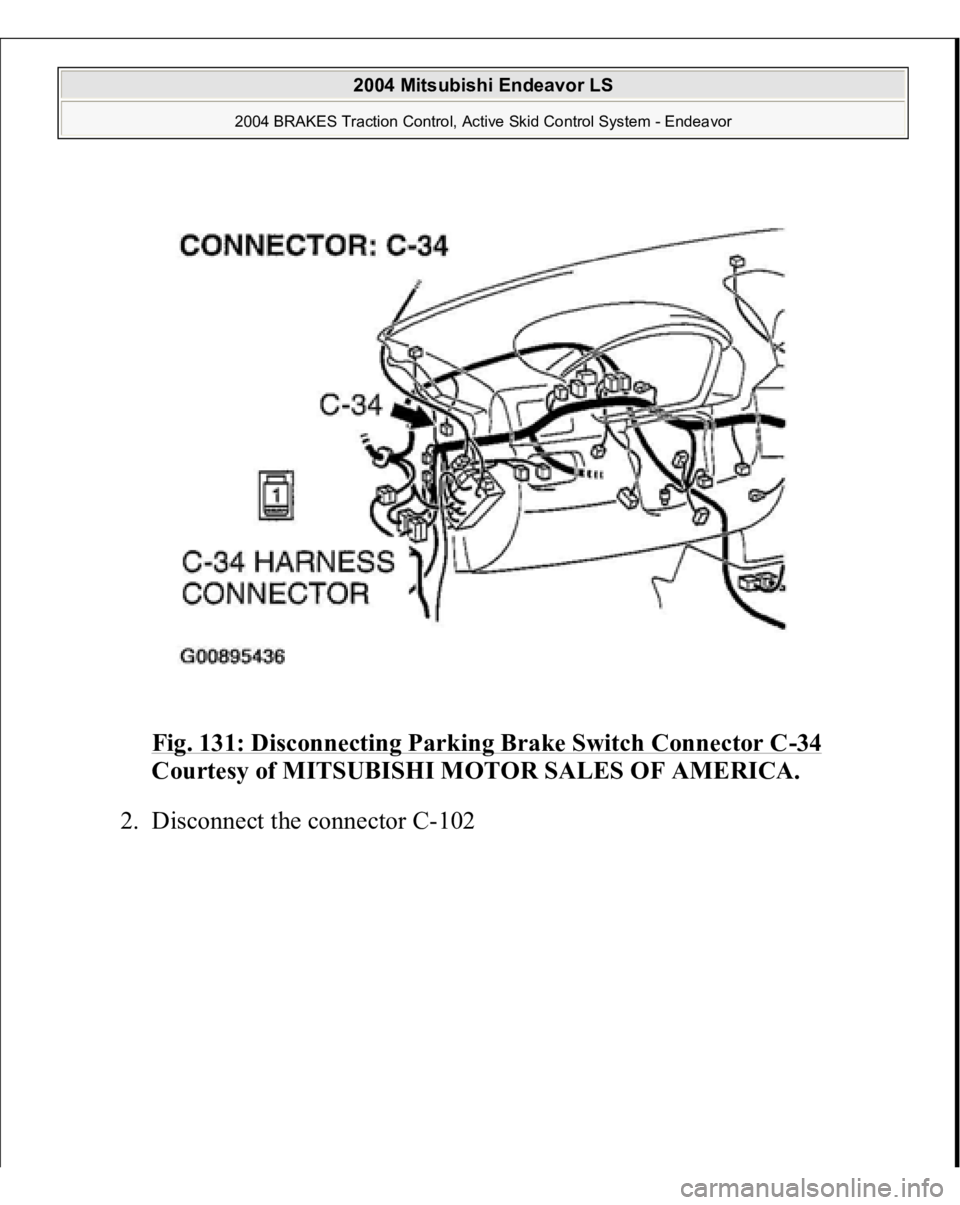

Fig. 131: Disconnecting Parking Brake Switch Connector C
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Disconnect the connector C-102
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3312 of 3870
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3313 of 3870

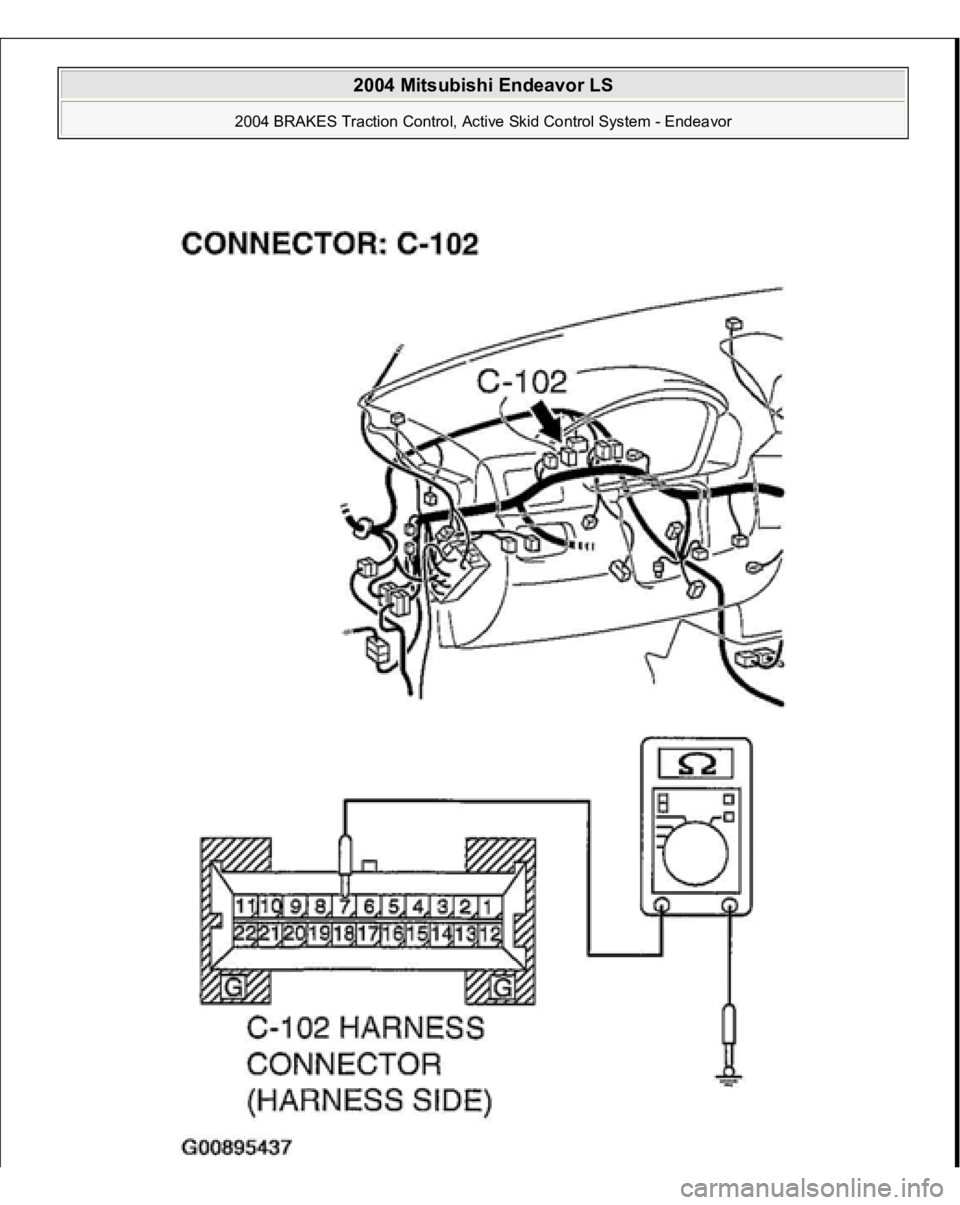

Fig. 132: Disconnecting Connector C
-102
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the resistance between terminal 7 and ground. Check for
continuity.
Q: Does the continuity exist?
YES: Go to Step 7.
NO: Replace the combination meter (integrated with meter ECU). Then
go to Step 12.
STEP 7. Check intermediate connector C-31, grounding connector A-18,
brake fluid level switch connector A-04, joint connector C-04, combination
meter connector C-102 and parking brake switch connector C-34 for
loose, corroded or damaged terminals, or terminals pushed back in the
connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3314 of 3870
Fig. 133: Checking Grounding Connector A
-18, Brake Fluid Level Switch
Connector A
-04
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3315 of 3870
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3316 of 3870
Fig. 134: Checking Intermediate Connector C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is intermediate connector C-31, grounding connector A-18, brake fluid
level switch connector A-04, joint connector C-04, combination meter
connector C-102 and parking brake switch connector C-34 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 12.
NO: Go to Step 8.
STEP 8. Check the harness wires between joint connector C-04 (terminal
13) and parking brake switch connector C-34 (terminal 1).
Fig. 135: Checking Harness Wires Between Joint Connector C
-04 And
Parking Brake Switch Connector C
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
