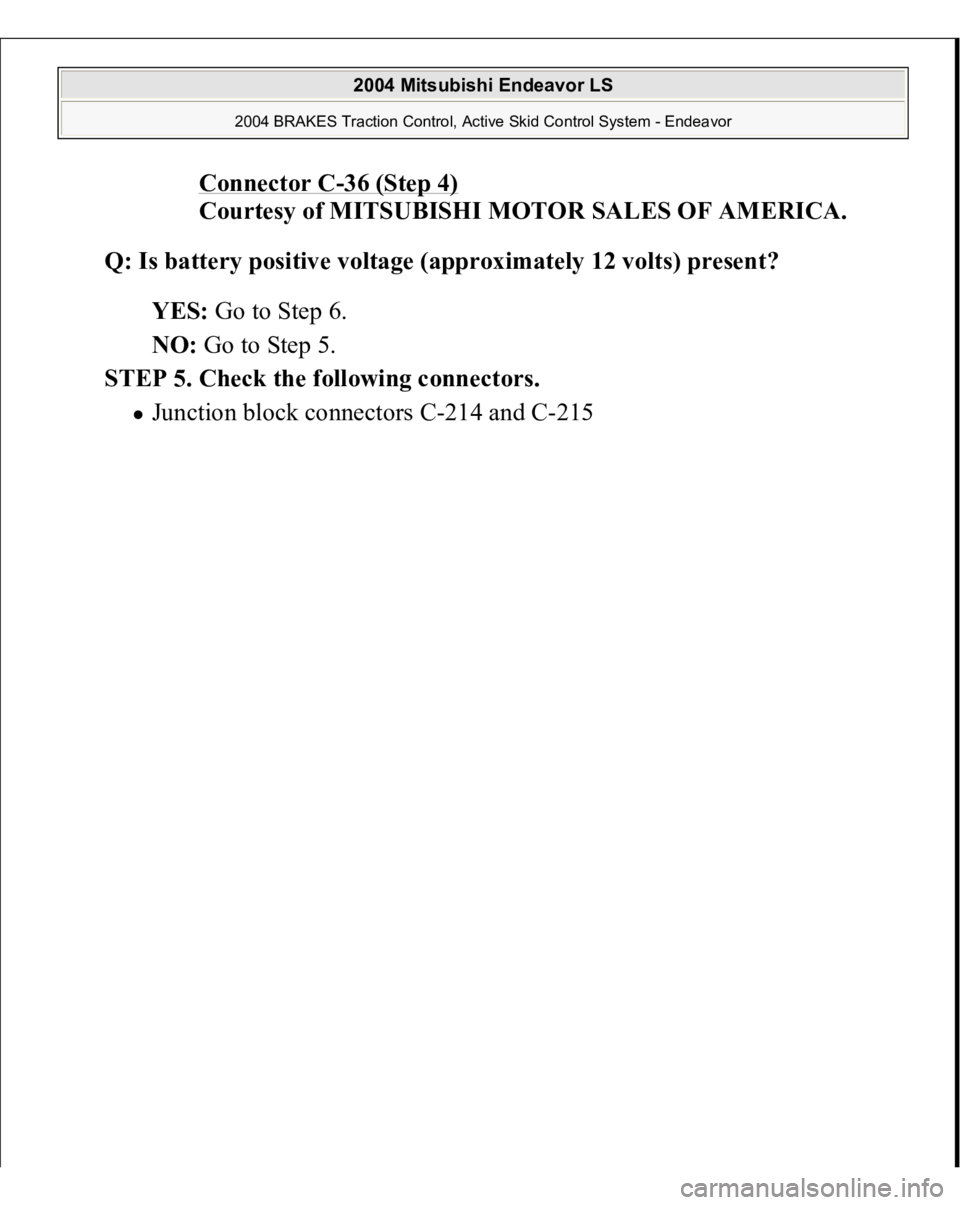

Page 3341 of 3870
Connector C
-36 (Step 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 6.
NO: Go to Step 5.
STEP 5. Check the following connectors.
Junction block connectors
C-214 and C-215
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3342 of 3870

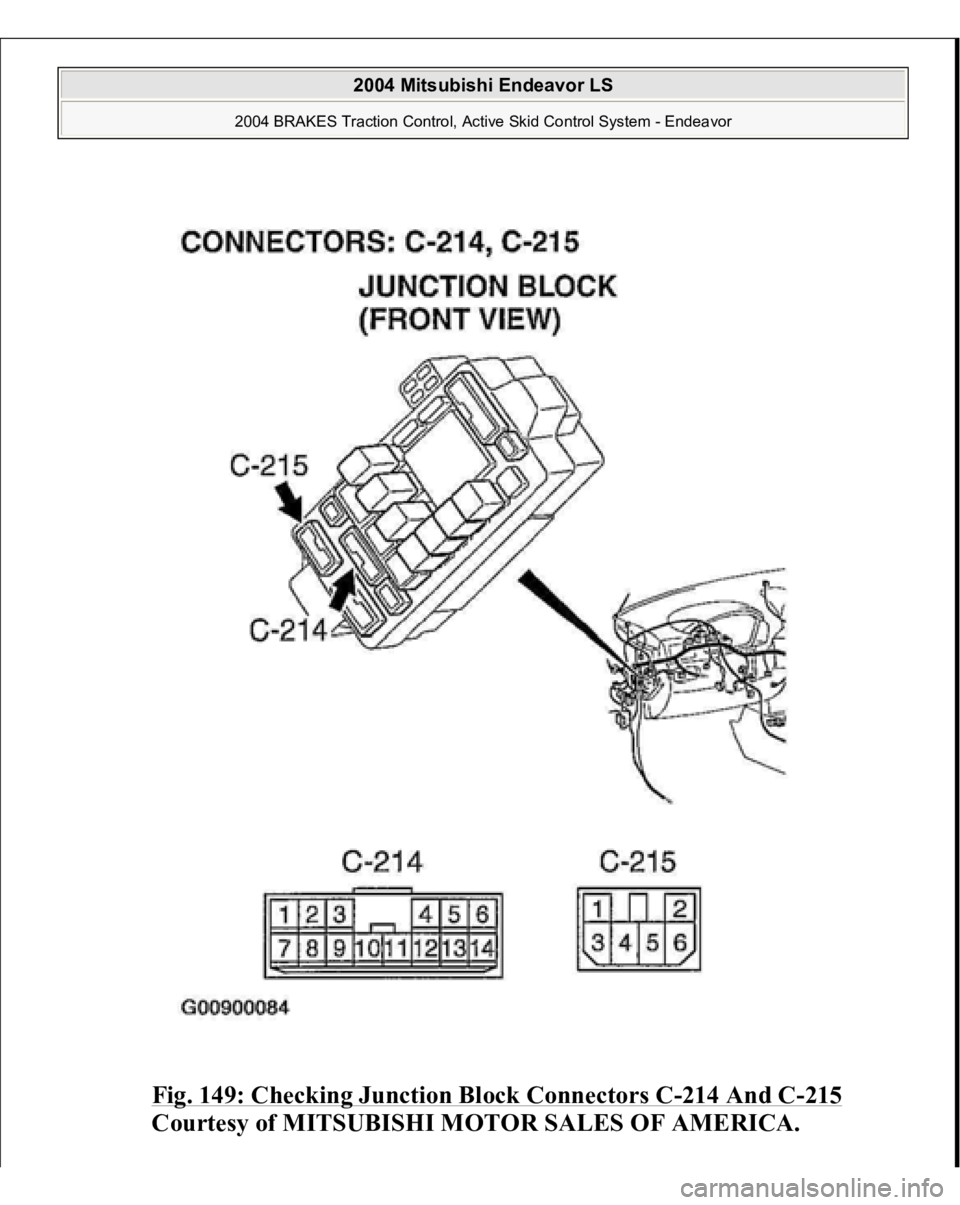

Fig. 149: Checking Junction Block Connectors C
-214 And C
-215
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3343 of 3870
Joint connector (1) C-04
Fig. 150: Checking Joint Connector (1) C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G and yaw rate sensor connector C-36
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3344 of 3870
Fig. 151: Checking G And Yaw Rate Sensor Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the connectors, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?
YES: Open or short circuit may be present in the G and yaw rate sensor
power supply lines. Repair the wiring harness between G and yaw rate
sensor connector C-36 terminal 1 and junction block connector C-215
terminal 2. Then go to Step 10.
NO: Repair or replace the damaged component(s).
STEP 6. Measure the resistance at the G and yaw rate sensor connector C-
36.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3345 of 3870
1. Disconnect the G and yaw rate sensor connector C-36, and measure at the
harness side connector.
2. Measure the resistance between terminal 4 and body ground.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3346 of 3870
Fig. 152: Measuring Resistance At G And Yaw Rate Sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3347 of 3870
Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 8.
NO: Go to Step 7.
STEP 7. Check the connector C-24.
Check the connector, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3348 of 3870
Fig. 153: Checking Connector C
-24
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the connector and terminals in good condition?
YES: Open circuit may be present in the G and yaw rate sensor ground
lines. Repair the wiring harness between G and yaw rate sensor connector
C-36 terminal 4 and ground. Go to Step 10.
NO: Repair or replace the damaged component(s). Then go to Step 10.
STEP 8. Recheck for diagnostic trouble code after the G-sensor is
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
