2004 MITSUBISHI ENDEAVOR CD player

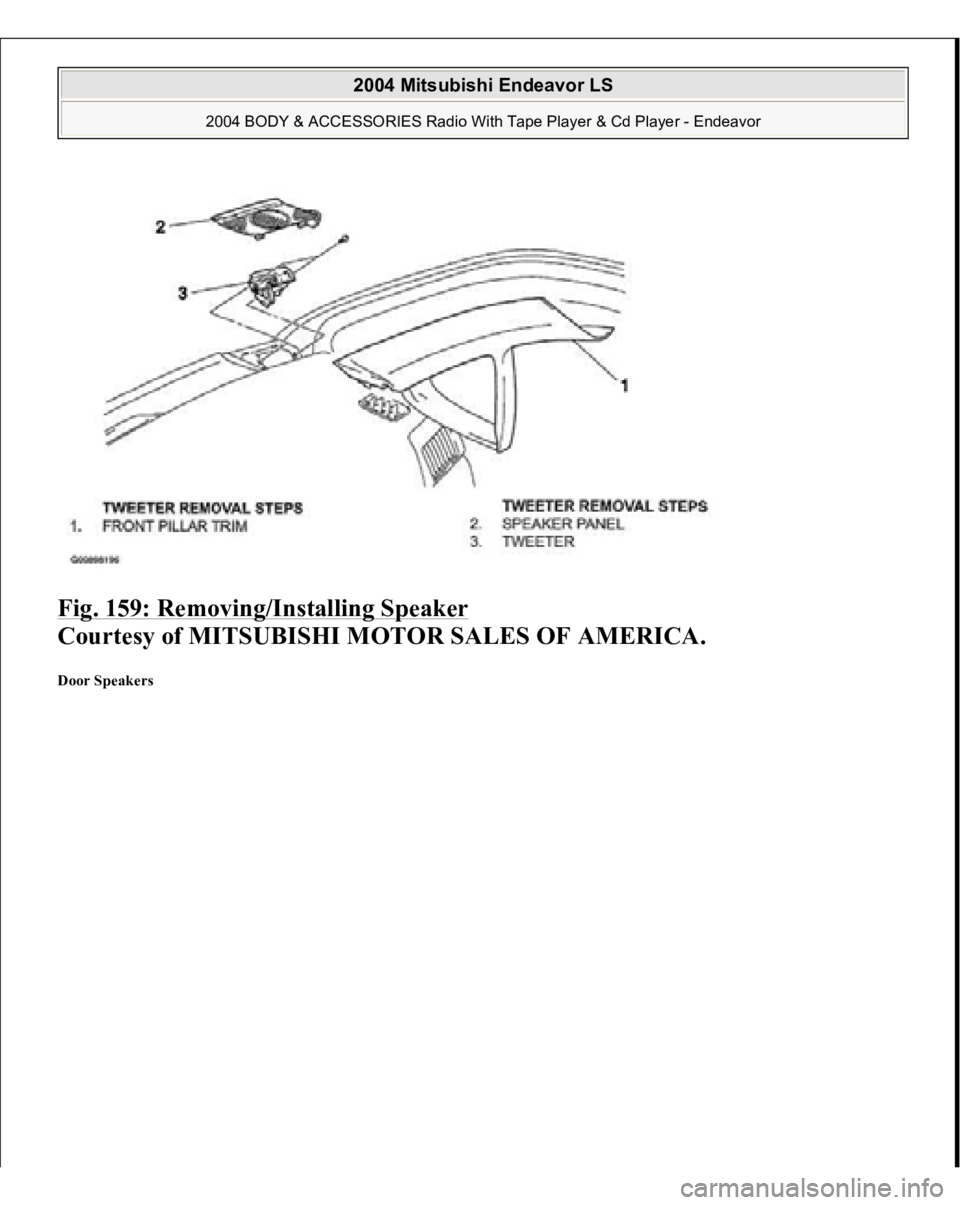

Fig. 159: Removing/Installing Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Door Speakers
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

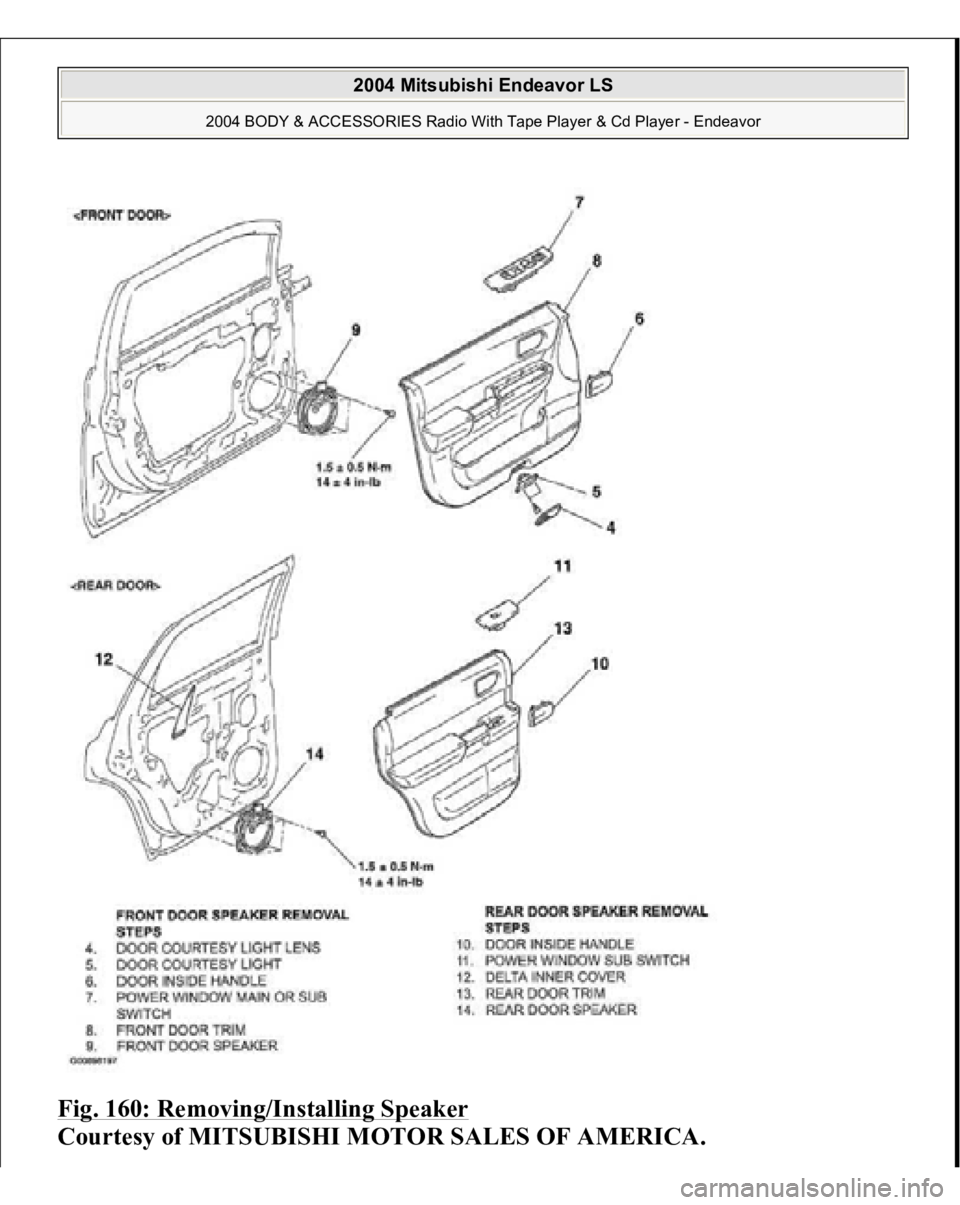

Fig. 160: Removing/Installing Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Quarter Trim Pane
l

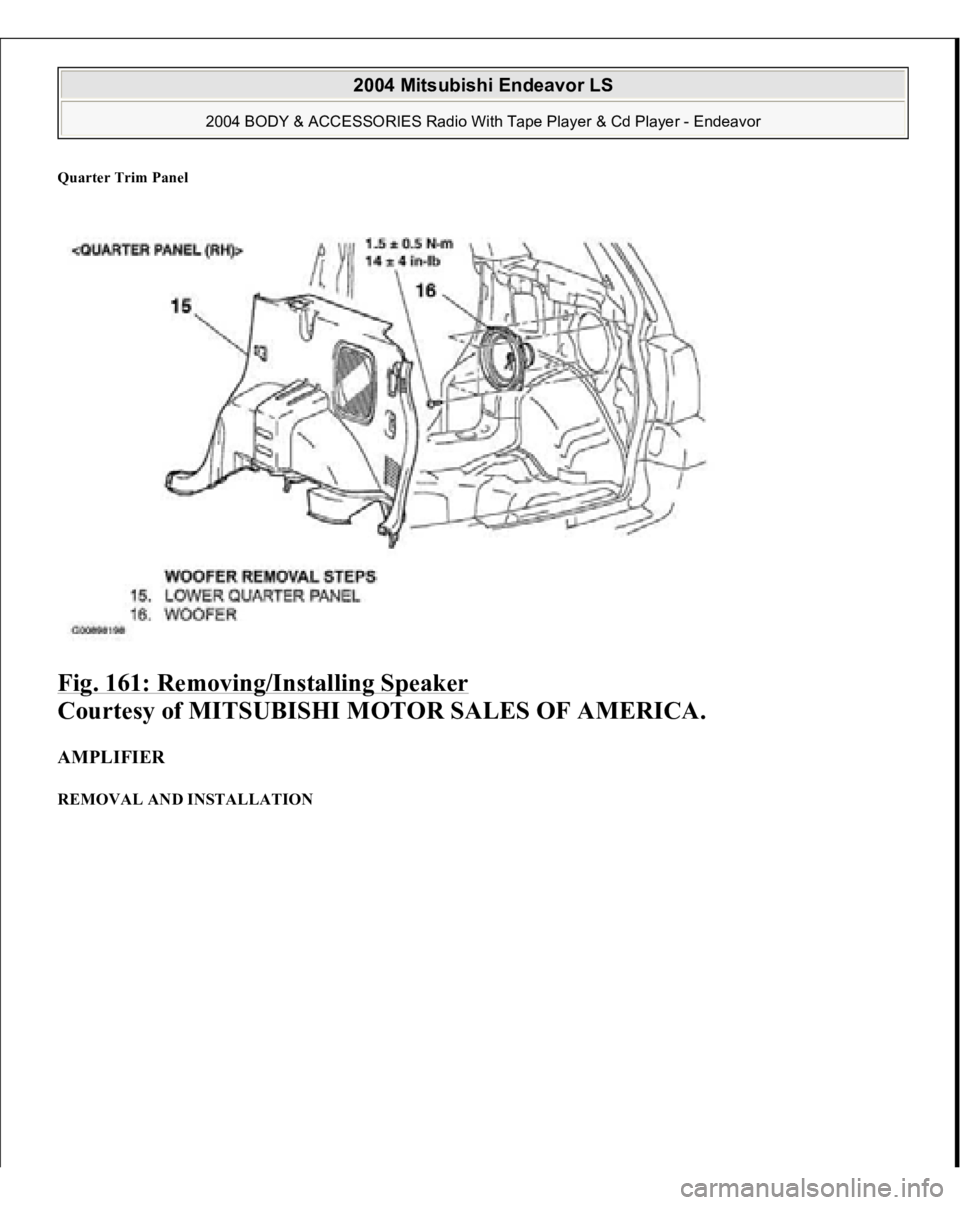

Fig. 161: Removing/Installing Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AMPLIFIER REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

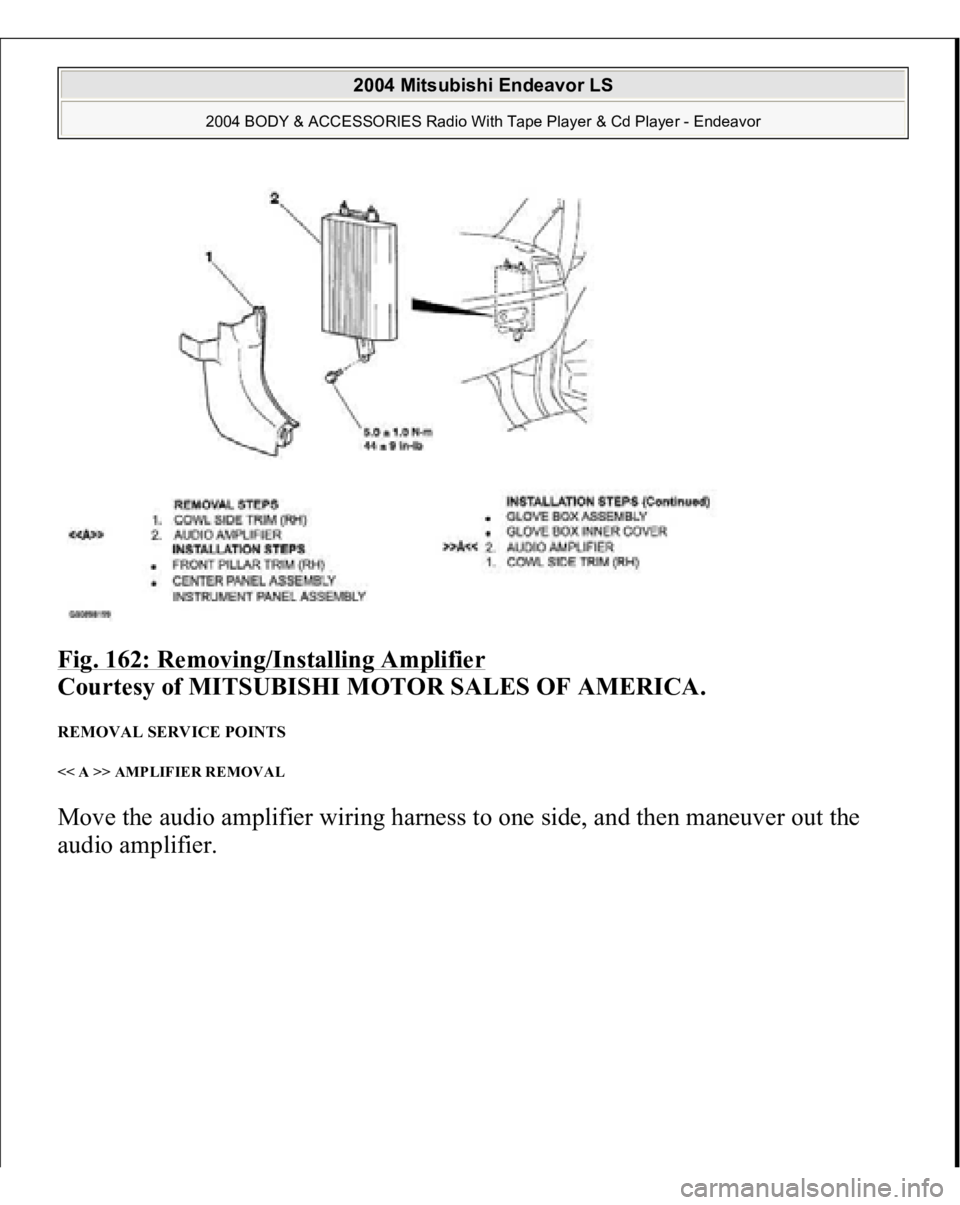

Fig. 162: Removing/Installing Amplifier

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS << A >> AMPLIFIER REMOVAL Move the audio amplifier wiring harness to one side, and then maneuver out the
audio amplifier.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

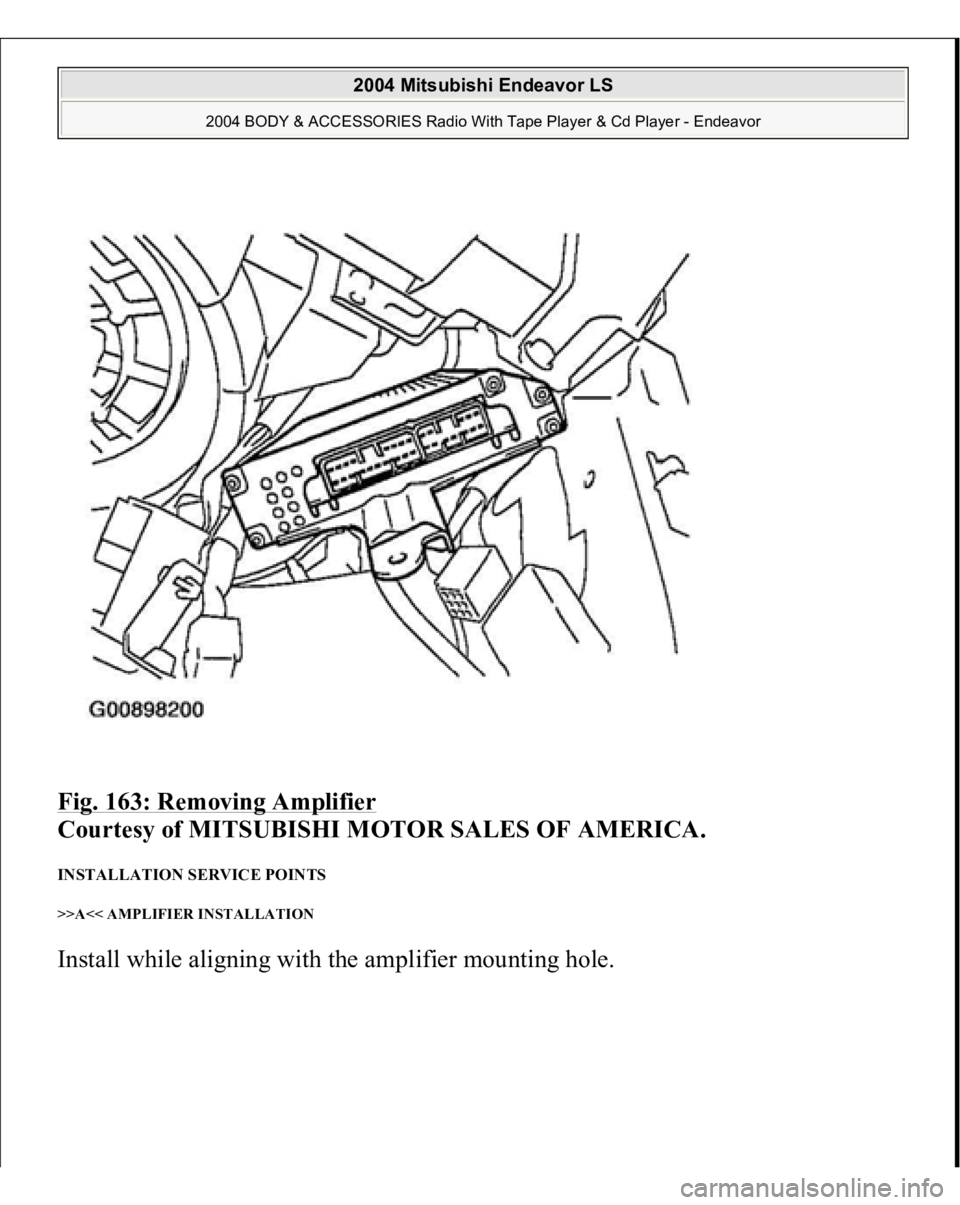

Fig. 163: Removing Amplifier

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINTS >>A<< AMPLIFIER INSTALLATION Install while ali
gnin
g with the am
plifier mountin
g hole.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

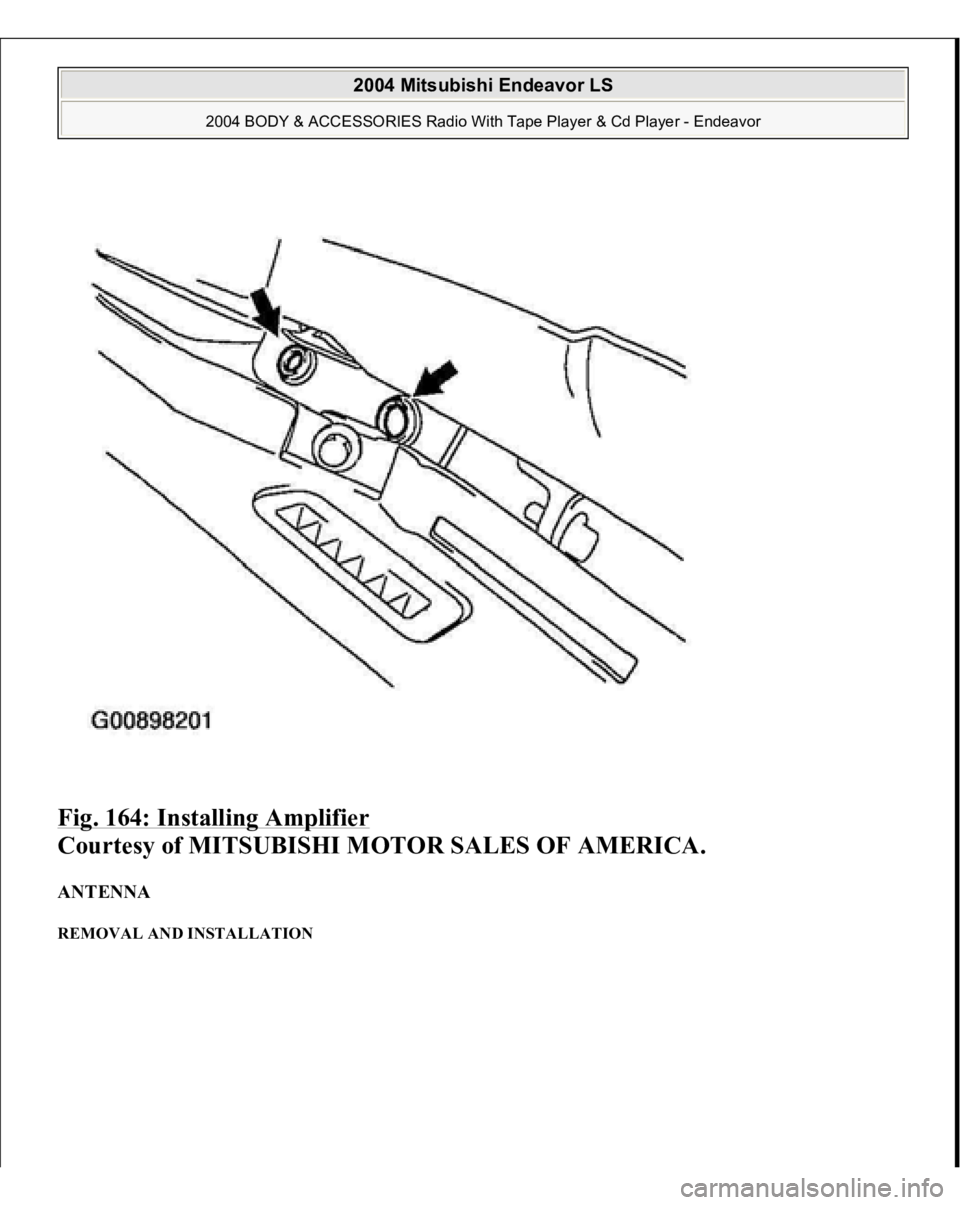

Fig. 164: Installing Amplifier

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ANTENNA REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

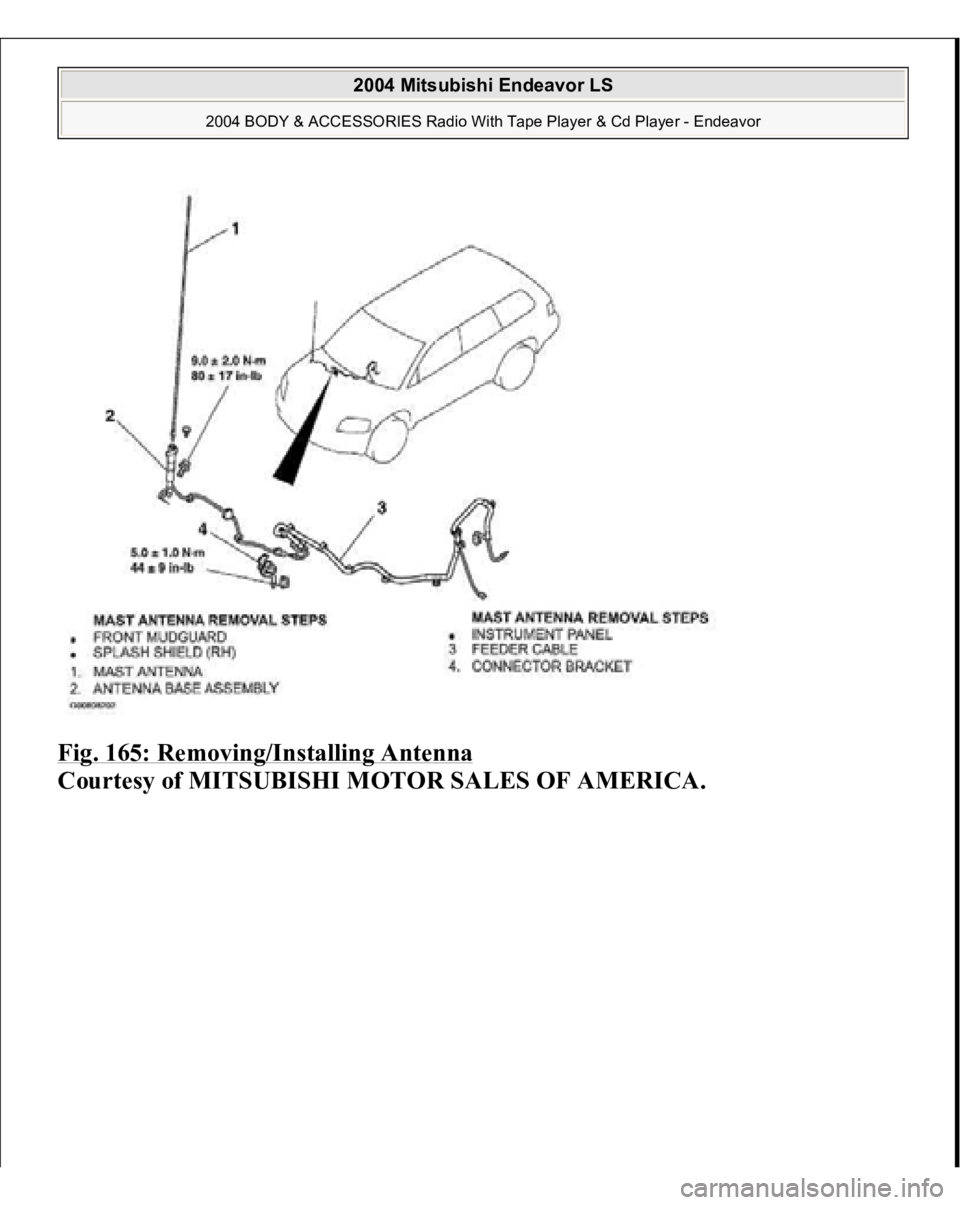

Fig. 165: Removing/Installing Antenna

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2004 BODY & ACCESSORIES
Video Entertainment System - Endeavor
VIDEO ENTERTAINMENT SYSTEM (VES) GENERAL DESCRIPTION The VES enables images from a DVD player to be watched on a rear-seat display.
It also other commercially available video equipment and game machines to be
connected. BASIC OPERATIONS This chapter describes basic operations for playing a disc in the DVD player and for
playback from an external device connected to the auxiliary input jacks. For other
operations, please refer to the relevant information.
DVD player Auxiliary input jacks (connecting a commercially available video device or
game machine)
SPECIAL TOOL
