2004 MITSUBISHI ENDEAVOR CD player

Fig. 151: Displaying Memory Button

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check that the speaker, which is displayed on the multi-center display (middle
grade type), sounds (If the memory select "6" button is pressed, the speaker
will be changed).
4. If a button other than the memory select "6" button and "EJECT" button (CD)
is pressed, or the ignition switch is turned to "LOCK" (OFF) position, you will
exit from the speaker test mode.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 152: Displaying Front Speaker (LH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIAL TOOL
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

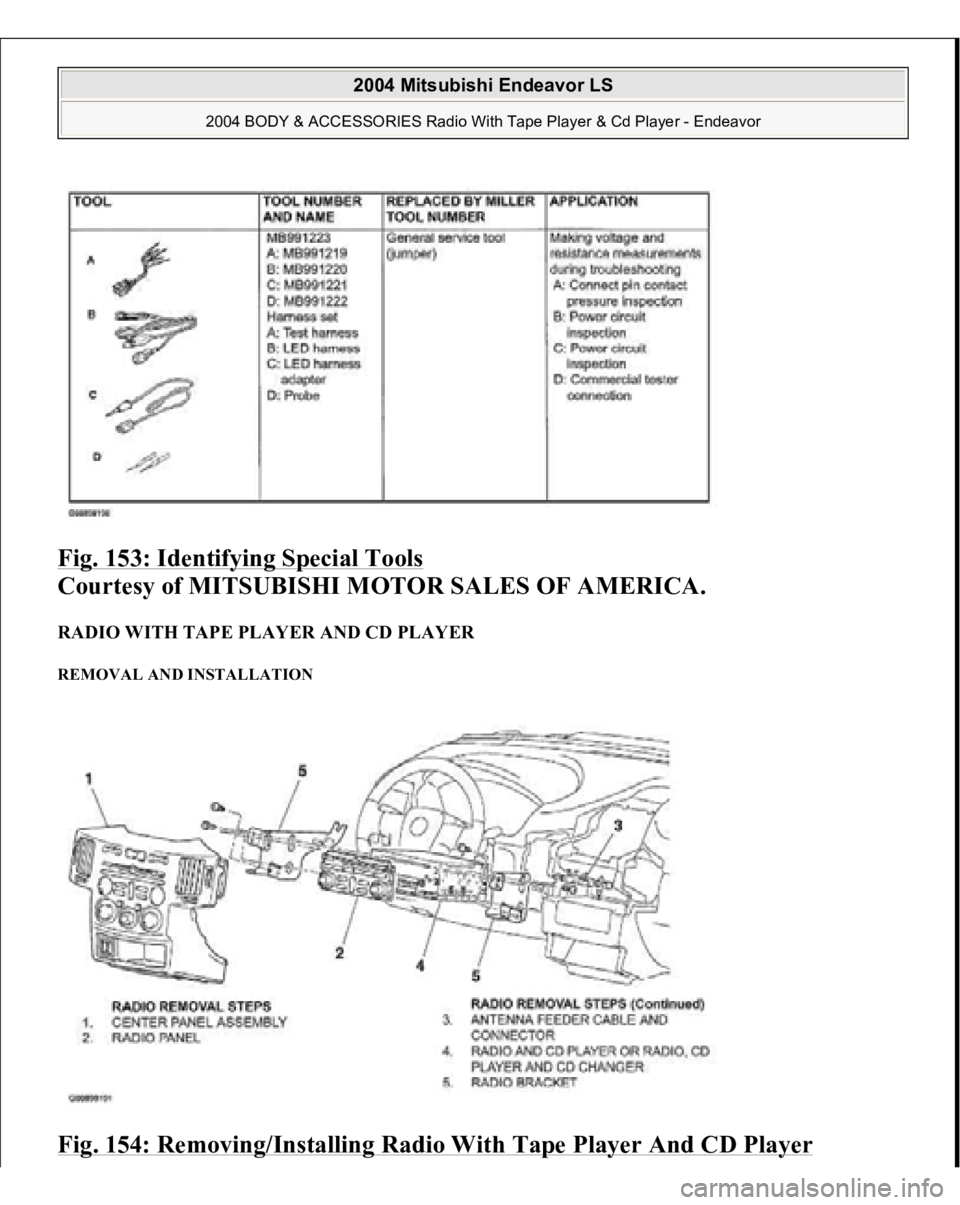

Fig. 153: Identifying Special Tools

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RADIO WITH TAPE PLAYER AND CD PLAYER REMOVAL AND INSTALLATION Fig. 154: Removing/Installing Radio With Tape Player And CD Player
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
REMOTE CONTROLLED RADIO SWITCH REMOVAL AND INSTALLATION Fig. 155: Removing/Installing Remote Controlled Radio Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> REMOTE CONTROLLED RADIO SWITCH REMOVAL Use a tool to hold the tabs on the remote controlled radio switch, and push out the
switch b
y your fin
ger.
WARNING:
Before removing the air bag module, refer to AIR BAG RESTRAINT SYSTEMS
).
When removing and installing the steering
wheel, do not let it bump against the air bag
module.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 156: Pushing Out Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

INSPECTION REMOTE CONTROLLED RADIO SWITCH CONTINUITY CHECK Use an ohmmeter to measure the resistance value be
tween the terminal.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

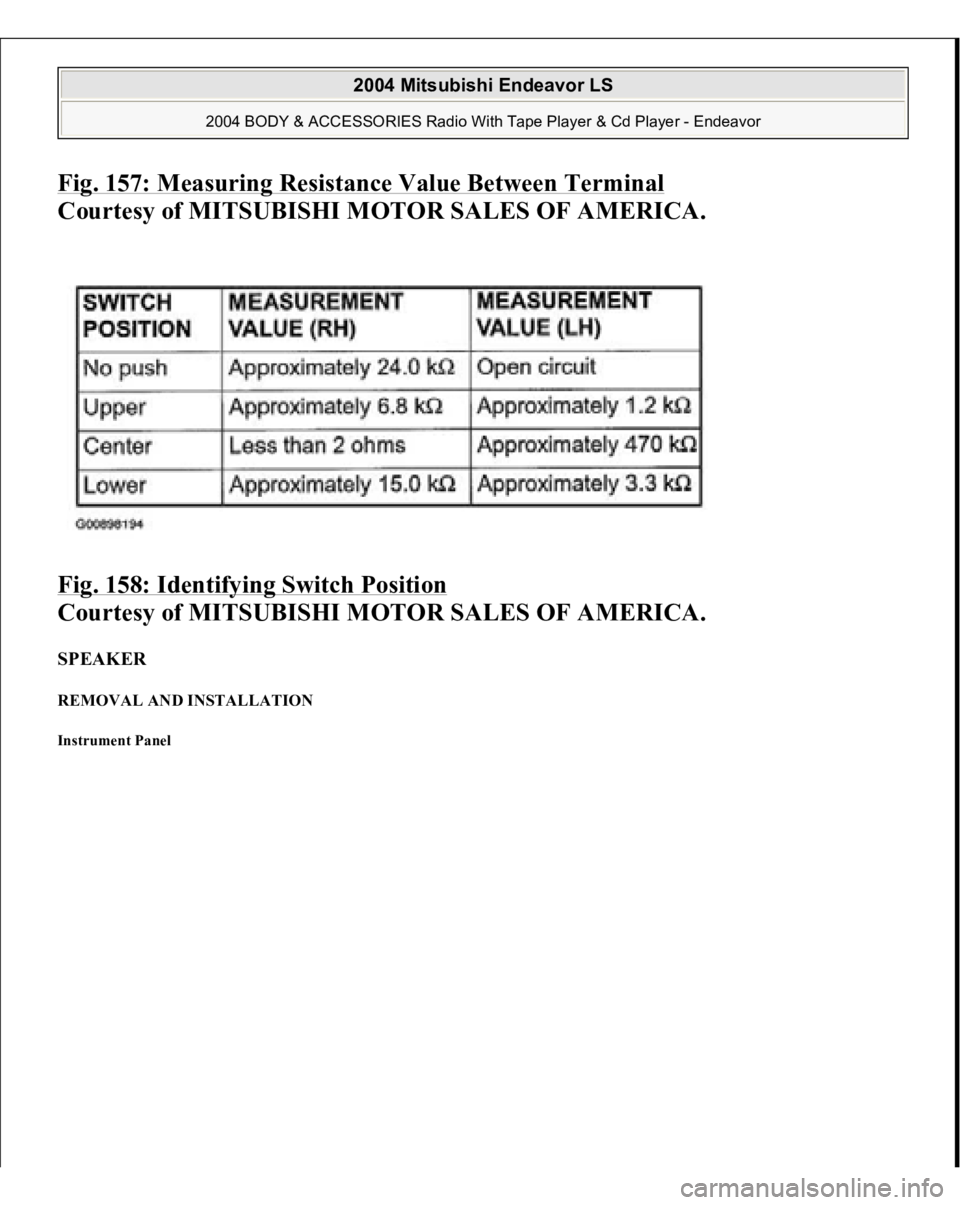

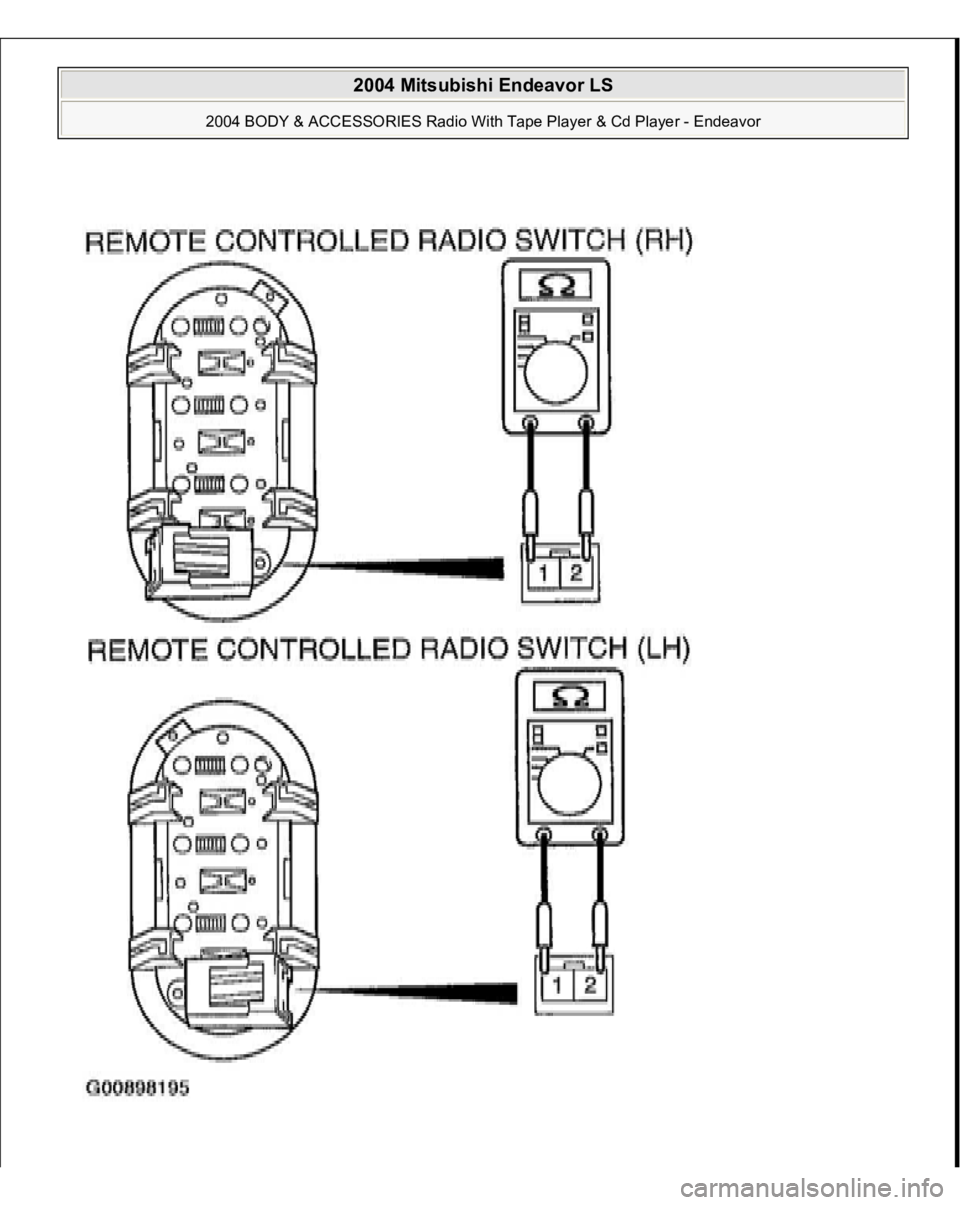

Fig. 157: Measuring Resistance Value Between Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 158: Identifying Switch Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPEAKER REMOVAL AND INSTALLATION Instrument Panel
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
