2004 MITSUBISHI ENDEAVOR CD player

Malfunction of the radio/CD player
DIAGNOSTIC PROCEDURE
STEP 1. Confirm the disk.
Confirm that the disk complies with the market specifications.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Use a disk, which complies with the market specifications.
STEP 2. Confirm that the disk is inserted with its correct side facing up.
Q: Is the check result normal?
YES: Go to Step 3.
NO: Confirm the disc face, and insert it again. (If the disc is single-sided,
its label should face up)
STEP 3. Confirm the disk.
Confirm that the disk is not contaminated or scratched.
Q: Is the check result normal?
YES: Go to Step 4.
NO: Clean the disk or use a clean disk.
STEP 4. Retest the system.
Check that the disk is played normally when it is inserted.
Q: Is the check result normal?
YES: The procedure is complete.
NO: Go to Step 5.
STEP 5. Connector check: D-36 rear disk play connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Fig. 7: Measuring Voltage At Rear Display Connector D
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Go to Step 8 .
NO: Go to Step 7.
STEP 7. Check the DIN cable.
Check whether the DIN cable between the M-bus adapter and the radio/CD
player is connected correctly.
Q: Is the check result normal?
YES: Go to Ste
p 8.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

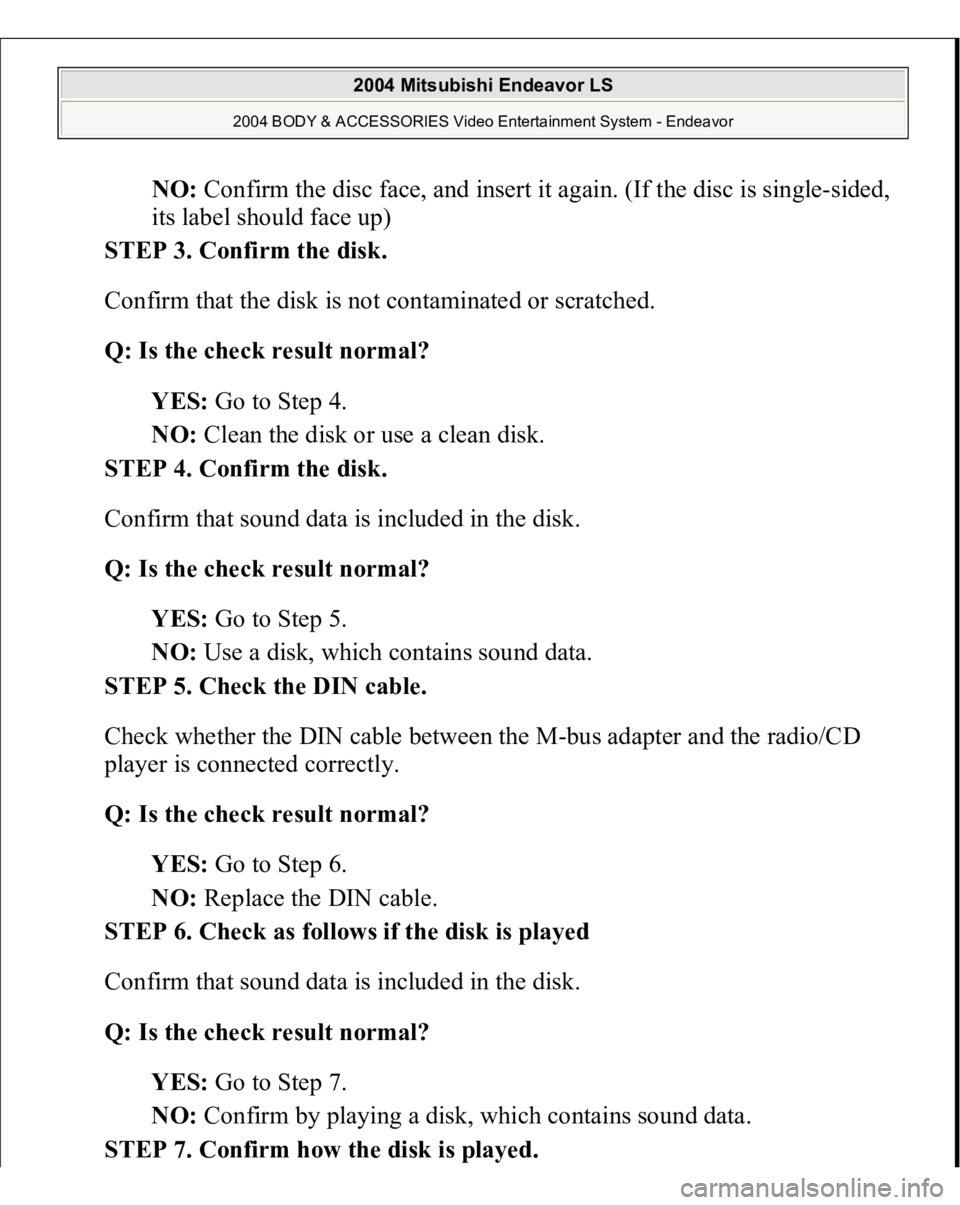

NO: Confirm the disc face, and insert it again. (If the disc is single-sided,
its label should face up)
STEP 3. Confirm the disk.
Confirm that the disk is not contaminated or scratched.
Q: Is the check result normal?
YES: Go to Step 4.
NO: Clean the disk or use a clean disk.
STEP 4. Confirm the disk.
Confirm that sound data is included in the disk.
Q: Is the check result normal?
YES: Go to Step 5.
NO: Use a disk, which contains sound data.
STEP 5. Check the DIN cable.
Check whether the DIN cable between the M-bus adapter and the radio/CD
player is connected correctly.
Q: Is the check result normal?
YES: Go to Step 6.
NO: Replace the DIN cable.
STEP 6. Check as follows if the disk is played
Confirm that sound data is included in the disk.
Q: Is the check result normal?
YES: Go to Step 7.
NO: Confirm by playing a disk, which contains sound data.
STEP 7. Confirm how the disk is played.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Check the disk is being played in a normal mode without using special
functions such as rewinding, fast-forwarding, slow motion or pause.
Q: Is the check result normal?
YES: Go to Step 8.
NO: Check by playing the disk in a normal mode.
STEP 8. Confirm what type of sound does not come out.
Confirm what type of sound does not come out from the speakers.
Q: What type of sound does not come out? All types come out. : The
trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
No sound comes out: Go to Step 9.
The radio/CD player does not sound. : Go to Step 10 .
STEP 9. Substitute the rear display unit assembly (overhead type) and
retest the system.
Confirm that all the speakers sound when the rear display unit assembly
(overhead type) is substituted.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Check the wiring harnesses and the DIN cable between each speakers
and the rear display unit assembly (overhead type), and repair or replace if
necessary. Then go to Step 11 .
STEP 10. Substitute the M-bus adapter, and retest the system.
Confirm that all the s
peakers sound when the
M-bus ada
pter is substituted.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Q: Is the check result normal?
YES: Replace the M-bus adapter.
NO: Check the wiring harnesses and the DIN cable between each speakers
and the M-bus adapter, and repair or replace if necessary. Then go to step
11.
STEP 11. Confirm the operation of all the speakers.
Confirm that the radio/CD player sound comes out from all the speakers.
Q: Is the check result normal?
YES: Go to Step 12.
NO: Diagnose the radio/CD player. Refer to RADIO WITH TAPE
PLAYER AND CD PLAYER, SPEAKER
.
STEP 12. Substitute the rear display unit assembly (overhead type) and
retest the system.
Confirm that radio/CD player sound comes out from all the speakers when the
rear display unit assembly (overhead type) is substituted.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type), If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Go to Step 13.
STEP 13. Substitute the radio/CD player, and retest the system.
Confirm that radio/CD player sound comes out from all the speakers when the
radio/CD player is substituted.
Q: Is the check result normal?
YES: Re
place the radio/CD
player.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
