Page 1697 of 3870

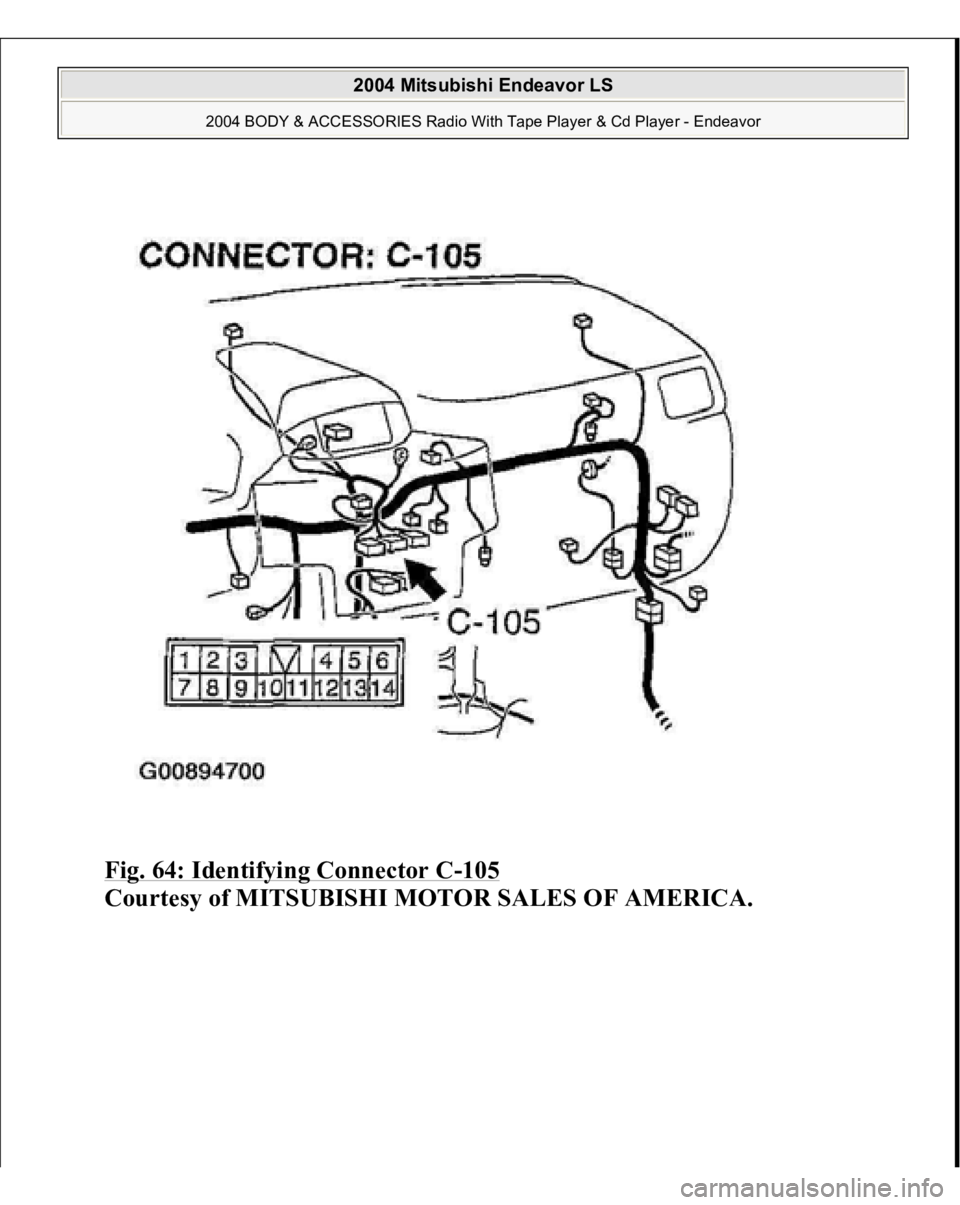

Fig. 64: Identifying Connector C
-105
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1698 of 3870

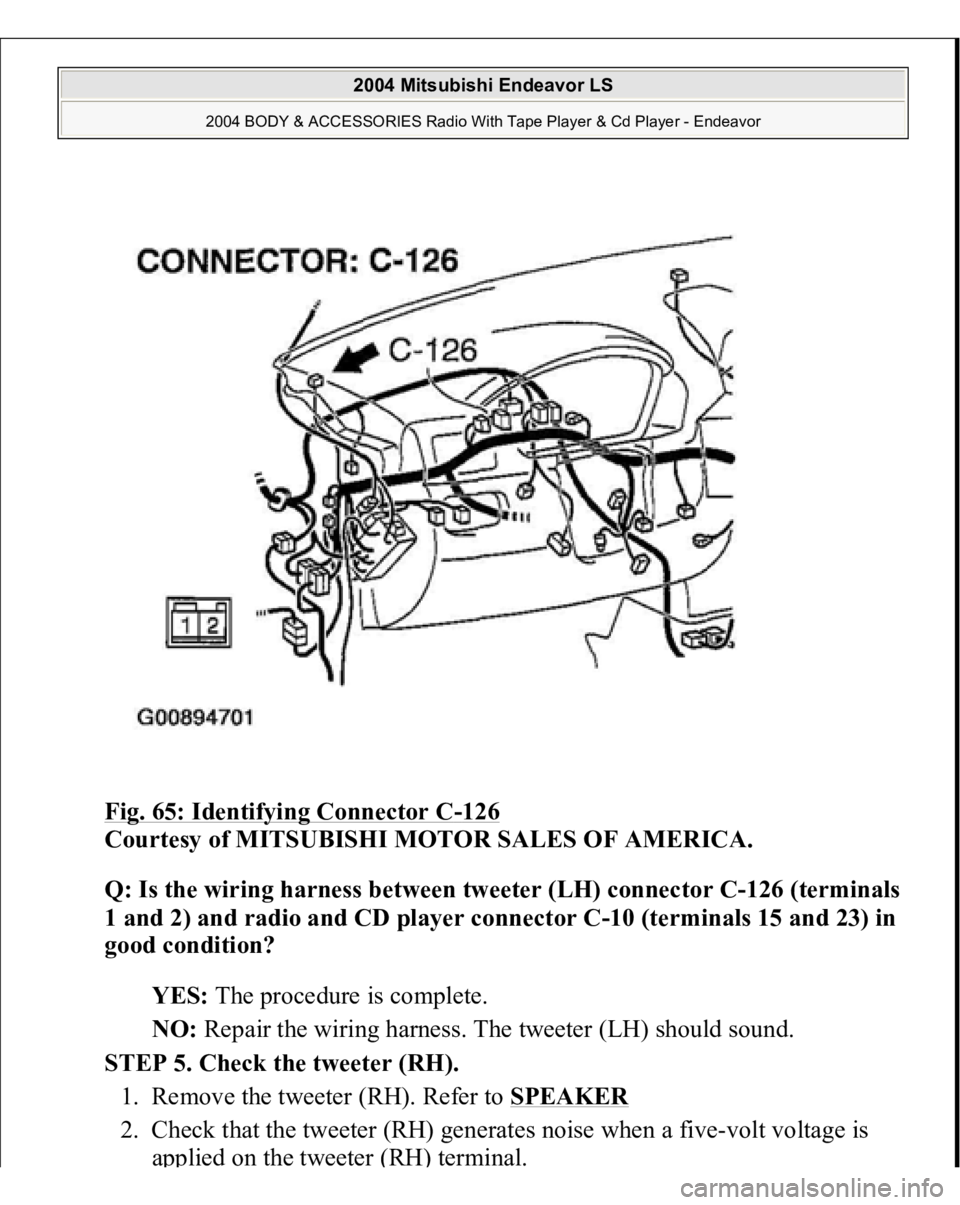

Fig. 65: Identifying Connector C
-126
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between tweeter (LH) connector C-126 (terminals
1 and 2) and radio and CD player connector C-10 (terminals 15 and 23) in
good condition?
YES: The procedure is complete.
NO: Repair the wiring harness. The tweeter (LH) should sound.
STEP 5. Check the tweeter (RH).
1. Remove the tweeter (RH). Refer to SPEAKER
2. Check that the tweeter (RH) generates noise when a five-volt voltage is
a
pplied on the tweeter
(RH
) terminal.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1699 of 3870

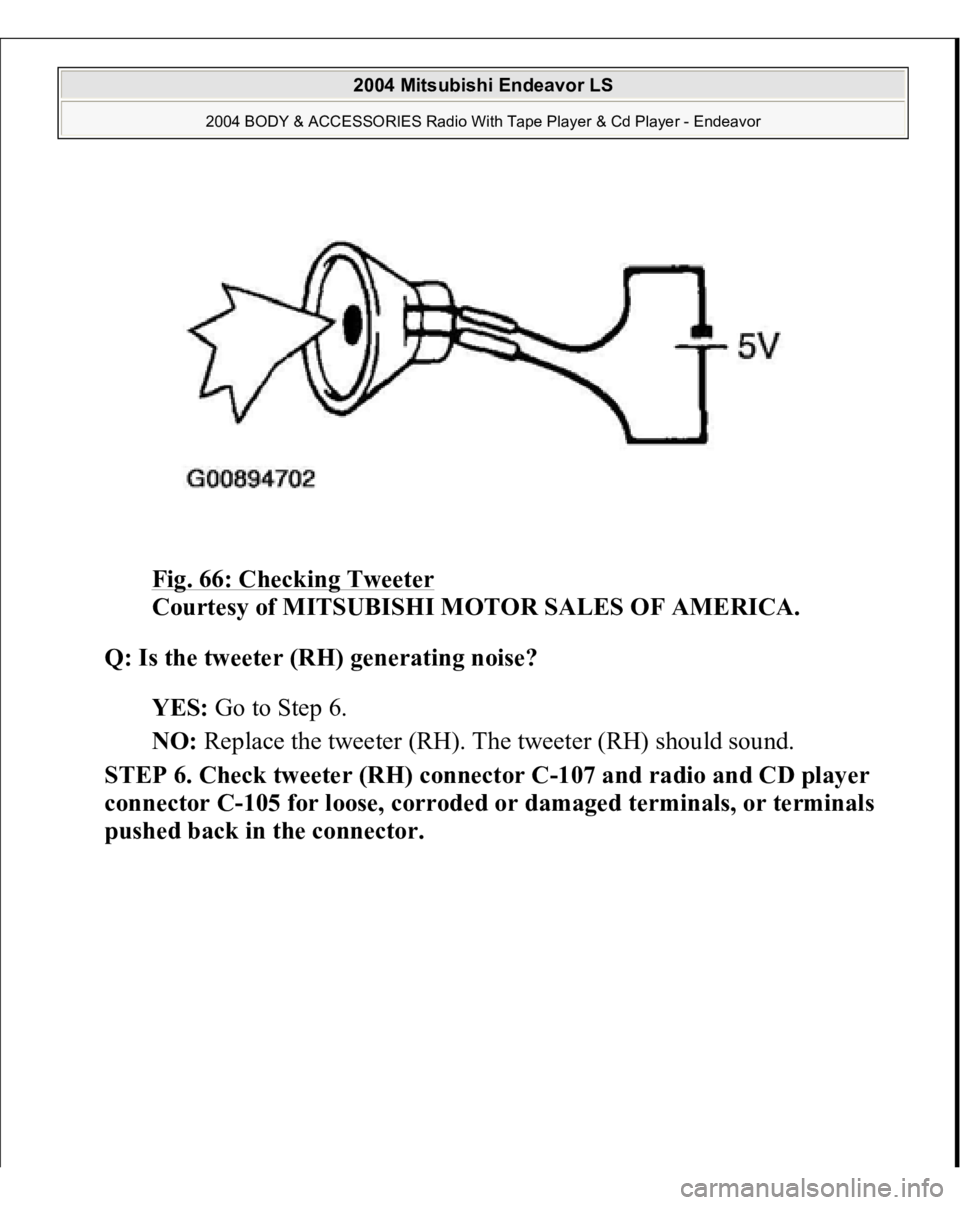

Fig. 66: Checking Tweeter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the tweeter (RH) generating noise?
YES: Go to Step 6.
NO: Replace the tweeter (RH). The tweeter (RH) should sound.
STEP 6. Check tweeter (RH) connector C-107 and radio and CD player
connector C-105 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1700 of 3870

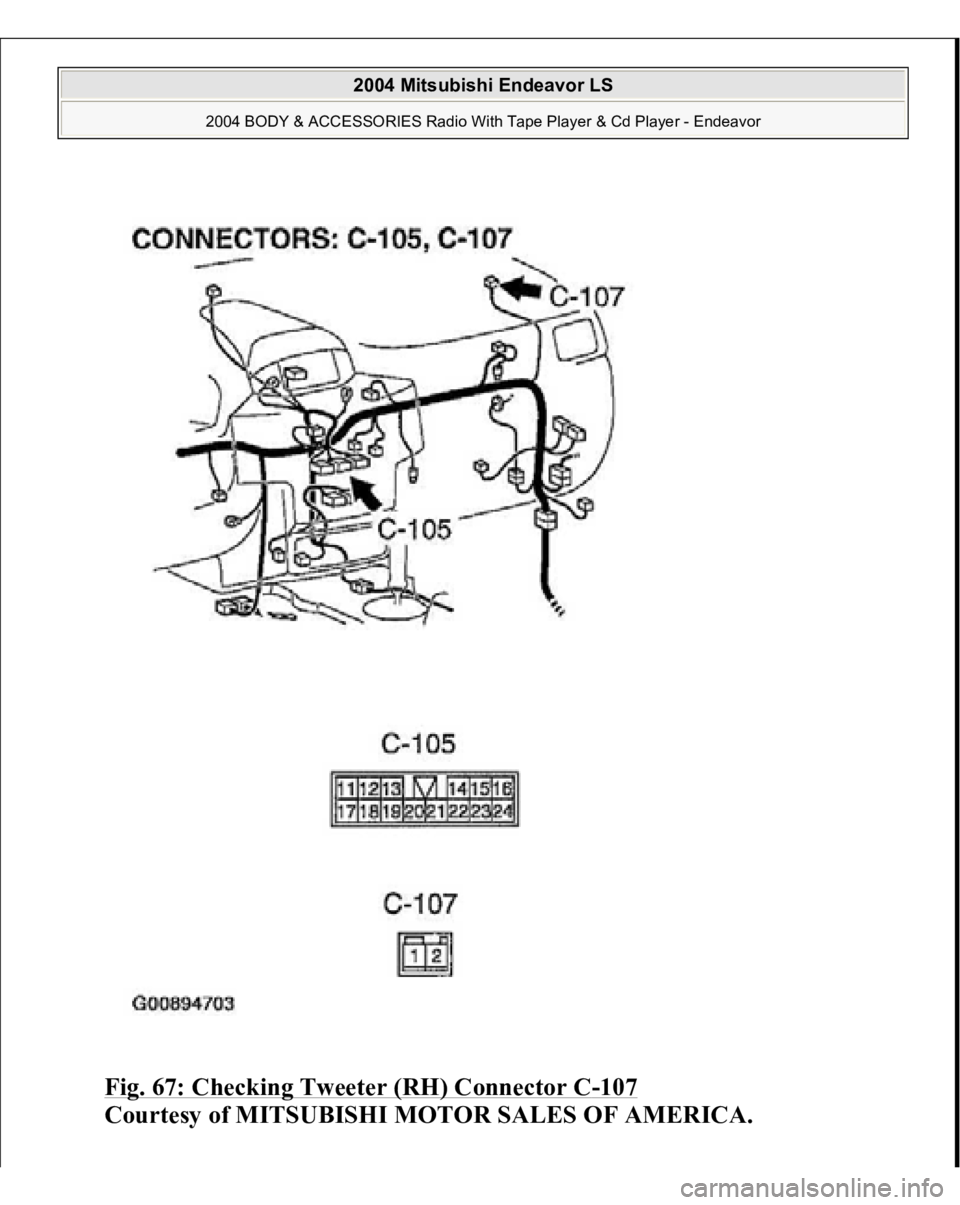

Fig. 67: Checking Tweeter (RH) Connector C
-107
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1701 of 3870

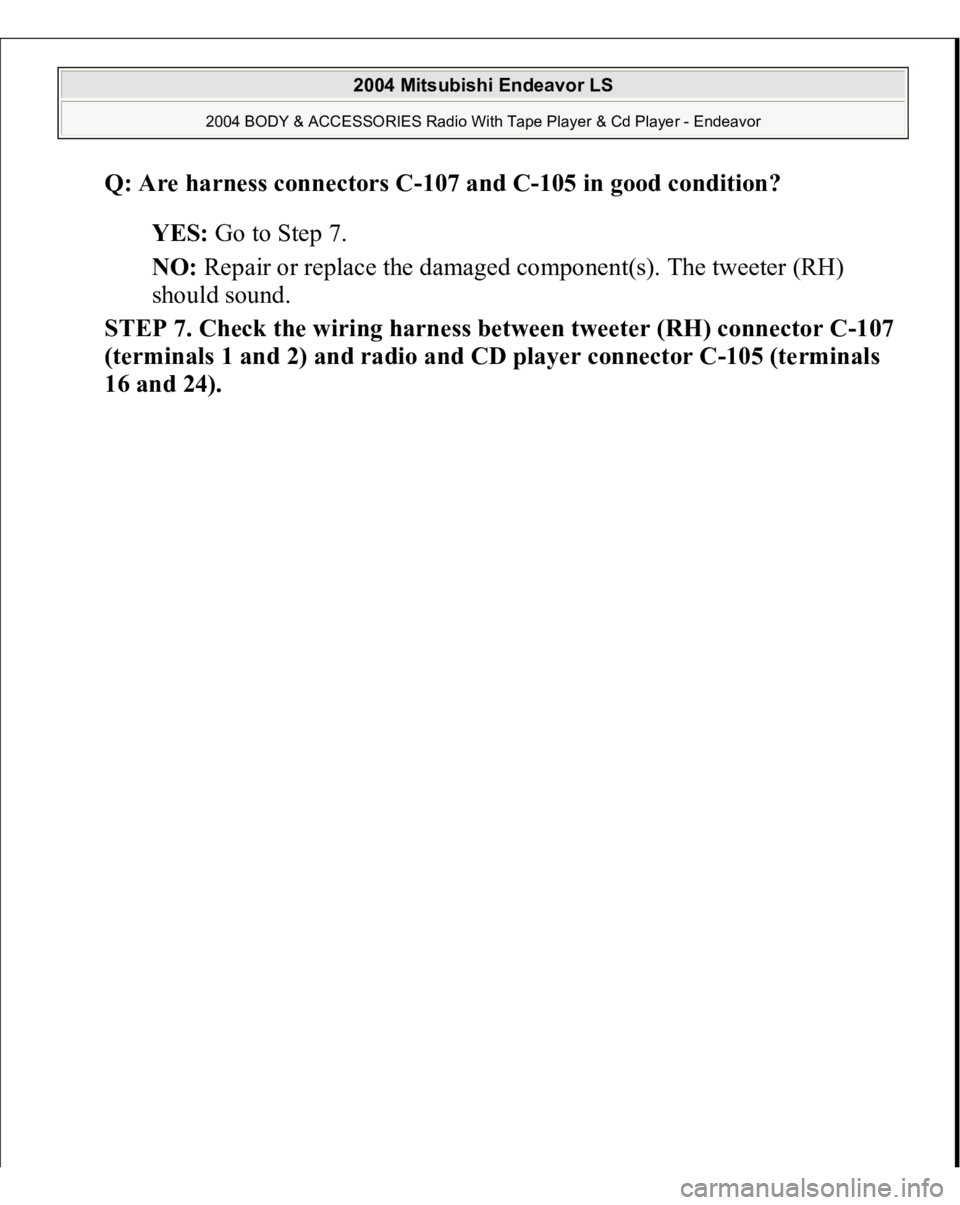

Q: Are harness connectors C-107 and C-105 in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged component(s). The tweeter (RH)
should sound.
STEP 7. Check the wiring harness between tweeter (RH) connector C-107
(terminals 1 and 2) and radio and CD player connector C-105 (terminals
16 and 24).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1702 of 3870
Fig. 68: Identifying Connector C
-105 C
-107
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1703 of 3870

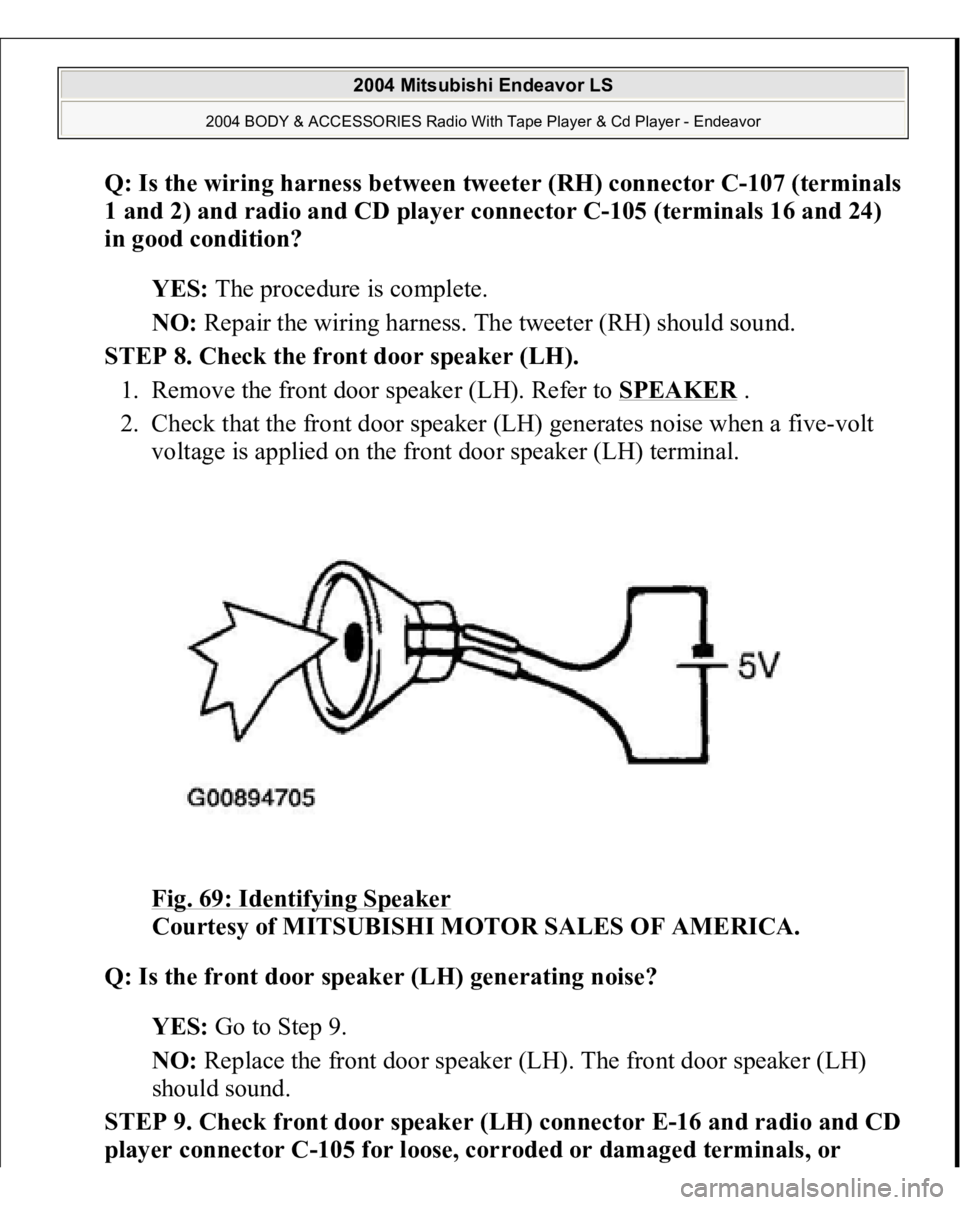

Q: Is the wiring harness between tweeter (RH) connector C-107 (terminals
1 and 2) and radio and CD player connector C-105 (terminals 16 and 24)
in good condition?
YES: The procedure is complete.
NO: Repair the wiring harness. The tweeter (RH) should sound.
STEP 8. Check the front door speaker (LH).
1. Remove the front door speaker (LH). Refer to SPEAKER
.
2. Check that the front door speaker (LH) generates noise when a five-volt
voltage is applied on the front door speaker (LH) terminal.
Fig. 69: Identifying Speaker
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the front door speaker (LH) generating noise?
YES: Go to Step 9.
NO: Replace the front door speaker (LH). The front door speaker (LH)
should sound.
STEP 9. Check front door speaker (LH) connector E-16 and radio and CD
player connector C-105 for loose, corroded or damaged terminals, or
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1704 of 3870

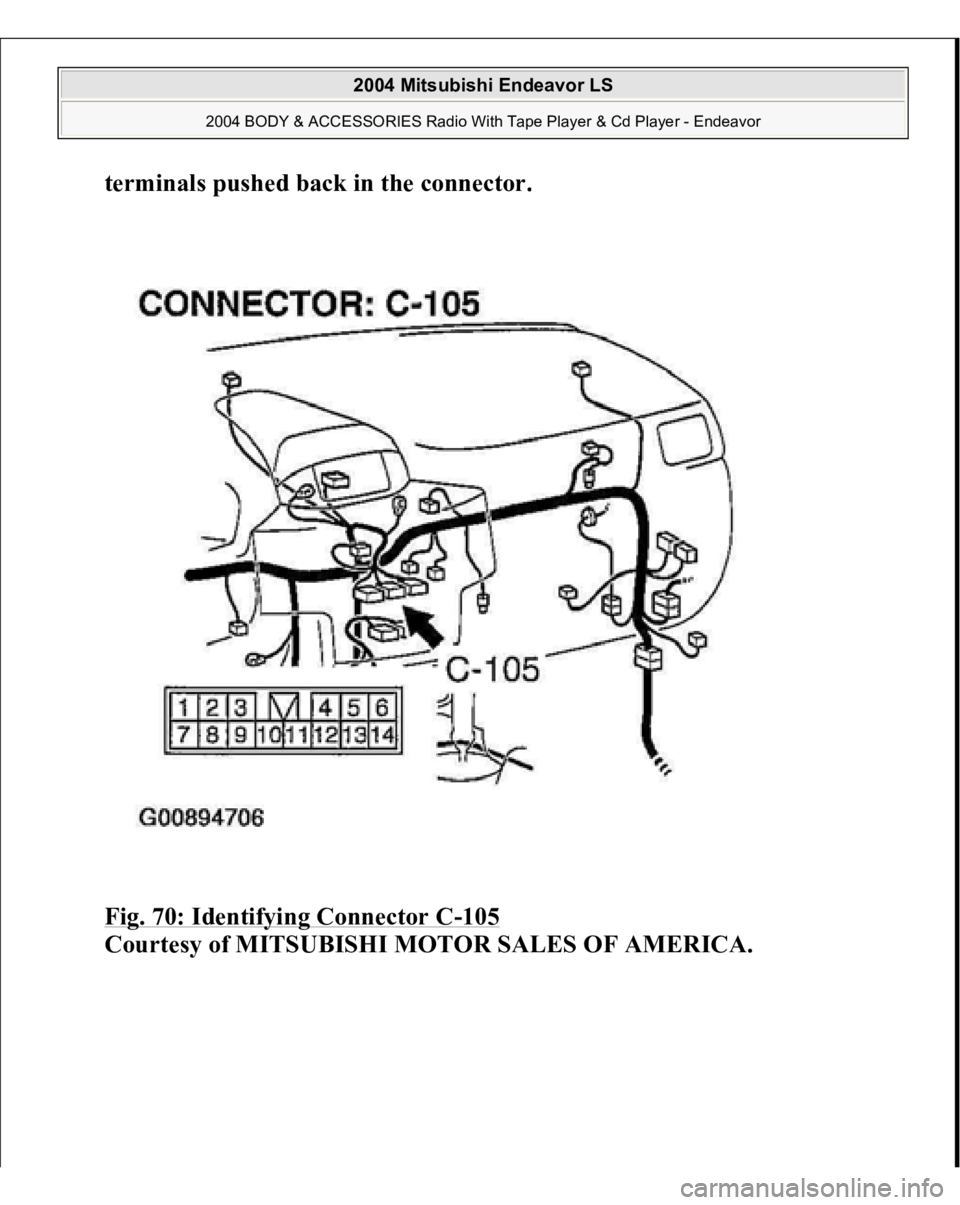

terminals pushed back in the connector
.
Fig. 70: Identifying Connector C
-105
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
