Fig. 51: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-31 for loose,
corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connectors C-31
is damaged, repair or replace the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 52: Identifying Connector C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between audio amplifier connector C-11
(terminal 6 and 16) and the battery in good condition?
YES: There is no action to be taken.
NO: Repair the wiring harness. The speakers should sound.
STEP 4. Measure the resistance at audio amplifier connector C-11 in
order to check the ground circuit to the audio amplifier.
1. Disconnect audio amplifier connector C-11, and measure at the wiring
harness side.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 53: Disconnecting Audio Amplifier Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure the resistance between terminal 7 and ground.

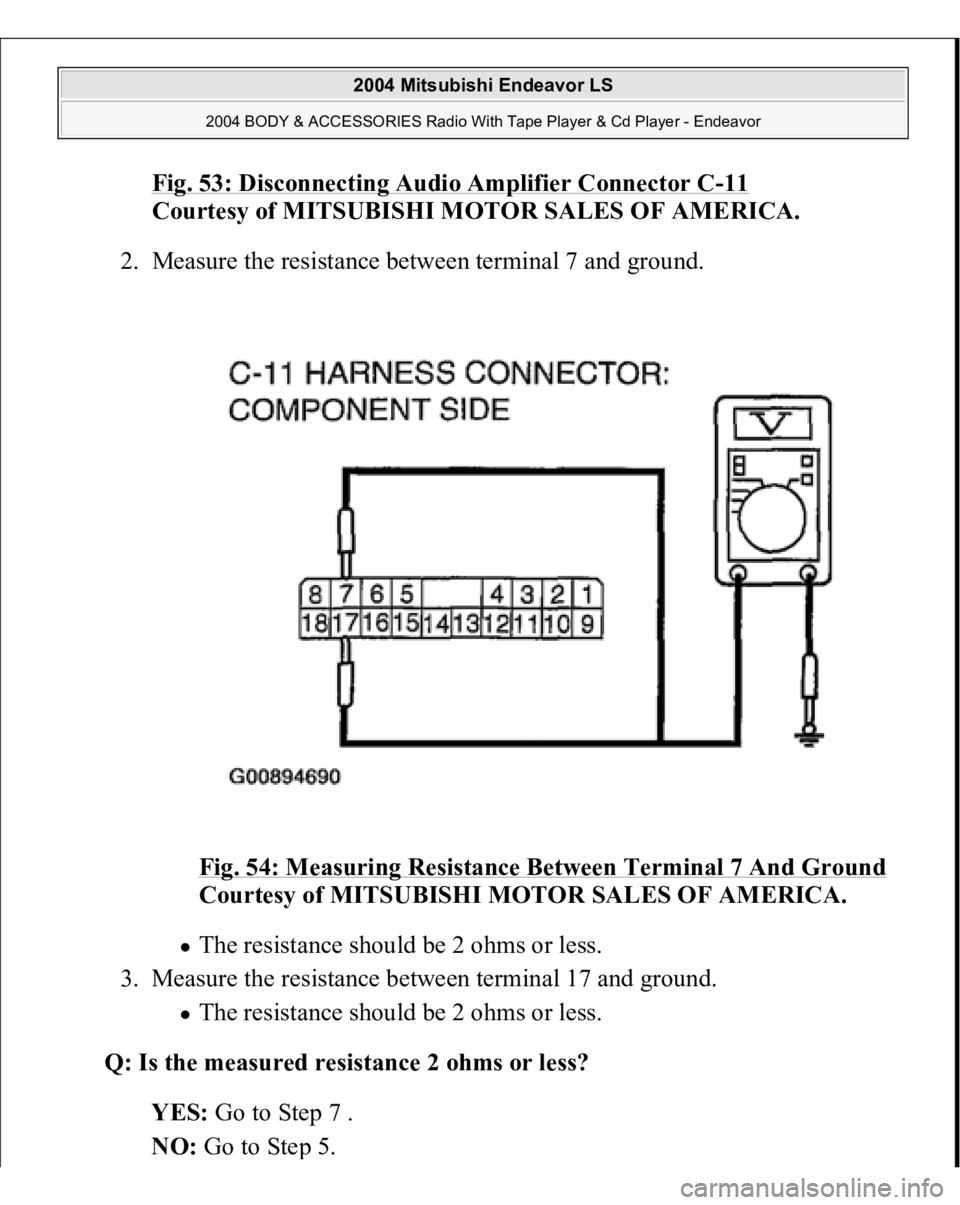

Fig. 54: Measuring Resistance Between Terminal 7 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The resistance should be 2 ohms or less.
3. Measure the resistance between terminal 17 and ground. The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7 .
NO: Go to Ste
p 5.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

STEP 5. Check audio amplifier connector C-11 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.
Fig. 55: Identifying Connector C
-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is audio amplifier connector C-11 in good condition?
YES: Go to Step 6.
NO: Repair or replace the damaged component(s). The speakers should
sound.
STEP 6. Check the wiring harness between audio amplifier connector C-

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

11 (terminal 7 and 17) and ground
.
Q: Is the wiring harness between audio amplifier connector C-11
(terminal 7 and 17) and ground in good condition?
YES: There is no action to be taken.
NO: Repair the wiring harness. The speakers should sound.
Fig. 56: Identifying Connector C-11
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEP 7. Check radio, CD player and CD changer connector C-113 and
aud
io amplifi
er conn
ecto
r C-12 f
or loose,
corroded
or da
maged
termin
als,
