Page 1649 of 3870
Fig. 21: Identifying Connector C
-110
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1650 of 3870
Fig. 22: Identifying Connector C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between radio, CD player and CD changer
connector C-110 (terminal 5) and clock spring connector C-306 (terminal
2) in good condition?
YES: Go to Step 4.
NO: Repair the wiring harness. The remote controlled radio switch should
work normally.
STEP 4. Measure the resistance at remote controlled radio switch ground
circuit to the clock s
prin
g connector C-306
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1651 of 3870

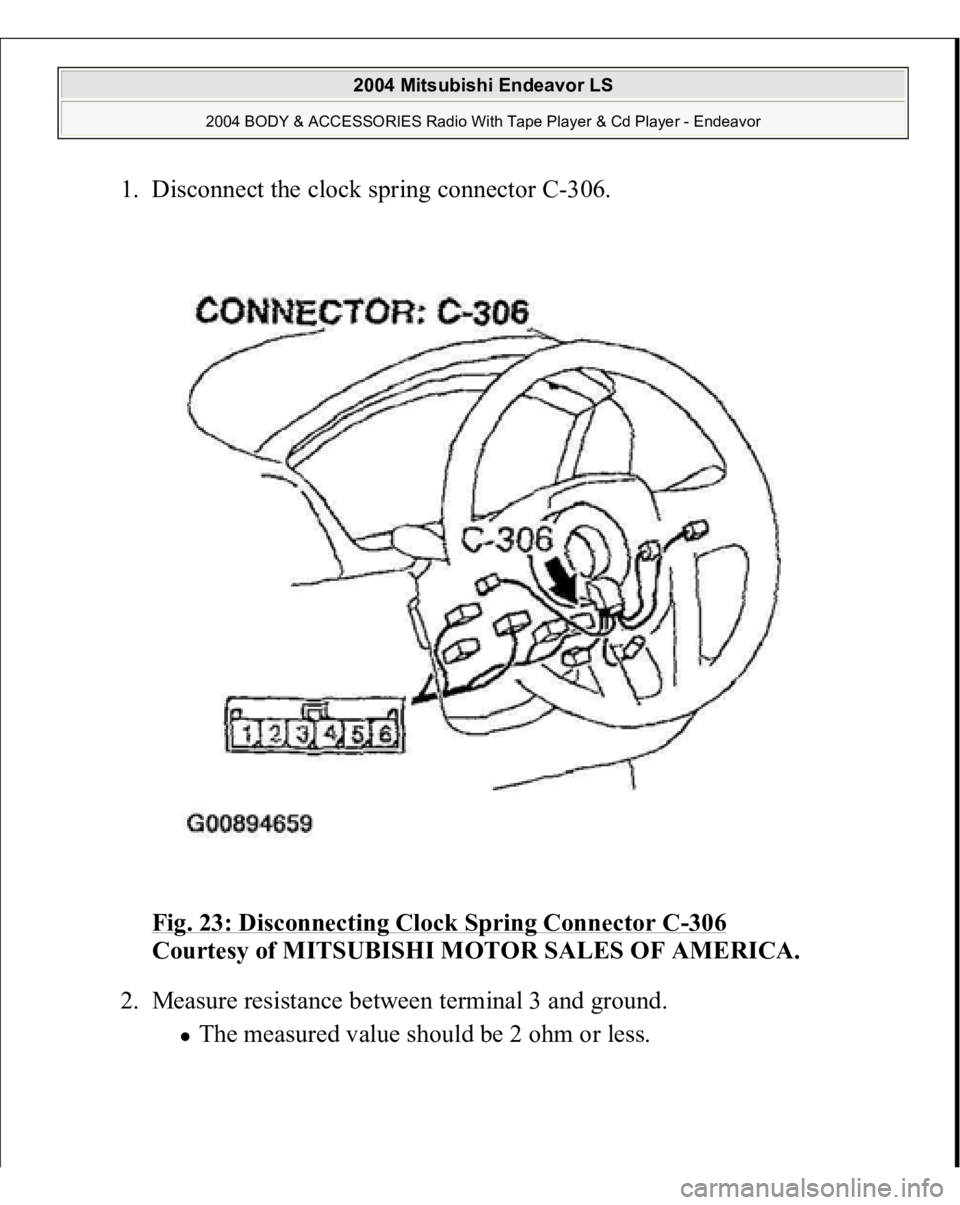

1. Disconnect the clock spring connector C-306.
Fig. 23: Disconnecting Clock Spring Connector C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure resistance between terminal 3 and ground.
The measured value should be 2 ohm or less.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1652 of 3870

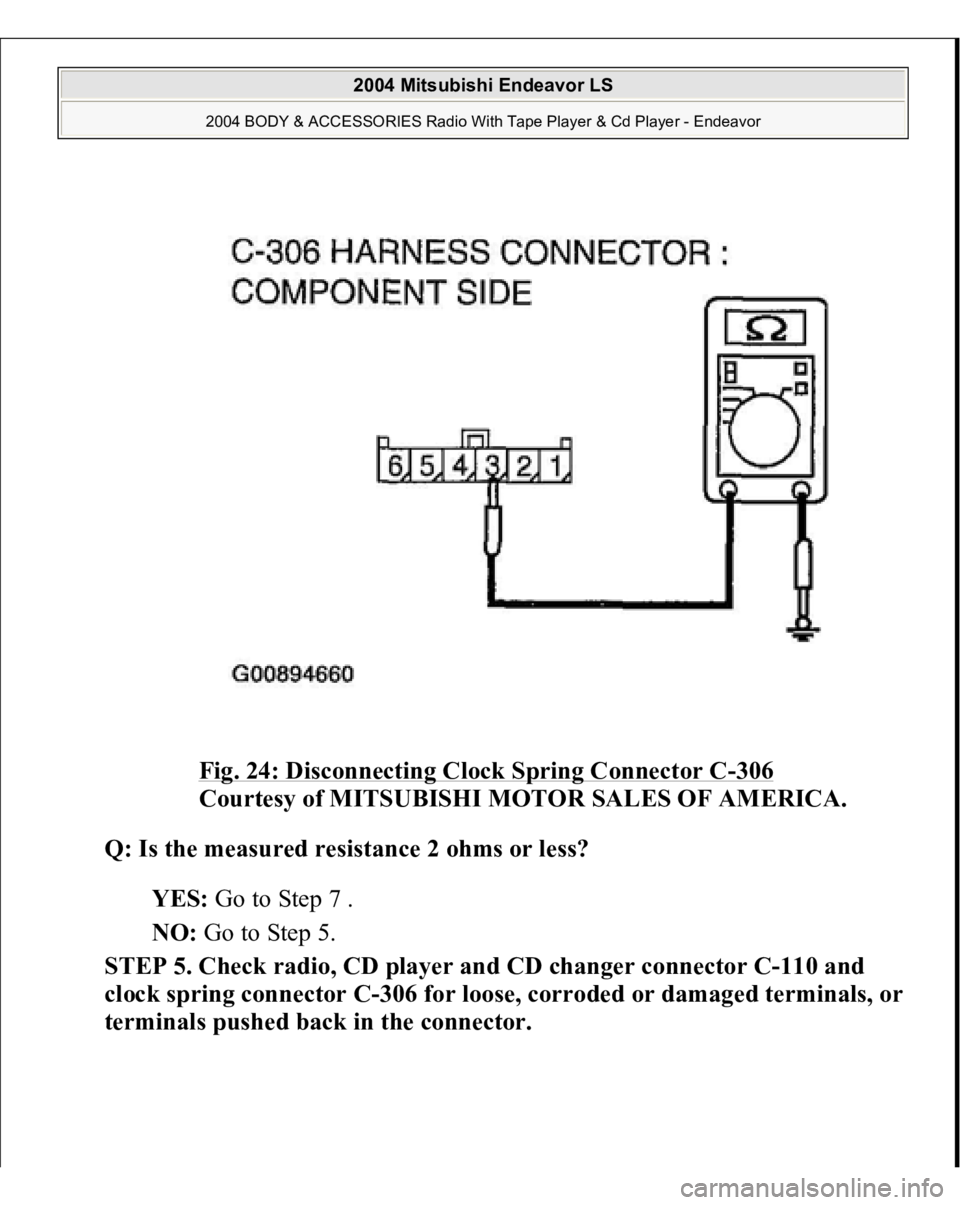

Fig. 24: Disconnecting Clock Spring Connector C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7 .
NO: Go to Step 5.
STEP 5. Check radio, CD player and CD changer connector C-110 and
clock spring connector C-306 for loose, corroded or dama
ged terminals, or
terminals pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1653 of 3870

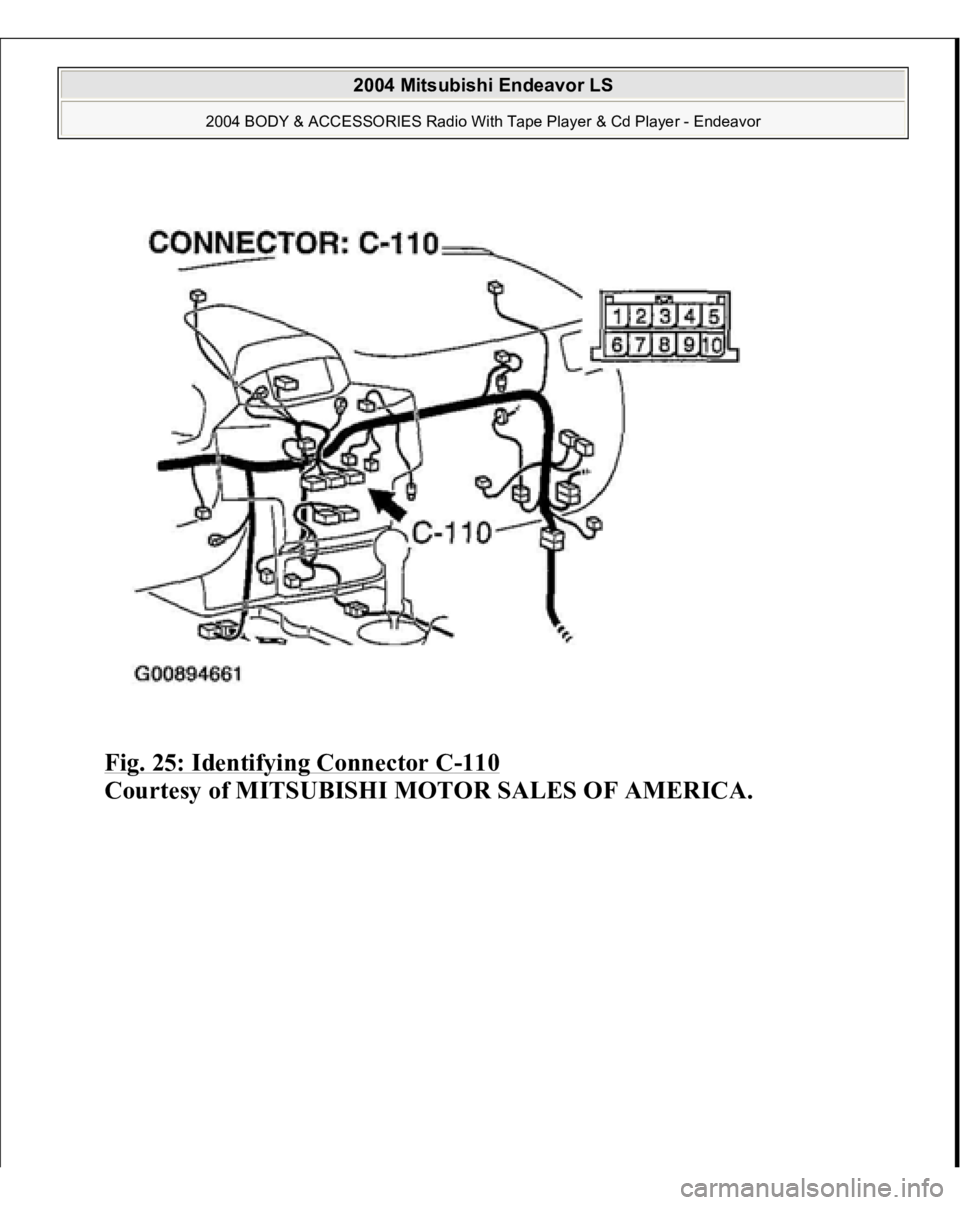

Fig. 25: Identifying Connector C
-110
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1654 of 3870
Fig. 26: Identifying Connector C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are radio, CD player and CD changer connector C-110 and clock
spring connector C-306 in good condition?
YES: Go to Step 6.
NO: Repair or replace the damaged component(s). The remote controlled
radio switch should work normally.
STEP 6. Check the wiring harness between clock spring connector C-306
(terminal 3) and radio, CD player and CD changer connector C-110
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1655 of 3870

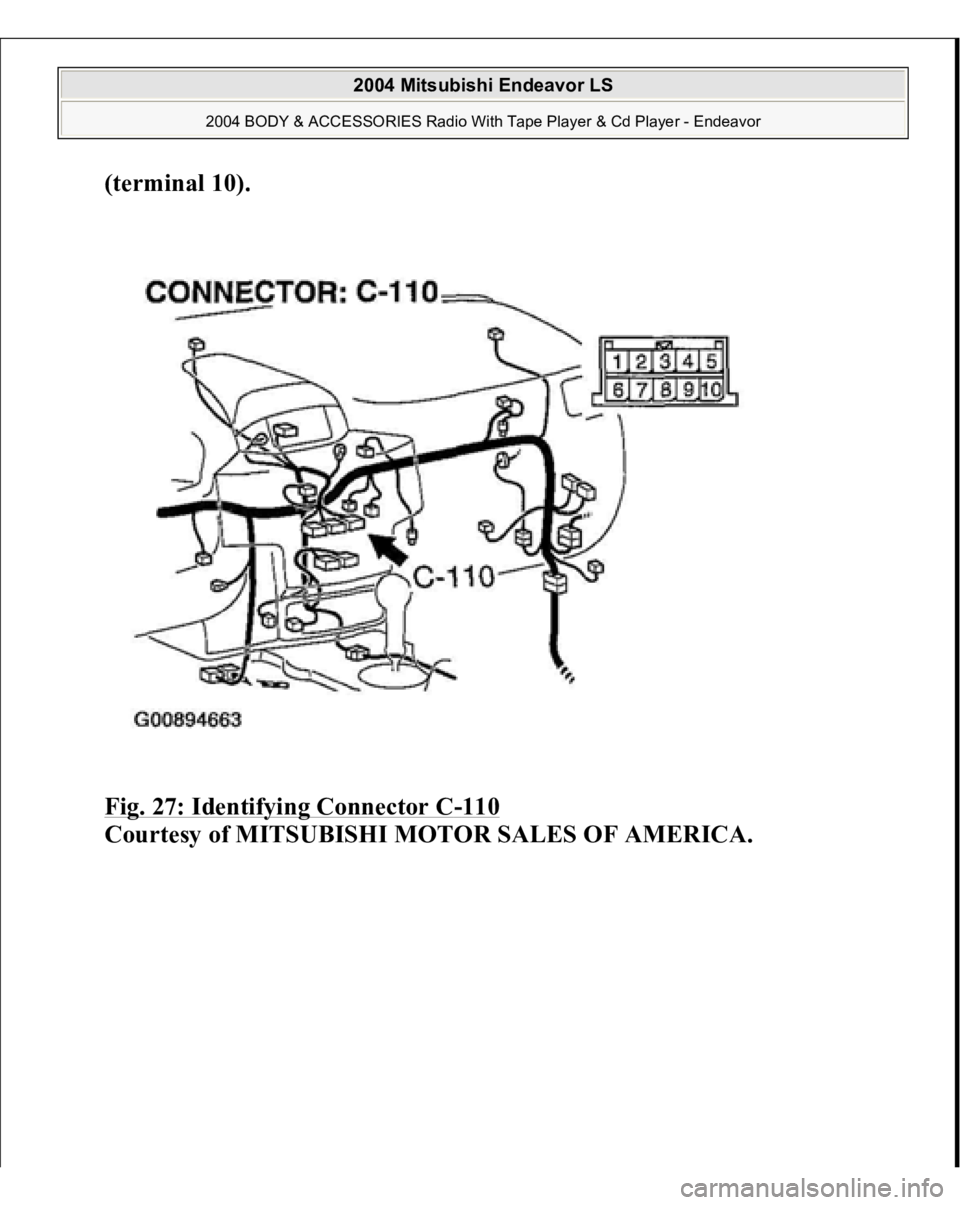

(terminal 10)
.
Fig. 27: Identifying Connector C
-110
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1656 of 3870
Fig. 28: Identifying Connector C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between clock spring connector C-306 (terminal
3) and radio, CD player and CD changer connector C-110 (terminal 10) in
good condition?
YES: Go to Step 7.
NO: Repair the wiring harness. The remote controlled radio switch should
work normally.
STEP 7. Measure the resistance between the clock spring connector C-306
terminals.
