Page 1665 of 3870
(RH) in each position.

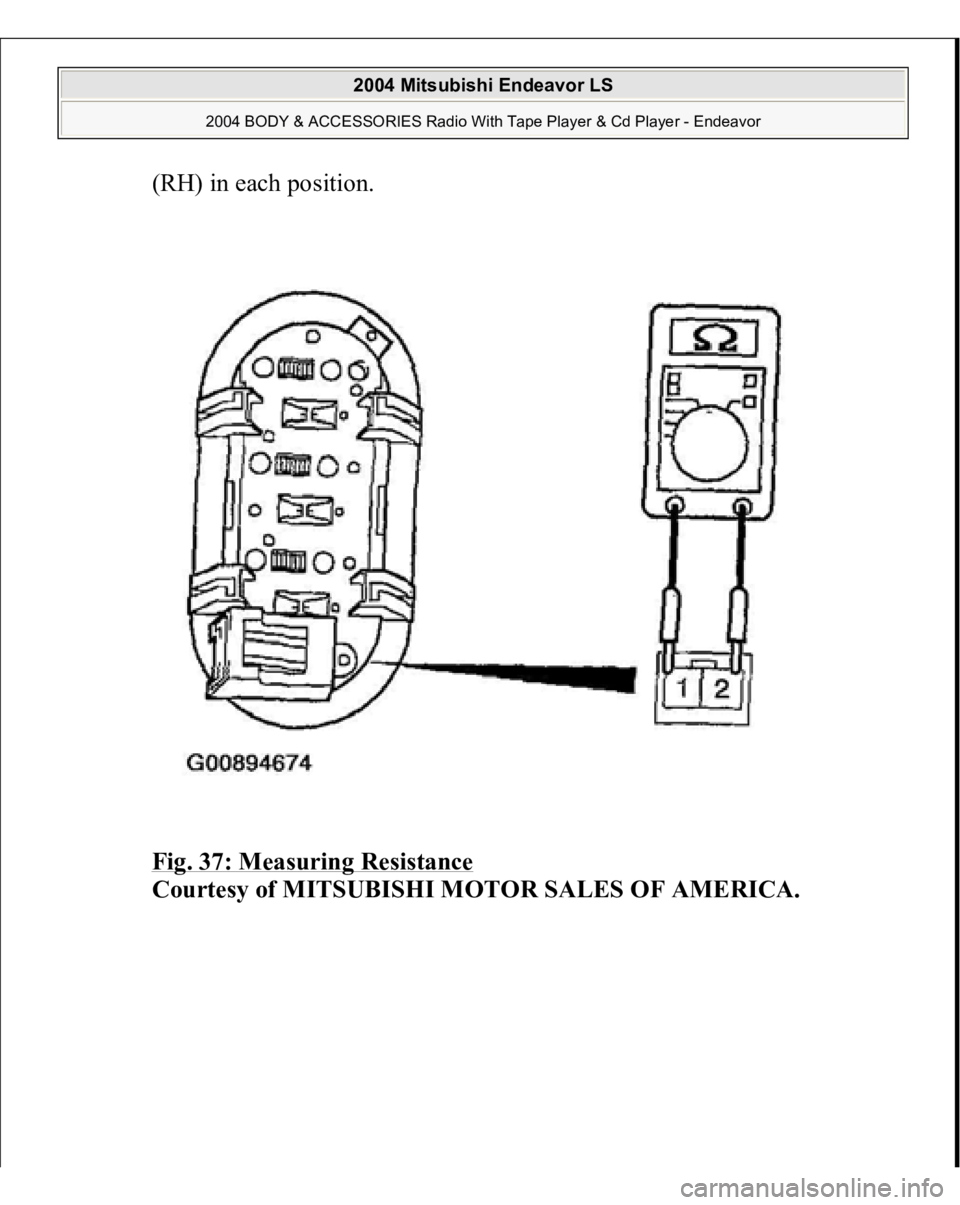

Fig. 37: Measuring Resistance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1666 of 3870
Fig. 38: Switch Position Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the resistance at the right remote controlled radio switch normal?
YES: Replace the radio, CD player and CD changer.
NO: Replace the remote controlled radio switch (RH).
INSPECTION PROCEDURE 3: The System does not Recognize the Remote Controlled Radio Switch (RH) Only. <
vehicles with seven speakers >. CIRCUIT OPERATION Refer to INSPECTION PROCEDURE 2
.
TECHNICAL DESCRIPTION (COMMENT) Refer to INSPECTION PROCEDURE 2
.
TROUBLESHOOTING HINTS Refer to INSPECTION PROCEDURE 2
.
DIAGNOSIS Required Special Tool:
MB991223: Harness set
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1667 of 3870
STEP 1. Measure the resistance at remote controlled radio switch (RH).
1. Remove the airbag module (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance by operating the remote controlled radio switch
(RH) in each position.
Fig. 39: Switch Position Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1668 of 3870
Fig. 40: Measuring Resistance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the resistance at the right remote controlled radio switch normal?
YES: Go to Step 2.
NO: Replace the remote controlled radio switch (RH).
STEP 2. Check the switch (RH) connector C-301 and clock spring
connector C-303 for loose, corroded or damaged terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1669 of 3870
Fig. 41: Identifying Connector C
-301 C
-303
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is remote controlled radio switch (RH) connector C-301 and clock
spring connector C-303 in good condition?
YES: Go to Step 3.
NO: Repair or replace it. The remote controlled radio switch (RH) should
work normally.
STEP 3. Check the wirin
g harness between remote controlled radio switch
(RH) connector C-301 (terminals1 and 2) and clock spring connector C-
303 (terminals 4 and 5).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1670 of 3870
Fig. 42: Identifying Connector C
-301 C
-303
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the wiring harness between remote controlled radio switch (RH)
connector C-301 (terminals 1 and 2) and clock spring connector C-303
(terminals 4 and 5) in good condition?
YES: The procedure is complete.
NO: Repair the wiring harness. The remote controlled radio switch (RH)
should work normally.
INSPECTION PROCEDURE 4: The System does not Recognize the Remote Controlled Radio Switch (LH) Only. <
vehicles with seven speakers >. CIRCUIT OPERATION Refer to INSPECTION PROCEDURE 2
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1671 of 3870
TECHNICAL DESCRIPTION (COMMENT
)
Refer to INSPECTION PROCEDURE 2
.
TROUBLESHOOTING HINTS Refer to INSPECTION PROCEDURE 2
.
DIAGNOSIS Required Special Tool:
MB991223: Harness set
STEP 1. Measure the resistance at remote controlled radio switch (LH).
1. Remove the airbag module (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance by operating the remote controlled radio switch
(LH
) in each
position.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1672 of 3870
Fig. 43: Measuring Resistance At Remote Controlled Radio Switch (LH)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
