Page 1721 of 3870

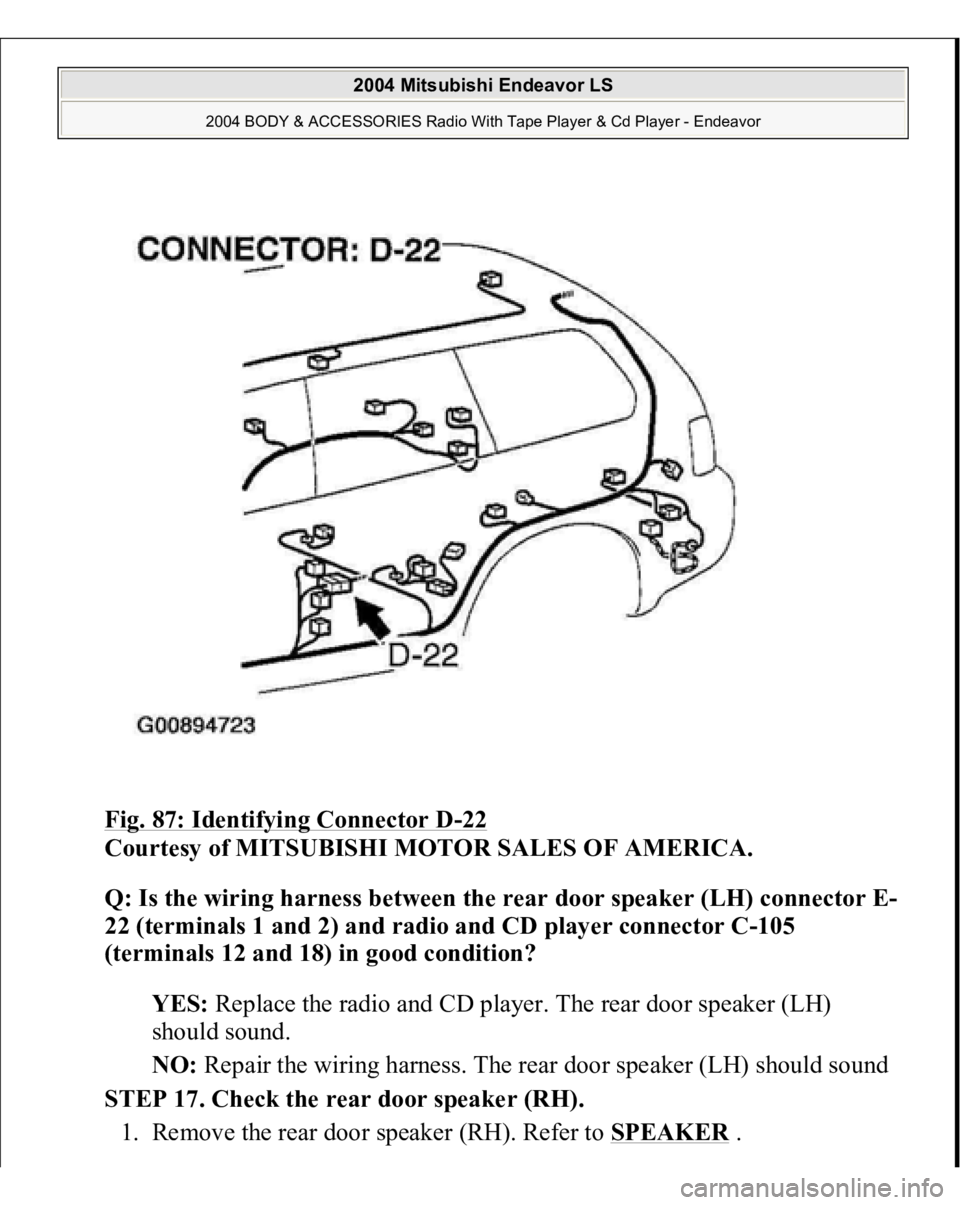

Fig. 87: Identifying Connector D
-22
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between the rear door speaker (LH) connector E-
22 (terminals 1 and 2) and radio and CD player connector C-105
(terminals 12 and 18) in good condition?
YES: Replace the radio and CD player. The rear door speaker (LH)
should sound.
NO: Repair the wiring harness. The rear door speaker (LH) should sound
STEP 17. Check the rear door speaker (RH).
1. Remove the rear door s
peaker
(RH
). Refer to SPEAKER
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1722 of 3870
2. Check that the rear door speaker (RH) generates noise when a five-volt
voltage is applied on the rear door speaker (RH) terminal.

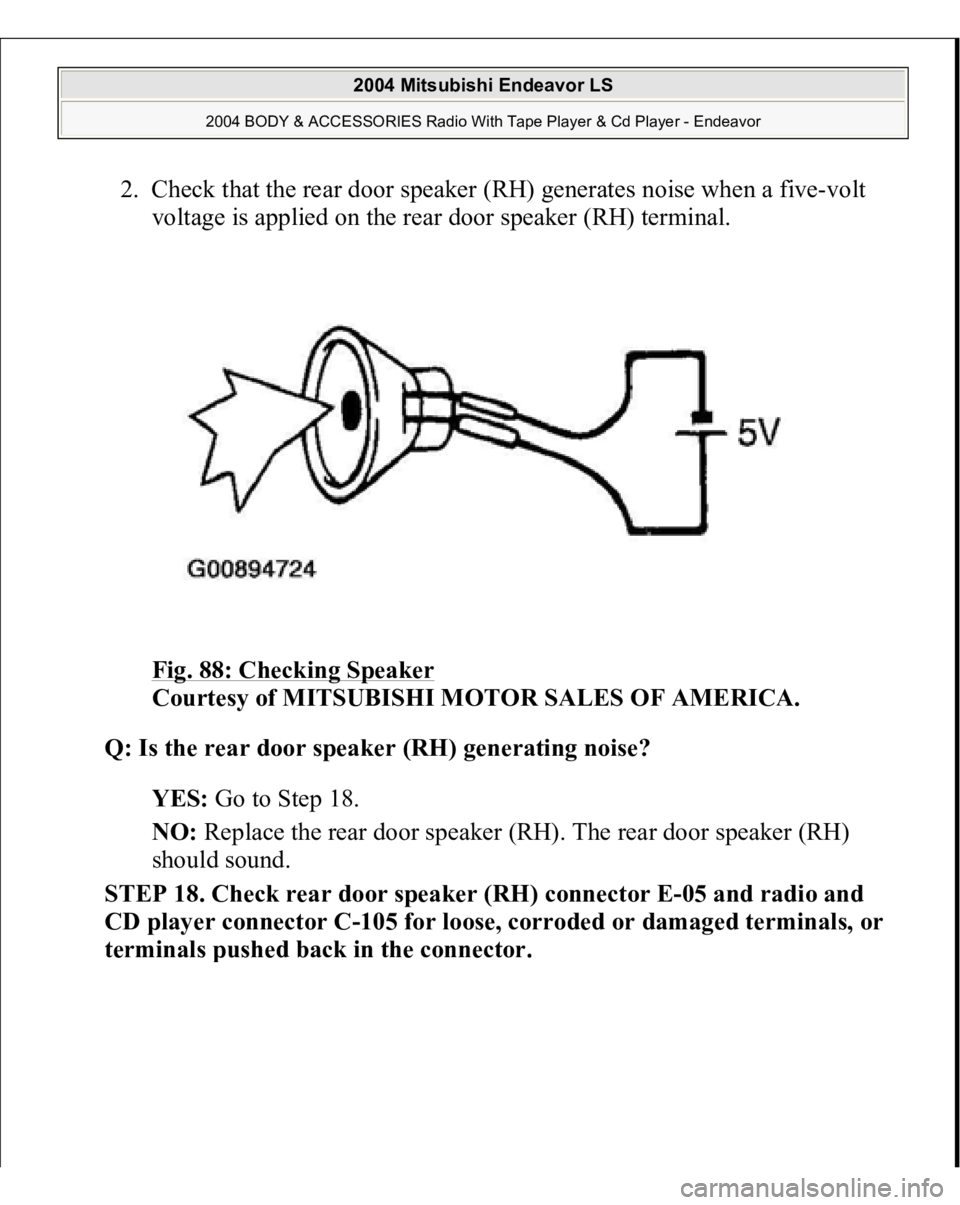

Fig. 88: Checking Speaker
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the rear door speaker (RH) generating noise?
YES: Go to Step 18.
NO: Replace the rear door speaker (RH). The rear door speaker (RH)
should sound.
STEP 18. Check rear door speaker (RH) connector E-05 and radio and
CD player connector C-105 for loose, corroded or damaged terminals, or
terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1723 of 3870

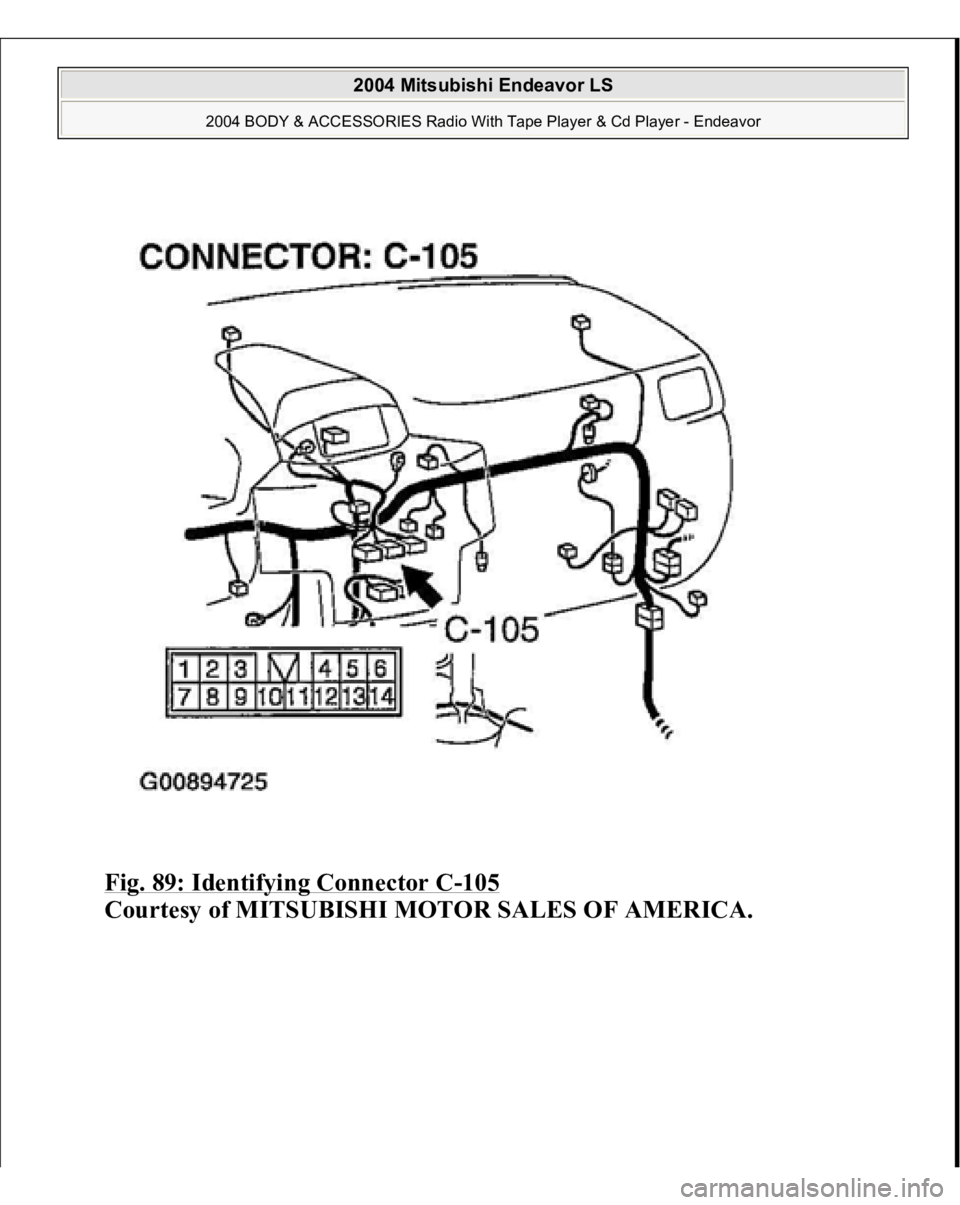

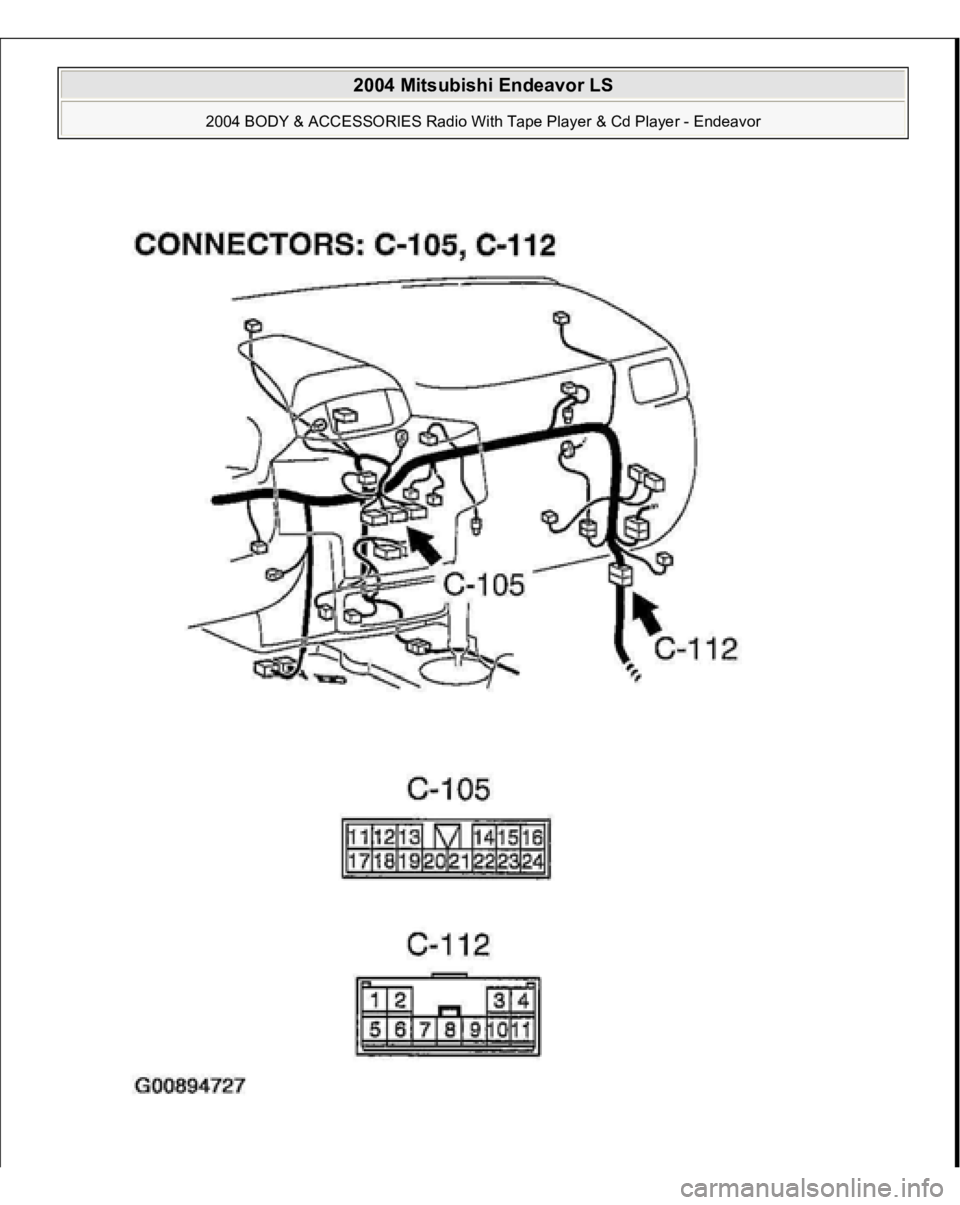

Fig. 89: Identifying Connector C
-105
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1724 of 3870

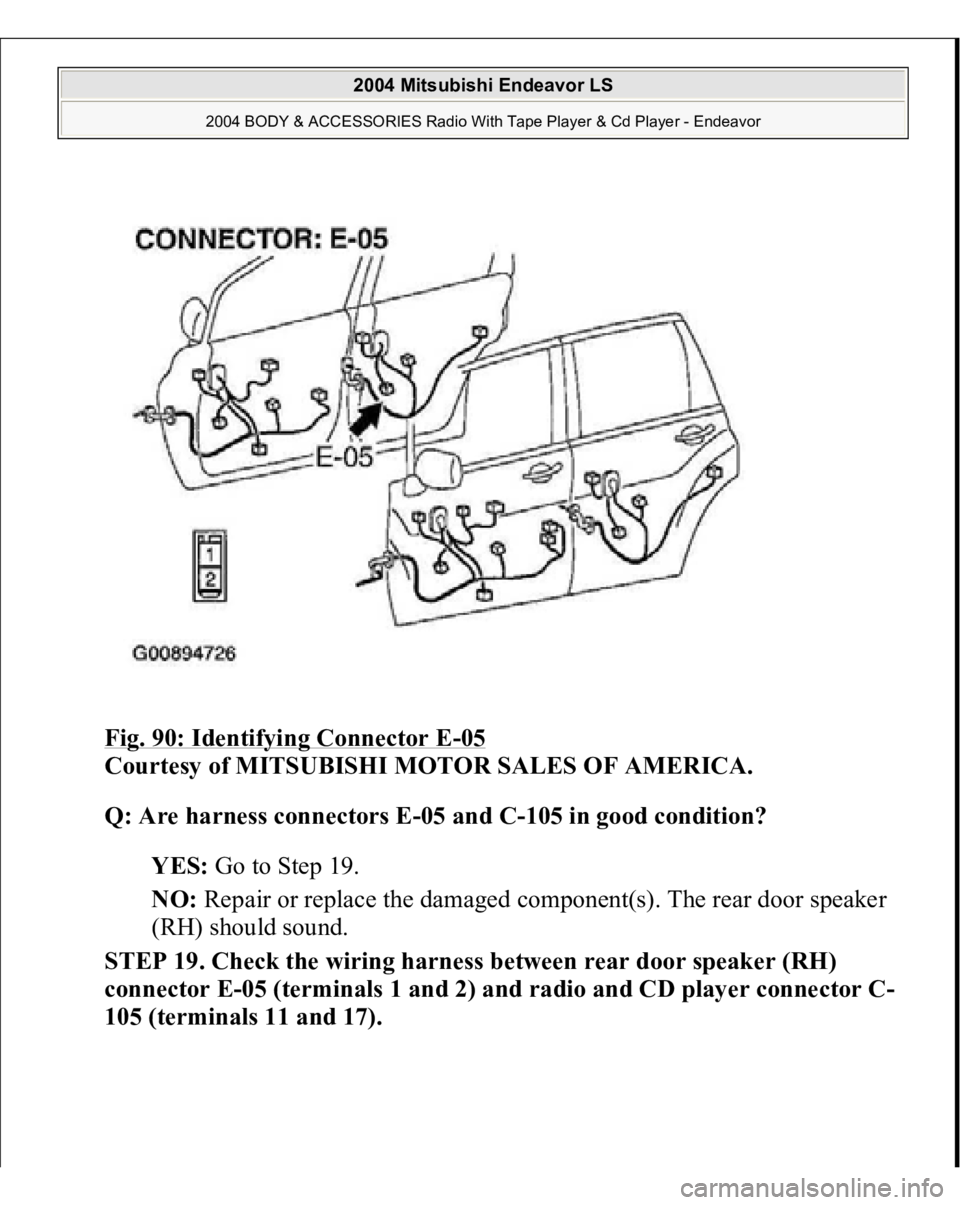

Fig. 90: Identifying Connector E
-05
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are harness connectors E-05 and C-105 in good condition?
YES: Go to Step 19.
NO: Repair or replace the damaged component(s). The rear door speaker
(RH) should sound.
STEP 19. Check the wiring harness between rear door speaker (RH)
connector E-05 (terminals 1 and 2) and radio and CD player connector C-
105 (terminals 11 and 17).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1725 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1726 of 3870

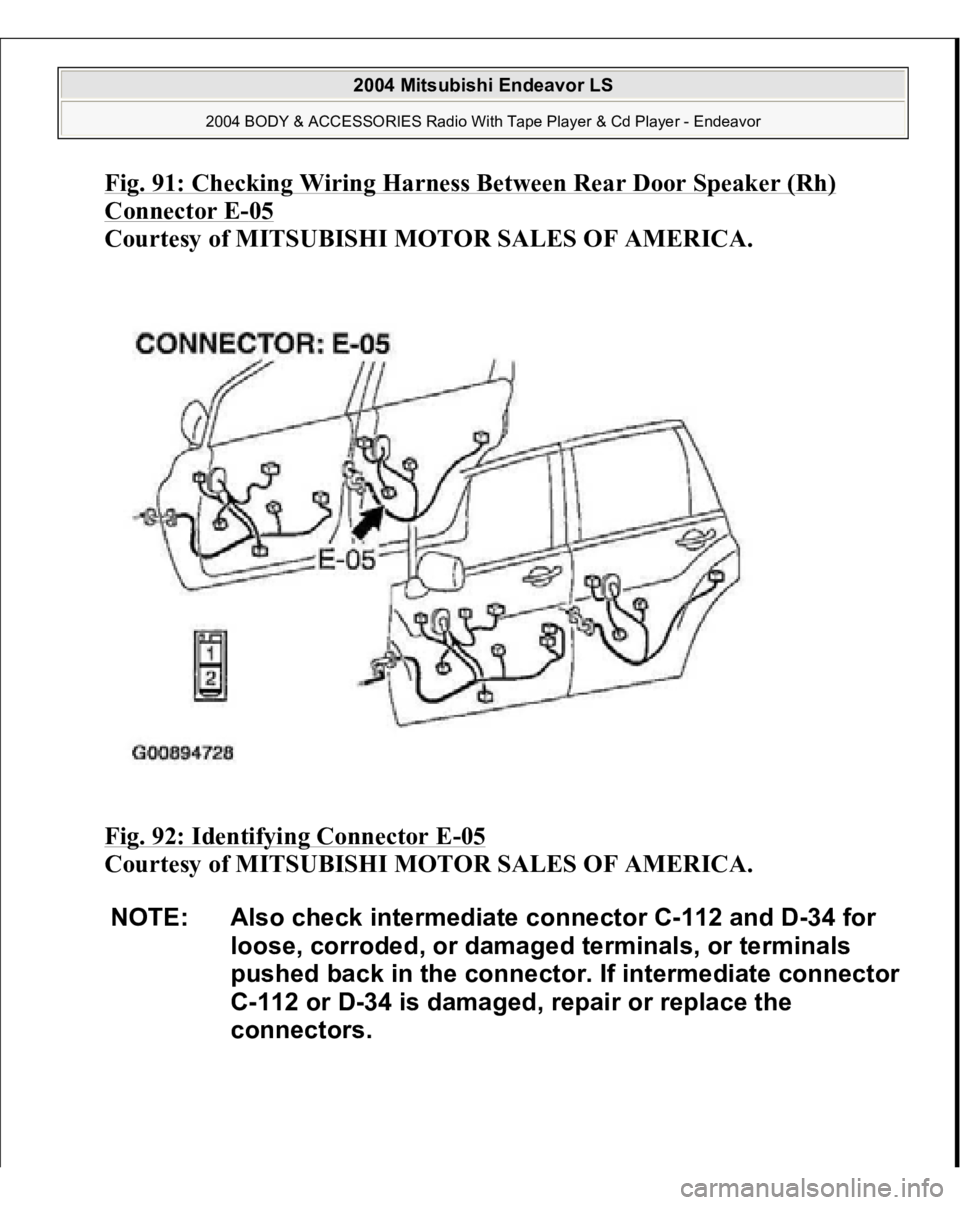

Fig. 91: Checking Wiring Harness Between Rear Door Speaker (Rh) Connector E
-05
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 92: Identifying Connector E
-05
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-112 and D-34 for
loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate connector
C-112 or D-34 is damaged, repair or replace the
connectors.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1727 of 3870

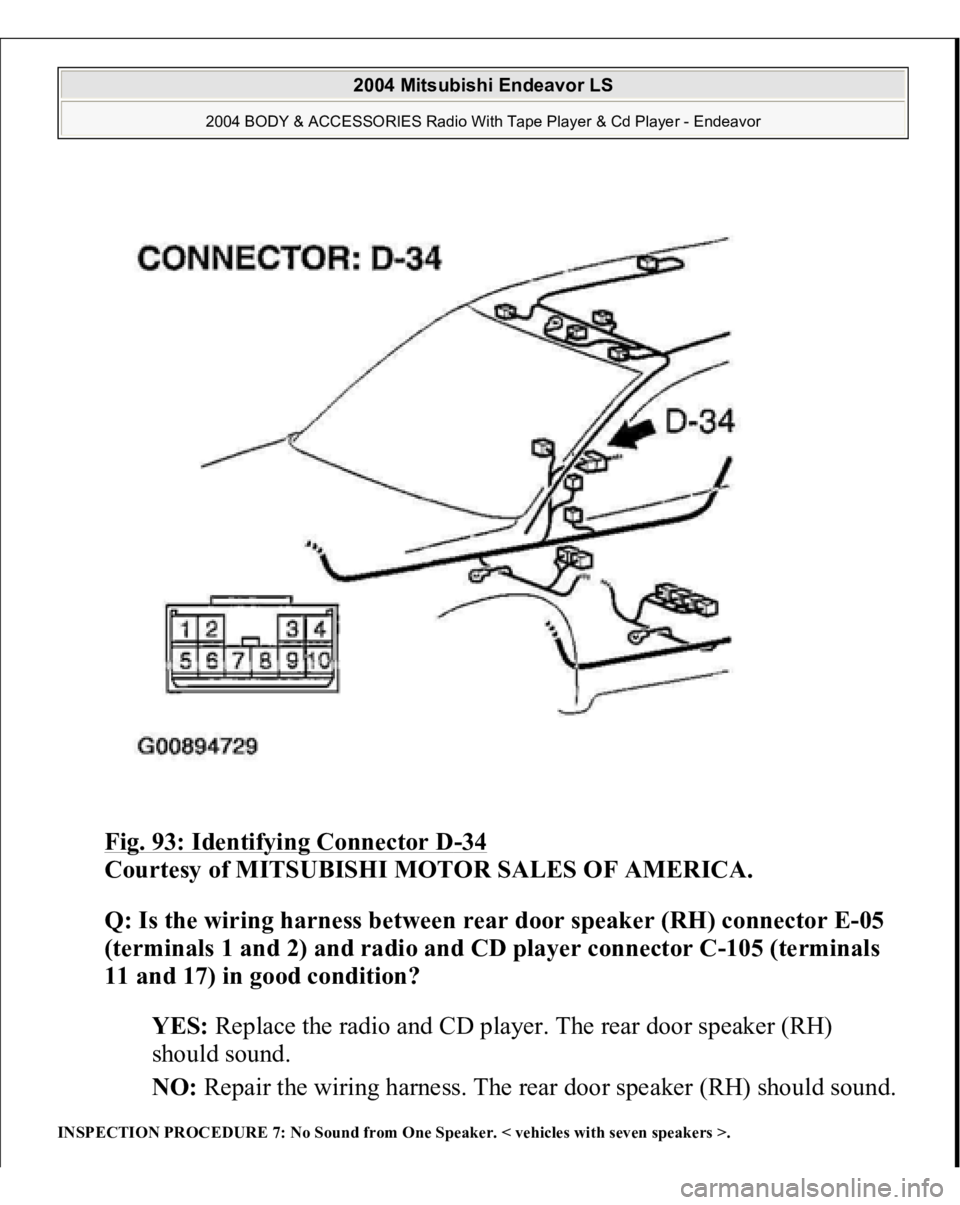

Fig. 93: Identifying Connector D
-34
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between rear door speaker (RH) connector E-05
(terminals 1 and 2) and radio and CD player connector C-105 (terminals
11 and 17) in good condition?
YES: Replace the radio and CD player. The rear door speaker (RH)
should sound.
NO: Repair the wiring harness. The rear door speaker (RH) should sound.
INSPECTION PROCEDURE 7: No Sound from One Speaker. < vehicles with seven speakers >.
