2004 MERCEDES-BENZ G55AMG Owner's Manual

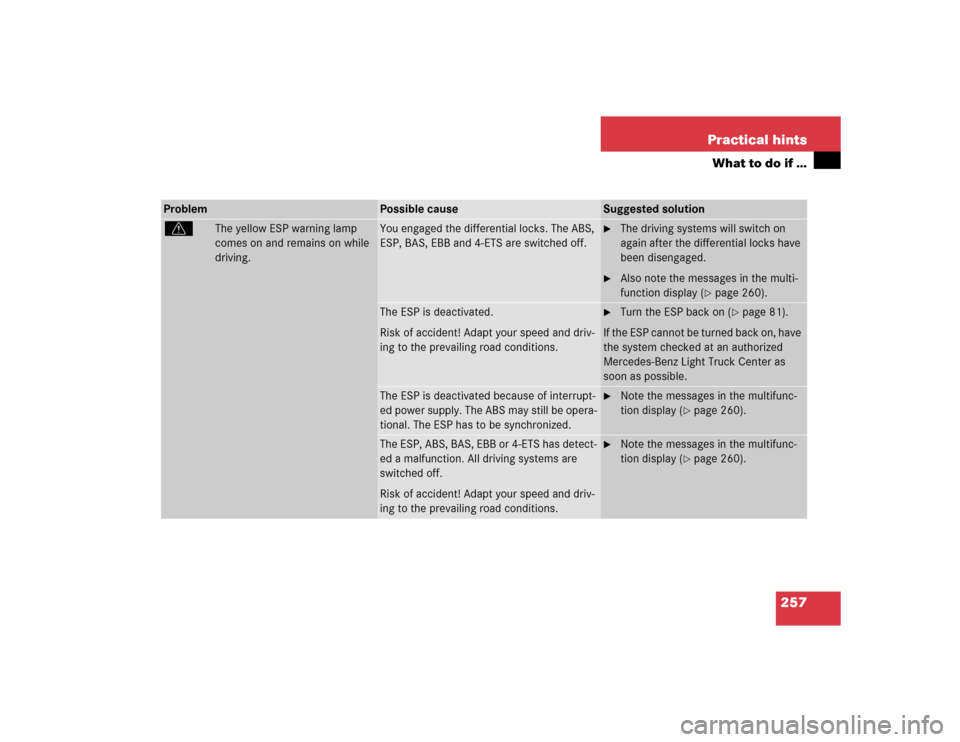

257 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
v
The yellow ESP warning lamp
comes on and remains on while
driving.
You engaged the differential locks. The ABS,
ESP, BAS, EBB and 4-ETS are switched off.

The driving systems will switch on
again after the differential locks have
been disengaged.

Also note the messages in the multi-
function display (
page 260).
The ESP is deactivated.
Risk of accident! Adapt your speed and driv-
ing to the prevailing road conditions.

Turn the ESP back on (
page 81).
If the ESP cannot be turned back on, have
the system checked at an authorized
Mercedes-Benz Light Truck Center as
soon as possible.
The ESP is deactivated because of interrupt-
ed power supply. The ABS may still be opera-
tional. The ESP has to be synchronized.

Note the messages in the multifunc-
tion display (
page 260).
The ESP, ABS, BAS, EBB or 4-ETS has detect-
ed a malfunction. All driving systems are
switched off.
Risk of accident! Adapt your speed and driv-
ing to the prevailing road conditions.

Note the messages in the multifunc-
tion display (
page 260).

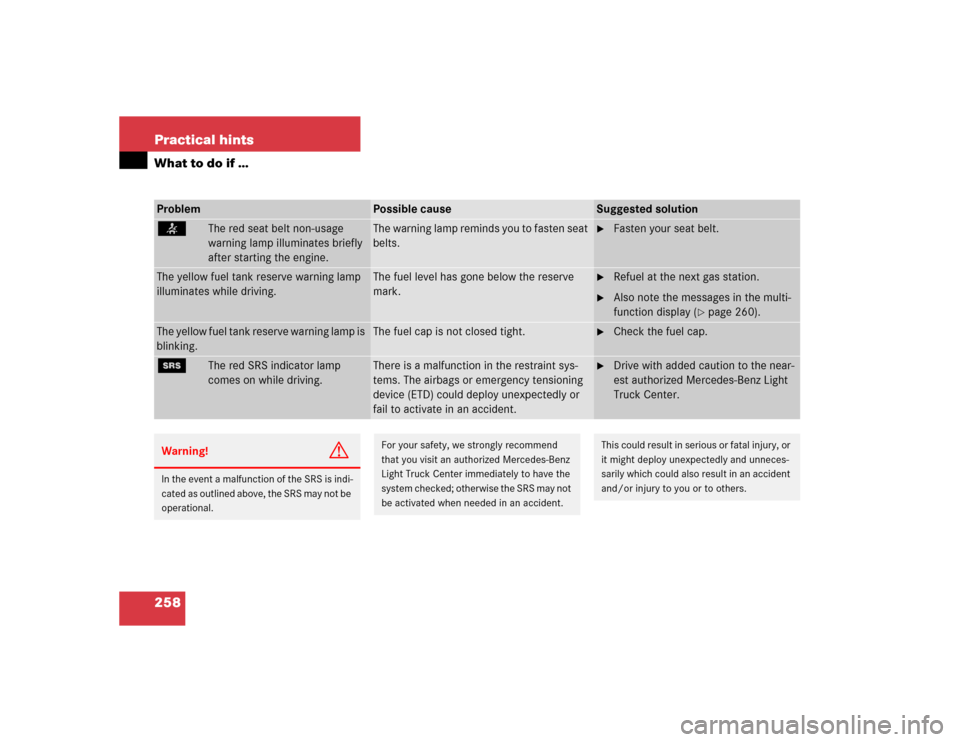

258 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
<
The red seat belt non-usage
warning lamp illuminates briefly
after starting the engine.
The warning lamp reminds you to fasten seat
belts.

Fasten your seat belt.
The yellow fuel tank reserve warning lamp
illuminates while driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station.

Also note the messages in the multi-
function display (
page 260).
The yellow fuel tank reserve warning lamp is
blinking.
The fuel cap is not closed tight.

Check the fuel cap.
1
The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETD) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident.
This could result in serious or fatal injury, or
it might deploy unexpectedly and unneces-
sarily which could also result in an accident
and/or injury to you or to others.

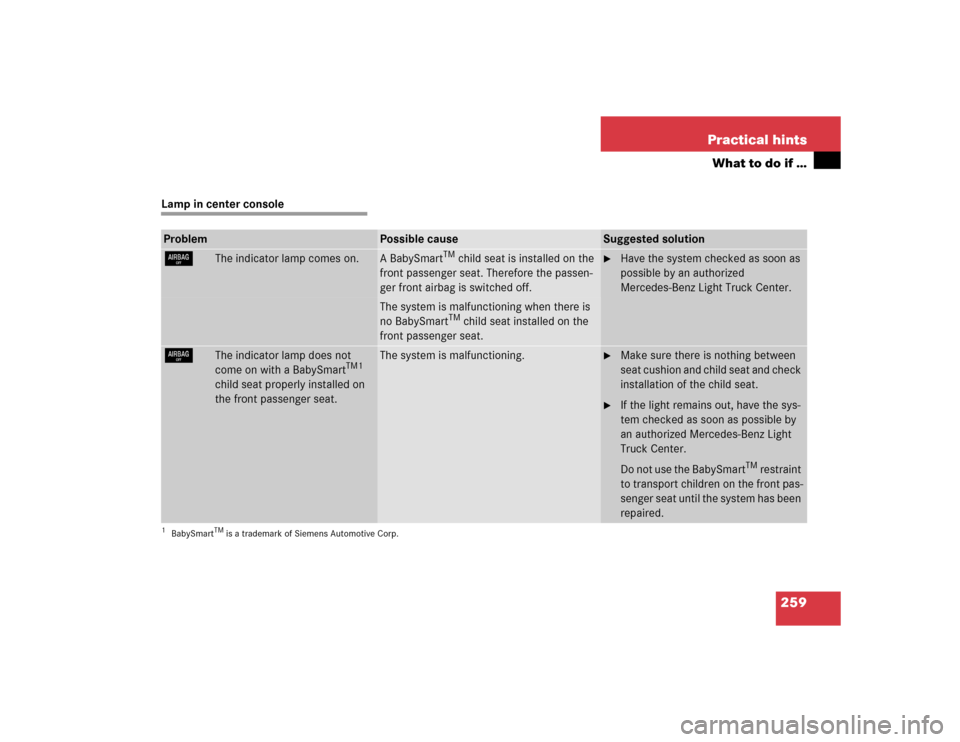

259 Practical hints
What to do if …
Lamp in center consoleProblem
Possible cause
Suggested solution
7
The indicator lamp comes on.
A BabySmart
TM child seat is installed on the
front passenger seat. Therefore the passen-
ger front airbag is switched off.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
The system is malfunctioning when there is
no BabySmart
TM child seat installed on the
front passenger seat.
7
The indicator lamp does not
come on with a BabySmart
TM1

child seat properly installed on
the front passenger seat.
1BabySmart
TM is a trademark of Siemens Automotive Corp.
The system is malfunctioning.

Make sure there is nothing between
seat cushion and child seat and check
installation of the child seat.

If the light remains out, have the sys-
tem checked as soon as possible by
an authorized Mercedes-Benz Light
Truck Center.
Do not use the BabySmart
TM restraint
to transport children on the front pas-
senger seat until the system has been
repaired.

260 Practical hintsWhat to do if …Messages in the multifunction display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the malfunction memory menu in
the control system (
page 122) displays
both cleared and uncleared messages.
High-priority messages appear in the mul-
tifunction display in red colour.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (page 112).
Other high-priority messages and messag-
es of less immediate priority (regular dis-
play colours) can be cleared from the
multifunction display using the reset but-
ton and are then stored in the malfunction
message memory (
page 122).On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the multifunction display. High-
priority messages appear on a red back-
ground.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Light Truck Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative. Systems that have a sig-
nificant influence on handling performance
may not be functioning.
Contact your nearest authorized
Mercedes-Benz Light Truck Center.
iTurning the SmartKey in starter switch
to position2 causes all lamps as well
as the multifunction display to come
on. Make sure they are all in working
order before starting your journey.

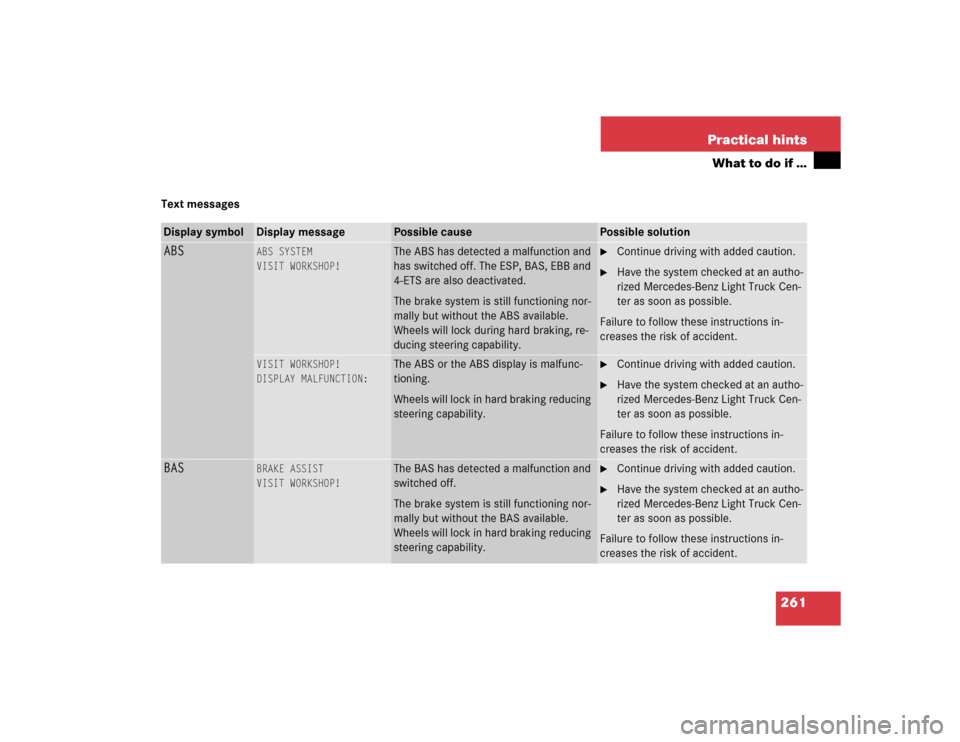

261 Practical hints
What to do if …
Text messagesDisplay symbol
Display message
Possible cause
Possible solution
ABS
ABS SYSTEM
VISIT WORKSHOP!
The ABS has detected a malfunction and
has switched off. The ESP, BAS, EBB and
4-ETS are also deactivated.
The brake system is still functioning nor-
mally but without the ABS available.
Wheels will lock during hard braking, re-
ducing steering capability.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
VISIT WORKSHOP!
DISPLAY MALFUNCTION:
The ABS or the ABS display is malfunc-
tioning.
Wheels will lock in hard braking reducing
steering capability.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
BAS
BRAKE ASSIST
VISIT WORKSHOP!
The BAS has detected a malfunction and
switched off.
The brake system is still functioning nor-
mally but without the BAS available.
Wheels will lock in hard braking reducing
steering capability.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.

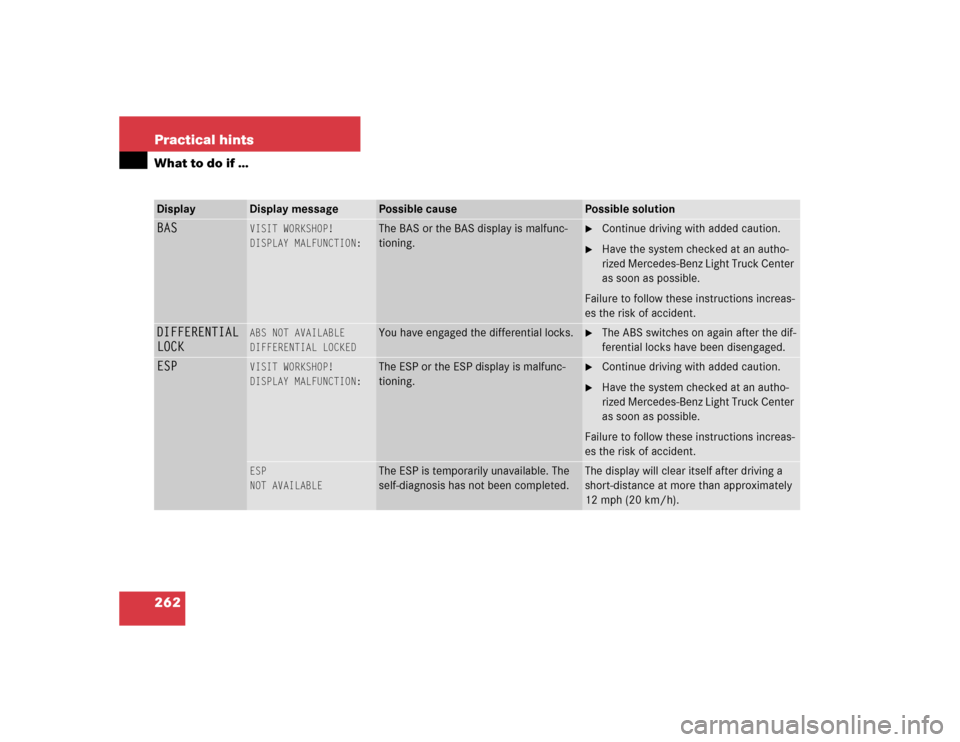

262 Practical hintsWhat to do if …Display
Display message
Possible cause
Possible solution
BAS
VISIT WORKSHOP!
DISPLAY MALFUNCTION:
The BAS or the BAS display is malfunc-
tioning.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Center
as soon as possible.
Failure to follow these instructions increas-
es the risk of accident.
DIFFERENTIAL
LOCK
ABS NOT AVAILABLE
DIFFERENTIAL LOCKED
You have engaged the differential locks.

The ABS switches on again after the dif-
ferential locks have been disengaged.
ESP
VISIT WORKSHOP!
DISPLAY MALFUNCTION:
The ESP or the ESP display is malfunc-
tioning.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Center
as soon as possible.
Failure to follow these instructions increas-
es the risk of accident.
ESP
NOT AVAILABLE
The ESP is temporarily unavailable. The
self-diagnosis has not been completed.
The display will clear itself after driving a
short-distance at more than approximately
12 mph (20 km/h).

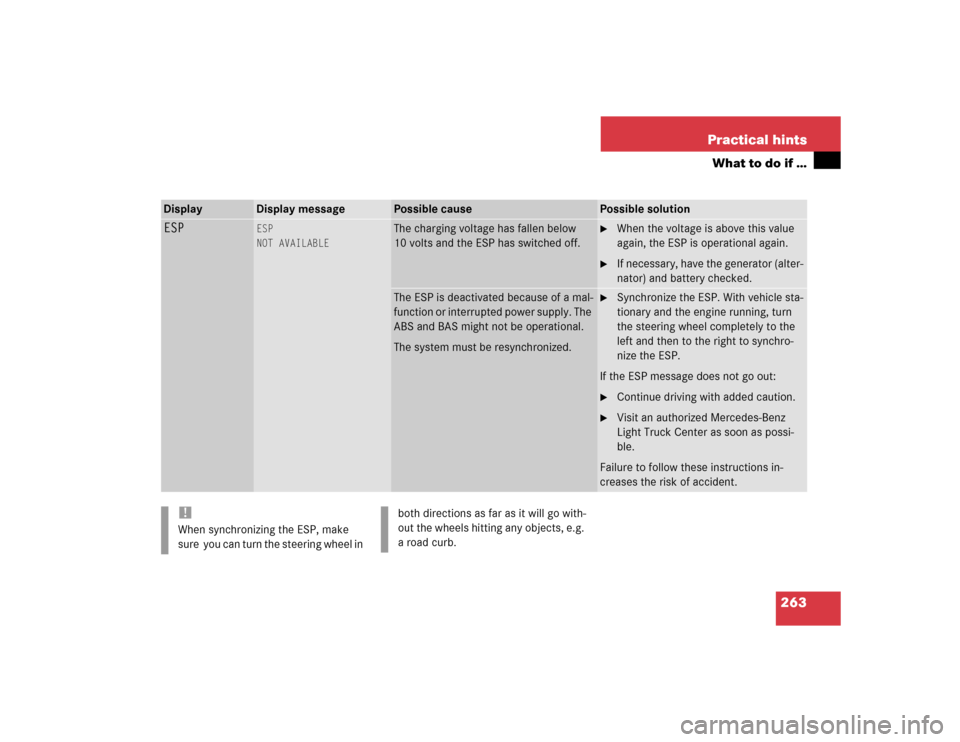

263 Practical hints
What to do if …
Display
Display message
Possible cause
Possible solution
ESP
ESP
NOT AVAILABLE
The charging voltage has fallen below
10 volts and the ESP has switched off.

When the voltage is above this value
again, the ESP is operational again.

If necessary, have the generator (alter-
nator) and battery checked.
The ESP is deactivated because of a mal-
function or interrupted power supply. The
ABS and BAS might not be operational.
The system must be resynchronized.

Synchronize the ESP. With vehicle sta-
tionary and the engine running, turn
the steering wheel completely to the
left and then to the right to synchro-
nize the ESP.
If the ESP message does not go out:

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Light Truck Center as soon as possi-
ble.
Failure to follow these instructions in-
creases the risk of accident.
!When synchronizing the ESP, make
sure you can turn the steering wheel in
both directions as far as it will go with-
out the wheels hitting any objects, e.g.
a road curb.

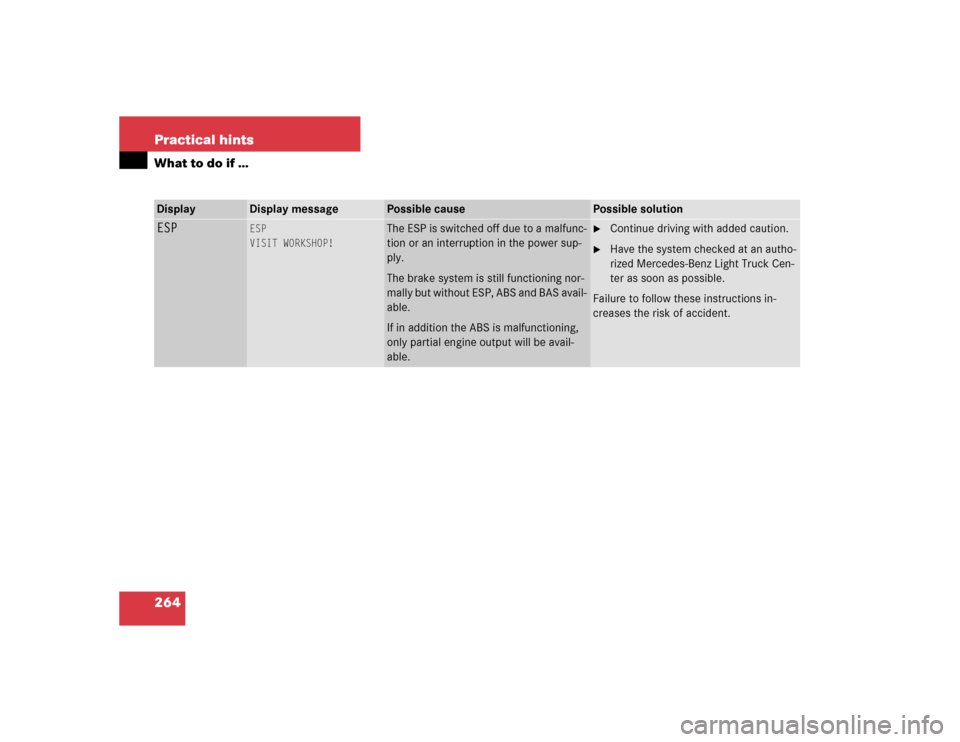

264 Practical hintsWhat to do if …Display
Display message
Possible cause
Possible solution
ESP
ESP
VISIT WORKSHOP!
The ESP is switched off due to a malfunc-
tion or an interruption in the power sup-
ply.
The brake system is still functioning nor-
mally but without ESP, ABS and BAS avail-
able.
If in addition the ABS is malfunctioning,
only partial engine output will be avail-
able.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
