2004 MERCEDES-BENZ G55AMG Owner's Manual

321 Practical hintsFuses
Fuse box in middle tunnel
Removing front end stopsFront end stop on the right seat rail, left
seat rail laterally reversed1Front end stop
2Spacing

Remove both front end stops1 of the
front passenger seat tracks with a
screwdriver.

Move front passenger seat fully for-
ward.Opening fuse box
1Mounting screw
2Cover

Unscrew mounting screws1.

Remove cover2 in direction of ar-
rows.
iWe recommend having the fuses
changed at a Mercedes-Benz Light
Truck Center.
!When reinstalling front passenger seat
track stops, place end stops in correct
position. For your safety, maintain
proper spacing2.Warning!
G
Do not drive the vehicle when the front end
stops are not correctly installed. Failure to
reinstall stops as indicated may result in se-
rious injury in certain frontal crashes.
Adjust the front passenger seat as far as
possible rearward from the dashboard when
the seat is occupied. Comply with informa-
tion on occupant safety (
page 56).

322

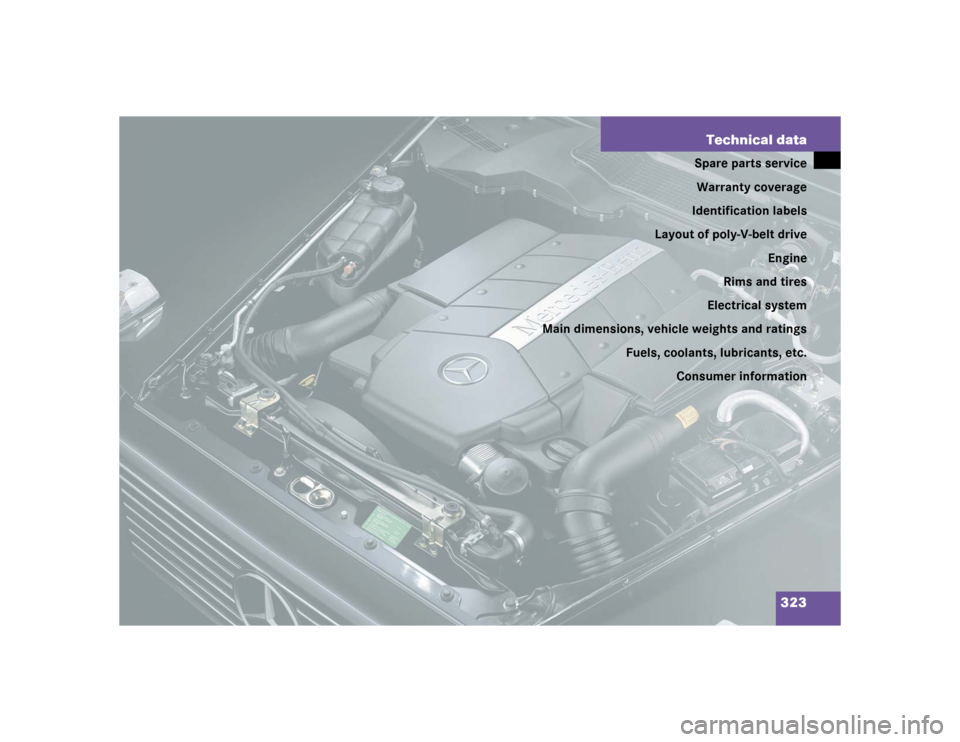

323 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions, vehicle weights and ratings
Fuels, coolants, lubricants, etc.
Consumer information

324 Technical dataSpare parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Light Truck
Centers maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Merceds-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

325 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Light Truck
Center will exchange or repair any defec-
tive parts originally installed in the vehicle
in accordance with the terms of the follow-
ing warranties:

New vehicle limited warranty


Emission system warranty


Emission performance warranty


California, Maine, Massachusetts, and
Vermont emission control systems
warrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Light Truck Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Light Truck Center arrange
for a replacement. It will be mailed to you.

326 Technical dataIdentification labels

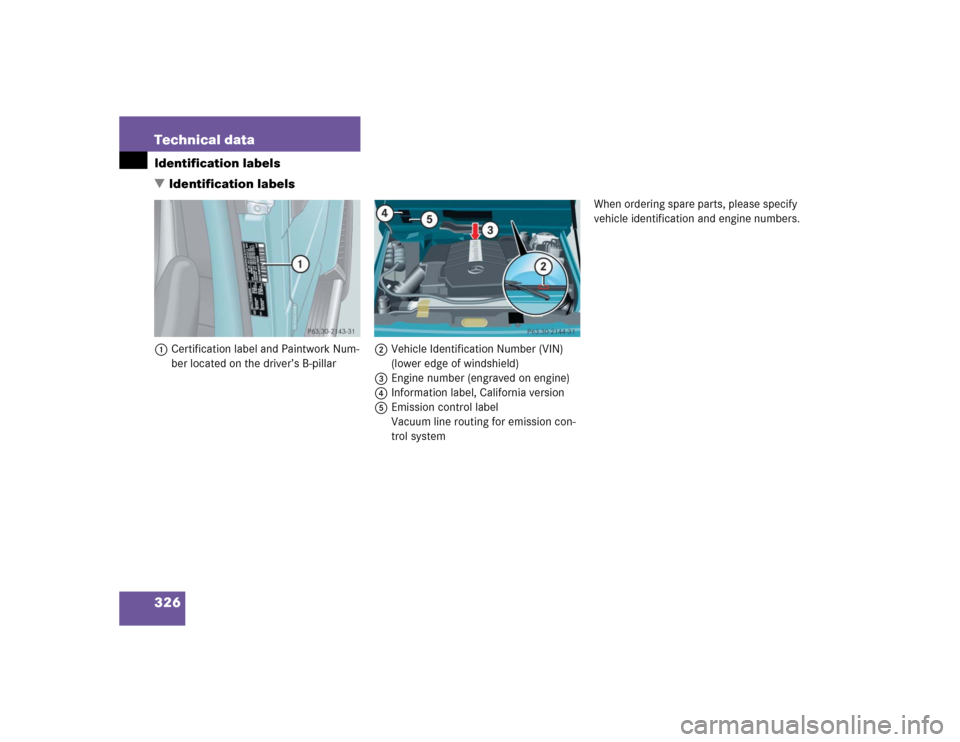

Identification labels1Certification label and Paintwork Num-
ber located on the driver’s B-pillar2Vehicle Identification Number (VIN)
(lower edge of windshield)
3Engine number (engraved on engine)
4Information label, California version
5Emission control label
Vacuum line routing for emission con-
trol systemWhen ordering spare parts, please specify
vehicle identification and engine numbers.

327 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
For dimensions of the poly-V-belt, see
technical data (
page 328).
G500/G55AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

328 Technical dataEngine

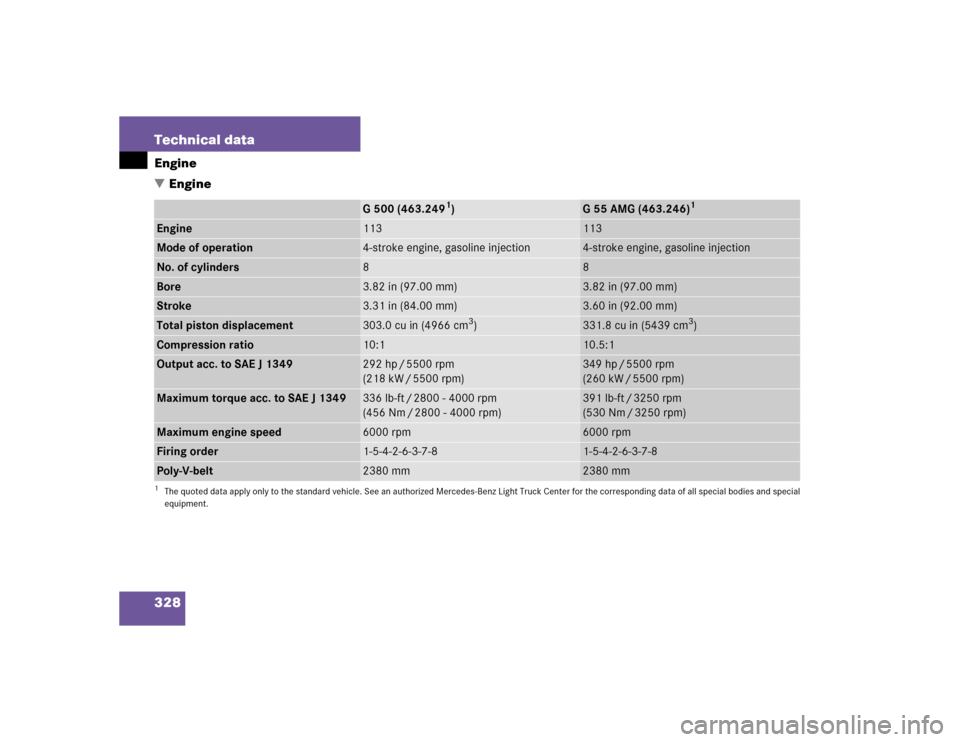

Engine
G 500 (463.249
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding data of all special bodies and special
equipment.
G55AMG (463.246)
1
Engine
113
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.60 in (92.00 mm)
Total piston displacement
303.0 cu in (4966 cm
3)
331.8 cu in (5439 cm
3)
Compression ratio
10:1
10.5:1
Output acc. to SAE J 1349
292 hp / 5500 rpm
(218 kW / 5500 rpm)
349 hp / 5500 rpm
(260 kW / 5500 rpm)
Maximum torque acc. to SAE J 1349
336 lb-ft / 2800 - 4000 rpm
(456 Nm / 2800 - 4000 rpm)
391 lb-ft / 3250 rpm
(530 Nm / 3250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2380 mm
2380 mm
