2004 MERCEDES-BENZ G55AMG Owner's Manual

129 Controls in detail
Control system
Selecting display (speed display or out-
side temperature)
Move the selection marker with
theæ orç button to the INSTRUMENT CLUSTER
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

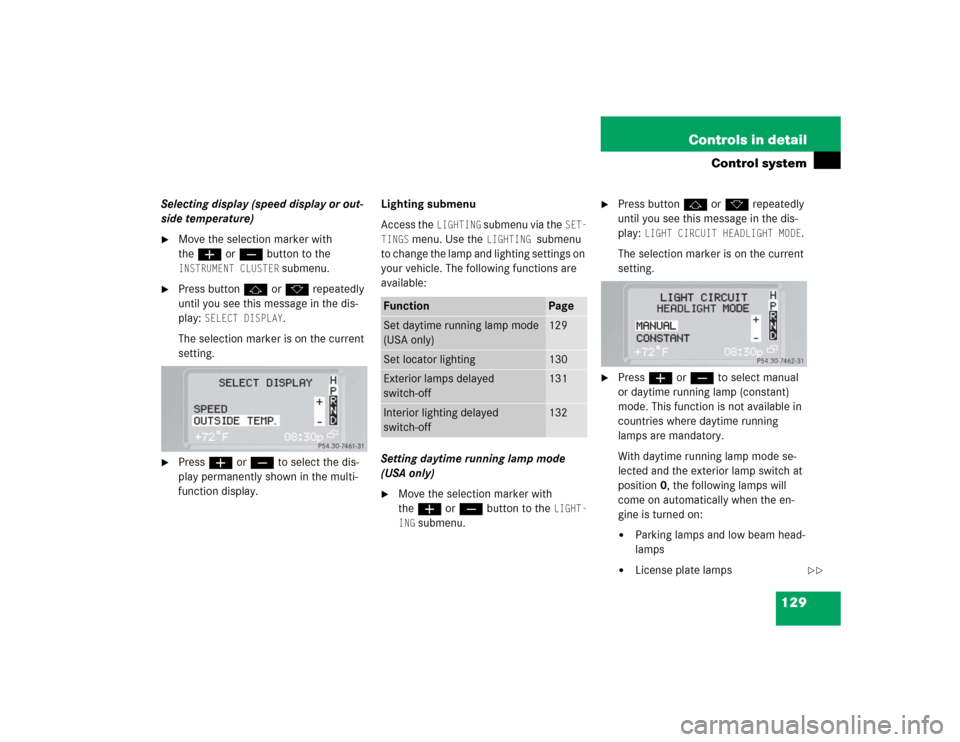

SELECT DISPLAY
.
The selection marker is on the current
setting.

Pressæ orç to select the dis-
play permanently shown in the multi-
function display.Lighting submenu
Access the
LIGHTING
submenu via the
SET-
TINGS
menu. Use the
LIGHTING
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:
Setting daytime running lamp mode
(USA only)

Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
LIGHT CIRCUIT HEADLIGHT MODE
.
The selection marker is on the current
setting.

Pressæ orç to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.
With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:

Parking lamps and low beam head-
lamps


License plate lamps
Function
Page
Set daytime running lamp mode
(USA only)
129
Set locator lighting
130
Exterior lamps delayed
switch-off
131
Interior lighting delayed
switch-off
132


130 Controls in detailControl system
Setting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position U, the locator lighting fea-
ture is activated, and the vehicle is un-
locked by SmartKey:

parking lamps


tail lamps


license plate lamps


front fog lamps
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
theæ orç button to the LIGHTING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

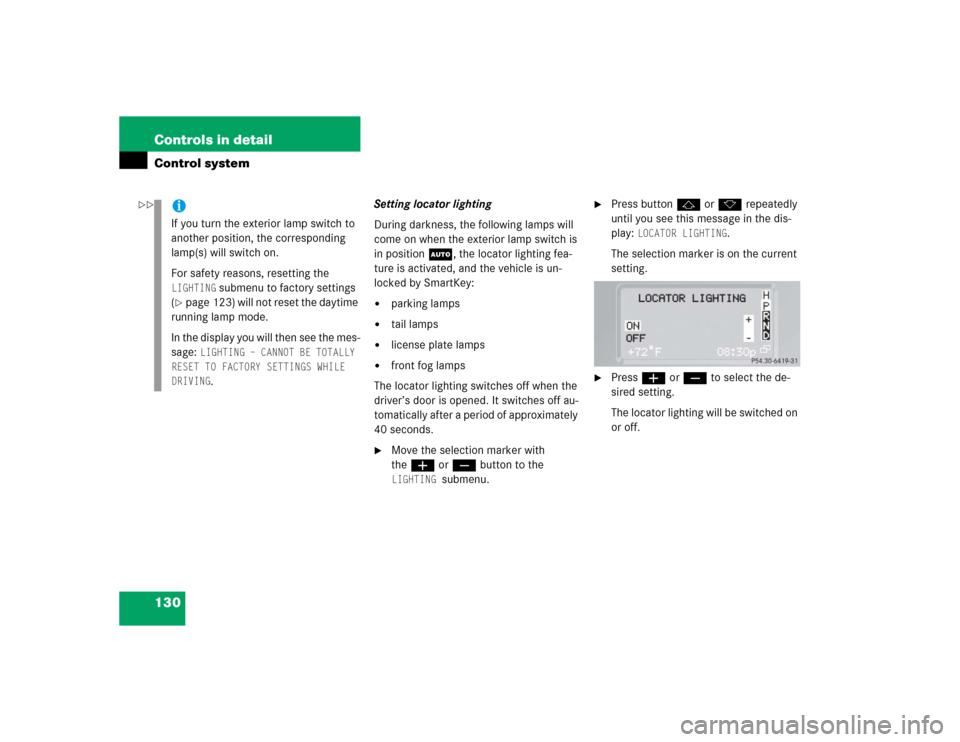

LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired setting.
The locator lighting will be switched on
or off.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the LIGHTING
submenu to factory settings
(
page 123) will not reset the daytime
running lamp mode.
In the display you will then see the mes-
sage:
LIGHTING – CANNOT BE TOTALLY
RESET TO FACTORY SETTINGS WHILE
DRIVING.


131 Controls in detail
Control system
Setting night security illumination
(Exterior lamps delayed switch-off)
Use the
HEADLIGHTS DELAYED SHUT-OFF

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position U, the following lamps will
remain lit after you remove the SmartKey
from the starter switch:


parking lamps


tail lamps


license plate lamps


front fog lamps

Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

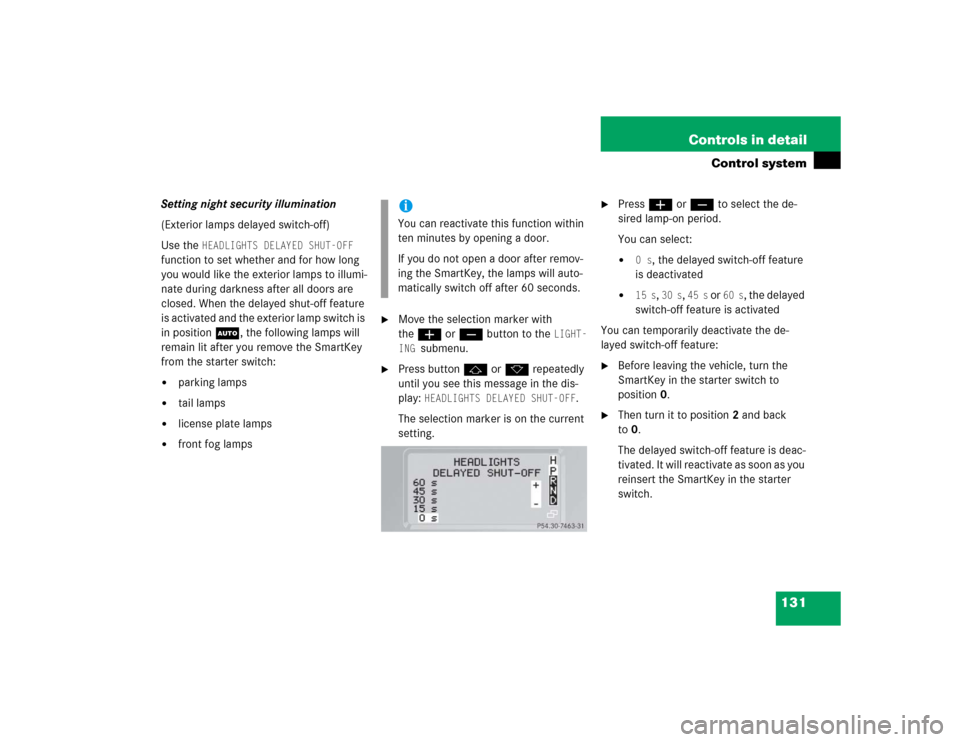

HEADLIGHTS DELAYED SHUT-OFF
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on period.
You can select:

0 s
, the delayed switch-off feature
is deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
switch-off feature is activated
You can temporarily deactivate the de-
layed switch-off feature:

Before leaving the vehicle, turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back
to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the SmartKey, the lamps will auto-
matically switch off after 60 seconds.

132 Controls in detailControl systemInterior lighting delayed switch-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
SmartKey is removed from the starter
switch.
Move the selection marker with
theæ orç button to the
LIGHT-
ING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

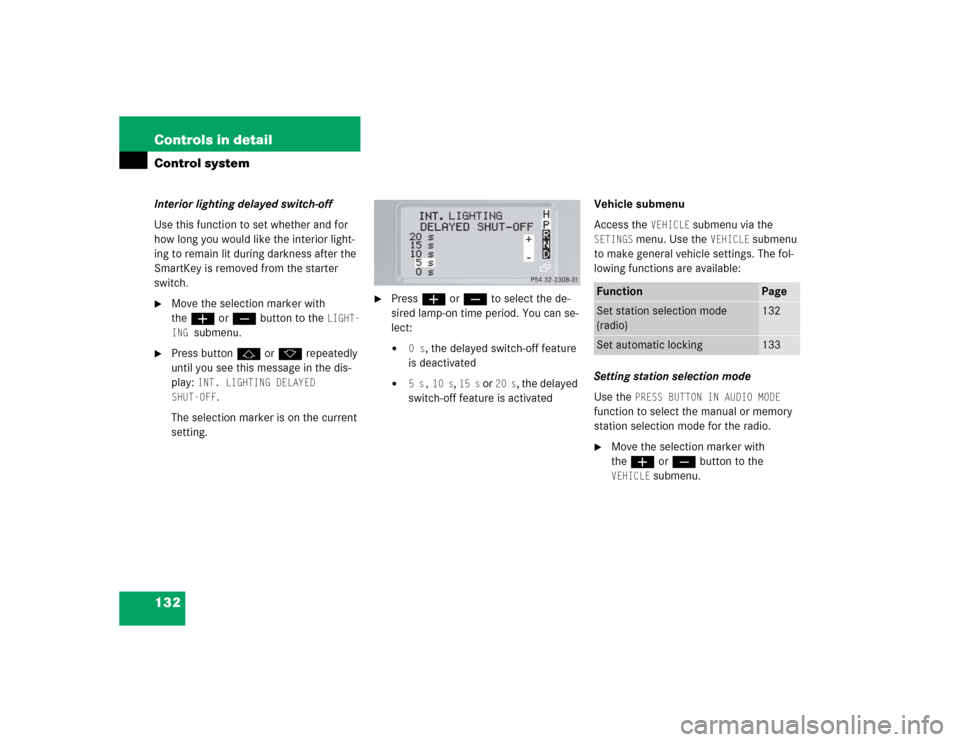

INT. LIGHTING DELAYED
SHUT-OFF
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on time period. You can se-
lect:

0 s
, the delayed switch-off feature
is deactivated


5 s,
10 s
, 15 s
or
20 s
, the delayed
switch-off feature is activatedVehicle submenu
Access the
VEHICLE
submenu via the
SETINGS
menu. Use the
VEHICLE
submenu
to make general vehicle settings. The fol-
lowing functions are available:
Setting station selection mode
Use the
PRESS BUTTON IN AUDIO MODE
function to select the manual or memory
station selection mode for the radio.
Move the selection marker with
theæ orç button to the VEHICLE
submenu.
Function
Page
Set station selection mode
(radio)
132
Set automatic locking
133

133 Controls in detail
Control system

Press buttonj ork repeatedly
until you see this message in the dis-
play:

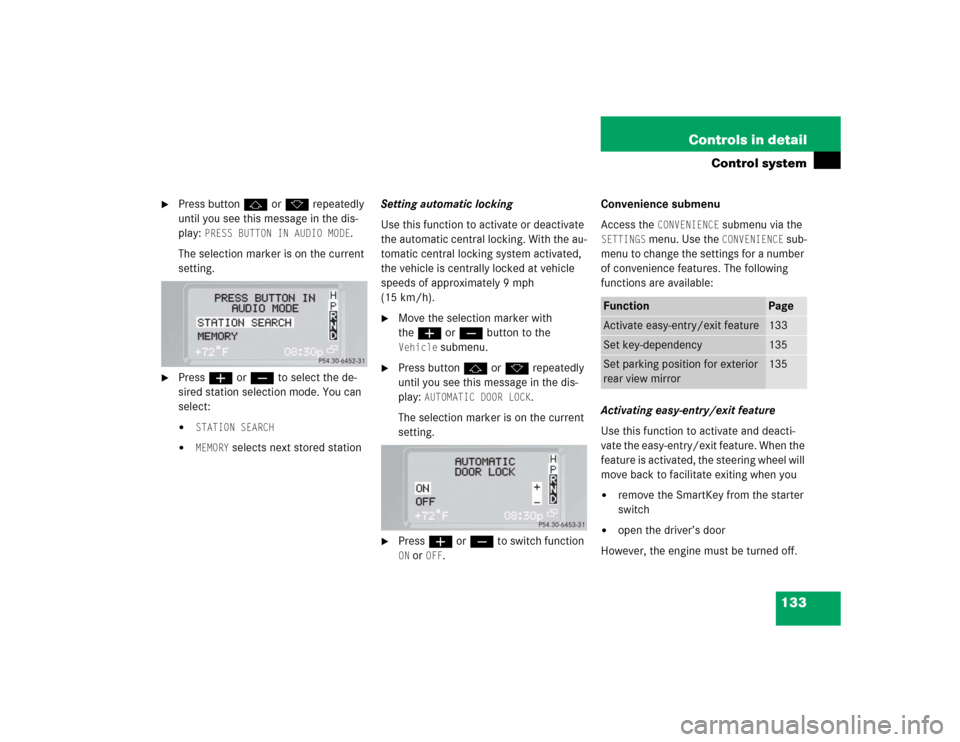

PRESS BUTTON IN AUDIO MODE
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired station selection mode. You can
select:

STATION SEARCH


MEMORY
selects next stored stationSetting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
theæ orç button to the Vehicle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Pressæ orç to switch function ON or
OFF
.Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel will
move back to facilitate exiting when you


remove the SmartKey from the starter
switch


open the driver’s door
However, the engine must be turned off.
Function
Page
Activate easy-entry/exit feature
133
Set key-dependency
135
Set parking position for exterior
rear view mirror
135

134 Controls in detailControl system
After entering the vehicle, the steering
wheel will move into the position stored in
memory when

the driver’s door is closed


you put the SmartKey in the starter
switch and


press the appropriate stored position
button on the memory switch
(page 103)

Move the selection marker with
theæ orç button to the
CONVE-
NIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

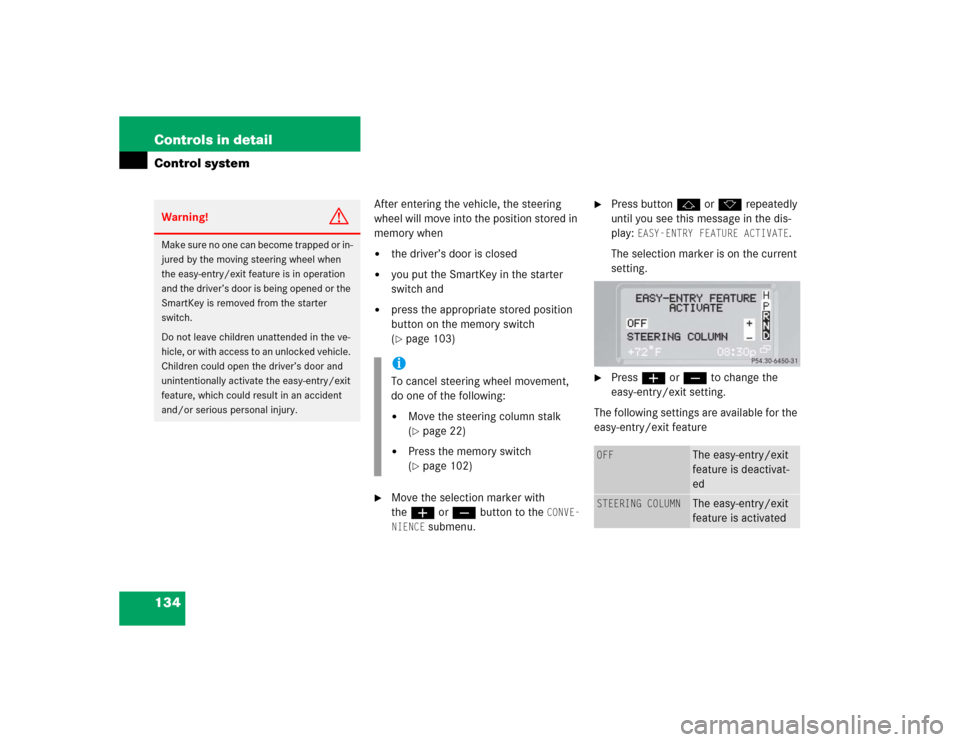

EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.

Pressæ orç to change the
easy-entry/exit setting.
The following settings are available for the
easy-entry/exit feature
Warning!
G
Make sure no one can become trapped or in-
jured by the moving steering wheel when
the easy-entry/exit feature is in operation
and the driver’s door is being opened or the
SmartKey is removed from the starter
switch.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel steering wheel movement,
do one of the following:

Move the steering column stalk
(page 22)


Press the memory switch
(page 102)
OFF
The easy-entry/exit
feature is deactivat-
ed
STEERING COLUMN
The easy-entry/exit
feature is activated

135 Controls in detail
Control system
Setting key-dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the exterior mirrors should be
stored separately for each SmartKey
(page 101).

Move the selection marker with
theæ orç button to the
CONVE-
NIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

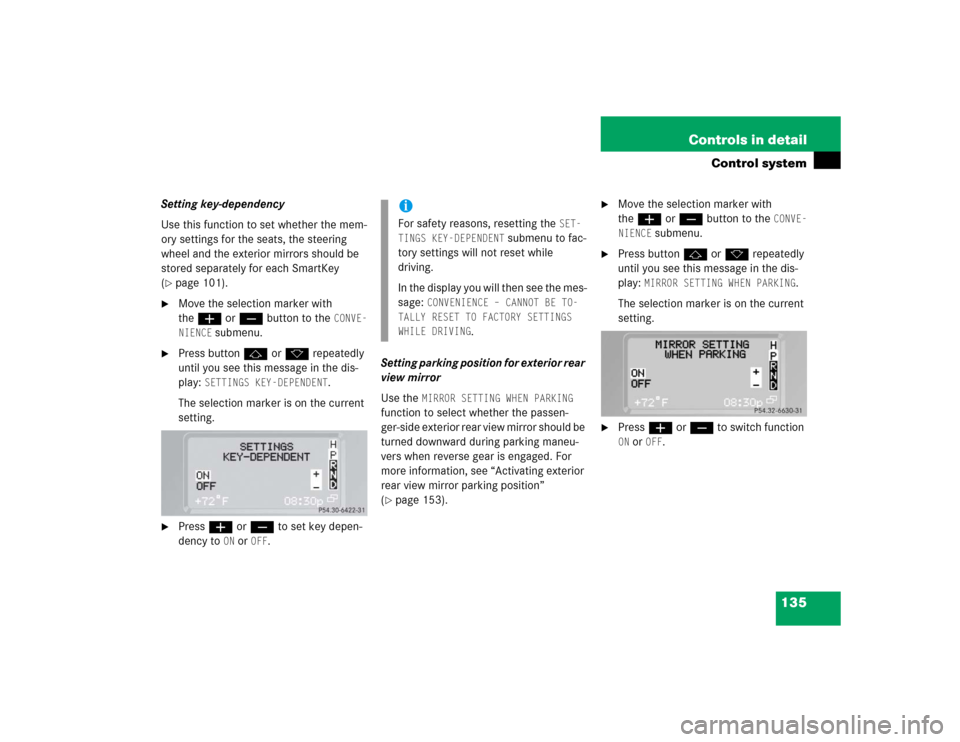

SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Pressæ orç to set key depen-
dency to
ON or
OFF
. Setting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers when reverse gear is engaged. For
more information, see “Activating exterior
rear view mirror parking position”
(
page 153).

Move the selection marker with
theæ orç button to the
CONVE-
NIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
MIRROR SETTING WHEN PARKING
.
The selection marker is on the current
setting.

Pressæ orç to switch function ON or
OFF
.
iFor safety reasons, resetting the
SET-
TINGS KEY-DEPENDENT
submenu to fac-
tory settings will not reset while
driving.
In the display you will then see the mes-
sage:
CONVENIENCE – CANNOT BE TO-
TALLY RESET TO FACTORY SETTINGS
WHILE DRIVING
.

136 Controls in detailControl systemTrip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Fuel consumption statistics after start

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the multi-
function display:

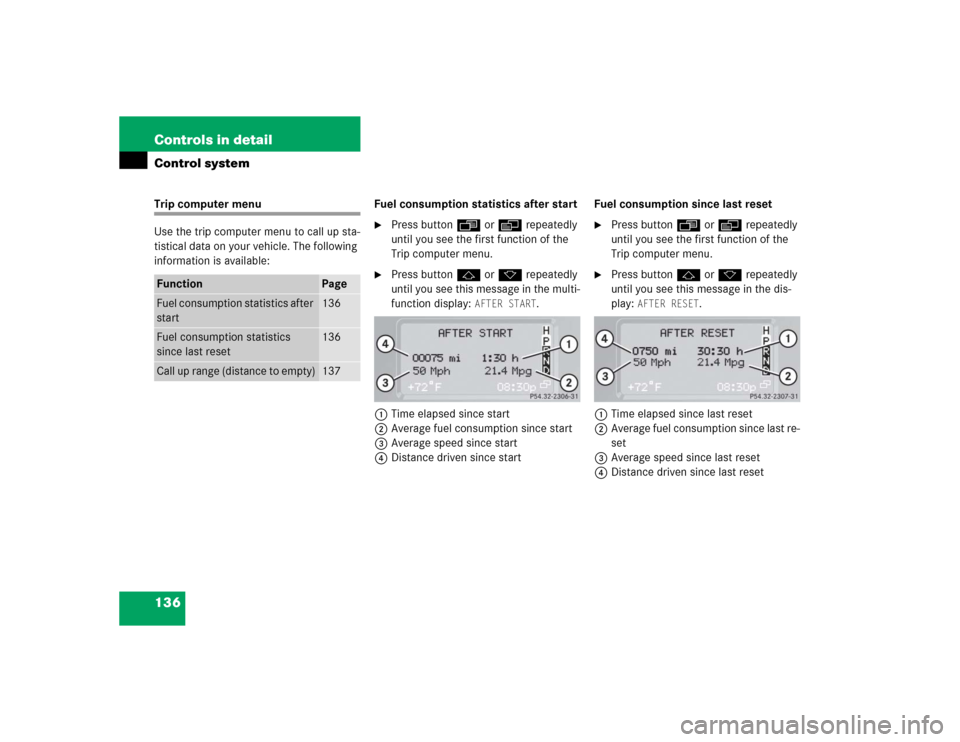

AFTER START
.
1Time elapsed since start
2Average fuel consumption since start
3Average speed since start
4Distance driven since startFuel consumption since last reset

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AFTER RESET
.
1Time elapsed since last reset
2Average fuel consumption since last re-
set
3Average speed since last reset
4Distance driven since last reset
Function
Page
Fuel consumption statistics after
start
136
Fuel consumption statistics
since last reset
136
Call up range (distance to empty)
137
