2004 MERCEDES-BENZ G55AMG Owner's Manual

145 Controls in detail
Transfer case
Transfer case
For more information on off-road driving,
see “Off-road driving” (
page 213).

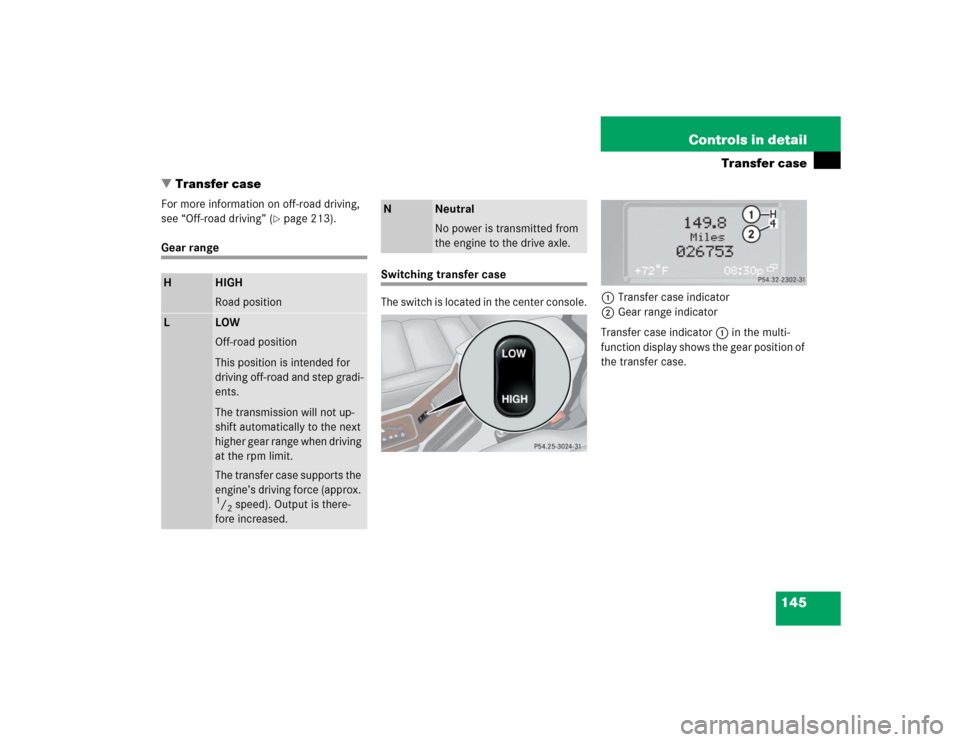

Gear range
Switching transfer case
The switch is located in the center console.1Transfer case indicator
2Gear range indicator
Transfer case indicator1 in the multi-
function display shows the gear position of
the transfer case.
H
HIGHRoad position
L
LOWOff-road position
This position is intended for
driving off-road and step gradi-
ents.
The transmission will not up-
shift automatically to the next
higher gear range when driving
at the rpm limit.The transfer case supports the
engine’s driving force (approx. 1/2speed). Output is there-
fore increased.
N
NeutralNo power is transmitted from
the engine to the drive axle.

146 Controls in detailTransfer caseSwitching from HIGH to LOW
Press upper half (“LOW”) of the trans-
fer case switch.
Once the shift is complete, gear
position
L is displayed in the transfer
case indicator.

Put gear selector in D.Switching from LOW to HIGH

Press lower half (“HIGH”) of the trans-
fer case switch.
Once the shift is complete, gear
position
H is displayed in the transfer
case indicator.

Put gear selector in D.Messages in the multifunction display
If a shift was not completed and the multi-
function display shows one of the following
messages:


TC SHIFT CONDITIONS NOT FULFILLEDThe shift did not take place. At least
one shift condition was not met.

Repeat the shift procedure.


TC IN NEUTRAL The shift did not take place. The trans-
fer case is in neutral. The gear
position
N is displayed in the transfer
case indicator1.

Repeat the shift procedure.
!The shift procedure can only be per-
formed when:

The engine is running.


The gear selector lever for the auto-
matic transmission is in positionN.


The vehicle is not at standstill.


The vehicle speed does not exceed
25 mph (40 km/h).
iIf the shift procedure does not take
place press upper half (“LOW”) of the
transfer case switch again.
!The shift procedure can only be per-
formed when:

The engine is running.


The gear selector lever for the auto-
matic transmission is in positionN.


The vehicle is not at standstill.


The vehicle speed does not exceed
40 mph (70 km/h).
iIf the shift procedure does not take
place press lower half (“HIGH”) of the
transfer case switch again.
Warning!
G
If TC is in neutral, transmission positionP
will not hold vehicle. The parking brake must
be applied to hold vehicle in place.

147 Controls in detail
Transfer case


TC SHIFT – CANCELLEDThe shift did not take place.

Repeat the shift procedure.


TRANSFER CASE – VISIT WORKSHOP!There may be a malfunction in the sys-
tem.

Repeat the shift procedure.

If the shift procedure still does not take
place, have the vehicle checked at your
authorized Mercedes-Benz Light Truck
Center as soon as possible.For more information, see “Practical hints”
section (
page 281).
iIf the SmartKey is in starter switch
position0 or1, an alarm will sound if
the transfer case is in positionN and
the driver’s door is opened.
Engage transfer case to gear position
HIGH or LOW.

148 Controls in detailDifferential locks
Differential locksFor more information on off-road driving,
see “Off-road driving” (
page 213).
Differential locks improve the vehicle’s
tractive power off-road. Switch on differen-
tial locks:


for off-road driving


to turn the ABS off during off-road driv-
ing


for driving through water


when driving on deep snow and icy or
fouled surfaces!Do not engage the front axle differen-
tial lock when driving around tight cor-
ners. This restricts steering ability.
!When driving off-road, apply only mod-
erate pressure to the accelerator pedal
if the differential locks are switched on.
When running on a (single-axle) dyna-
mometer – no matter how briefly – you
must:

raise the non-driven axle
or


disconnect its drive shaft
and


engage the transfer differential lock
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Never drive on pavement with differential
locks engaged.
Steering control will be strongly affected
with the differential locks activated.
The ABS, BAS and ESP are switched off au-
tomatically when the transfer case differen-
tial lock is activated.

149 Controls in detail
Differential locks
A few words about differentials and differential locks
When a vehicle negotiates a turn, wheels
on the outside of the curve must travel far-
ther and rotate faster than the inside
wheels. The differential, the operation of a
set of gears that allows the powered
wheels in a vehicle to turn at different
speeds, makes this essential function pos-
sible.
The drawback is that the differential also
sends most of the engine’s power to the
wheel with the least load or strain on it. For
example, if one of a vehicle’s powered
wheels sits on a patch of snow and spins
because there is no traction, all of the en-
gine’s power will go to that wheel because
the power will take the path of least resis-
tance. Meanwhile, the opposite wheel, sit-
ting on dry pavement where it could get
enough grip to start the vehicle moving,
sits idle because it receives no power.The Electronic Traction System (ETS) ad-
dresses this problem and provides for
good control and steering ability by auto-
matically slowing the slipping wheel and
thus increasing the power to the other
non-slipping drive wheels to get the vehicle
moving. The ESP and ETS in this vehicle
feature such intelligent limited-slip differ-
ential technology, ideally suited for
on-road and light off-road driving. Transfer
case position LOW (
page 145) also en-
hances off-road driving capabilities
(
page 213).
More extreme off-road conditions may call
for another solution, engaging a differen-
tial lock or preventing the differential from
operating altogether. As part of its stan-
dard equipment, this vehicle comes with
three differential locks: front, transfer case
(center) and rear. Each can be engaged
simply by pushing dashboard-mounted
buttons in sequential order (center, rear,
front) (
page 150). When the transfer
case (center) differential is locked, half of
the engine’s power is automatically distrib-
uted to the front wheels and half to the rear wheels. When the rear differential is
locked, power going to the rear wheels is
equally distributed, so that both rear
wheels turn at the same speed and torque.
When the front differential is locked, all
four wheels now turn with equal power and
torque. Please be aware that engaging the
differential locks will significantly reduce
the steering ability of the vehicle.
For your safety and the safety of others
and to prevent damage to the vehicle, the
differential locks must not be engaged
when driving on paved roads. It is impor-
tant to understand that during
on-road/paved driving, differentials are
absolutely necessary for providing the es-
sential control and steering ability of the
vehicle. The differential locks, therefore,
must not be engaged when driving on
paved roads and should only be used to
the extent necessary to negotiate off-road
conditions which cannot be handled by the
systems (automatic 4-ETS, the ESP, manu-
al switch position “LOW” of transfer case)
this vehicle comes equipped with.

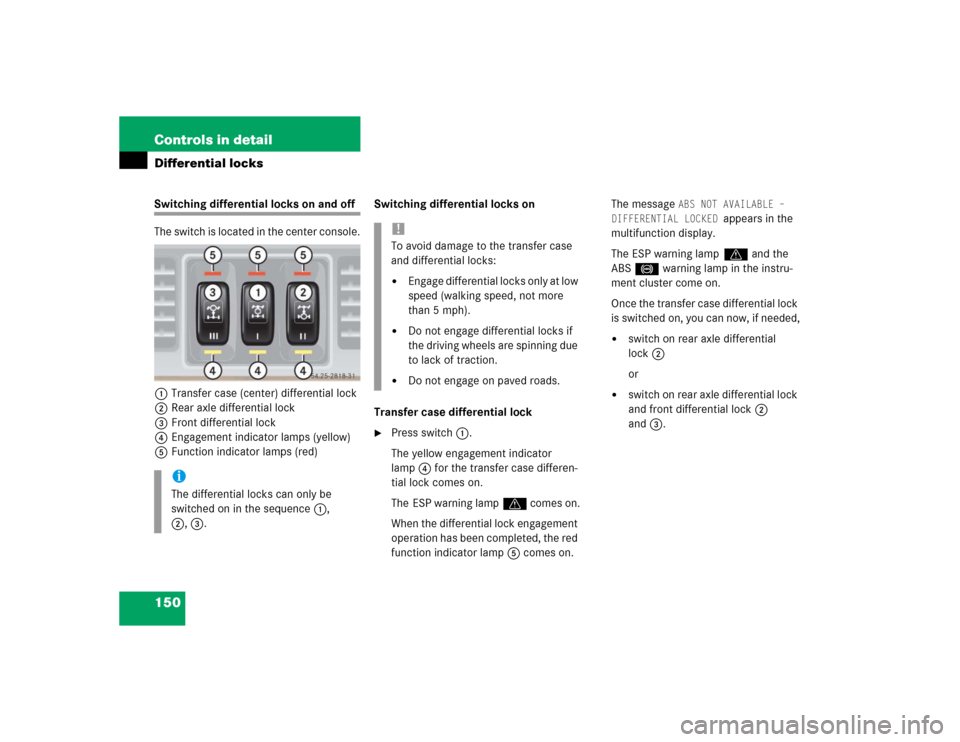

150 Controls in detailDifferential locksSwitching differential locks on and off
The switch is located in the center console.
1Transfer case (center) differential lock
2Rear axle differential lock
3Front differential lock
4Engagement indicator lamps (yellow)
5Function indicator lamps (red)Switching differential locks on
Transfer case differential lock

Press switch1.
The yellow engagement indicator
lamp4 for the transfer case differen-
tial lock comes on.
The ESP warning lampv comes on.
When the differential lock engagement
operation has been completed, the red
function indicator lamp5 comes on.The message
ABS NOT AVAILABLE –
DIFFERENTIAL LOCKED
appears in the
multifunction display.
The ESP warning lampv and the
ABS- warning lamp in the instru-
ment cluster come on.
Once the transfer case differential lock
is switched on, you can now, if needed,


switch on rear axle differential
lock2
or


switch on rear axle differential lock
and front differential lock2
and3.
iThe differential locks can only be
switched on in the sequence 1,
2,3.
!To avoid damage to the transfer case
and differential locks:

Engage differential locks only at low
speed (walking speed, not more
than 5 mph).


Do not engage differential locks if
the driving wheels are spinning due
to lack of traction.


Do not engage on paved roads.

151 Controls in detail
Differential locks
Rear axle differential lock
Press switch2.
The yellow engagement indicator
lamp4 comes on first, followed by the
red function indicator lamp5.
The rear axle differential lock is
switched on.
Front differential lock

Press switch 3.
The yellow engagement indicator
lamp4 comes on first, followed by the
red function indicator lamp5.
The front differential lock is switched
on. Switching differential locks off
There are two different methods to disen-
gage differential locks:


You can switch the differential locks off
in reverse order (3, 2,1).


To switch off all differential locks at the
same time:
Press switch1.
The yellow engagement indicator
lamps4 go out first. The red func-
tion indicator lamps5 go out
when the switching process has
been carried out in the differential.To activate the ESP, BAS and ABS systems,
drive again for three seconds using a con-
stant driving style.
All messages in the multifunction display
disappear. The ESP warning lampv
and the ABS- warning lamp in the in-
strument cluster go out.
iIf the function lamps do not go out
when the differential locks are disen-
gaged, bring vehicle to a stop and then
continue driving. Changing the vehicle
load can help to disengage locks. Warning!
G
Always remember to disengage the differen-
tial locks when returning to drive on paved
roads, see “A few words about differentials
and differential locks” (
page 149).

152 Controls in detailGood visibility
Good visibilityFor information on windshield wipers, see
“Windshield wipers” (
page 47) and for
setting the exterior rear view mirrors, see
“Exterior rear view mirror” (
page 38).
Rear view mirror
Automatic antiglare rear view mirrors
The reflection brightness of the exterior
rear view mirrors and the interior rear view
mirror will respond automatically to glare
when

the ignition is switched on, and


incoming light from headlamps falls on
the sensor in the interior rear view mir-
ror
The interior rear view mirror will not react if


reverse gear is engaged


the interior lighting is turned on
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirrors do not react, for example,
if the cargo compartment is fully loaded.
Glare can endanger you and others.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.
Warning!
G
In the case of an accident, liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or the respiratory sys-
tem. In case it does, immediately flush af-
fected area with water, and seek medical
help if necessary.
