2004 MERCEDES-BENZ G55AMG CD player

119 Controls in detail
Control system

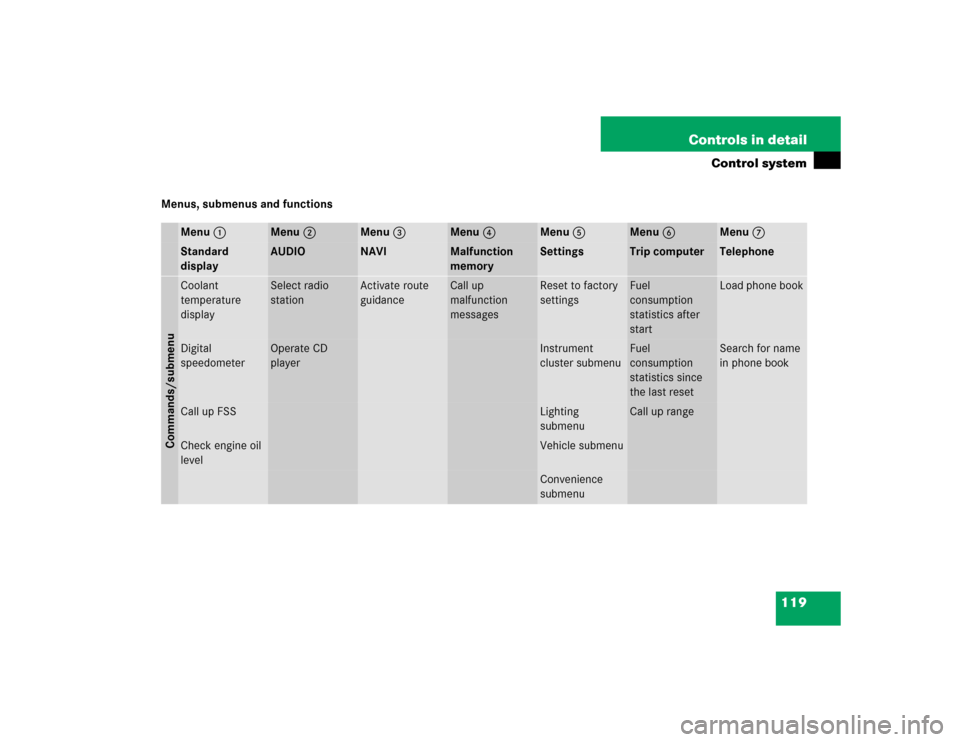

Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Standard
display
AUDIO
NAVI
Malfunction
memory
Settings
Trip computer
Telephone
Commands/submenuCoolant
temperature
display
Select radio
station
Activate route
guidance
Call up
malfunction
messages
Reset to factory
settings
Fuel
consumption
statistics after
start
Load phone book
Digital
speedometer
Operate CD
player
Instrument
cluster submenu
Fuel
consumption
statistics since
the last reset
Search for name
in phone book
Call up FSS
Lighting
submenu
Call up range
Check engine oil
level
Vehicle submenuConvenience
submenu

120 Controls in detailControl system
Standard display menu
You can select the functions in the stan-
dard display menu with buttonk
orj.
The following functions are available:
Display digital speedometer
Press buttonj twice.
The current vehicle speed is shown in
the multifunction display.
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
is shown in the
display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up coolant temperature
display
112
Call up digital speedometer
120
Call up FSS
242
Check engine oil level
229
Function
Page
Select radio station
121
Operate CD player
121

121 Controls in detail
Control system
Select radio station
Turn on the radio. Refer to separate op-
erating instructions.

Press buttonè orÿ repeatedly
until you see the currently tuned sta-
tion in the display.
1Station
2Waveband setting
3Setting for station selection using
memory

Press buttonk orj repeatedly
until the desired station is found.
The type of search depends on the set-
ting for the station tuning:

The next stored station is selected
(SP)


Station searchOperate the CD player

Turn on the radio and select the CD
player. Refer to separate operating in-
structions.

Press buttonè orÿ repeatedly
until the settings for the CD currently
being played are shown in the display.
1Current track
2Current CD (for CD changer)

Press buttonk orj repeatedly
until the desired track is selected.
iYou can only store new stations by us-
ing the corresponding feature on the
radio. Refer to separate operating in-
structions.
You can also operate the radio in the
usual manner.
iTo select a CD from the magazine,
press a number on the COMAND sys-
tem key pad located in the center dash-
board.

345 Technical terms
GPS
(G
lobal P
ositioning S
ystem)
Satellite-based system for relaying
geographic location information to and
from vehicles equipped with special re-
ceivers. Employs CD digital maps for
navigation.
Instrument cluster
The displays and indicator/warning
lamps in the driver’s field of vision, in-
cluding the tachometer, speedometer,
engine temperature and fuel gauge.
Kickdown
Depressing the accelerator past the
point of resistance shifts the transmis-
sion down to the lowest possible gear.
This very quickly accelerates the vehi-
cle and should not be used for normal
acceleration needs.
Line of fall
The direct line that an object moves
downhill when influenced by the force
of gravity alone. Lock button
Button on the door which indicates
whether the door is locked or un-
locked. Pushing the lock button down
on an individual door from inside will
lock that door.
Memory function*
Used to store three individual seat,
steering wheel and mirror positions for
each key.
Menu
The control system displays are ar-
ranged in menus. Each menu contains
a number of commands for particular
systems. In the Audio menu, for exam-
ple, you will find the commands
Select
radio station
or Operate CD player
.
Using commands, you can directly
change the settings for your vehicle.MON
(M
otor O
ctane N
umber)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as
ANTI-KNOCK INDEX.
Multifunction display
A display field in the instrument cluster
used to present information provided
by the control system.
Overspeed range
Engine speeds within the red marking
of the tachometer dial. Avoid this en-
gine speed range, as it may result in se-
rious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.

352 IndexCargo compartment
Tailgate 89, 90
Tie-down rings 182
Cargo compartment cover 175
Installing 176
Removing 176
Cargo tie-down rings 182
Catalytic converter 222
CD changer 284
CD player
Operating 121
Center console 27
AIRBAG OFF indicator lamp 259
Lower part 28
Upper part 27
Centigrade
Setting temperature units 127
Central locking
From inside 92
Switch 92Switching on/off (control
system) 133
Unlocking from inside 92
Certification label 326
Changing
Batteries (SmartKey) 288
Key setting 133
Charging
Vehicle battery 311
CHECK ENGINE malfunction indicator
lamp 256
Checking
Coolant level 225, 232
Oil level 226, 228
Checklist
Off-road driving 215
Child safety 65
Infant and child restraint systems 56,
62, 66
LATCH child seat anchors 70Child safety switch see Blocking of rear
door window operation
Cigarette lighter 188
Cleaning
Cup holders 248
Gear selector lever 248
Hard plastic trim items 248
Headlamps 153
Headliner 248
Illuminated door sill panels 249
Instrument cluster 248
Leather upholstery 249
Light alloy wheels 248
MB Tex upholstery 249
Plastic and rubber parts 249
Rear Parking Assist sensors* 247
Seat belts 248
Steering wheel 248
Windows 247
Windshield 48
Wiper blades 247
Wood trims 249

363 Index
Oil
Adding 231
Consumption 228
Dipstick 228
Oil dipstick 232
Viscosity 344
Oil level
Checking 226
One-touch gearshifting 141
Canceling gear range limit 141
Downshifting 141
Upshifting 141
Opening
Ashtray 186
Doors from the inside 89
Fuel filler flap 224
Fuel filler flap manually 290
Glove box 183
Hood 227
Side windows 164
Sliding/pop-up roof 166, 292Sliding/pop-up roof in an
emergency 292
Sliding/pop-up roof with
SmartKey 167
Tailgate 89, 90
Windows 164
Windows with SmartKey 165
Operating
CD player 121
COMAND see separate operating in-
structions
Navigation system 122
Radio 121
Radio transmitters 221
Telephone 137
Operator’s Manual 10
Ornamental moldings 246
Outside temperature indicator 114
Overdue service 242
Overhead control panel 29
Overspeed range 345P
Paintwork 245
Panic alarm 73
Panic button on SmartKey 73
Parcel net
In front passenger footwell 186
Parking 51, 209
Parking brake 44, 51
Engaging 51
Message in display 267
Releasing 44
Parking lamp, front
Replacing bulbs 297
Parking lamps
Replacing bulbs 295, 296
Switching on 104
Parking position
Exterior rear view mirrors 103, 135,
153
Parktronic see Rear Parking Assist*
Partition net* 178
Installing behind front seats 179
Installing behind rear seat bench 178
Removing 180
Parts see Spare parts service
